exhaust pipe

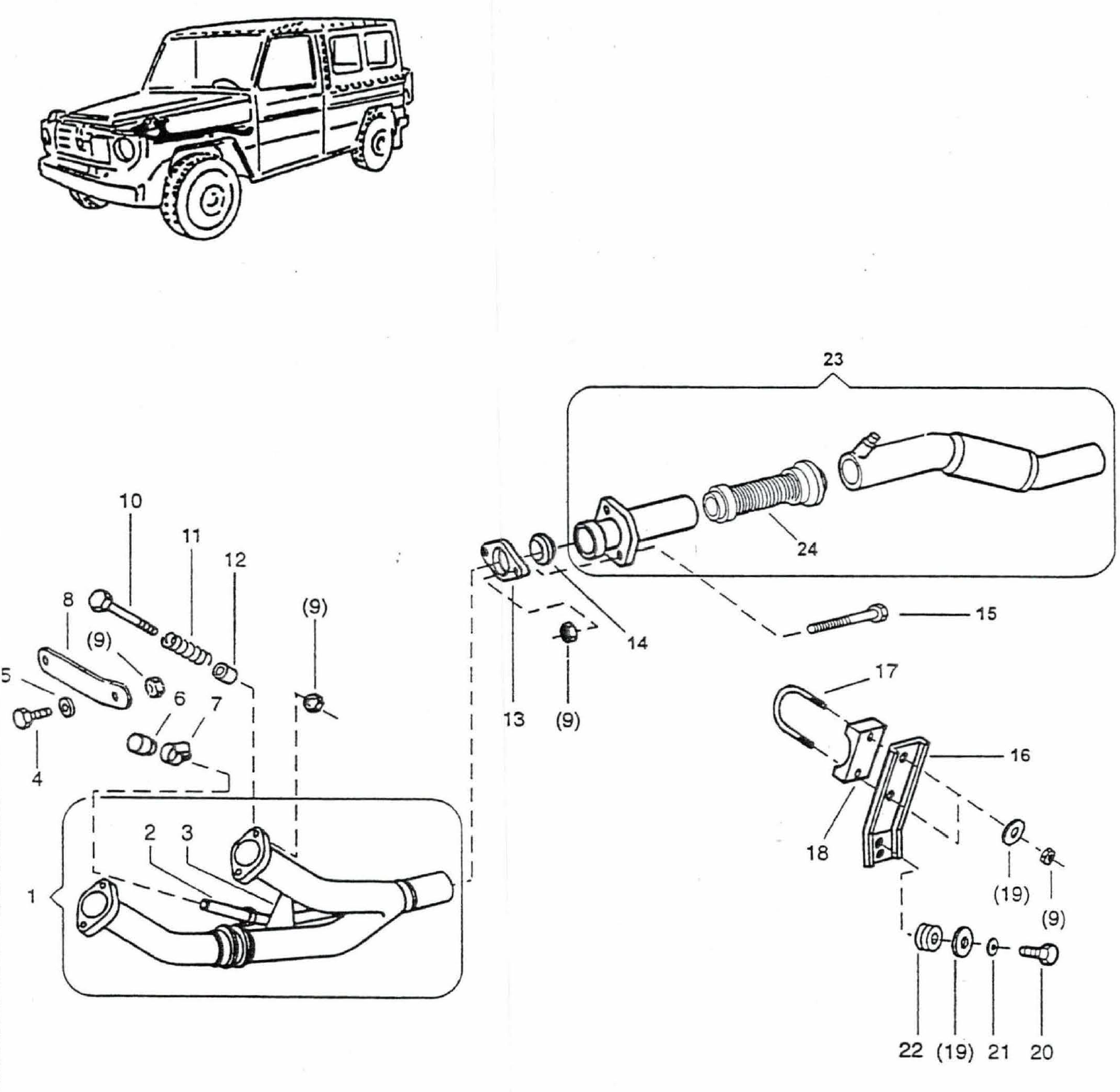

Product overview by image number (exploded view)

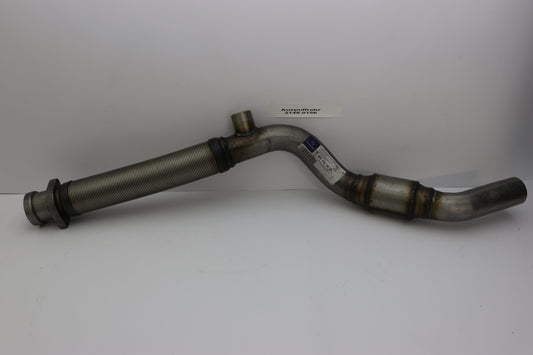

1. EXHAUST PIPE
2. TEST TUBE

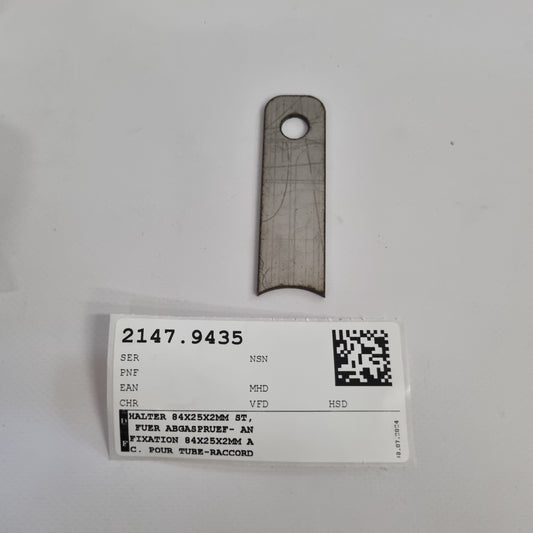

3. HOLDER 84X25X2MM ST / FOR EXHAUST GAS TEST
4. HEXAGON SCREW M8X20 ISO 4017
5. WASHER A d8.4/16X1.6MM DIN 125

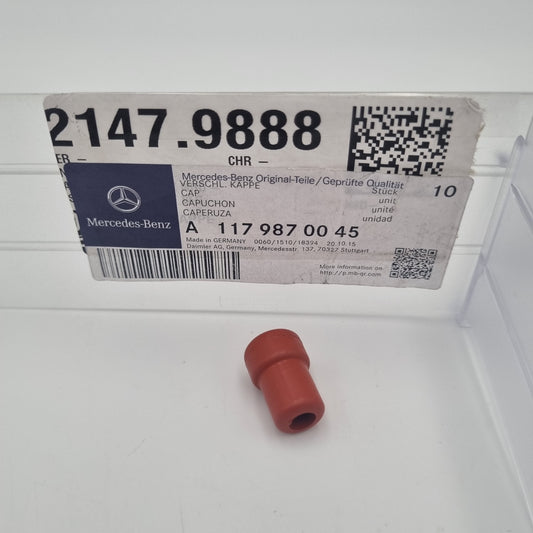

6. CAP
7. HOSE CLAMP NORMA FOR d21MM

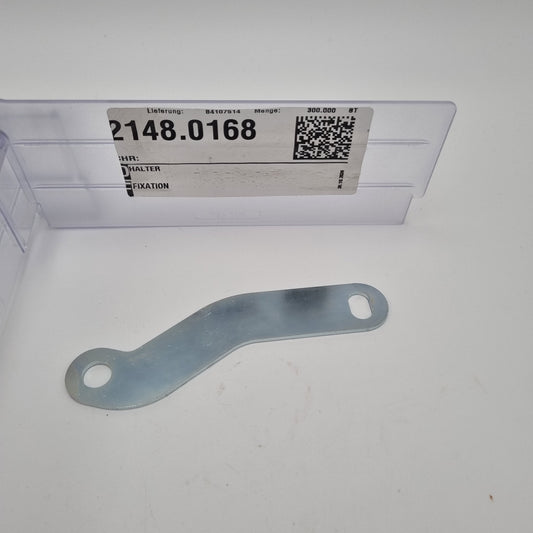

8. HOLDER
9. LOCK NUT THERMAG SSN 440 M8
10. HEXAGON SCREW M8X100/22 ISO 4014
11. FEATHER

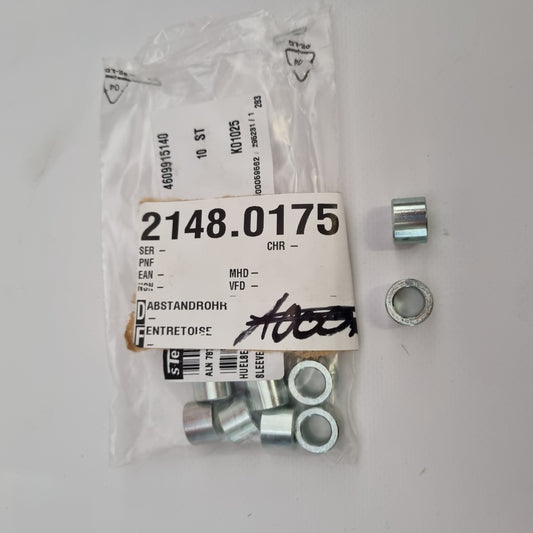

12. SPACER TUBE
13. FLANGE
14. SEALING RING
15. HEXAGON SCREW M8X55/22 ISO 4014

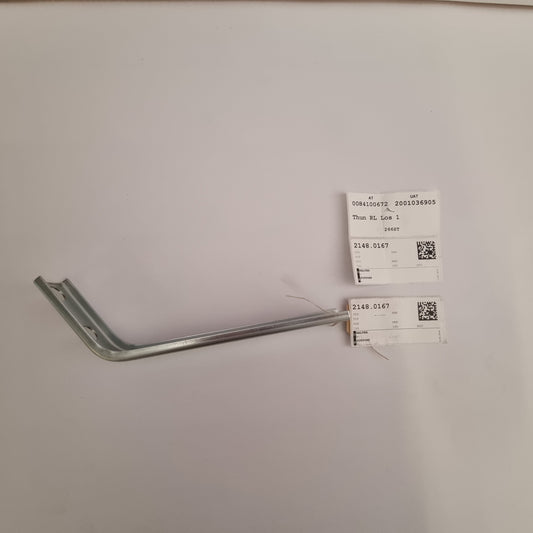

16. HOLDER

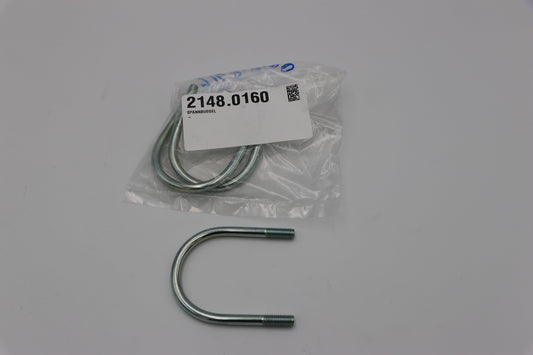

17. Clamping bracket
18. Clamping piece
19. WASHER R d9/28X3MM DIN 440
20. HEXAGON SCREW M8X25 ISO 4017
21. SPRING WASHER B d8MM DIN 137
22. Grommet

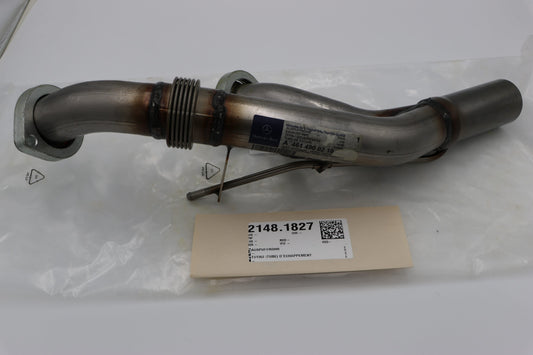

23. EXHAUST PIPE
24. Exhaust pipe corrugated 400 mm

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
