Inner axle drive (differential gear)

Product overview by image number (exploded view)

1. DIFFERENTIAL / COMP.
2. PRESSURE WASHER 1.3MM

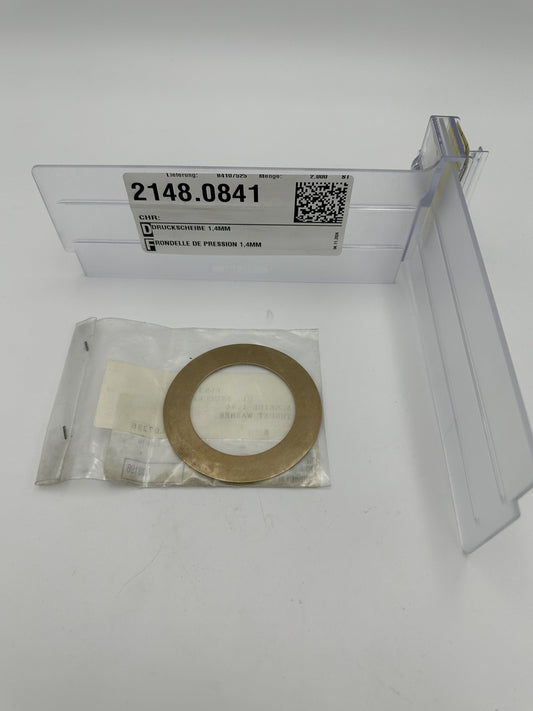

2. PRESSURE WASHER 1.4MM
2. PRESSURE WASHER 1.5MM

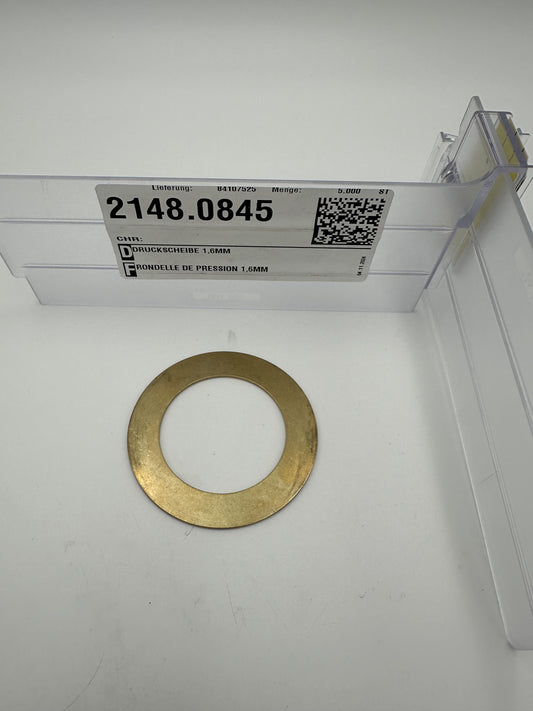

2. PRESSURE WASHER 1.6MM
2. PRESSURE WASHER 1.7MM
2. PRESSURE WASHER 1.8MM

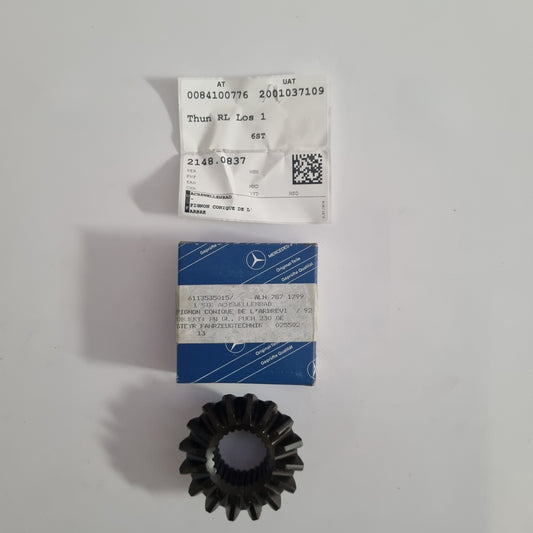

3. AXLE SHAFT GEAR
4. BALANCE BEVEL GEAR
5. Ball washer (support washer) / plastic

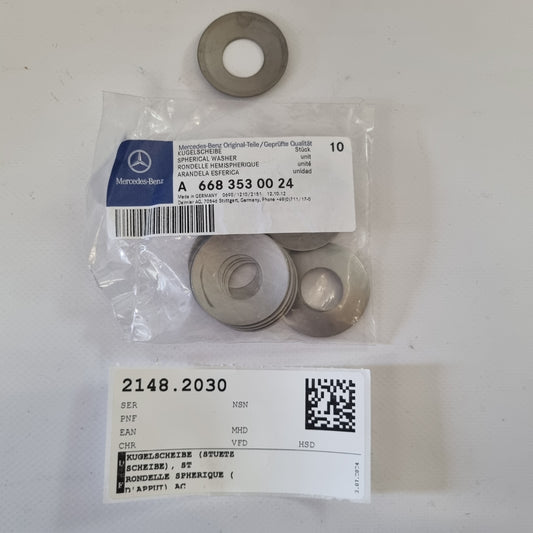

5. Ball washer (support washer) / ST
6. BALANCING STAR
7. HEXAGON SCREW M8X65/22 ISO 4014
8. SPACER 5.88MM
8. SPACER 4.94MM
8. SPACER 4.9MM
8. SPACER 4.98MM
8. SPACER 5MM
8. SPACER 5.04MM
8. SPACER 5.08MM
8. SPACER 5.12MM
8. SPACER 5.16MM
8. SPACER 5.2MM
8. SPACER 5.24MM
8. SPACER 5.28MM
8. SPACER 5.32MM
8. SPACER 5.36MM
8. SPACER 5.4MM
8. SPACER 5.44MM
8. SPACER 5.48MM
8. SPACER 5.52MM
8. SPACER 5.56MM
8. SPACER WASHER 5.6MM
8. SPACER 5.64MM
8. SPACER WASHER 5.68MM
8. SPACER 5.36MM
8. SPACER 5.72MM
8. SPACER 5.76MM
8. SPACER 5.8MM
8. SPACER 5.84MM
8. SPACER 5.92MM
8. SPACER 5.96MM
8. SPACER 6MM
8. SPACER 6.04MM
8. SPACER 6.08MM
8. SPACER WASHER 6.12MM
8. SPACER WASHER 6.16MM
8. SPACER WASHER 6.2MM
8. SPACER WASHER 6.24MM
8. SPACER 6.28MM
8. SPACER WASHER 6.32MM
8. SPACER WASHER 6.36MM
9. TAPERED ROLLER BEARING TIMKEN LM 806649+806610
10. HEXAGON SCREW
11. O-RING CFW SIMRIT OR 26-3
12. TAPERED ROLLER BEARING INNER
13. SPACER BOX
14. TAPERED ROLLER BEARING TIMKEN M 86649+M 86610
15. SHAFT SEAL d40/70X13/20MM
16. SHAFT SEAL d40/70X13/20MM
17. MUDGUARD
18. FLANGE d100MM
19. NUT 15MM HIGH
19. NUT 21MM HIGH

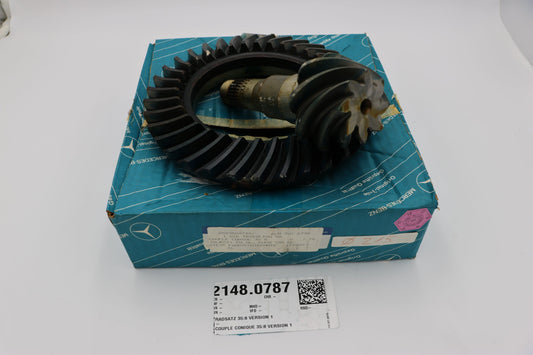

20. WHEEL SET 35:8 VERSION 1

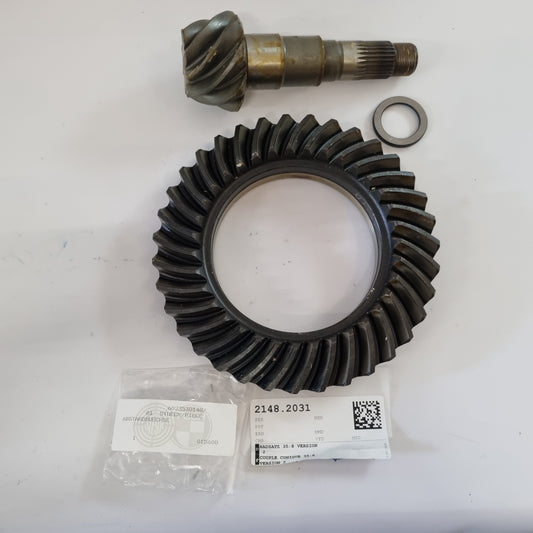

20. WHEEL SET 35:8 VERSION 3
20. WHEEL SET 35:8 VERSION 2

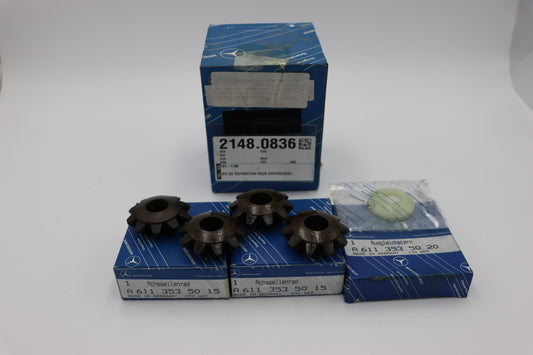

21. AXLE DRIVE REPAIR KIT

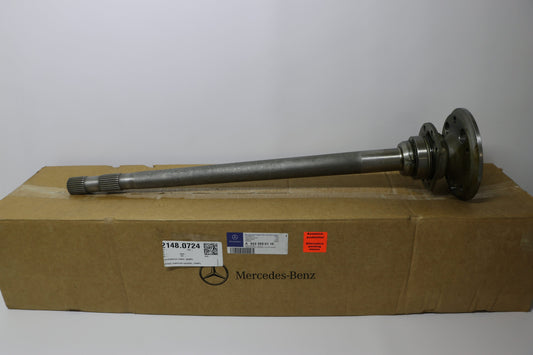

22. AXLE SHAFT RIGHT / COMP.
22. AXLE SHAFT LEFT / COMP.
23. Left-handed nut

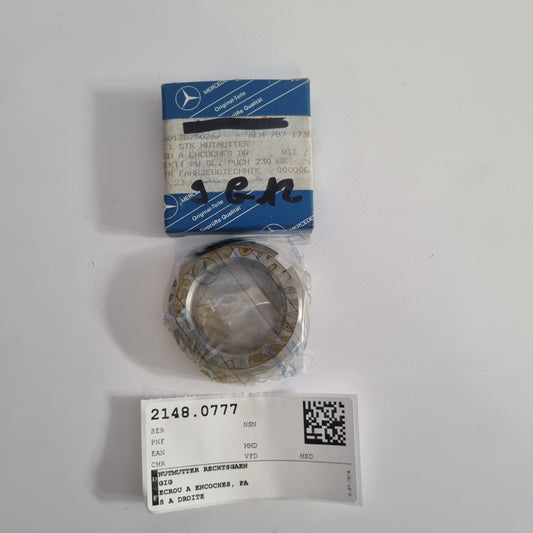

23. RIGHT-HAND LOCK NUT

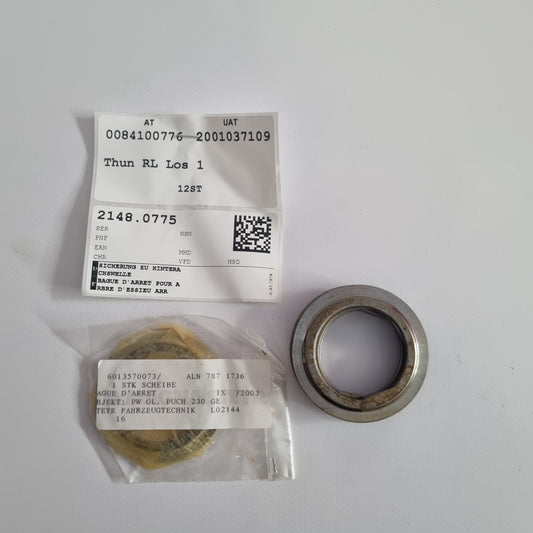

24. SECURITY
25. TAPERED ROLLER BEARINGS
25. TAPERED ROLLER BEARINGS
26. SEALING RING

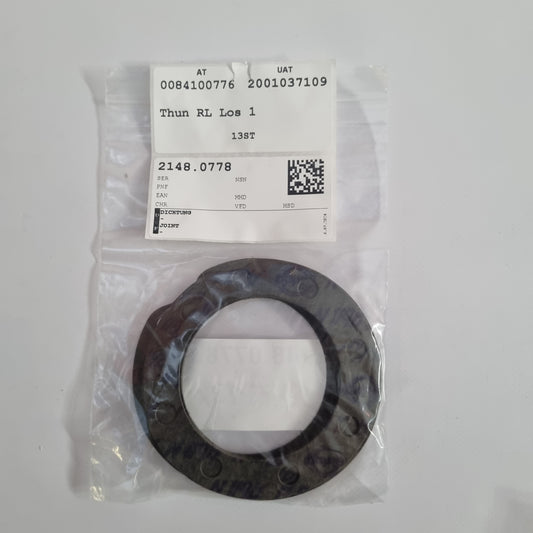

27. SEAL

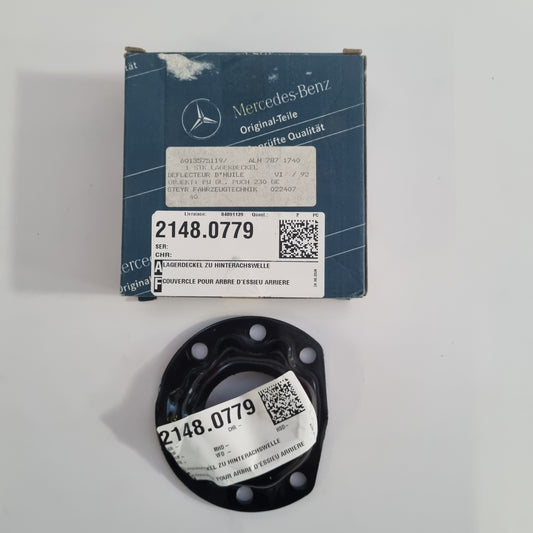

28. BEARING CAP

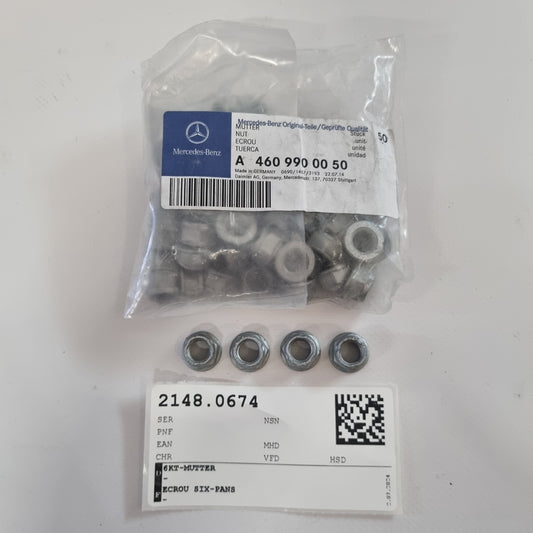

29. HEXAGON NUT
30. AXLE SHAFT REPAIR KIT
30. AXLE SHAFT REPAIR KIT WITH BEARING
31. RING
32. SHAFT SEAL d40/70X13/20MM

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
