Alternator

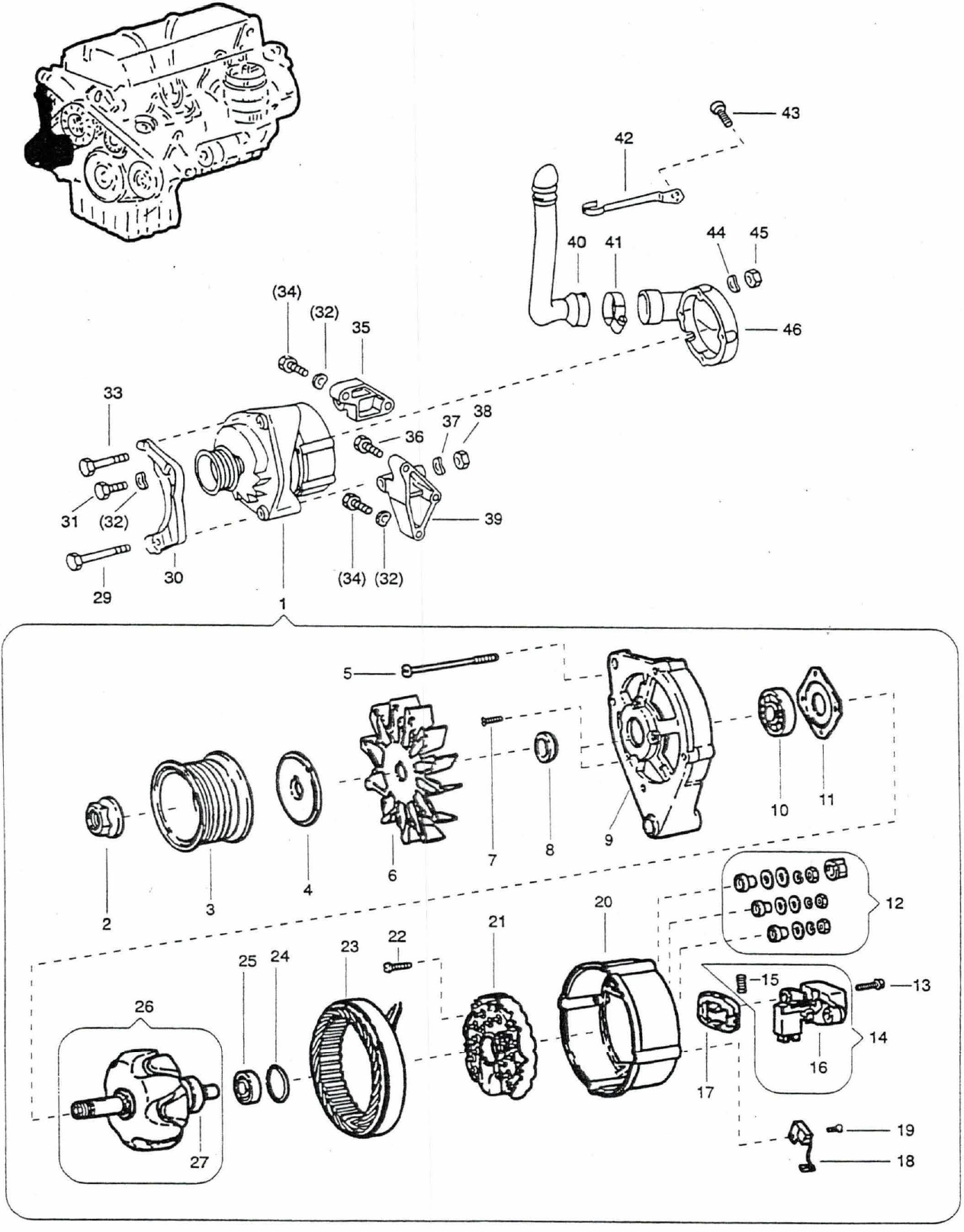

Product overview by image number (exploded view)

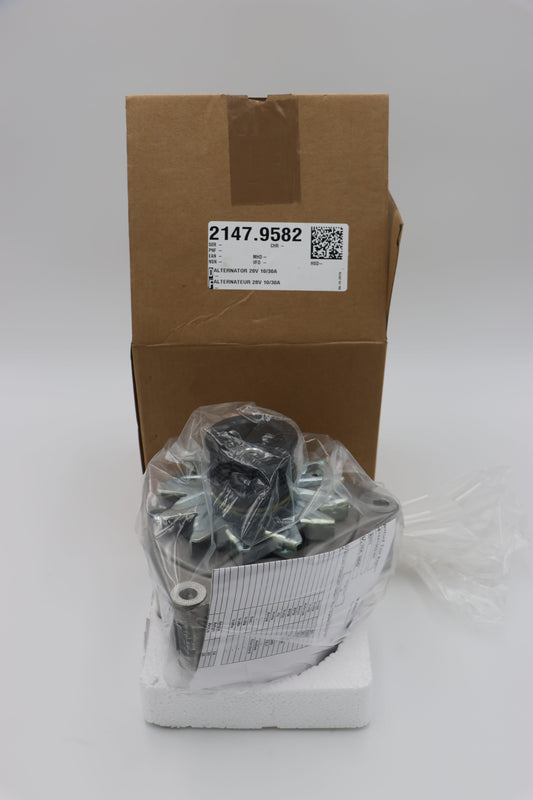

1. Alternator 28V 10/30A

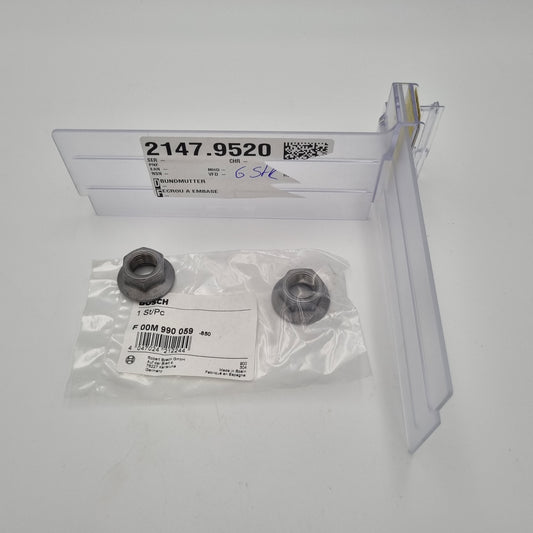

2. Collar nut

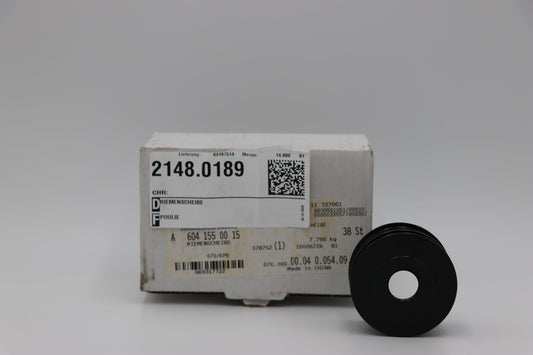

3. PULLEY

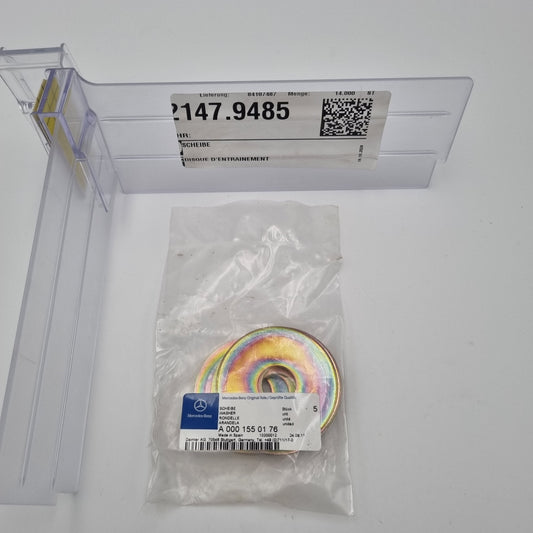

4. DISC

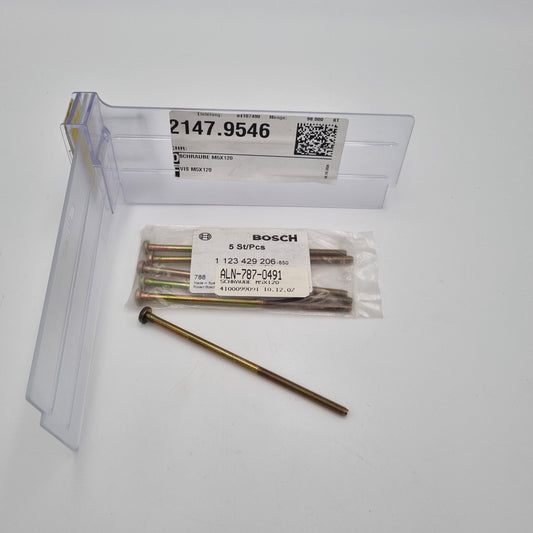

5. SCREW M5X120

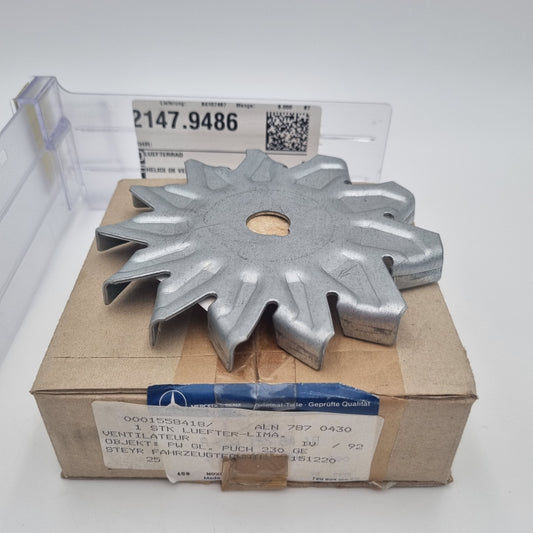

6. FAN WHEEL AL
6. FAN

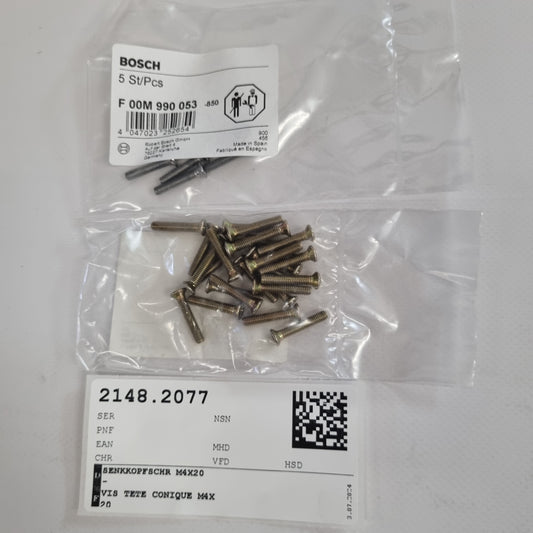

7. COUNTERSUNK SCREW M4X20
8. SPACER RING
9. DRIVE BEARING

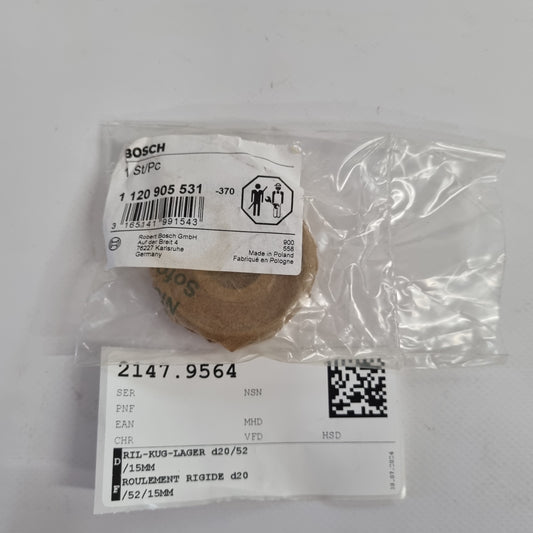

10. Deep groove ball bearing d20/52/15mm
11. COVER PLATE

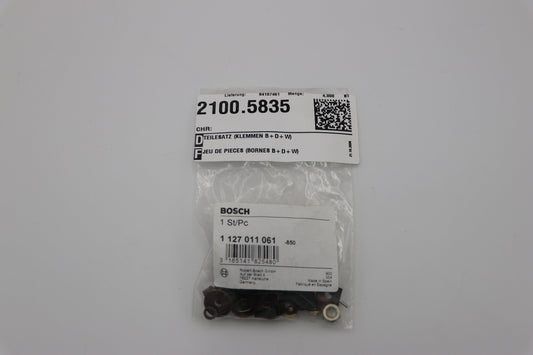

12. PARTS SET (TERMINALS B+D+W)
13. COMBINATION SCREW

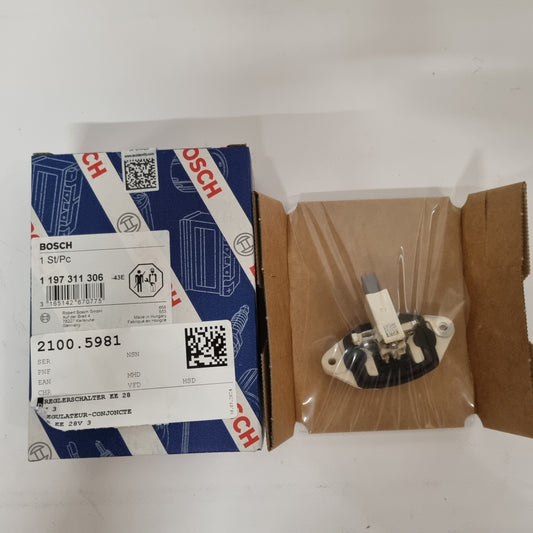

14. REGULATOR SWITCH EE 28V 3

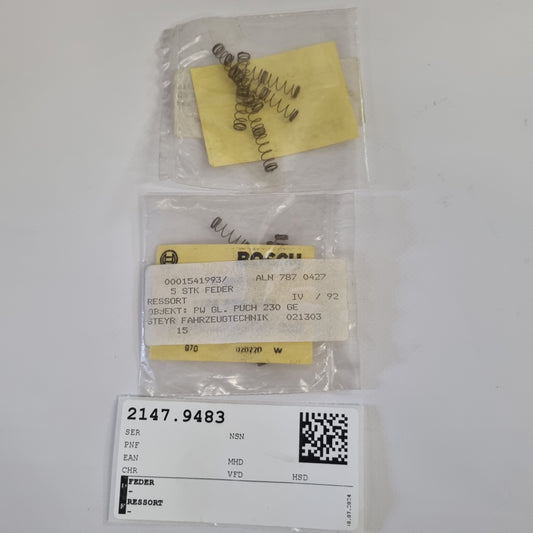

15. COMPRESSION SPRING
15. FEATHER
16. CARBON BRUSH SET

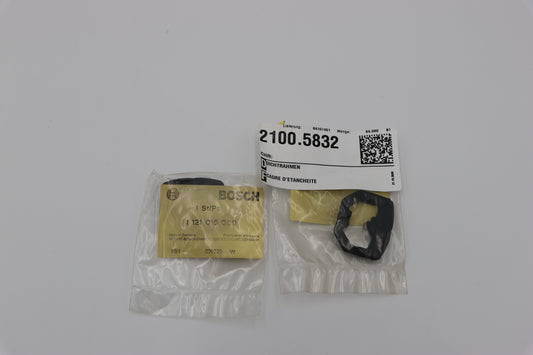

17. SEALING FRAME
18. Suppression capacitor
19. Phillips head cylinder head screw
20. Slip ring bearing

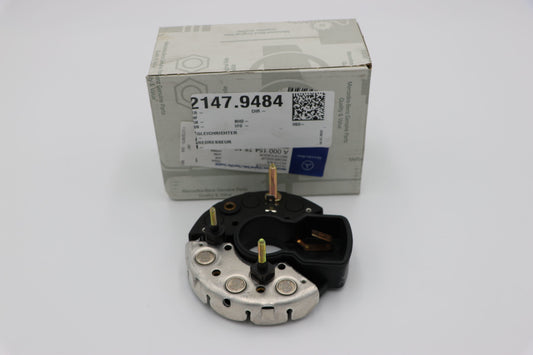

21. RECTIFIER
22. COMBINATION SCREW M4
22. COMBINATION SCREW M4X25 4.8

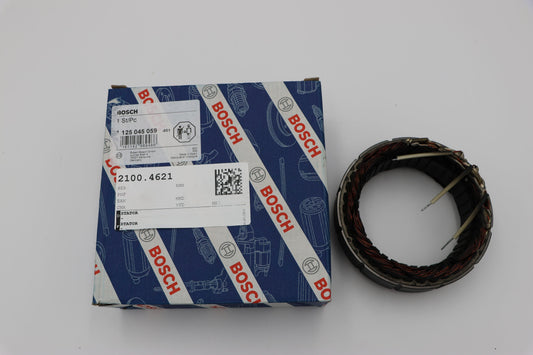

23. STATOR
24. O-RING
25. Deep groove ball bearing d12/32x14mm
25. Deep Groove Ball Bearing 62201 2RS d12/32X14MM
25. Deep groove ball bearing d12/32x14mm
26. RUNNER
27. Slip ring
29. HEXAGON SCREW M12X125/30 8.8 VZN

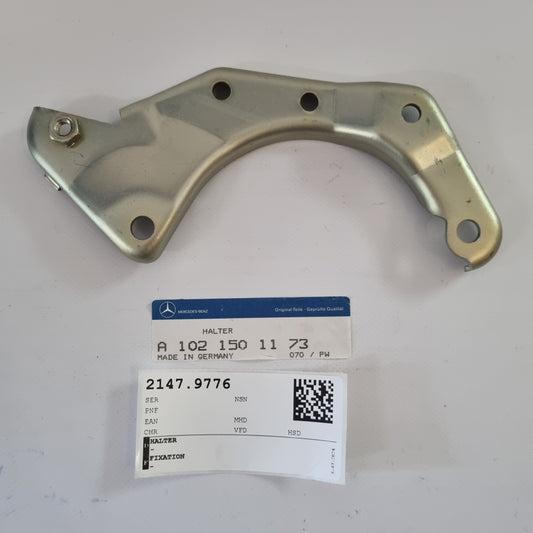

30. HOLDER
31. HEXAGON SCREW M8X35 ISO 4017
31. HEXAGON SCREW M8X35 ISO 4017
32. SPRING WASHER B d8MM DIN 137
33. HEXAGON SCREW M10X80/26 DIN 931
34. HEXAGON SCREW M8X35 ISO 4017

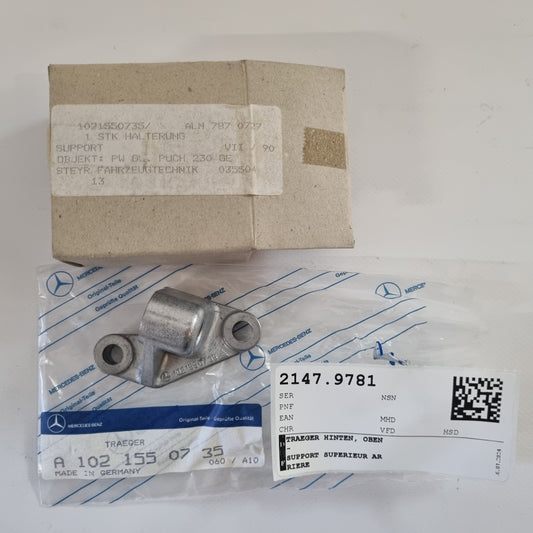

35. REAR / TOP CARRIER
36. HEXAGON SCREW M8X70/22 ISO 4014
37. SPRING WASHER B d10MM DIN 137
38. HEXAGON NUT M10 DIN 934

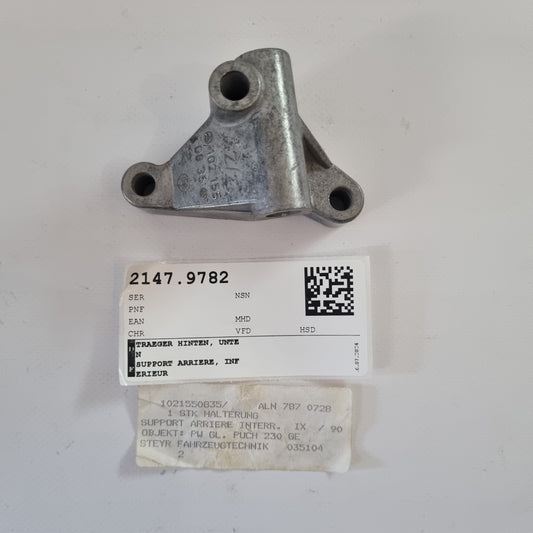

39. REAR / LOWER CARRIER

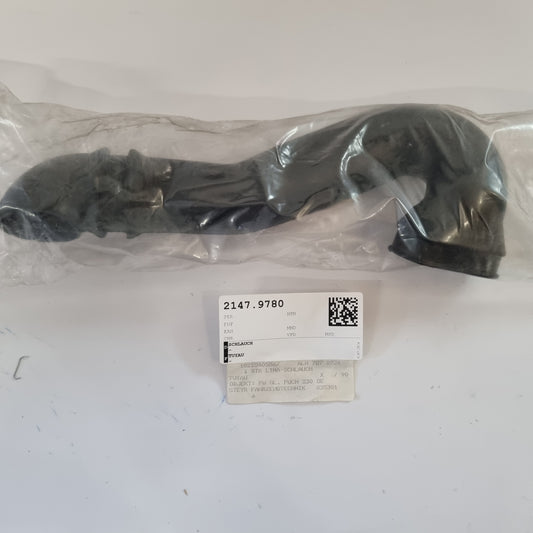

40. HOSE
41. HOSE CLAMP FOR d50-70MM 13MM WIDE

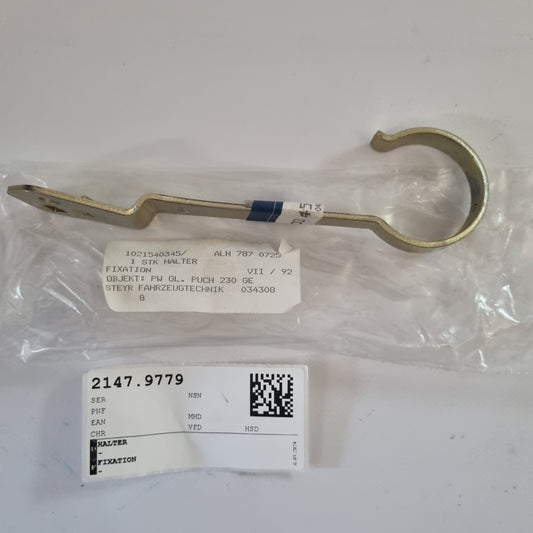

42. HOLDER
43. Cylinder head screw with hexagon socket
44. SPRING WASHER B d5MM DIN 137
45. HEXAGON NUT M5 ISO 4032

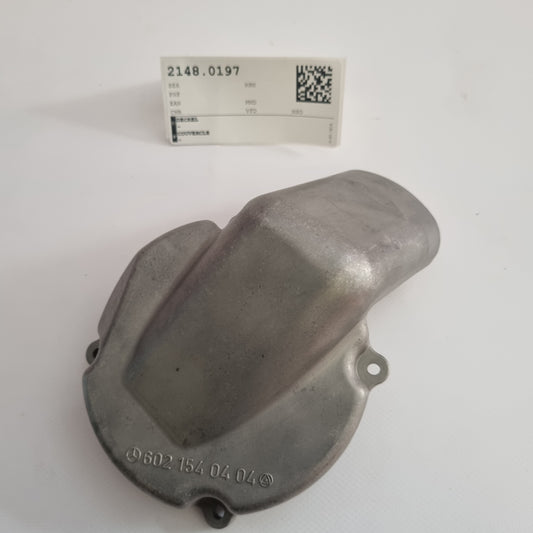

46. ​​LID

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
