trailer hitch

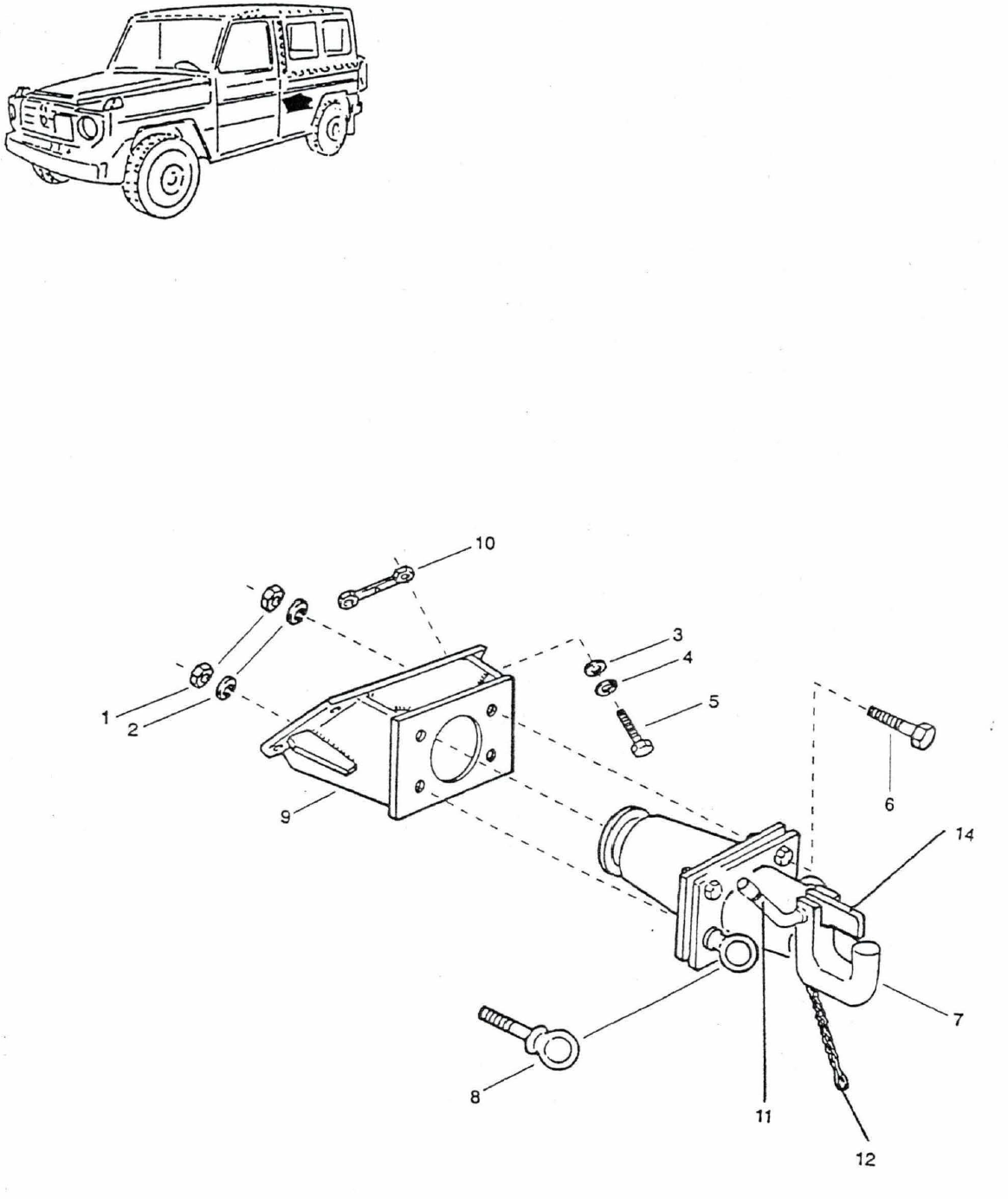

Product overview by image number (exploded view)

1. HEXAGON NUT M12X1.5 DIN 934
2. SPRING RING A d12MM DIN 127 FD ST PROM
3. Washer d15/24x2mm DIN 433

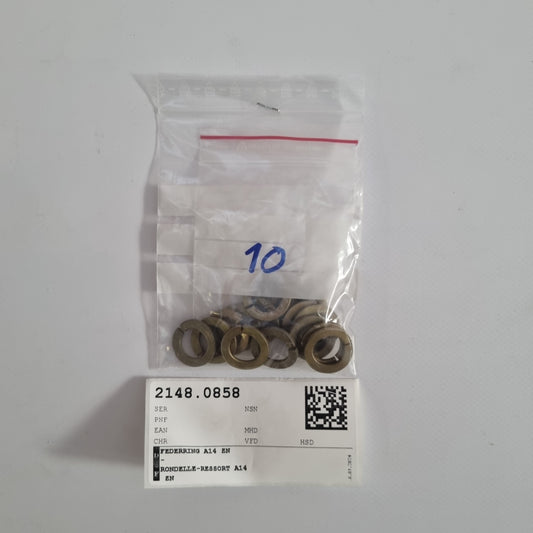

4. SPRING RING A14 ZN
5. HEXAGON SCREW M14X1.5X40 DIN 961
6. HEXAGON SCREW M12X50/30 DIN 931
7. TOW HOOK TYPE 10 / COMPLETE
7. Towing hook
8. EYEBOLT d60/32X112MM THREAD M12X28
8. EYEBOLT M12X50
9. HOLDER
10. PLATE
11. PLUG-IN LOCK d22/15MM
12. CHAIN ​​200X3MM / COMPLETE
13. REPAIR KIT FOR PLUG-IN LOCK
14. Jack 90x40x12mm

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
