starter

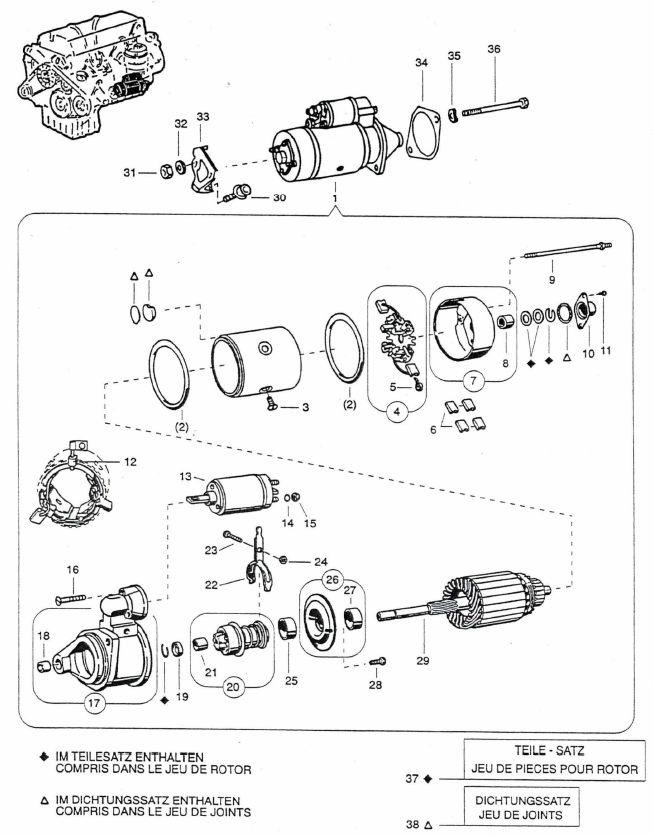

Product overview by image number (exploded view)

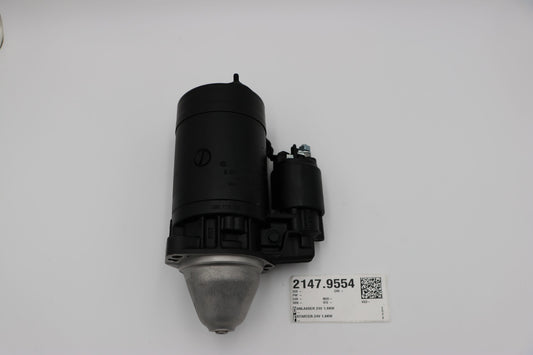

1. STARTER 24V 1.6KW

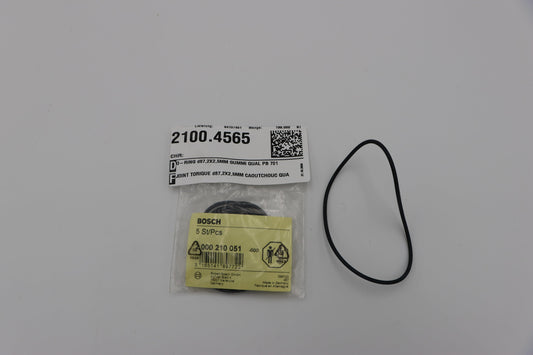

2. O-RING d87.2X2.5MM RUBBER QUAL PB 701
3. COUNTERSUNK SCREW 90 DEGREE M10X16 DIN 963
4. Brush holder
5. SPRING

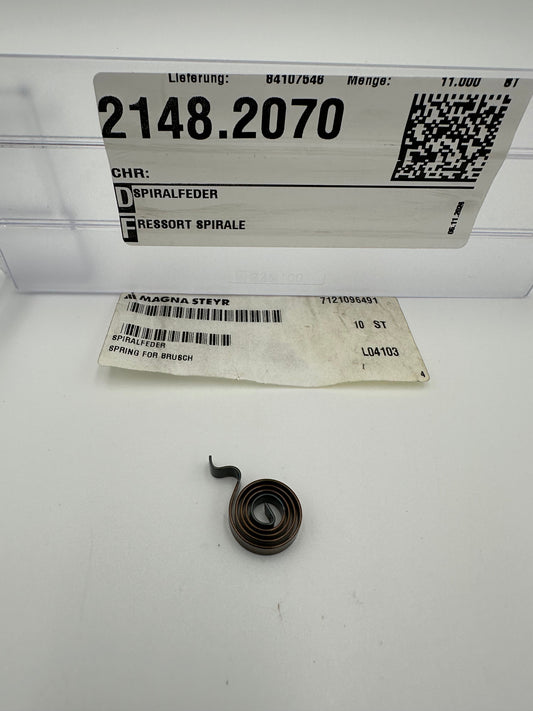

5. Spiral spring

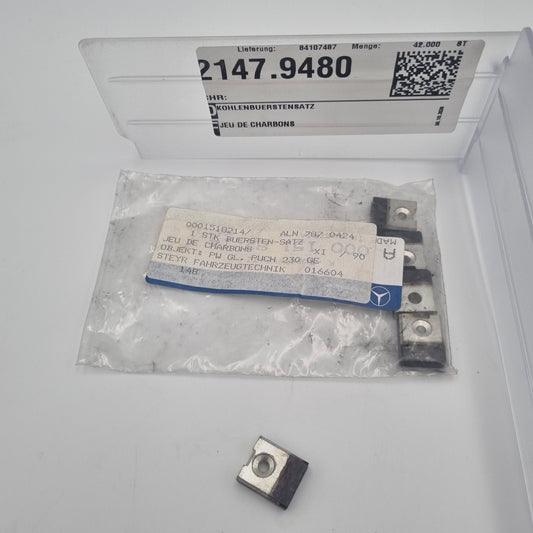

6. CARBON BRUSH SET
7. COMMUTATOR BEARING

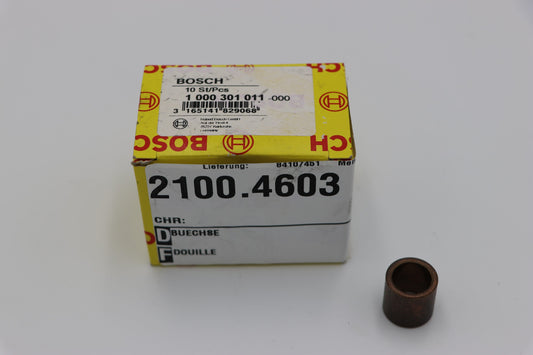

8. BEARING BUSH d12.5/16.5X11.5MM BRONZE
8. BOX

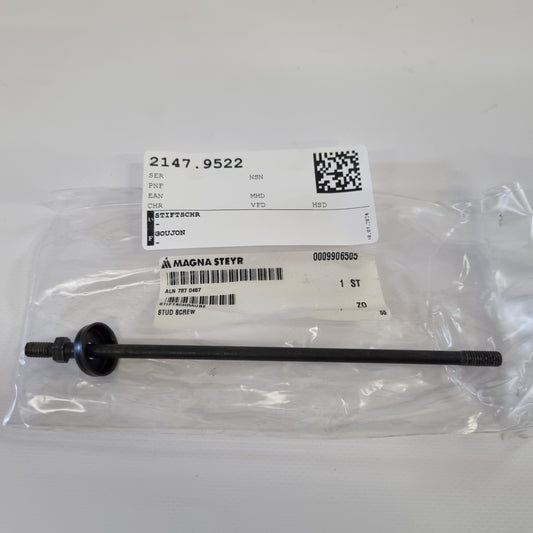

9. STUD SCREW
10. COVER CAP d21/56X21MM ST ALMK 14L 1X
11. CYLINDER HEAD SCREW M4X8 DIN 84 4.8 A2P
12. EXCITING WINDING
12. EXCITING WINDING

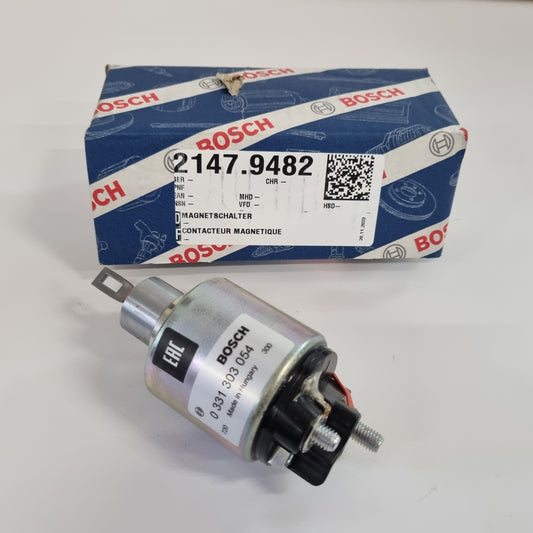

13. MAGNETIC SWITCH
14. SPRING WASHER B d8MM DIN 137
15. HEXAGON NUT B M8 DIN 439 8 PROM

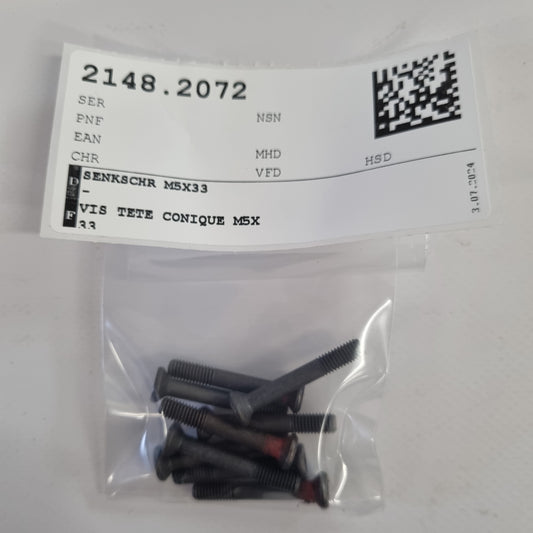

16. COUNTERSUNK SCREW M5X33
17. DRIVE BEARING
18. BOX

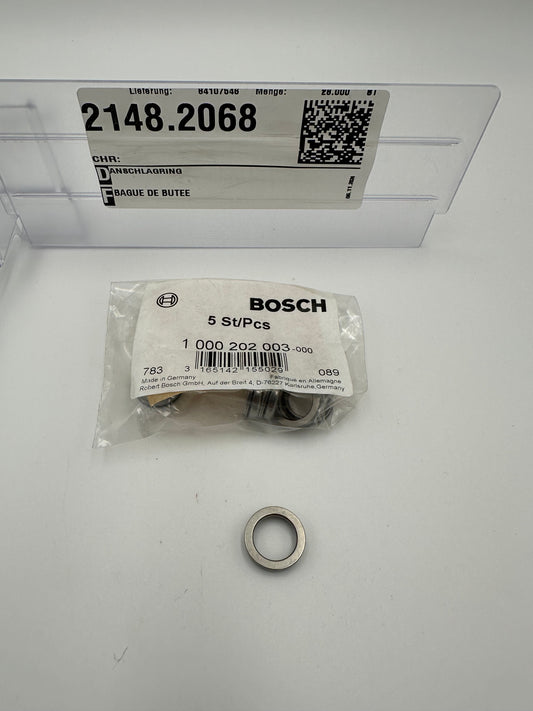

19. STOP RING

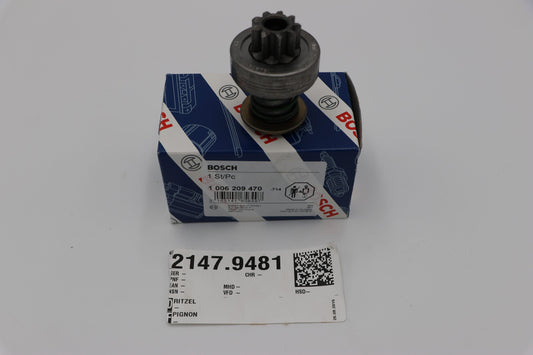

20. PINION

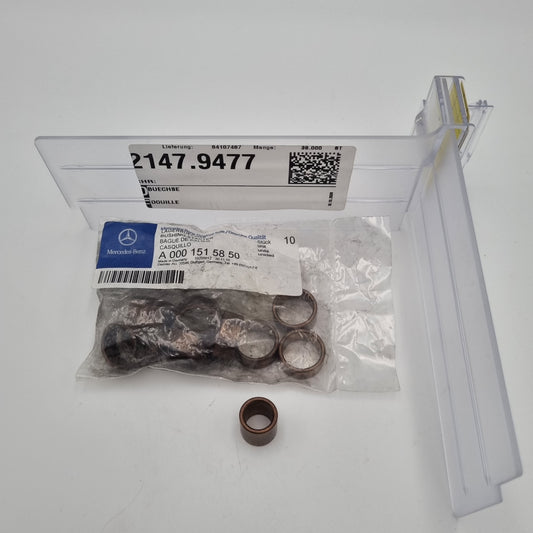

21. SINTERED BUSH
21. BOX
22. FORK LEVER
23. HEXAGON SCREW M6X30/18 ISO 4014
24. HEXAGON NUT M6 ISO 4032

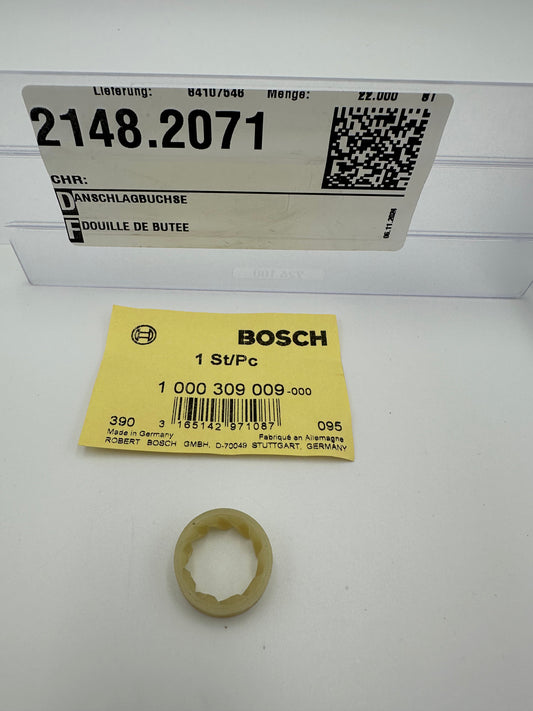

25. STOP BUSHING

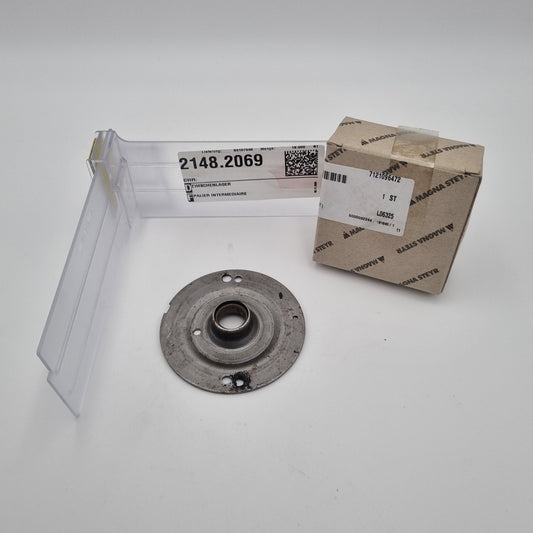

26. INTERIM STORAGE
27. SINTERED BUSH
28. HEXAGON SCREW M5X10 DIN 933 5.8 A2P

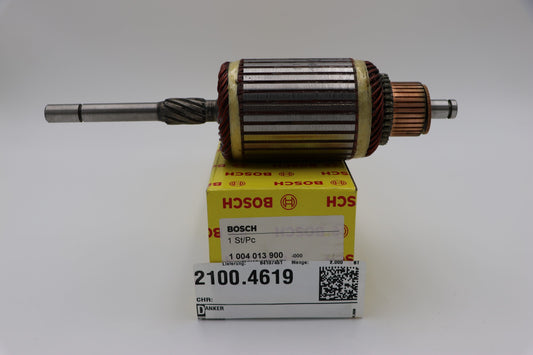

29. ANCHOR

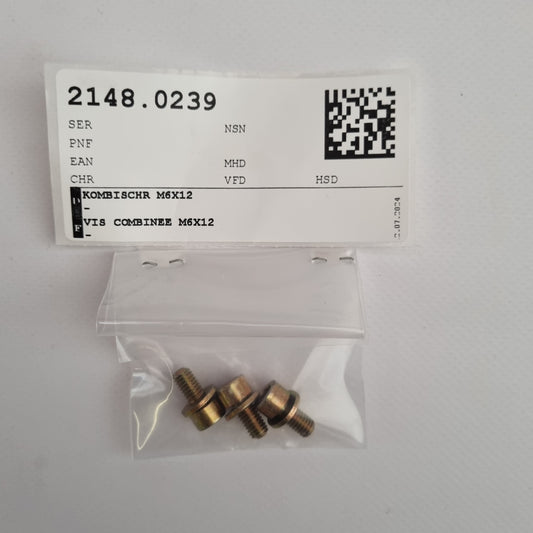

30. COMBINATION SCREW M6X12
31. HEXAGON NUT M6 ISO 4032
32. Washer d6.4/18x1.6mm DIN 9021
32. Washer d6.4/18x1.6mm DIN 9021

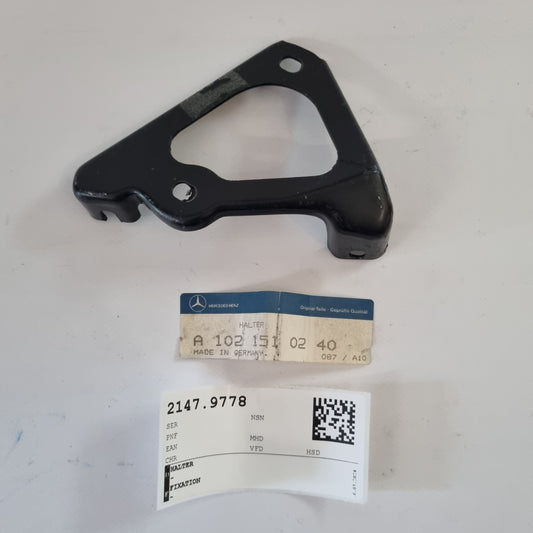

33. HOLDER

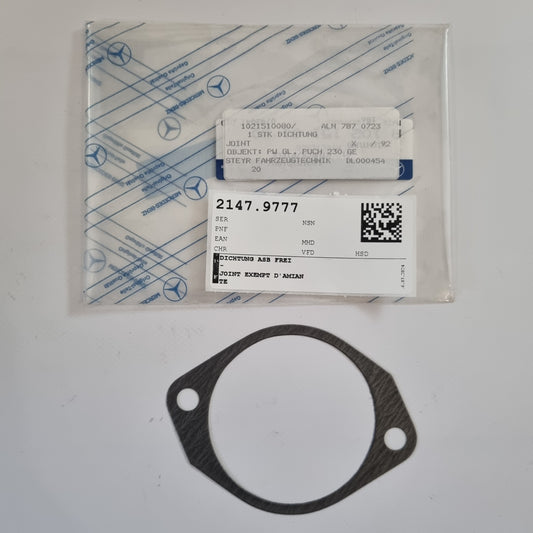

34. SEAL ASB FREE
35. SPRING WASHER B d10MM DIN 137
36. HEXAGON SCREW M10X90/26 DIN 931

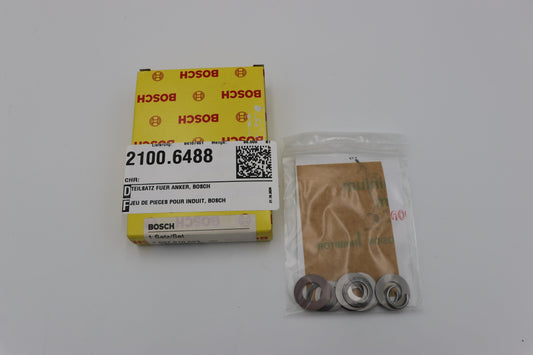

37. PART SET FOR ANCHOR / BOSCH

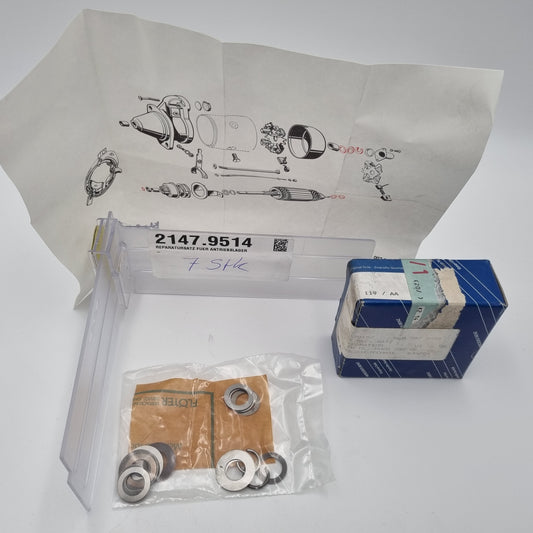

37. DRIVE BEARING REPAIR KIT

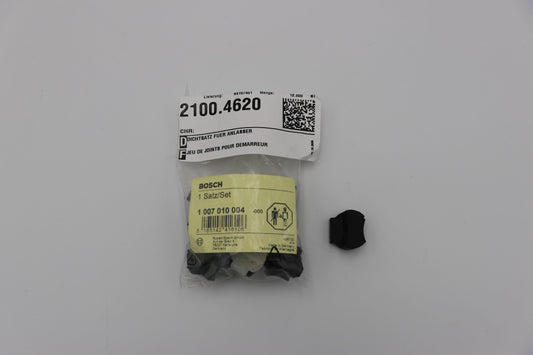

38. STARTER GASKET SET
38. STARTER GASKET SET

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
