Drive and connecting pieces

Product overview by image number (exploded view)

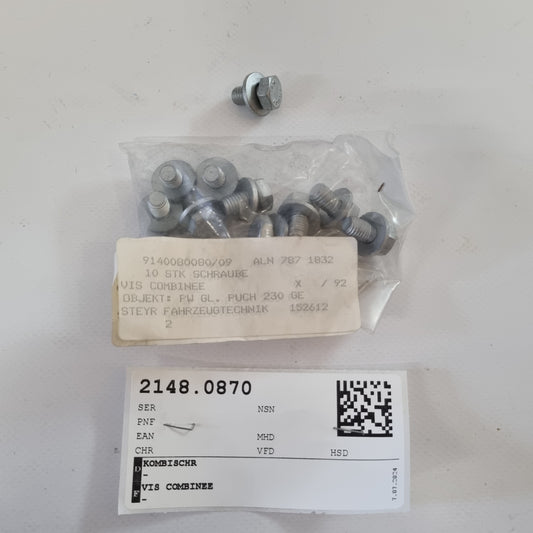

1. COMBINATION SCREW
1. COMBINATION SCREW

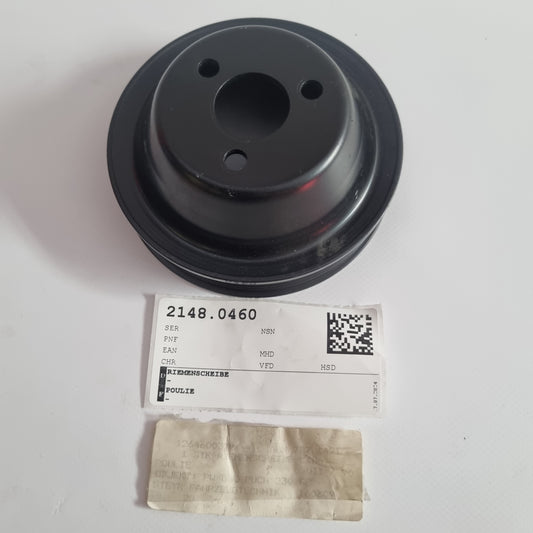

2. PULLEY
3. HEXAGON SCREW M8X50/22 ISO 4014
4. SPRING WASHER B d8MM DIN 137
5. HEXAGON SCREW M8X85/22 DIN 931
6. SPRING WASHER B d10MM DIN 137
7. HEXAGON SCREW M10X70/26 DIN 931

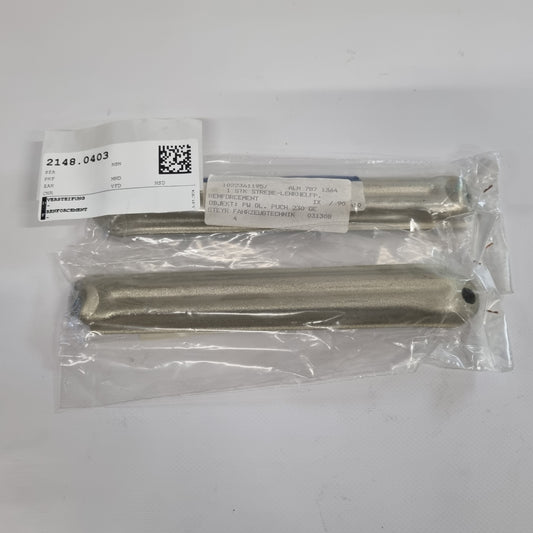

8. STIFFENING
9. WASHER d8.4/15X1.6MM DIN 433
10. HEXAGON SCREW M8X22 ISO 4017

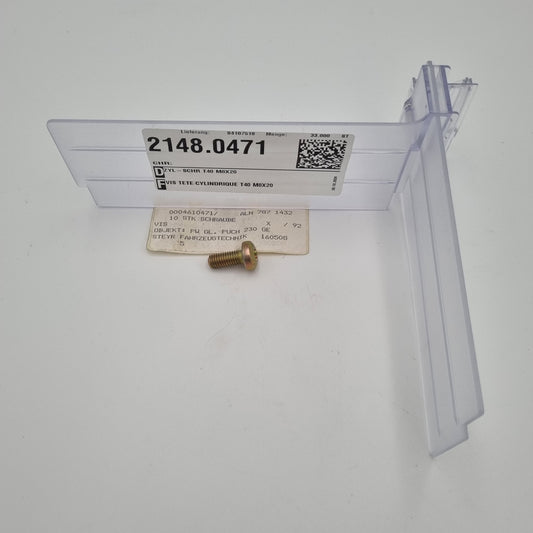

11. Cylinder head screw T40 M8x20
12. HEXAGON NUT M8 ISO 4032

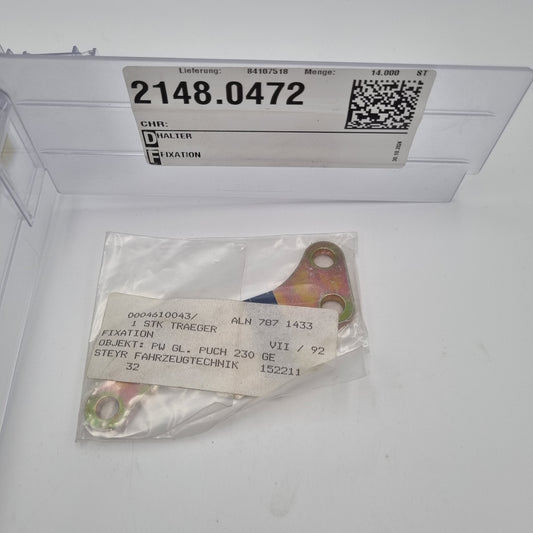

13. HOLDER
14. HEXAGON SCREW M10X60/26 DIN 931
15. HEXAGON SCREW M8X25 ISO 4017
16. CARRIER
16. CARRIER
17. WASHER A d8.4/16X1.6MM DIN 125
18. HEXAGON SCREW M8X65/22 ISO 4014
19. HEXAGON SCREW M8X95/22 ISO 4014

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
