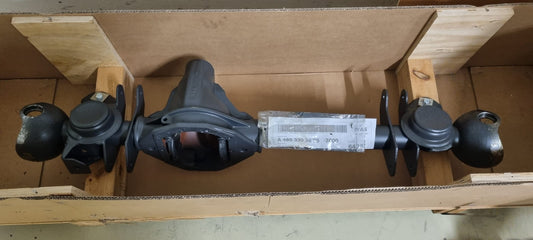

Front drive axle

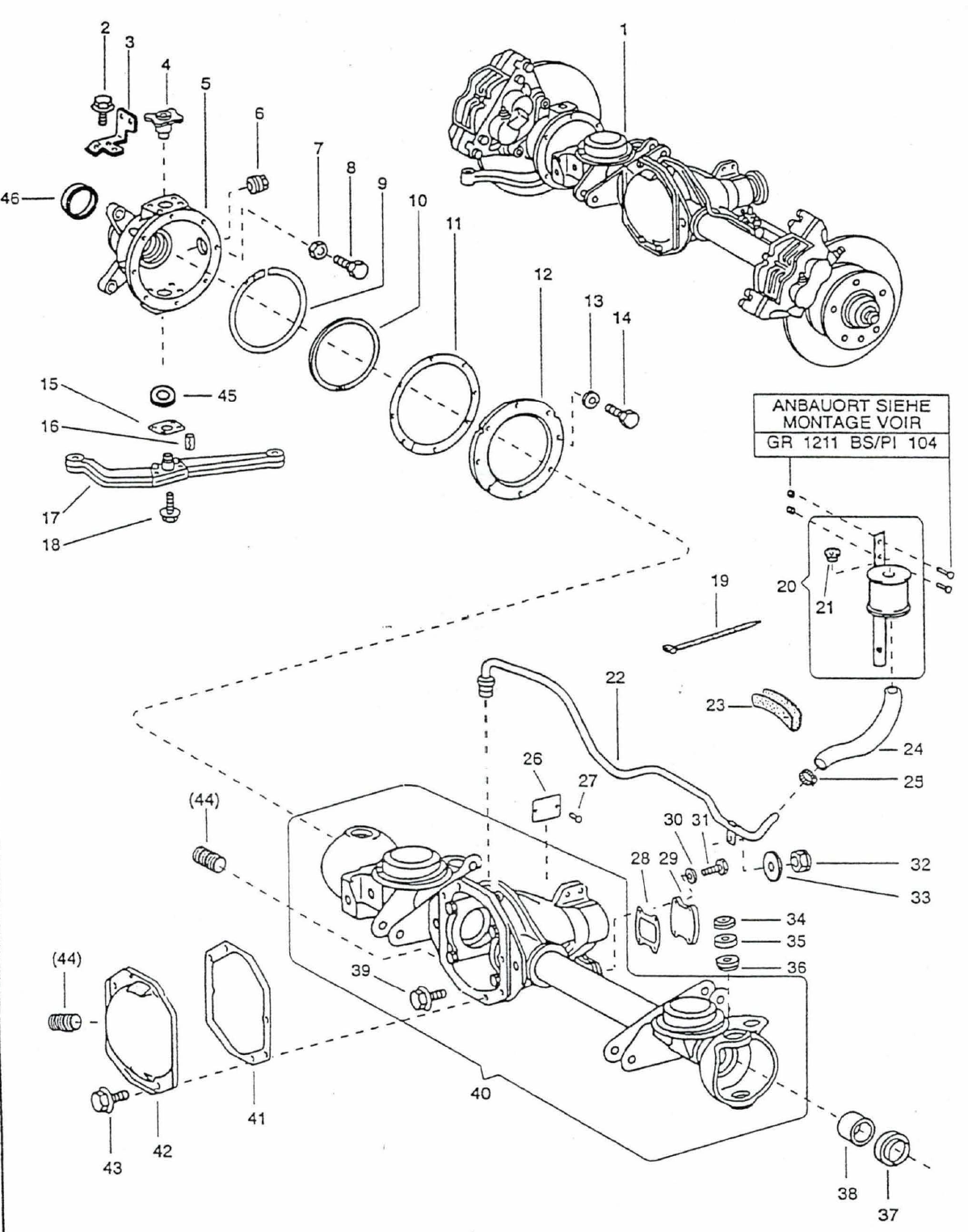

Product overview by image number (exploded view)

1. FRONT AXLE / COMP.

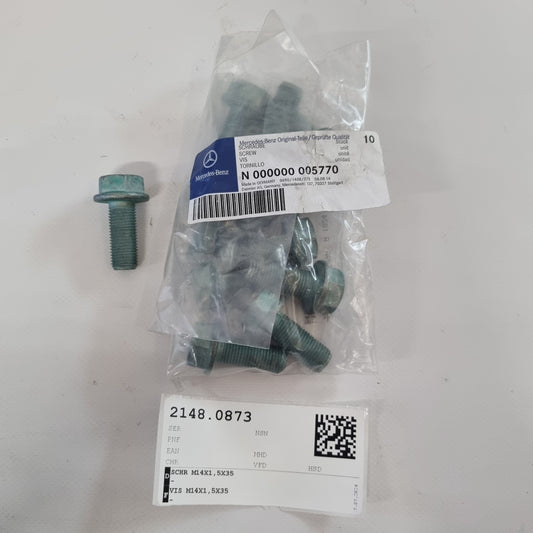

2. SCREW M14X1.5X35

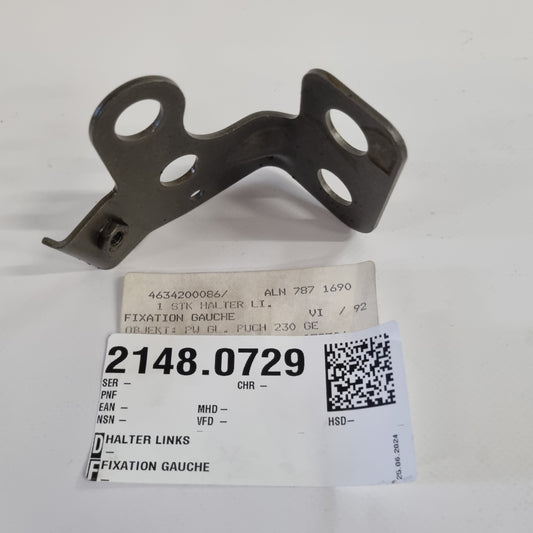

3. HOLDER LEFT

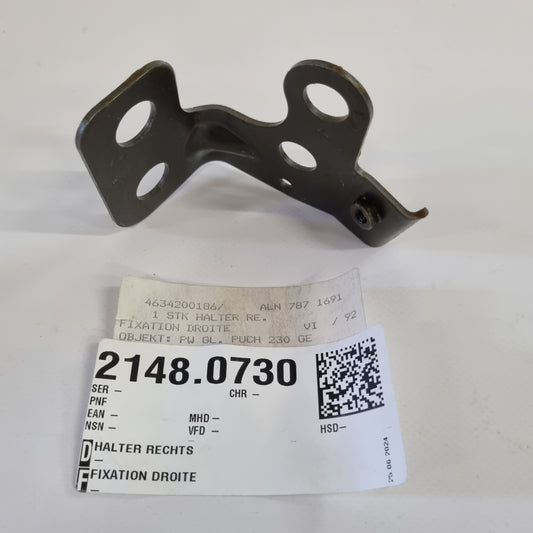

3. HOLDER RIGHT

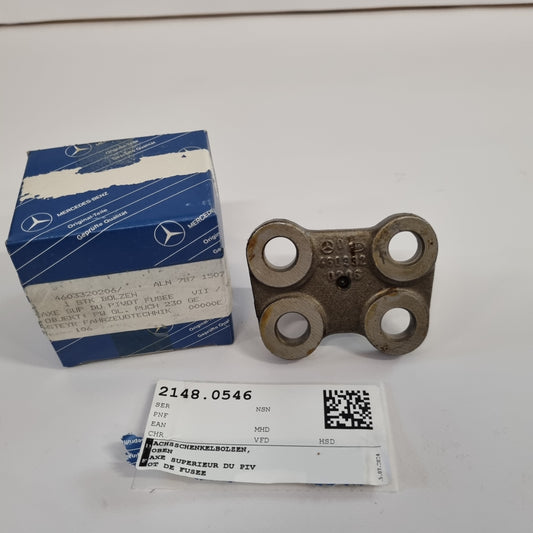

4. KINGPIN / TOP

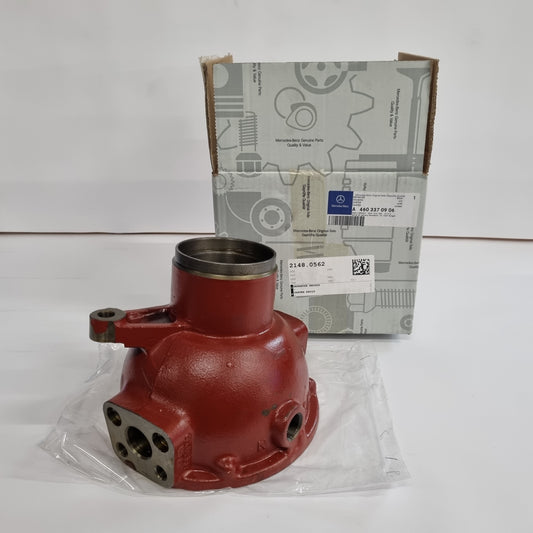

5. HOUSING LEFT
5. HOUSING RIGHT
6. PLUG SCREW M24X1.5 WITH
6. PLUG SCREW M24X1.5 WITH
7. HEXAGON NUT M8 ISO 4032
8. HEXAGON SCREW M8X30 ISO 4017
9. Sealing ring holder

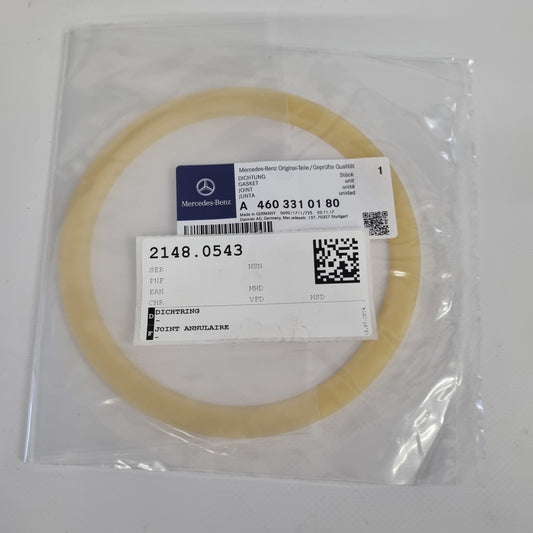

10. SEALING RING
11. SEALING RING

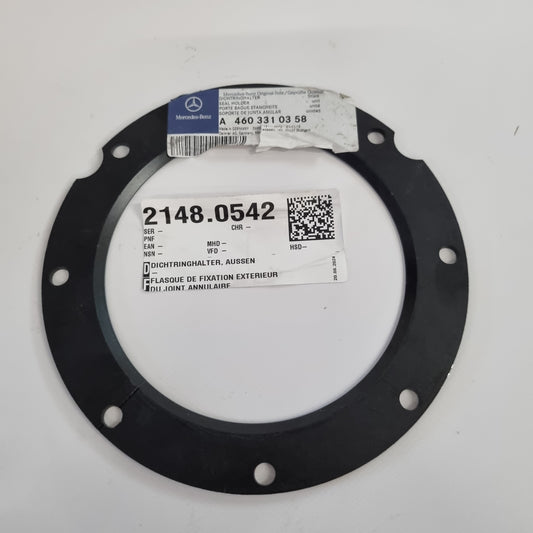

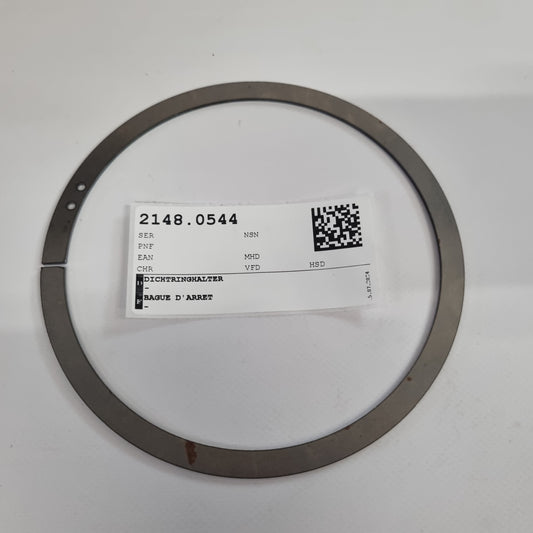

12. SEALING RING HOLDER / OUTSIDE
13. WASHER A d8.4/16X1.6MM DIN 125
14. HEXAGON SCREW M8X18 DIN 933 8.8 A2P
14. HEXAGON SCREW M8X18 DIN 933 8.8 A2P

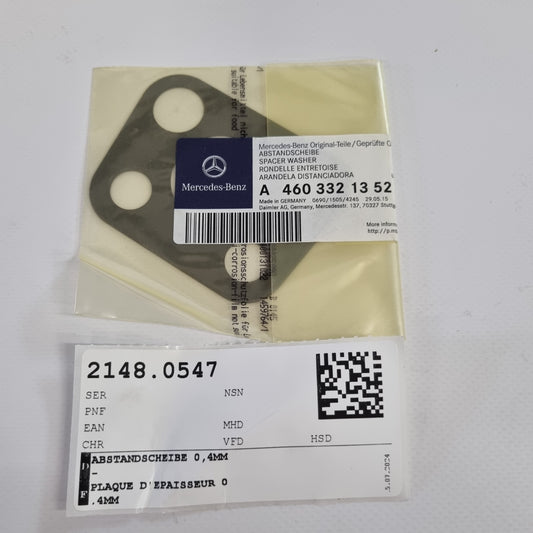

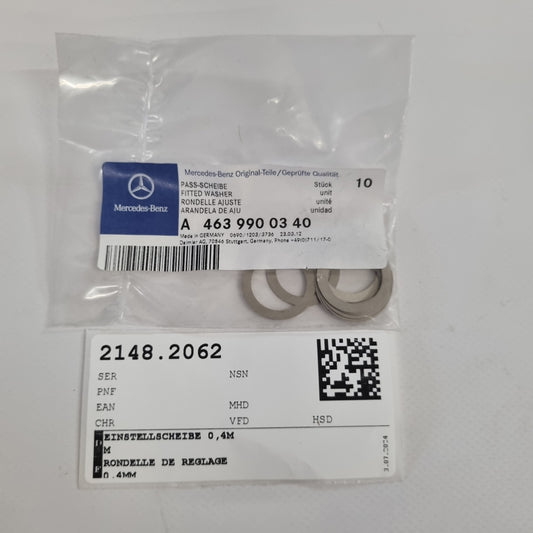

15. SPACER 0.4MM

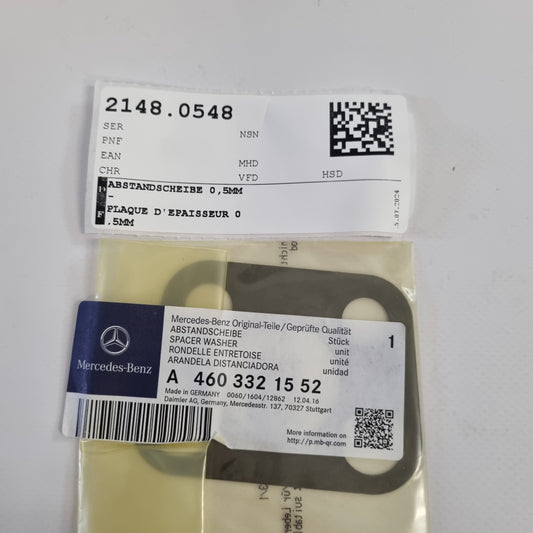

15. SPACER 0.5MM

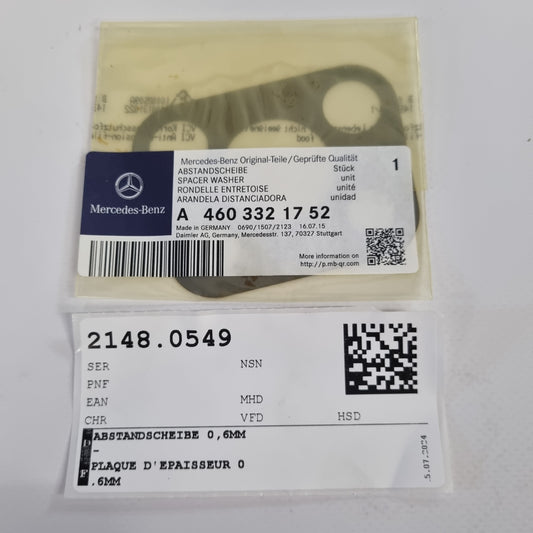

15. SPACER 0.6MM

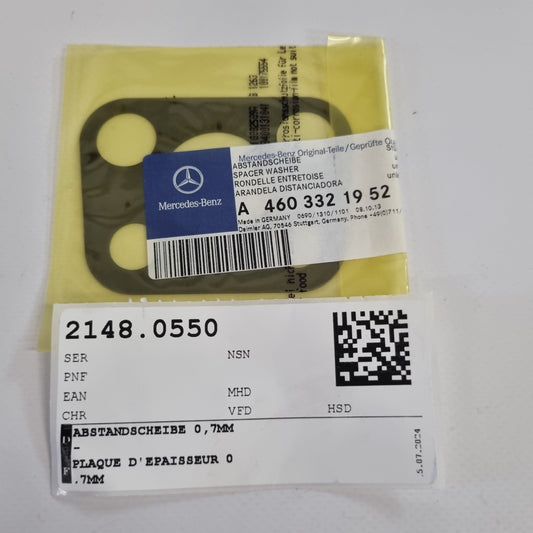

15. SPACER 0.7MM

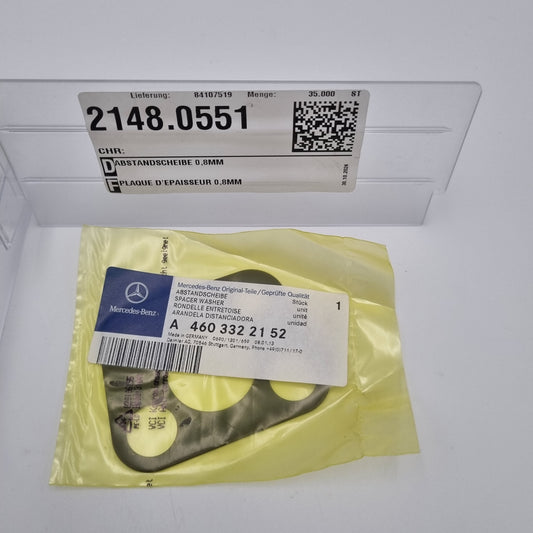

15. SPACER 0.8MM

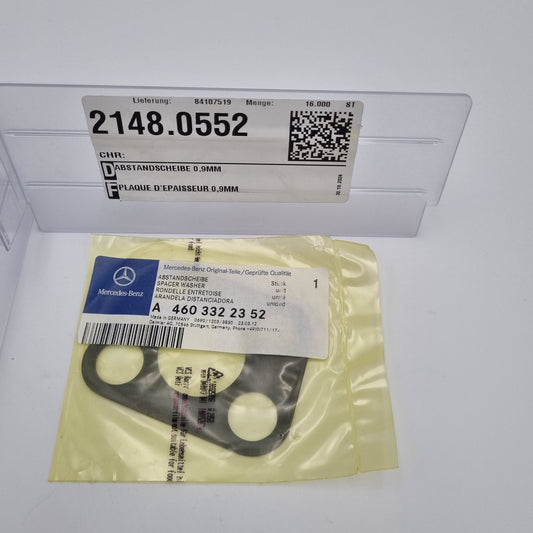

15. SPACER 0.9MM
16. Spring pin

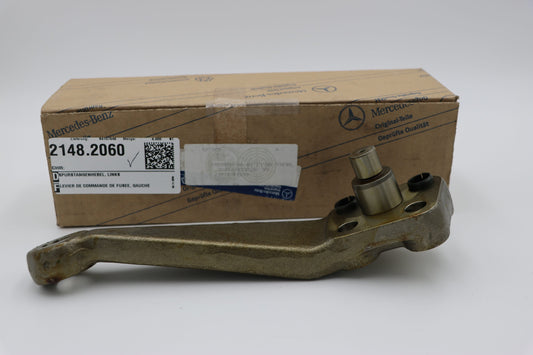

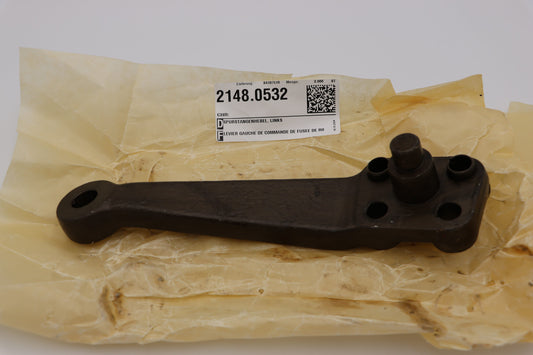

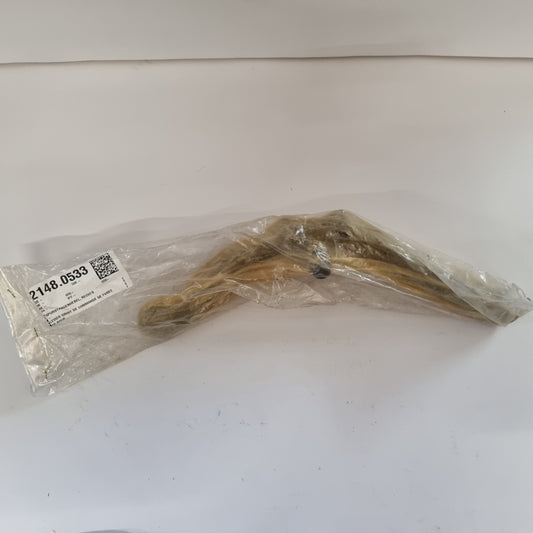

17. TIE ROD LEVER / LEFT
17. TIE ROD LEVER / RIGHT
17. TIE ROD LEVER / RIGHT
17. TIE ROD LEVER / LEFT

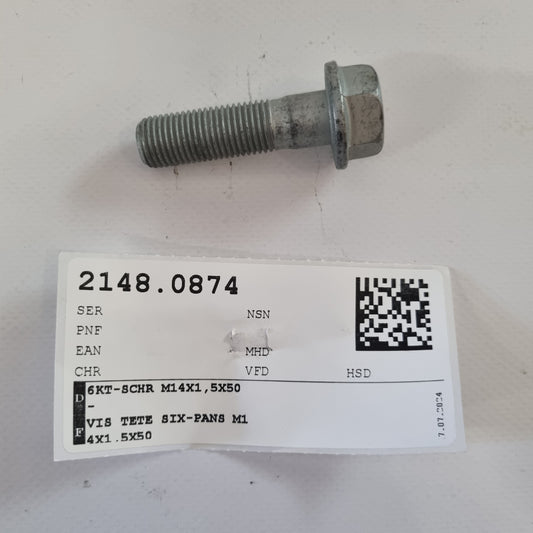

18. HEXAGON SCREW M14X1.5X50
19. CABLE TIES 4.6X146MM SST3S

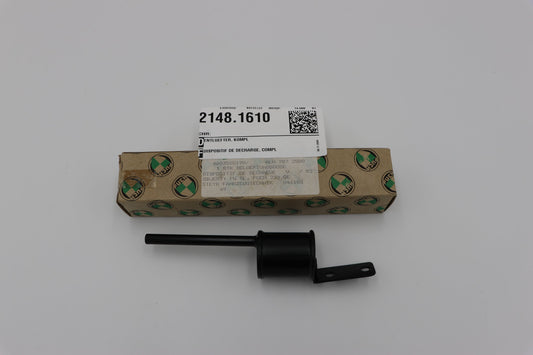

20. VENTILATOR / COMPONENT
21. PLUG

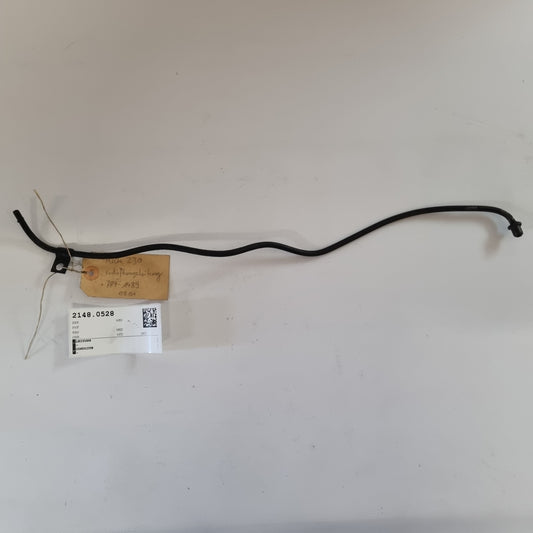

22. MANAGEMENT
23. COVER 2X115MM METERS
24. PIPE

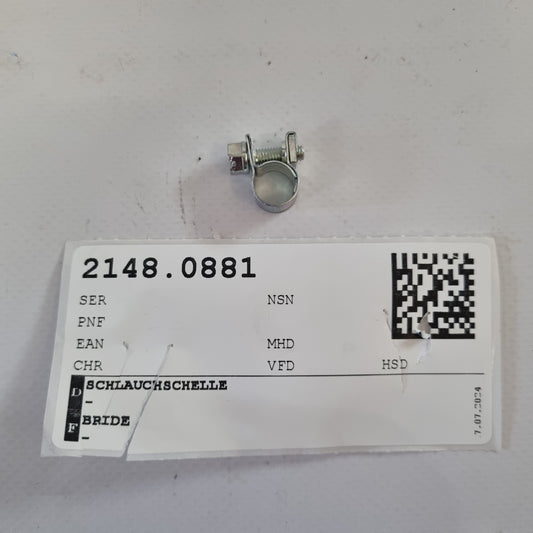

25. HOSE CLAMP
26. SHIELD
27. RIVET
28. SEAL
29. LID
30. DISC
31. HEXAGON SCREW M8X16 ISO 4017
32. HEXAGON NUT M6
33. Washer d6.4/18x1.6mm DIN 9021
34. SEALING RING
35. TAPERED ROLLER BEARING TIMKEN LM 11949+11910
36. CLOSING CAP

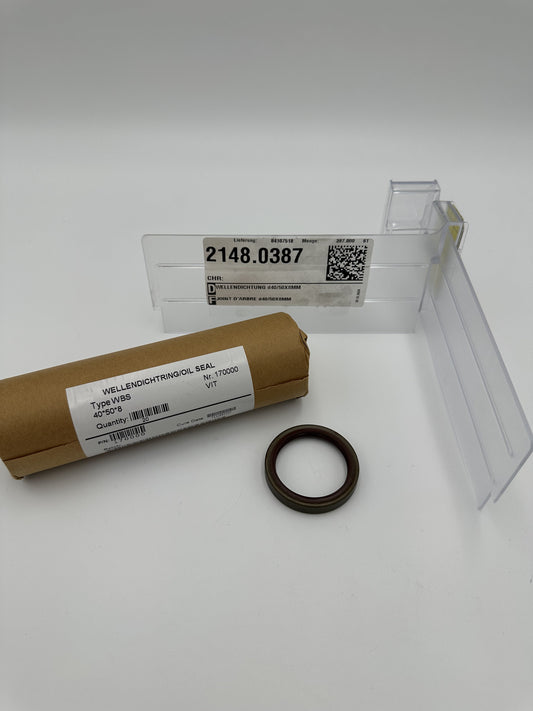

37. SHAFT SEAL d40/50X8MM

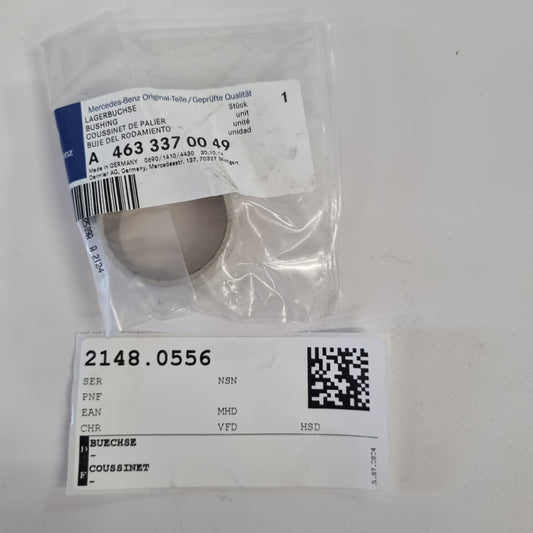

38. GUNS
39. HEXAGON SCREW M10X80
40. AXLE HOUSING / COMP.

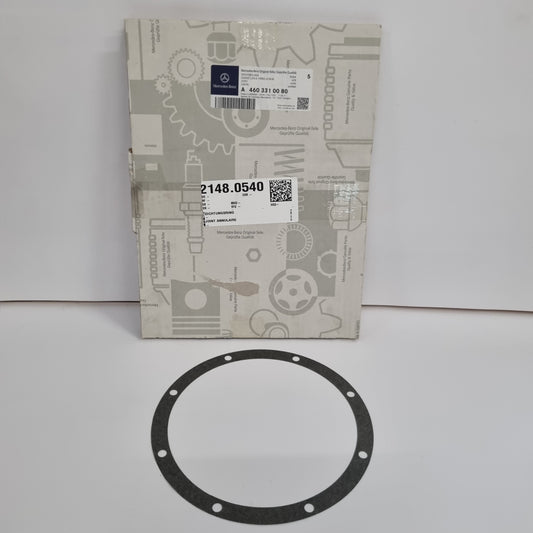

41. SEAL

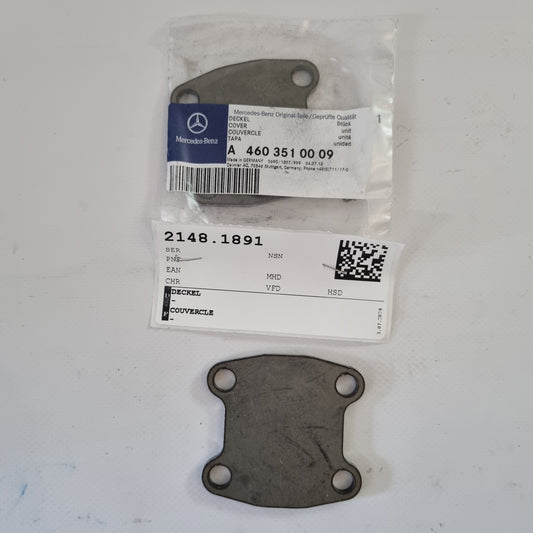

42. LID
43. HEXAGON SCREW M8X16
44. PLUG SCREW M24X1.5 WITH
44. PLUG SCREW M24X1.5 WITH

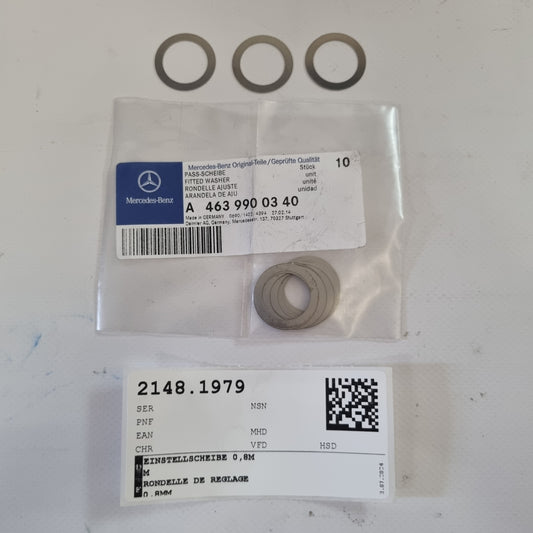

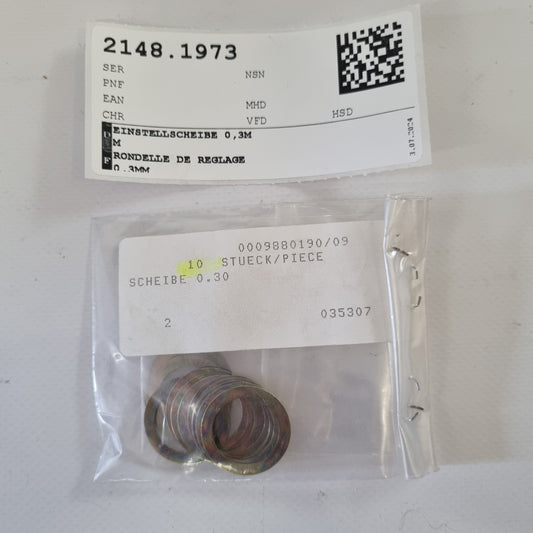

45. ADJUSTING DISC 0.3MM
45. ADJUSTING DISC 1.5MM
45. ADJUSTING DISC 1MM
45. ADJUSTING SCREW 0.5MM
45. ADJUSTING DISC 1.2MM
45. ADJUSTING DISC 0.55MM
45. ADJUSTING DISC 0.8MM
45. ADJUSTING DISC 0.35MM
45. ADJUSTING DISC 0.4MM
45. ADJUSTING DISC 0.45MM
46. ​​PROTECTIVE RING

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
