Battery cables

Product overview by image number (exploded view)

1. HEXAGON SCREW M6X14 ISO 4017
2. SPRING RING
3. WIDE BAND HOSE CLAMP NORMA ST STAINLESS
4. Phillips head cylinder head screw
5. SPRING WASHER B d5MM DIN 137
6. CABLE CONNECTORS

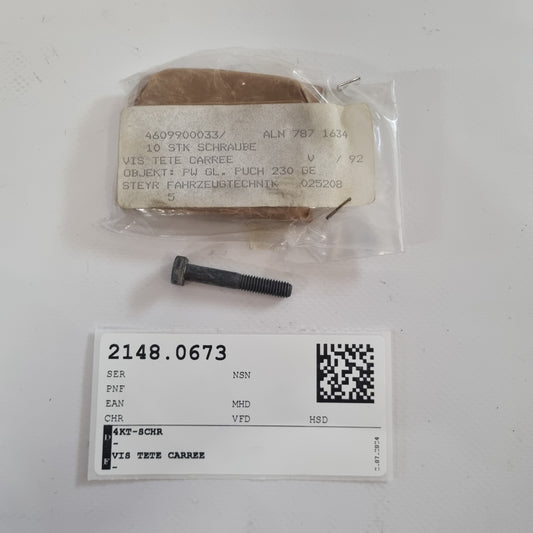

7. SQUARE SCREW
8. CABLE LUGS A / STRAIGHT / WITH HOLE / 35MM2
9. MANAGEMENT
10. INSULATION HOSE d18X1MM BLACK
11. BATTERY TERMINAL + d17.5MM FORM A

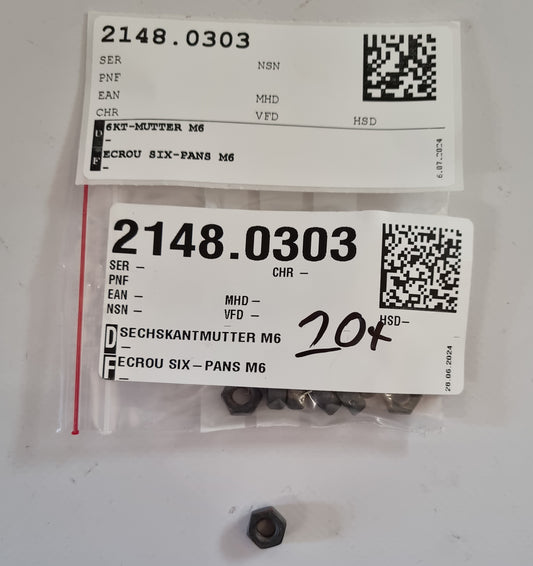

12. HEXAGON NUT M6
13. Wide band hose clamp NORMA ST stainless steel
14. CABLE TIES 4.6X146MM SST3S
15. CABLE TIES 9X160MM
16. SPRING WASHER B d8MM DIN 137
16. SPRING WASHER B d8MM DIN 137
17. HEXAGON NUT M8 ISO 4032
18. CYLINDER HEAD SCREW M4X6 DIN 84 4.8 A2P
19. SPRING WASHER B d4MM DIN 137
20. BATTERY TERMINAL - d15.9MM FORM B

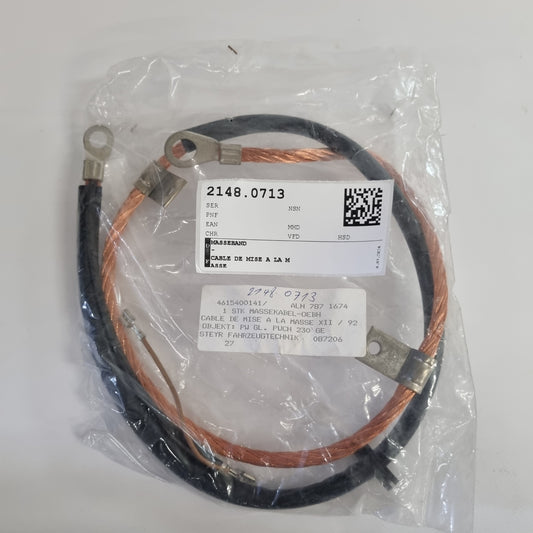

21. GROUND TAPE
22. HEXAGON NUT M6 ISO 4032
23. HEXAGON SCREW M6X14 ISO 4017

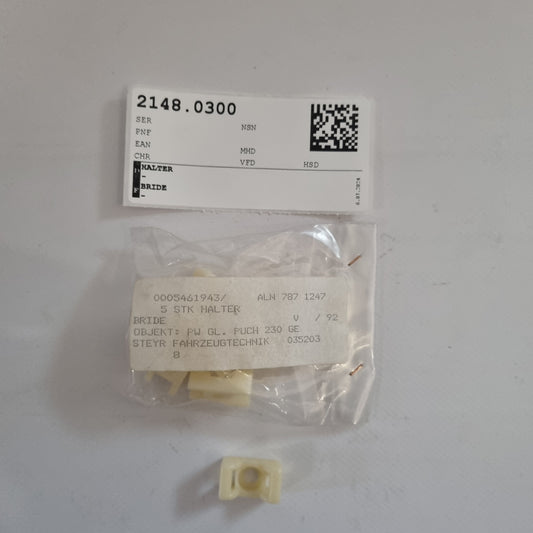

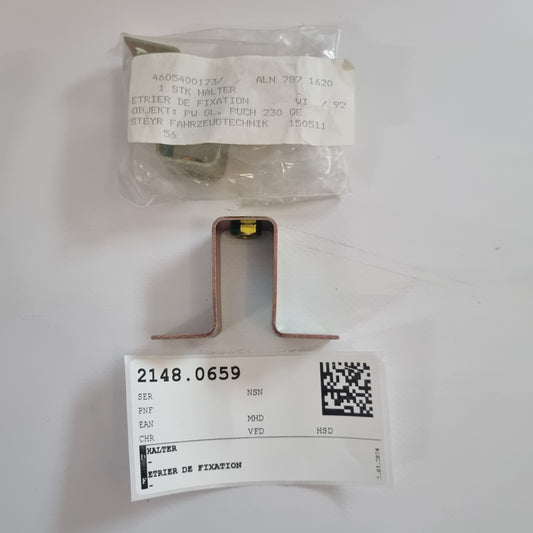

24. HOLDER
25. HOLDER
26. HEXAGON SCREW M6X12 ISO 4017
27. BATTERY MAIN SWITCH SSH 15/ 10Z BOSCH
28. KEY d11X48MM TO

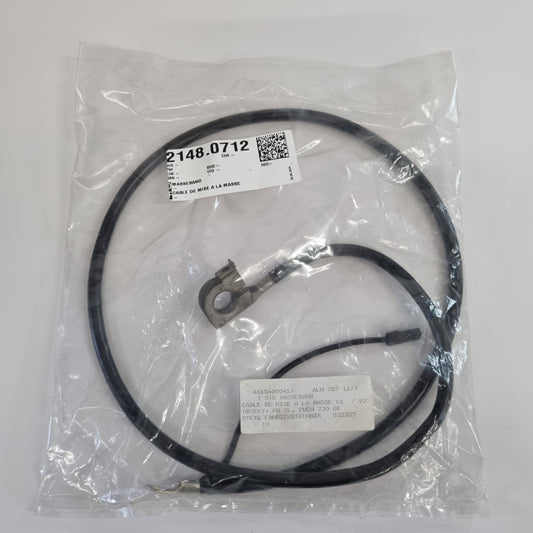

29. GROUND STRAP
30. Grommet
31. HEXAGON SCREW M6X10 ISO 4017
32. SPRING WASHER B d6MM DIN 137 FD-ST A2P

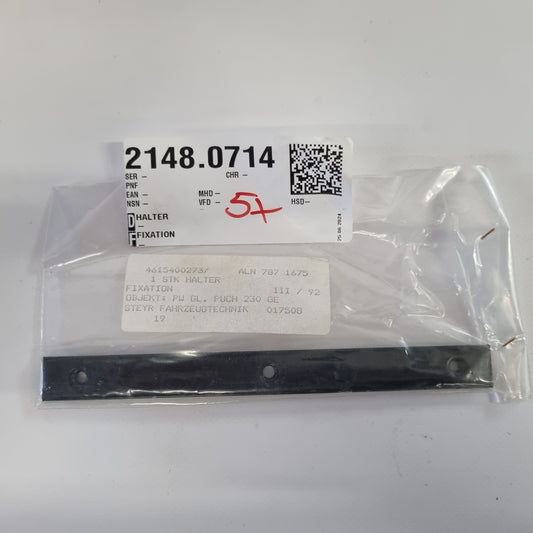

33. HOLDER
34. HEXAGON NUT M5 ISO 4032
35. Washer A d5.3/10x1mm DIN 125

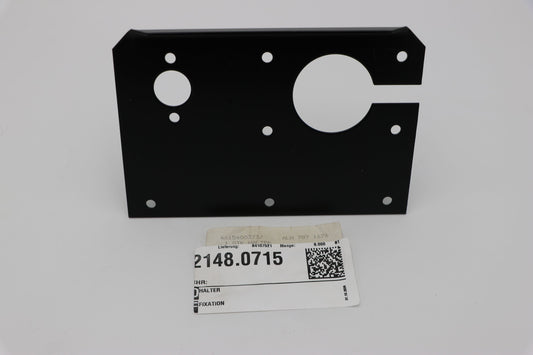

36. HOLDER

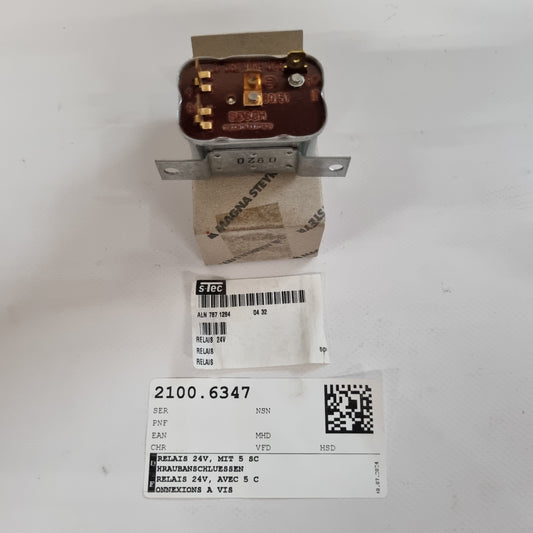

37. RELAY 24V / WITH 5 SCREW TERMINALS,
37. RELAY
38. CYLINDER HEAD SCREW M5X8 DIN 84 4.8 A2P
39. WASHER A d5.3/10X1MM DIN 125
40. Phillips head self-tapping screw
41. COVER CAP FOR CABLE CONNECTOR
42. SQUARE NUT M6 DIN 557 5 A2P

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
