Rear brake force regulator

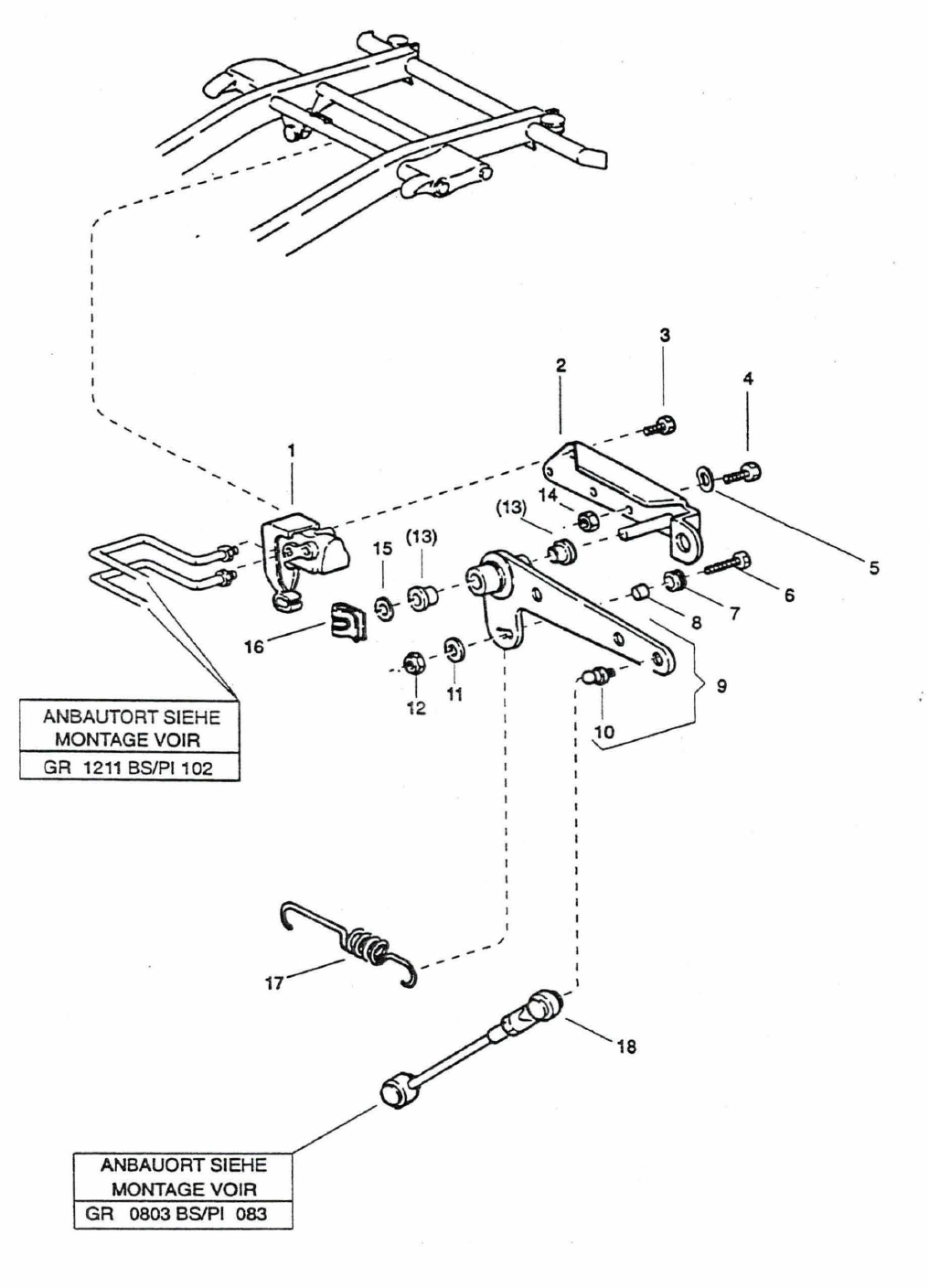

Product overview by image number (exploded view)

1. BRAKE FORCE REGULATOR / COMPONENT

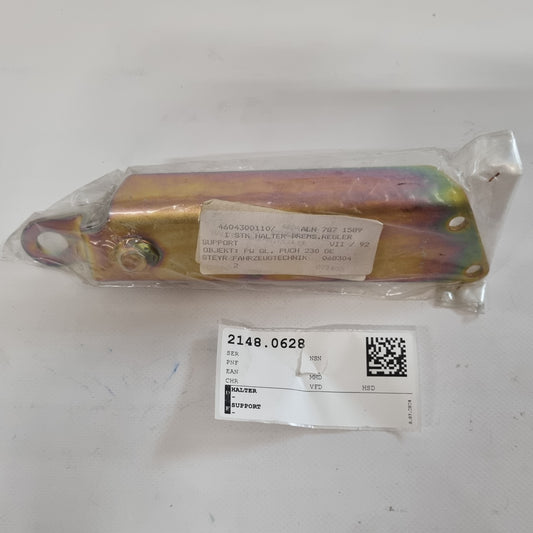

2. HOLDER
3. HEXAGON SCREW M8X12 ISO 4017
4. HEXAGON SCREW M8X20 ISO 4017
5. SPRING WASHER B d8MM DIN 137
6. HEXAGON SCREW M8X35 ISO 4017
7. HOLDER

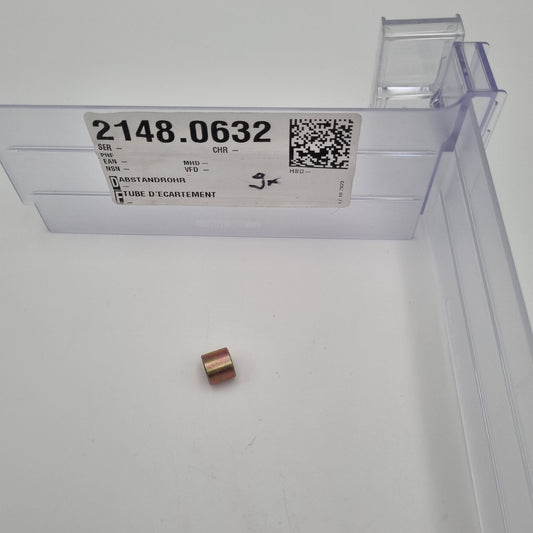

8. SPACER TUBE
9. LEVER
10. BALL PIN B13 BALL d13MM
11. WASHER A d8.4/16X1.6MM DIN 125
12. SAFETY NUT M8
12. LOCK NUT M8 ISO 7042
13. BOX
14. HEXAGON NUT M8 ISO 4032
15. SHIELD PS d17/24X1MM FD ST
16. BRACKET

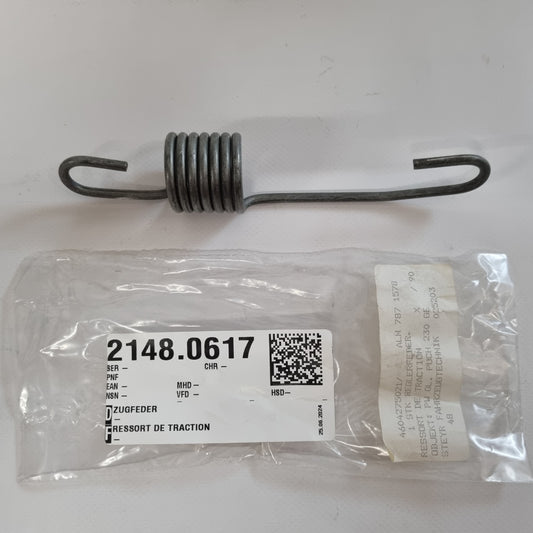

17. Mainspring

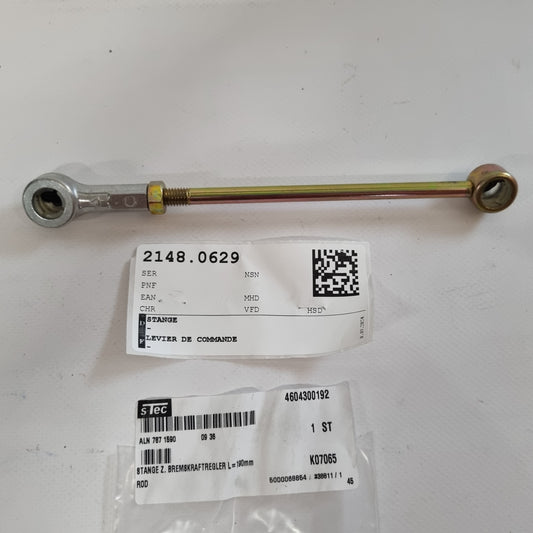

18. ROD

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
