Roof ventilator (screwed)

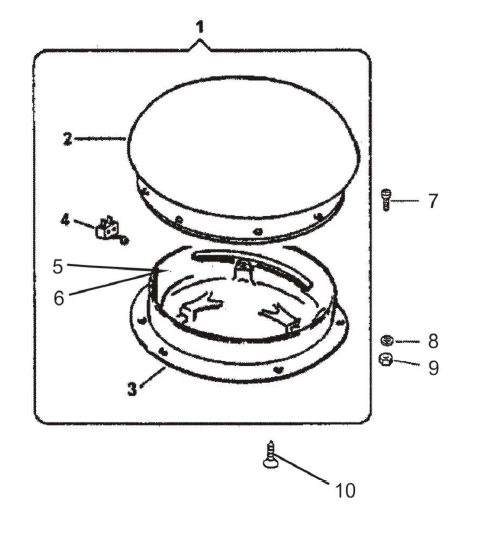

Product overview by image number (exploded view)

1. ROOF VENT / COMPONENT (SCREWED)
2. ROOF VENT HOOD TOP
3. INNER CLOSURE
4. MICROSWITCH 10A 250VAC PLUG-IN CONNECTION
5. RELAY 24V 10/20A 5P / CHANGEOVER (MICRO)
6. 5P plug-in socket housing
7. Phillips head cylinder head screw
8. HEXAGON NUT M6 ISO 4032
9. HEXAGON NUT M6 ISO 4032
10. Countersunk head sheet screw 80 degrees with cross

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
