Diagnostic socket

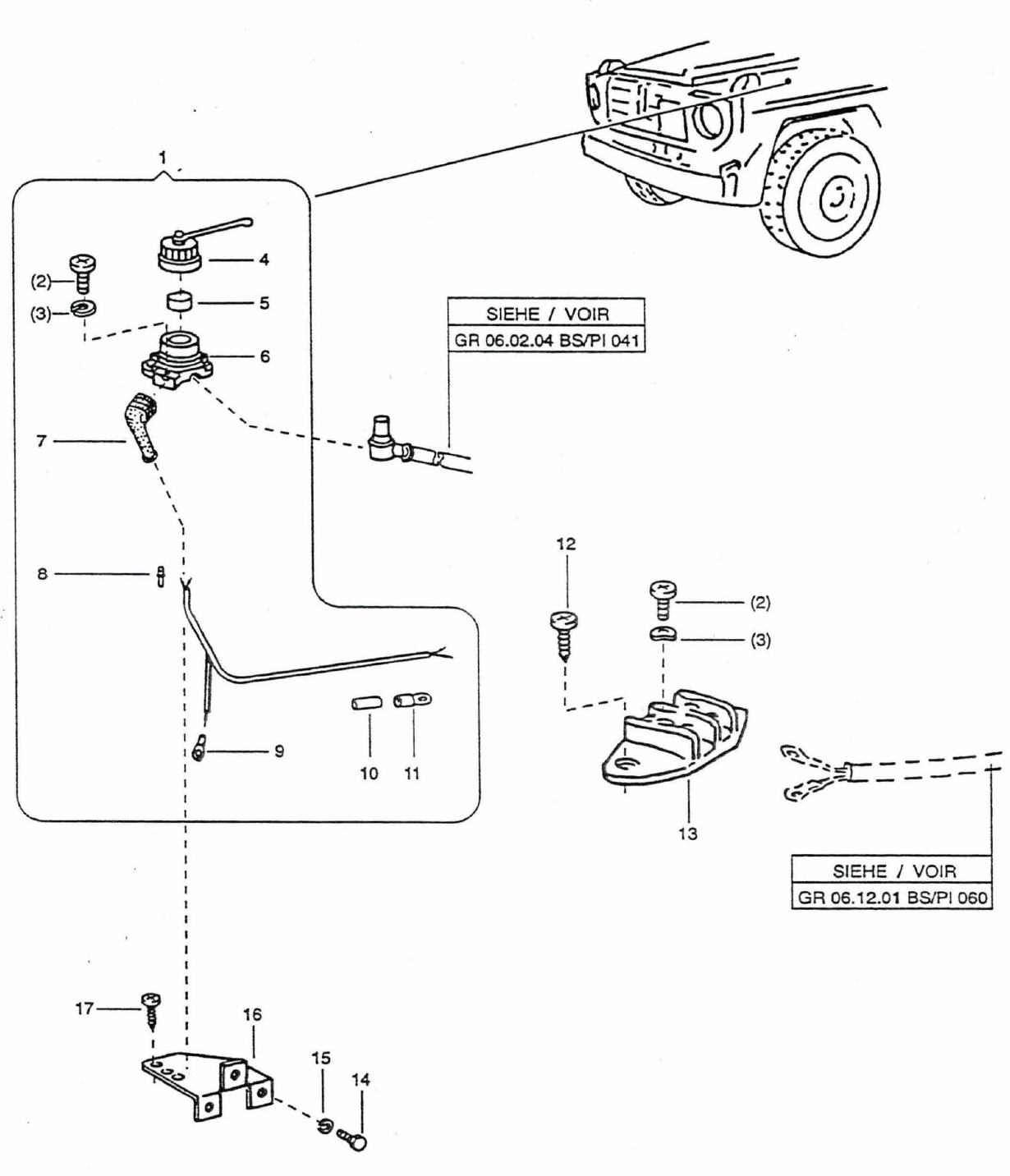

Product overview by image number (exploded view)

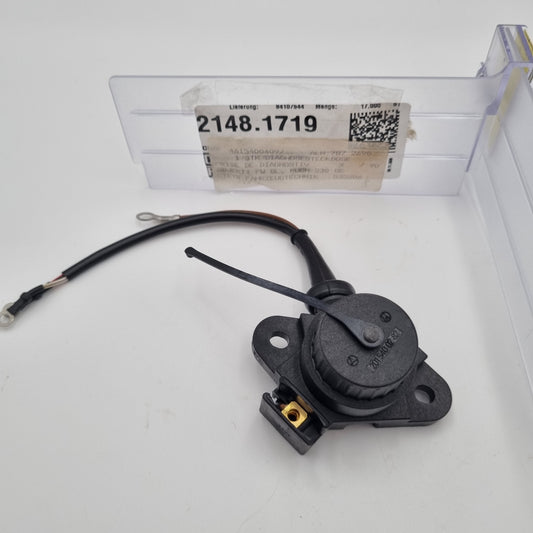

1. DIAGNOSTIC SOCKET / COMPLETE
2. Phillips head cylinder head screw
3. SPRING RING d5MM DIN 7980 FD ST A2P

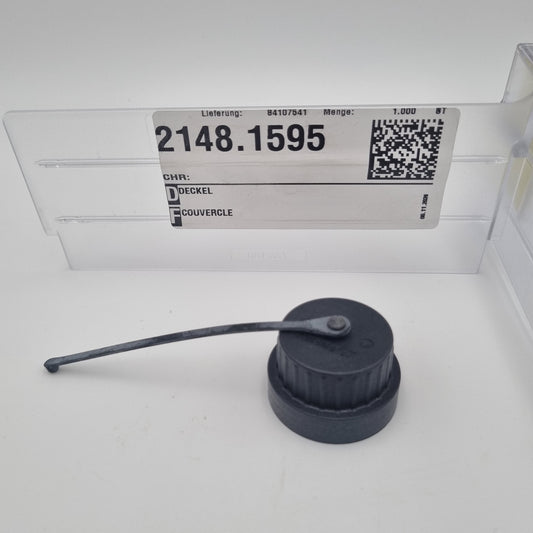

4. LID
5. COVER PIECE
6. HOUSING

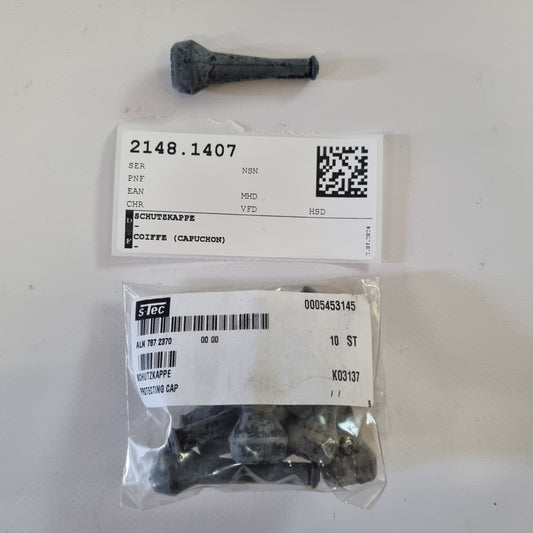

7. PROTECTIVE CAP
8. CONTACT SOCKET
9. CLAW CABLE LUGS A / STRAIGHT WITH HOLE
10. RUBBER GROMMET
11. Claw cable lug A / straight with hole
11. CABLE LUGS A d4.2MM
12. Phillips head self-tapping screw

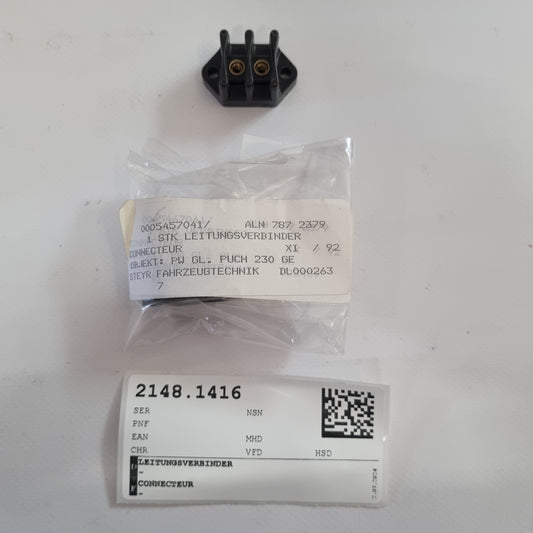

13. CABLE CONNECTORS
14. HEXAGON SCREW M6X10 ISO 4017
15. SPRING RING

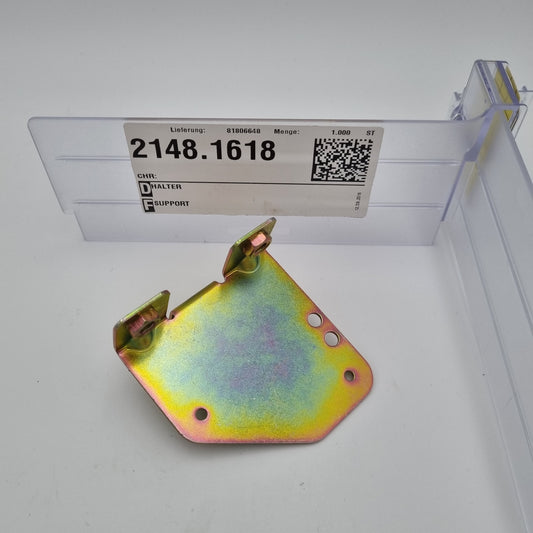

16. HOLDER
17. Phillips head self-tapping screw

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
