Centrifugal governor

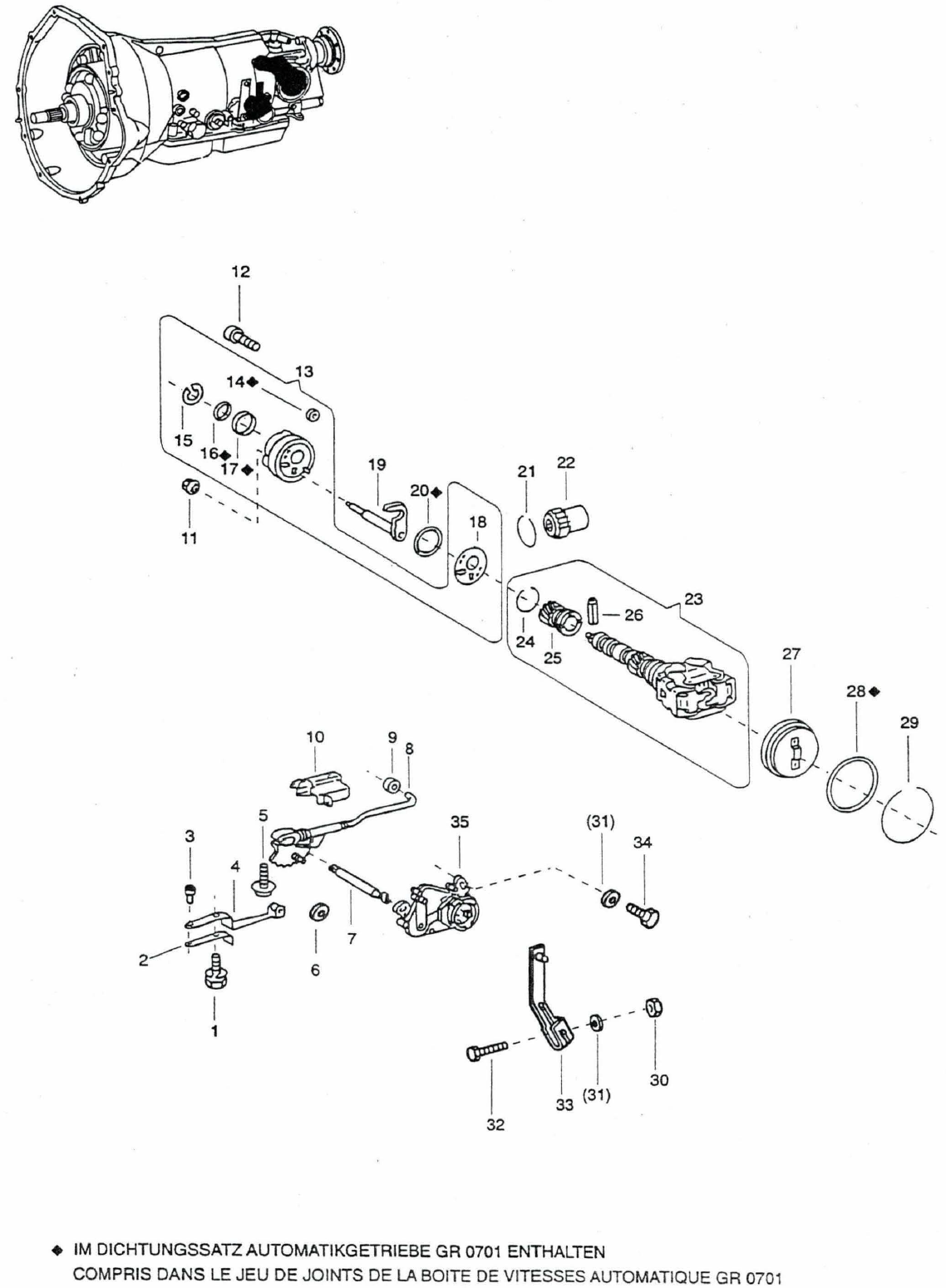

Product overview by image number (exploded view)

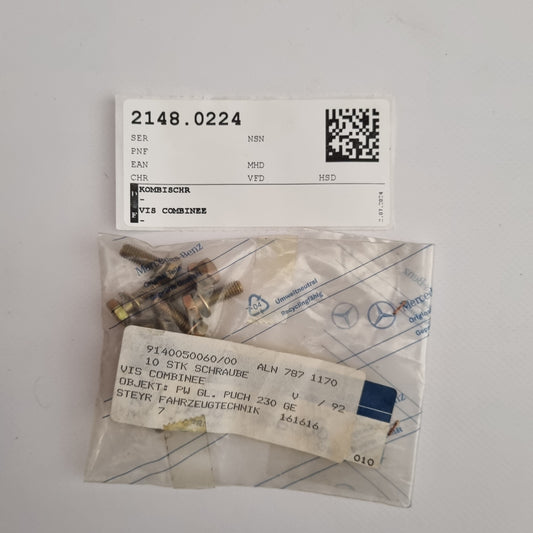

1. COMBINATION SCREW
2. HOLDER
3. BOLT
4. SPRING
5. COMBINATION SCREW
6. SIDE DISH (AS REQUIRED)
7. Regulating shaft
8. SHIFT LOCK
9. ROLE
10. LEADERSHIP PIECE
11. MOTHER
12. Cylinder head screw with hexagon socket
13. OIL PUMP
14. SEALING RING
15. RETAINING RING FOR BORE d34X1.5MM
16. SEALING RING
17. SEALING RING
18. INTERMEDIATE PLATE

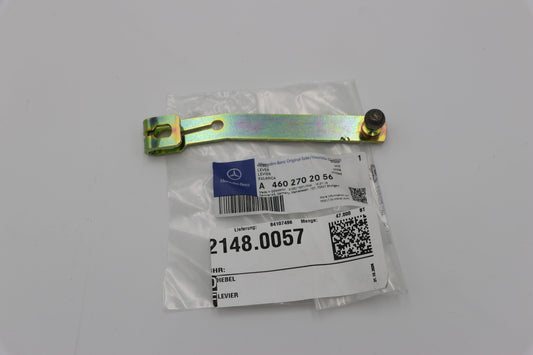

19. LEVER
20. SEALING RING
21. Snap ring

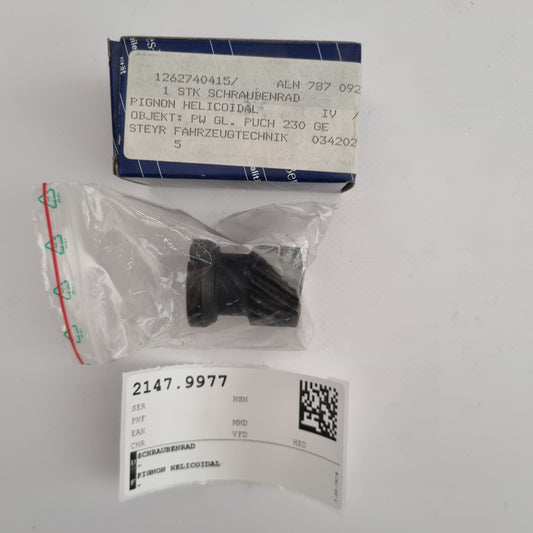

22. SCREW GEAR

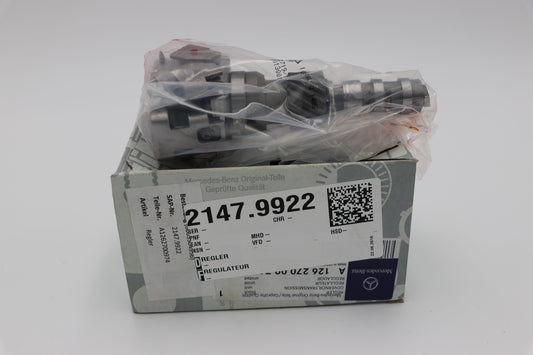

23. REGULATOR
24. Snap ring

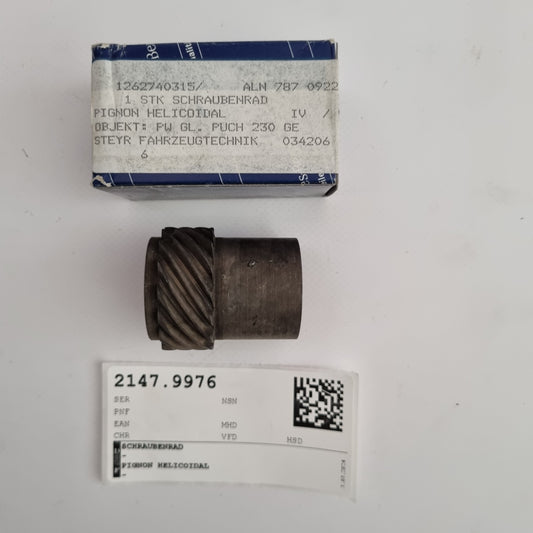

25. SCREW GEAR
26. Clamping sleeve
27. LID
28. SEALING RING
29. Snap ring
30. HEXAGON NUT M6 ISO 4032
31. WASHER A d6.4/12X1.6MM DIN 125
32. HEXAGON SCREW M6X30/18 ISO 4014
33. LEVER
34. COMBINATION SCREW
35. SWITCH

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
