Hydraulic master brake cylinder

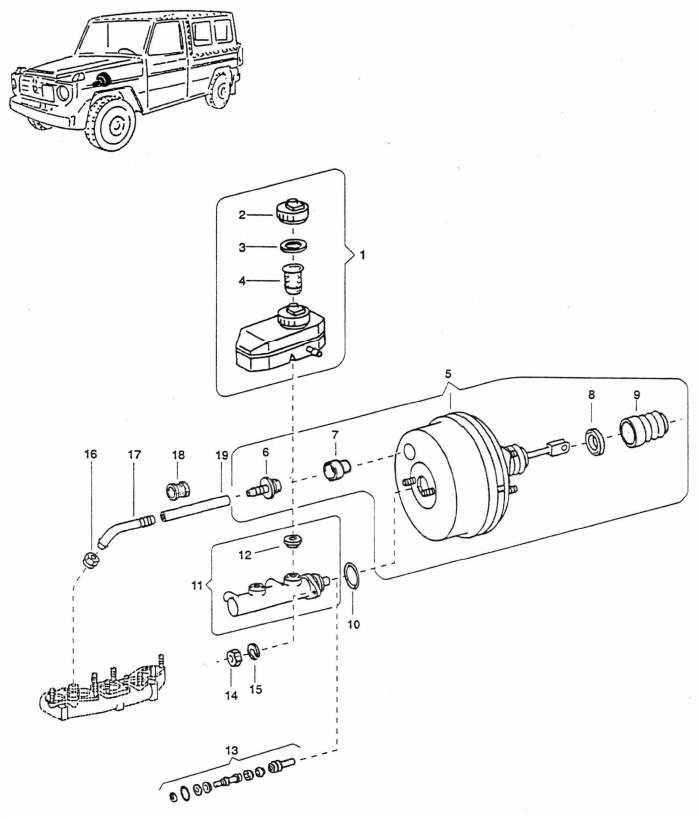

Product overview by image number (exploded view)

1. CONTAINER
2. LID d50X50MM PLASTIC (CONTAINER
3. SEALING RING

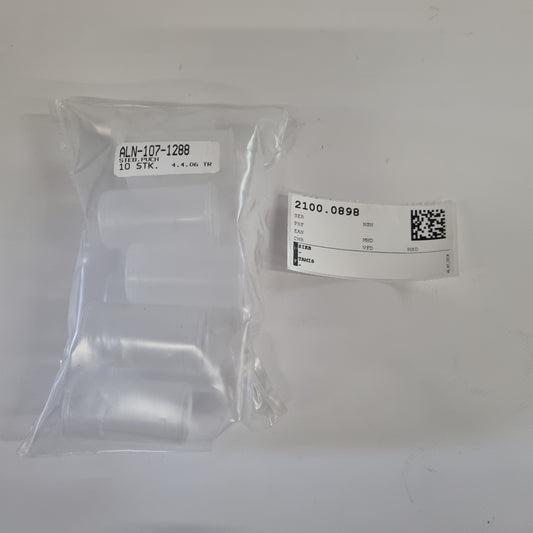

4. SIEVE
5. BRAKE DEVICE
6. CHECK VALVE

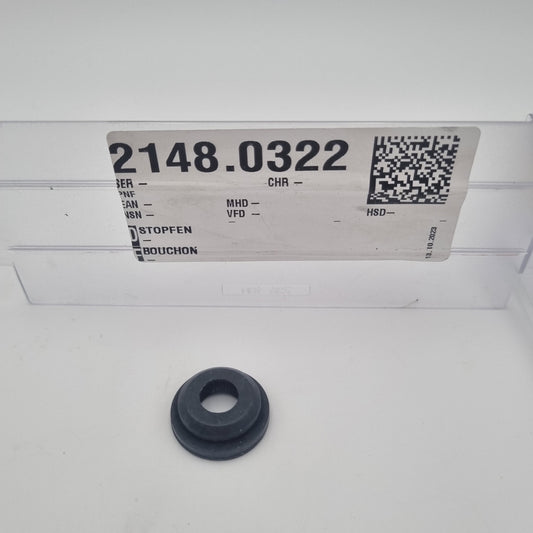

7. PLUG
8. SEALING RING

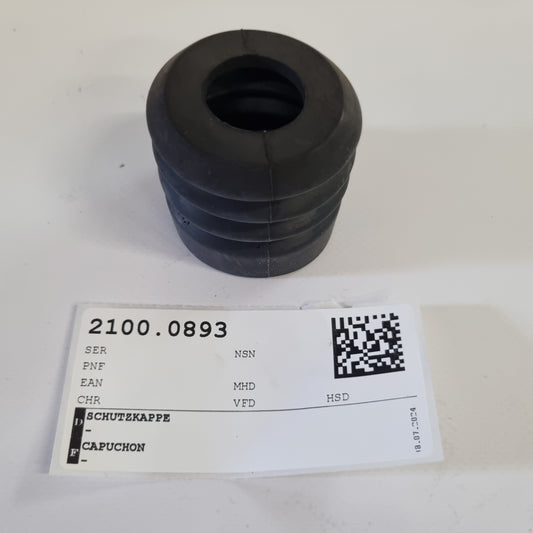

9. PROTECTIVE CAP
10. SEALING RING

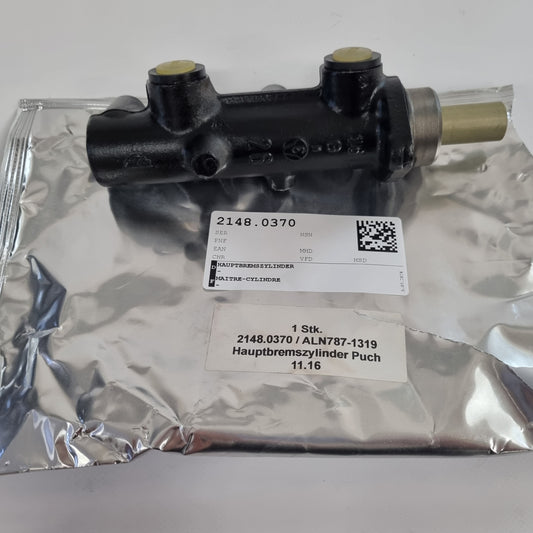

11. MASTER BRAKE CYLINDER

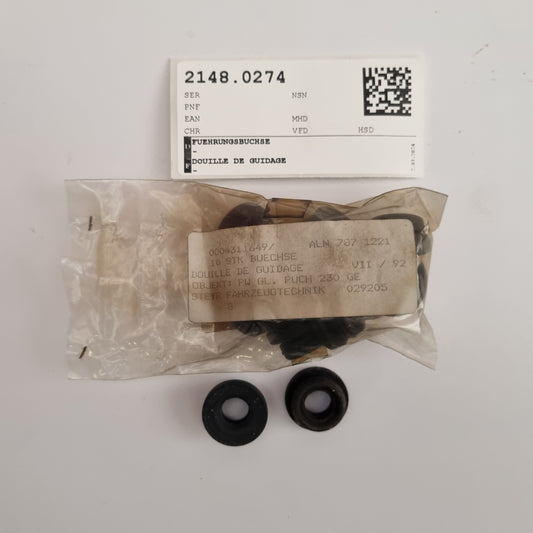

12. GUIDE BUSHING
13. Master cylinder repair kit
14. HEXAGON NUT M8 ISO 4032
15. SPRING RING CURVED A d8MM DIN 128

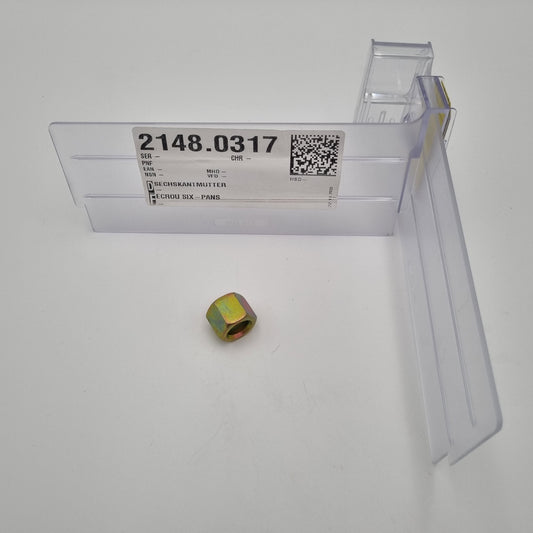

16. HEXAGON NUT

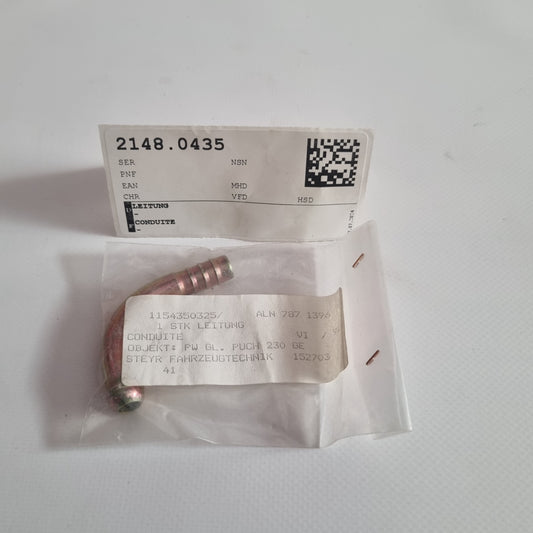

17. MANAGEMENT

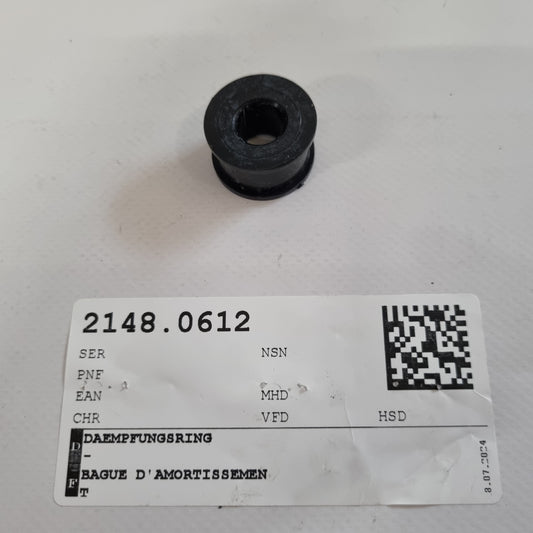

18. DAMPING RING
19. HOSE

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
