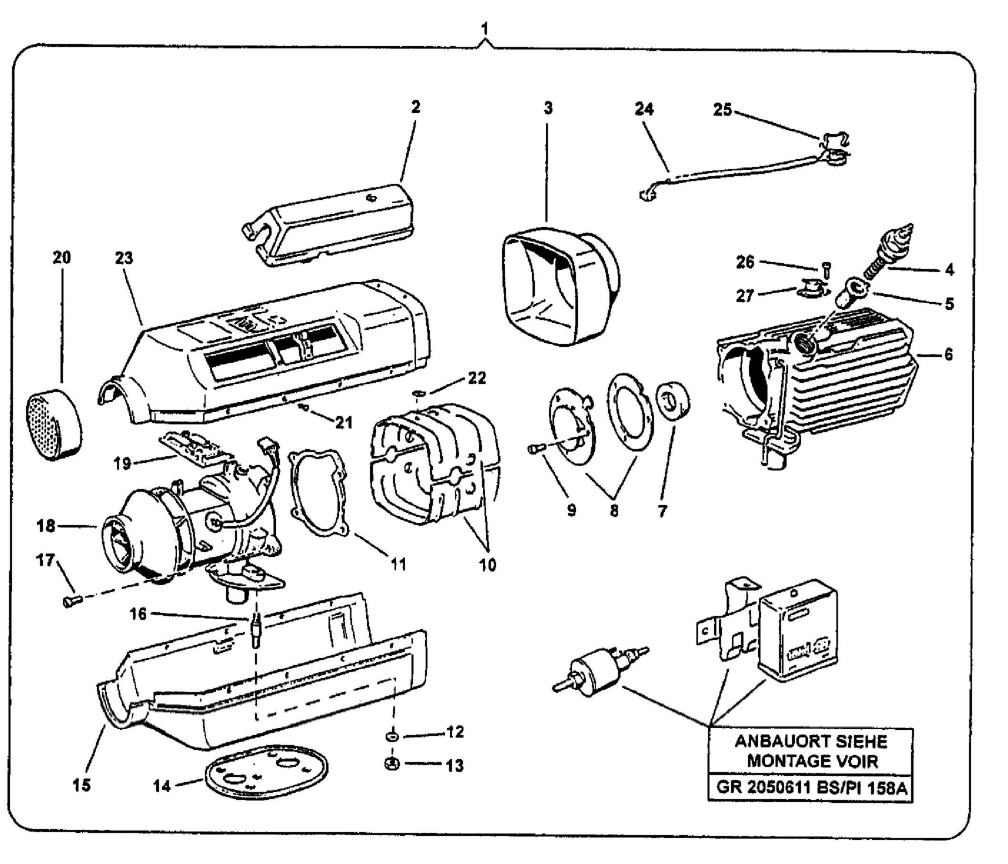

Product overview by image number (exploded view)
1. HEATER TYPE B3LC 24V
2. CAP
3. HOOD
4. Glow plug
5. LINING CANDLE TUBE
6. HEAT EXCHANGER
7. SEAL
8. LID WITH SEAL
9. Phillips head socket head cap screw
10. INSULATION SHELL
11. HEAT EXCHANGER SEAL
12. WASHER A d6.4/12X1.6MM DIN 125
13. HEXAGON NUT M6
14. SEAL
15. MANTEL SHELL / BOTTOM
16. Stud screw M6x20
17. Phillips head cylinder head screw
18. BLOWER
19. CIRCUIT PRINTED 24V
20. PROTECTIVE GRILL d75MM
21. EXPANDING RIVET
22. SECURITY
23. MANTEL SHELL / TOP
24. FLAME SENSOR
25. BRACKET
26. CYLINDER HEAD SCREW M3X10 DIN 84 4.8 A2P
27. SENSOR / OVERHEATING
Do you need help?
Check the exploded view to see which spare part you need.
You can find the corresponding number in the product overview.
If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')
The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
