Rear wiring harness

Product overview by image number (exploded view)

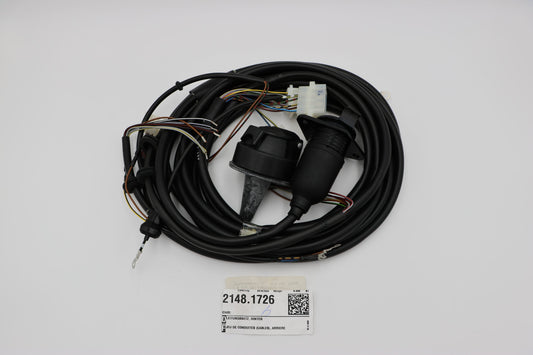

1. CABLE HARNESS / REAR

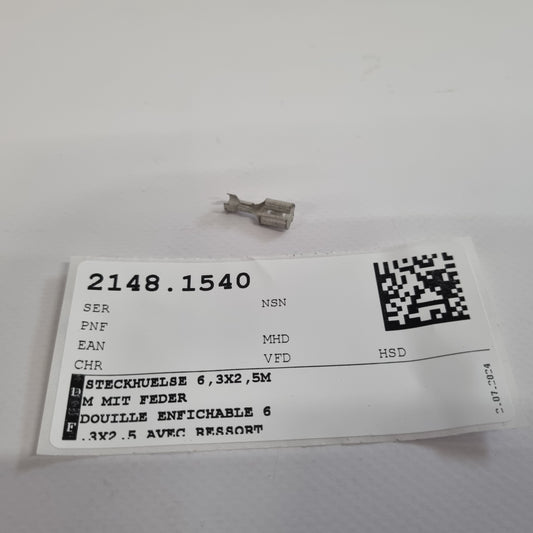

2. SOCKET 6.3X2.5MM WITH SPRING
3. 6P plug-in socket

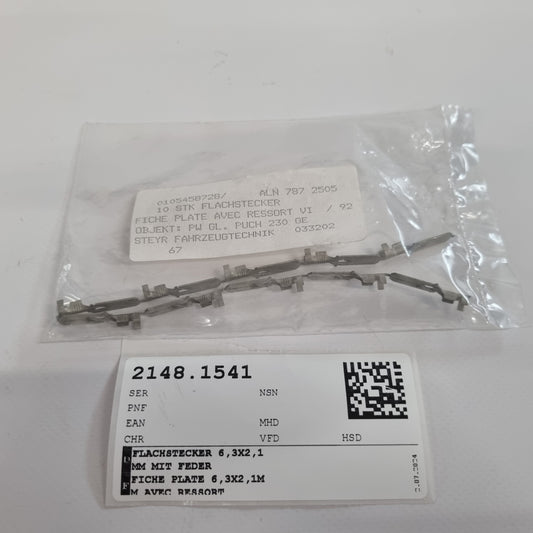

4. FLAT PLUG 6.3X2.1MM WITH SPRING
5. 2P CONNECTOR HOUSING

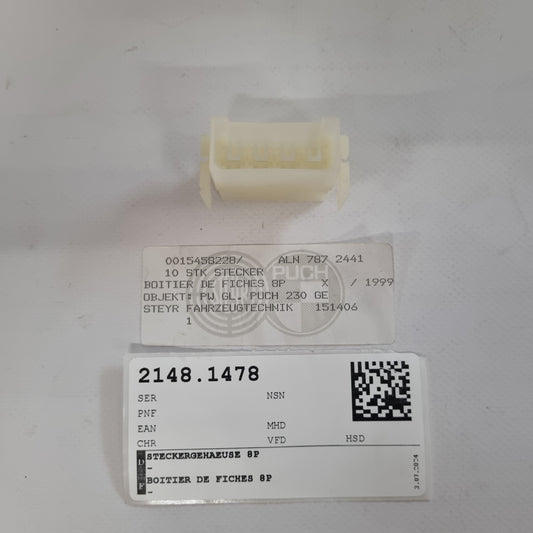

6. 8P CONNECTOR HOUSING

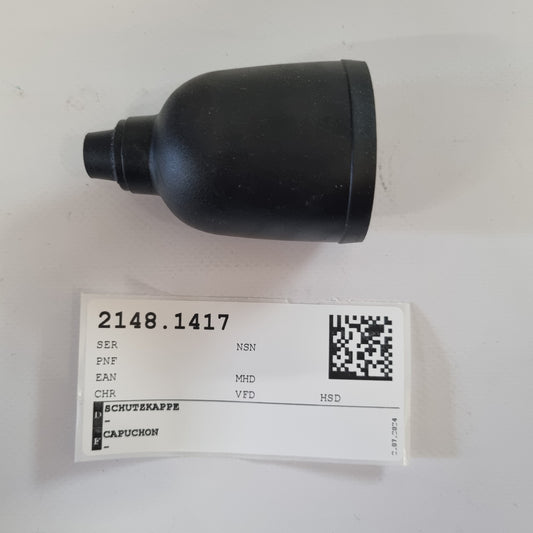

7. PROTECTIVE CAP

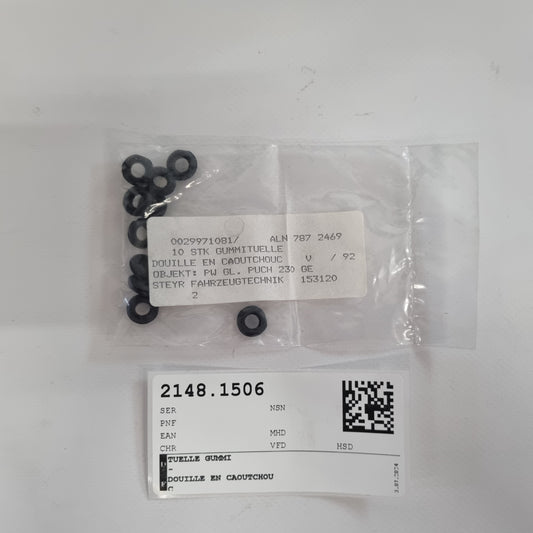

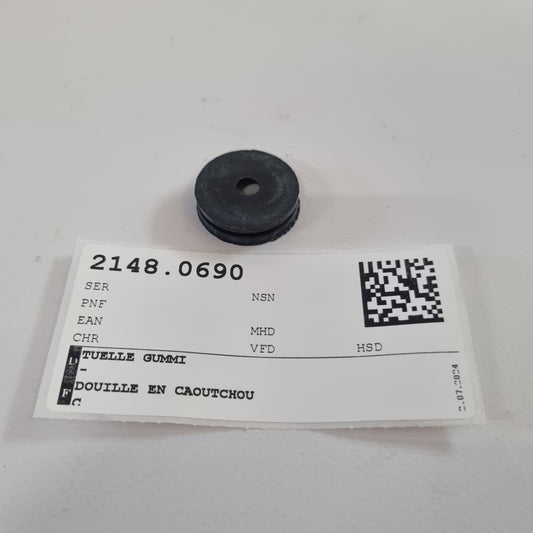

8. Grommet rubber
9. Grommet rubber

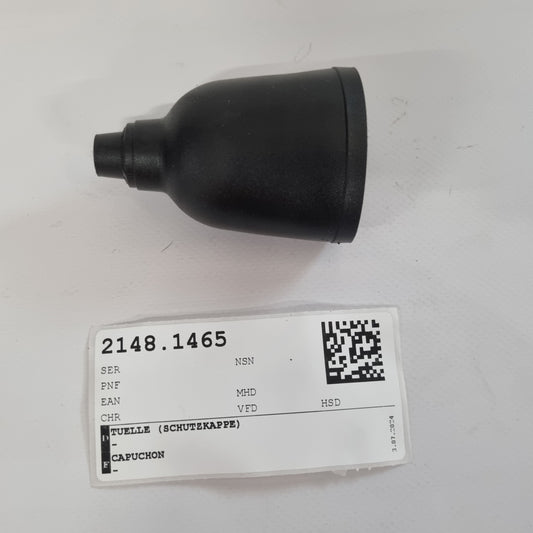

10. GROMMET (PROTECTIVE CAP)
11. PROTECTIVE CAP

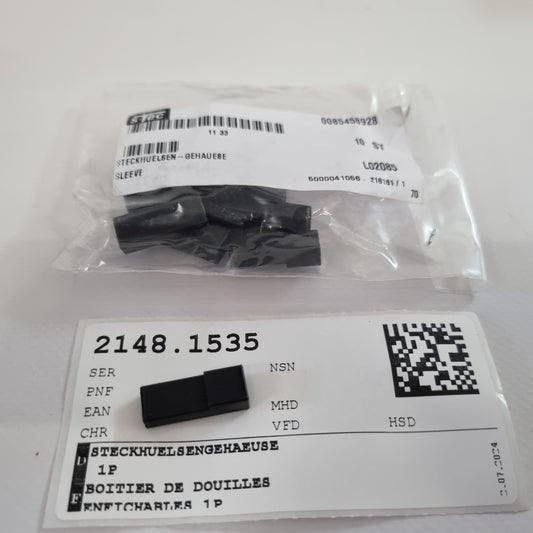

12. Plug-in socket housing 1P

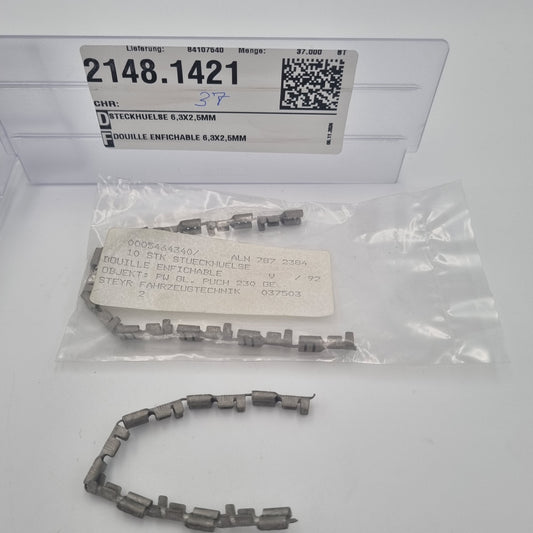

13. SOCKET 6.3X2.5MM
14. Grommet rubber

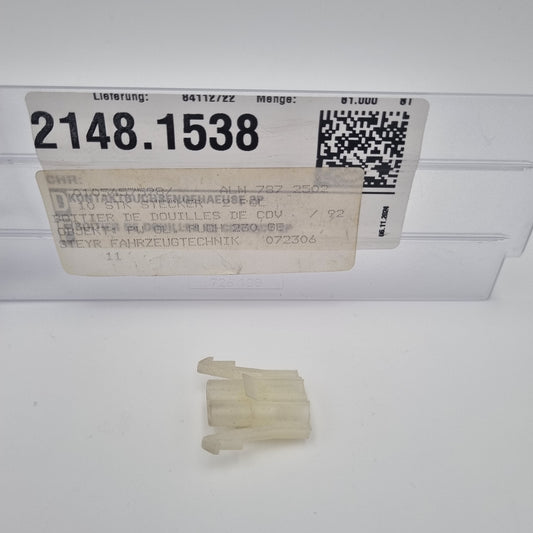

15. CONTACT SOCKET HOUSING 2P

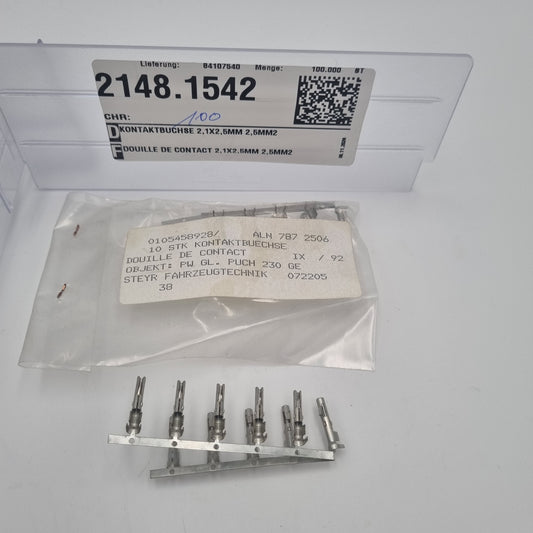

16. CONTACT SOCKET 2.1X2.5MM 2.5MM2
17. WIRING HARNESS FOR LICENSE PLATE LIGHT
18. Grommet rubber

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
