Canister holder / license plate

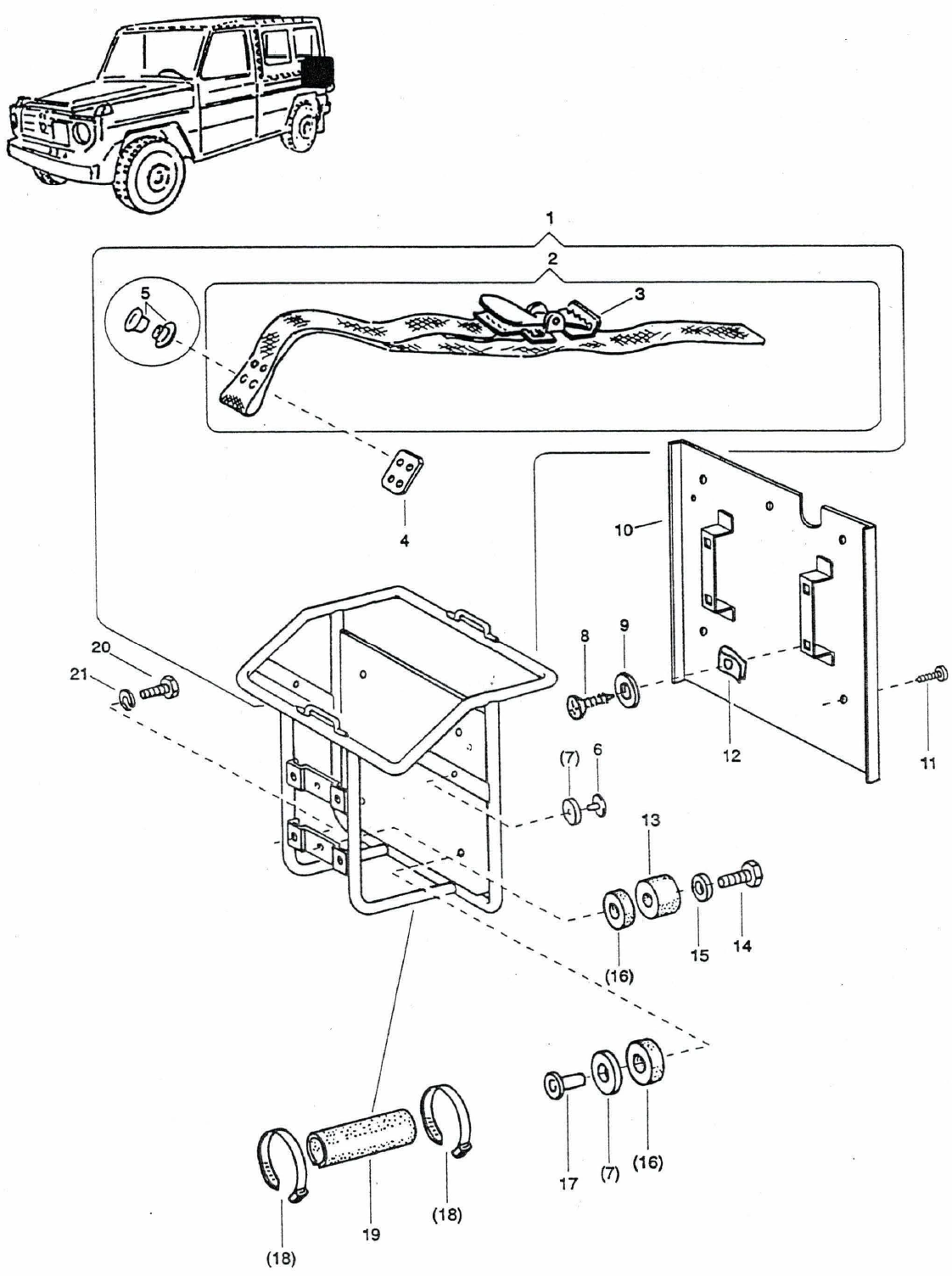

Product overview by image number (exploded view)

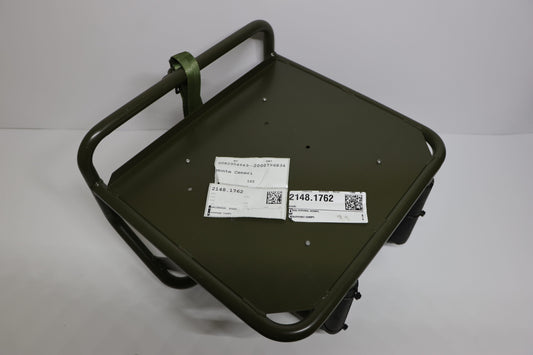

1. BRACKET / COMPONENT

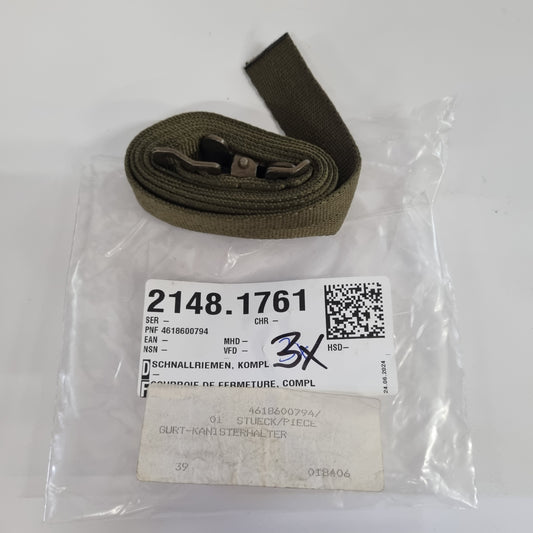

2. BUCKLE STRAPS / COMPLETE
3. BUCKLE
3. CLAMP BUCKLE 25 / 60X26/35MM ST VZINC PLATED
4. PLASTIC BASE
5. Closed hollow rivets d4/11x10mm
6. TUBE RIVETS A d5X0.5X10MM DIN 7340 CU

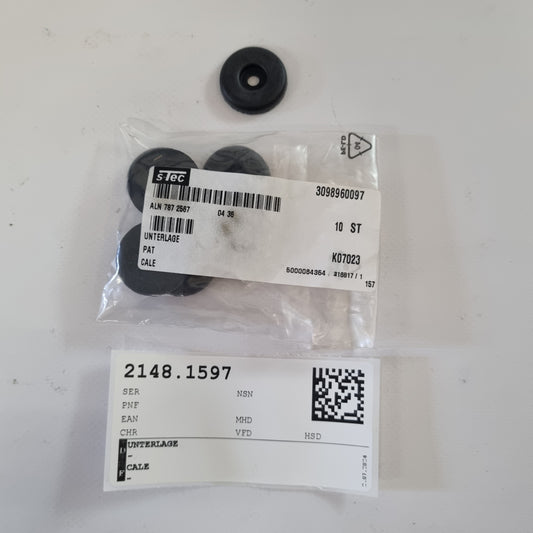

7. UNDERWRITING
8. Phillips head self-tapping screw

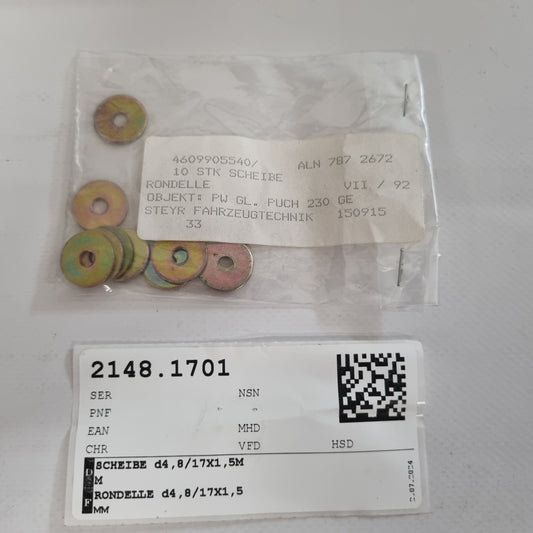

9. WASHER d4.8/17X1.5MM

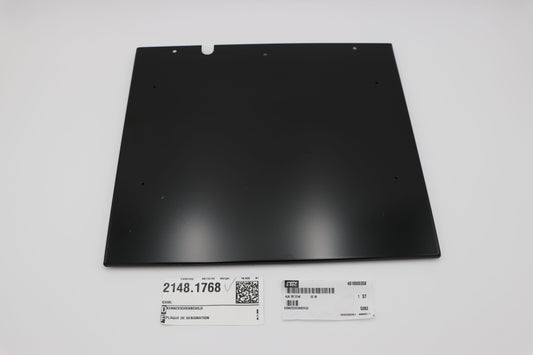

10. LICENSE PLATE
11. Tapping screw B4.2x9.5

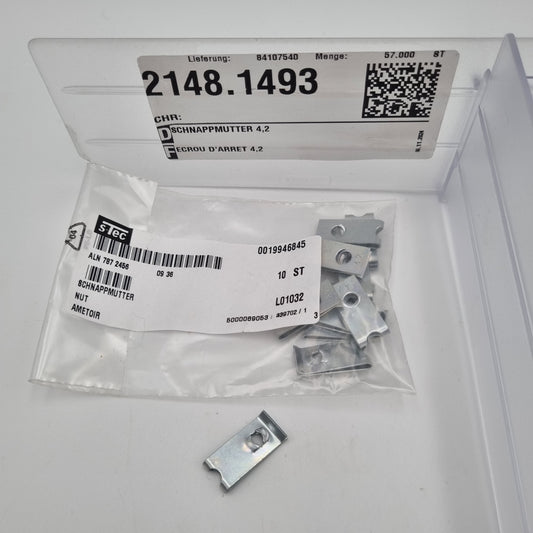

12. SNAP NUT 4.2

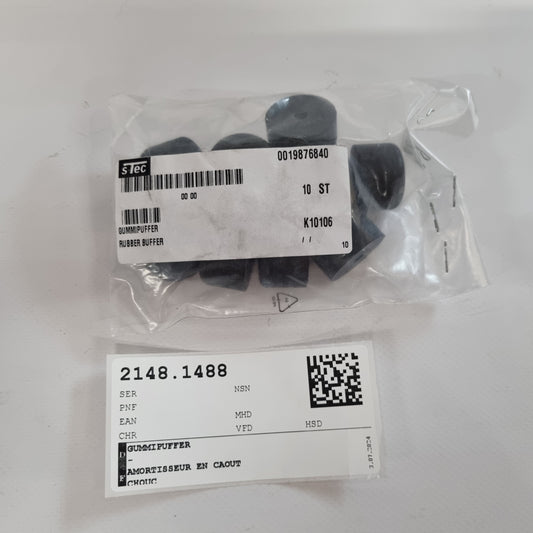

13. RUBBER BUFFER
14. HEXAGON SCREW M5X25 ISO 4017
15. WASHER A d5.3/10X1MM DIN 125
16. WASHER d4/28X6MM
17. TUBE RIVETS A d5X0.5X12MM DIN 7340 ST 35
18. CABLE TIES 4.6X146MM SST3S
19th Edition
20. HEXAGON SCREW M8X16 ISO 4017
21. SPRING RING CURVED A d8MM DIN 128

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
