Collection: IMFS air conditioning

1. AIR CONDITIONING SYSTEM R134A / COMPLETE
2. EVAPORATOR
3. SEAL
4. HEAT EXCHANGER
5. HOUSING / TOP
6. HOUSING / BOTTOM
7. Molded hose
8. MOLDED HOSE
9. BLOWER 24V
10. HEXAGONAL SHEET SCREW 4.2X19
11. HOLDER
12. TEMPERATURE SWITCH
13. CLAMP
14. FEATHER
15. SEAL

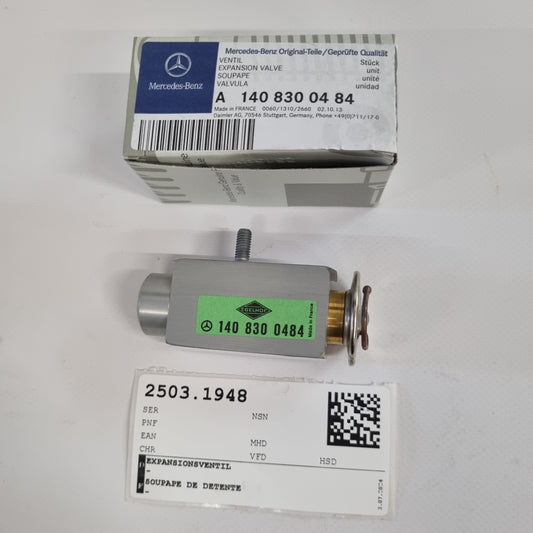

16. EXPANSION VALVE
17. Sealing ring d10.6 mm
18. Sealing ring d14mm
19. BUTTON
20. CABLE TIES 2.5X98MM
21. DRAIN PIPE
22. Drain spout
23. SEALING RING A d22/27X1.5MM
24. HEXAGON NUT 7/8" SW27
25. PIPELINE / COMP
26. SEALING RING
27. CLAMP 18MM
28. PIPE CLAMP
29. Phillips head cylinder head screw
30. Sealing ring A d16/20x1.5mm
31. HEXAGON NUT 5/8" SW22
32. PIPELINE / COMP
33. Sealing ring d7.5 mm
34. LOCK NUT M6
35. Phillips head self-tapping screw H
36. PLUG d5.5MM
36. PLUG d7.5MM
37. COMBINATION NUT M5

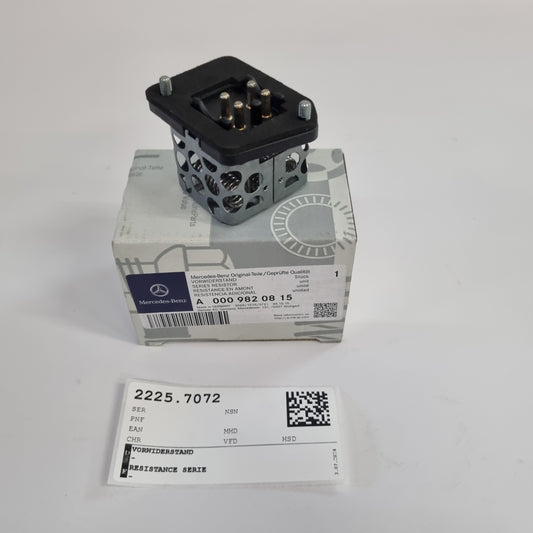

38. Series resistor
39. Grommet (on end wall)
40. SEALING
41. COVER CAP d50MM (FRONT BOTTOM)

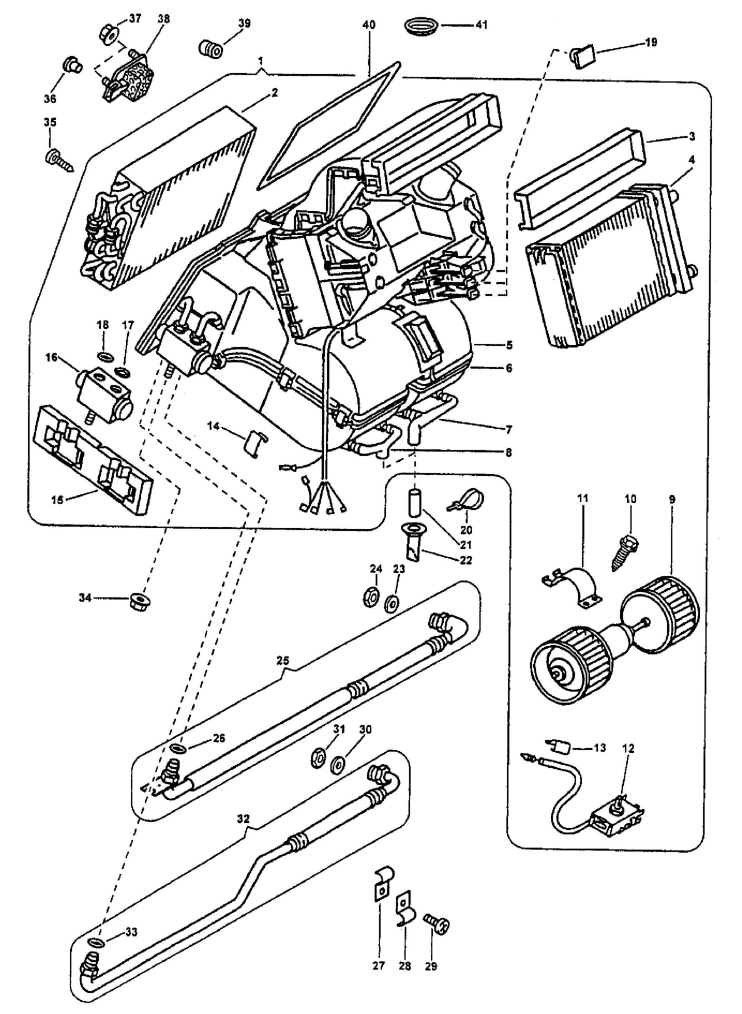

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
