Air conditioning condenser / refrigerant line

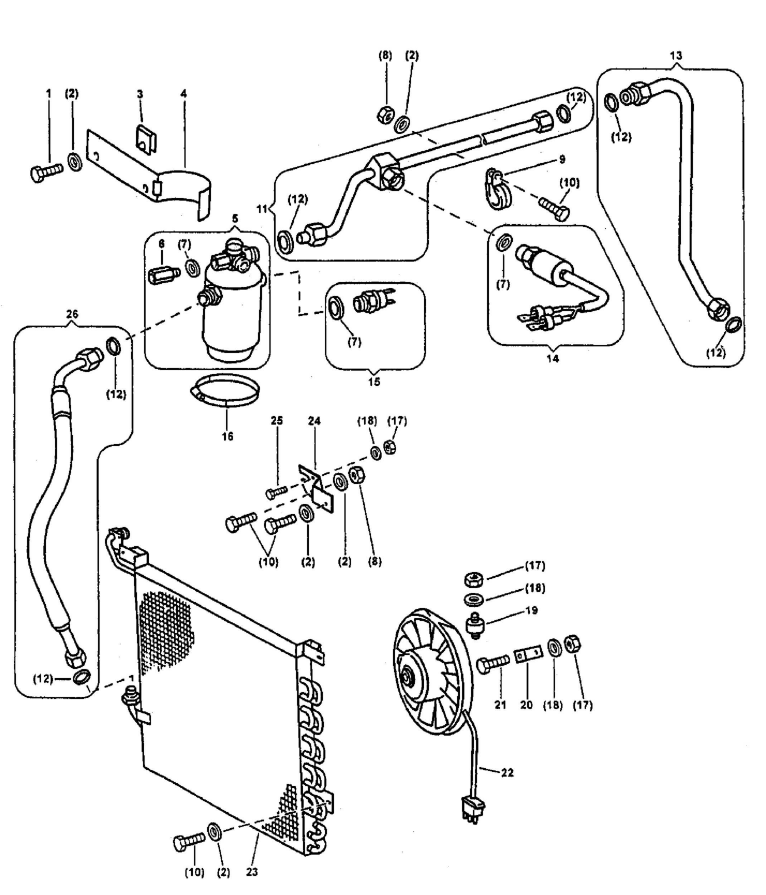

Product overview by image number (exploded view)

1. HEXAGON SCREW M6X20 ISO 4017
2. WASHER A d6.4/12X1.6MM DIN 125

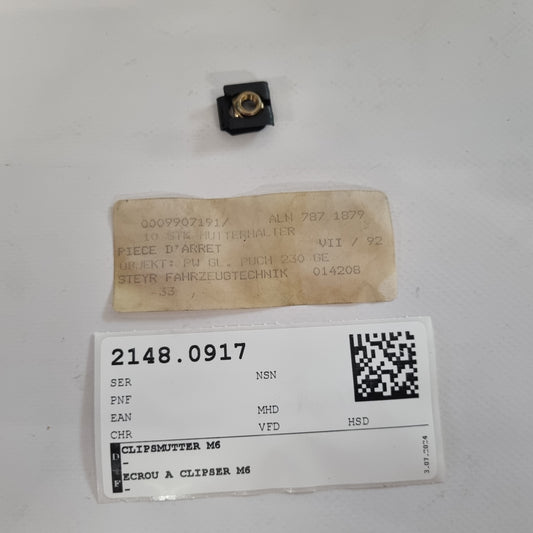

3. NUT HOLDER
4. HOLDER
5. CONTAINER / COMPONENT
6. PRESSURE RELIEF VALVE
7. SEALING RING
8. HEXAGON NUT M6 ISO 4032
9. PIPE CLAMP ST ZINC-PLATED WITH RUBBER PROFILE
9. CLAMP
10. HEXAGON SCREW M6X16 ISO 4017
11. PIPE d7.5MM / FROM LIQUID

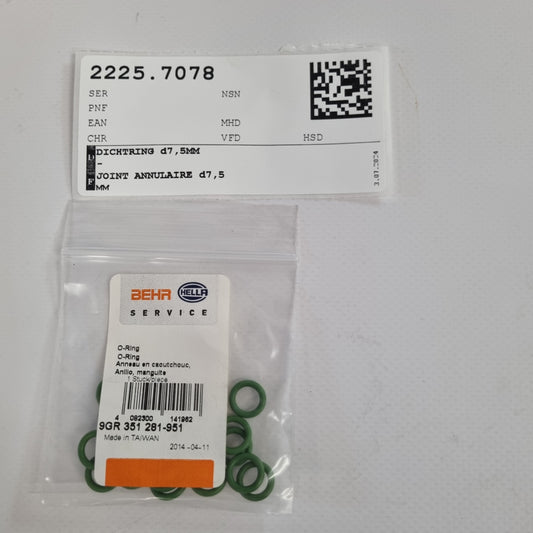

12. SEALING RING d7.5MM
13. LINE FROM SEPARATION POINT TO FACE WALL
14. SWITCH TO PRESSURE LINE

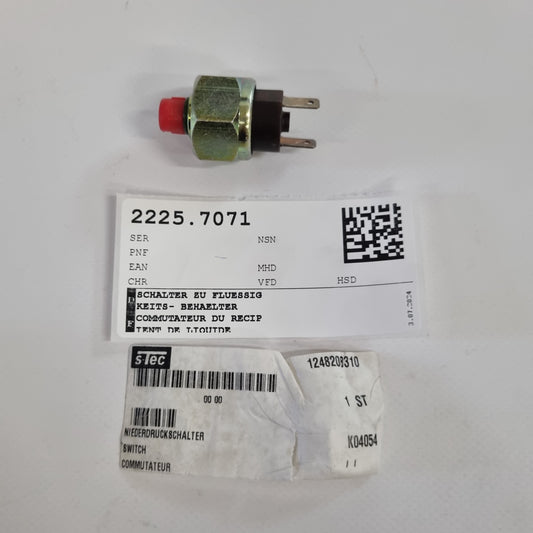

15. SWITCH TO LIQUID CONTAINER

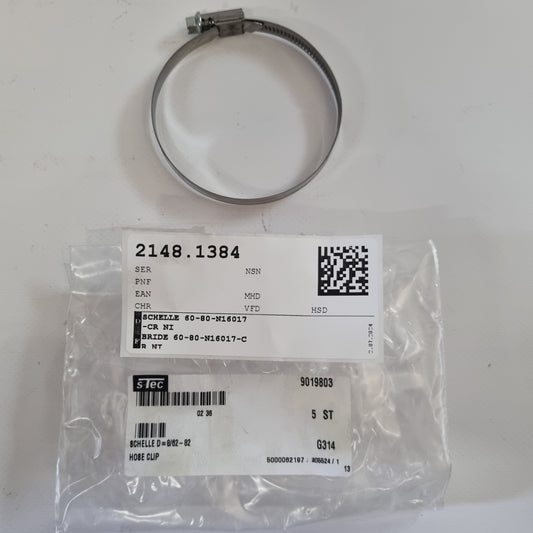

16. CLAMP 60-80-N16017-CR NI
17. HEXAGON NUT M5 ISO 4032
18. WASHER A d5.3/10X1MM DIN 125
19. BUFFER
20. HOLDER
21. HEXAGON SCREW M5X16 ISO 4017
22. BLOWER 24V
23. CAPACITOR
24. SUPPORT
25. HEXAGON SCREW M5X12 ISO 4017
26. LINE FROM CONDENSER TO LIQUID

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
