Pistons / connecting rods

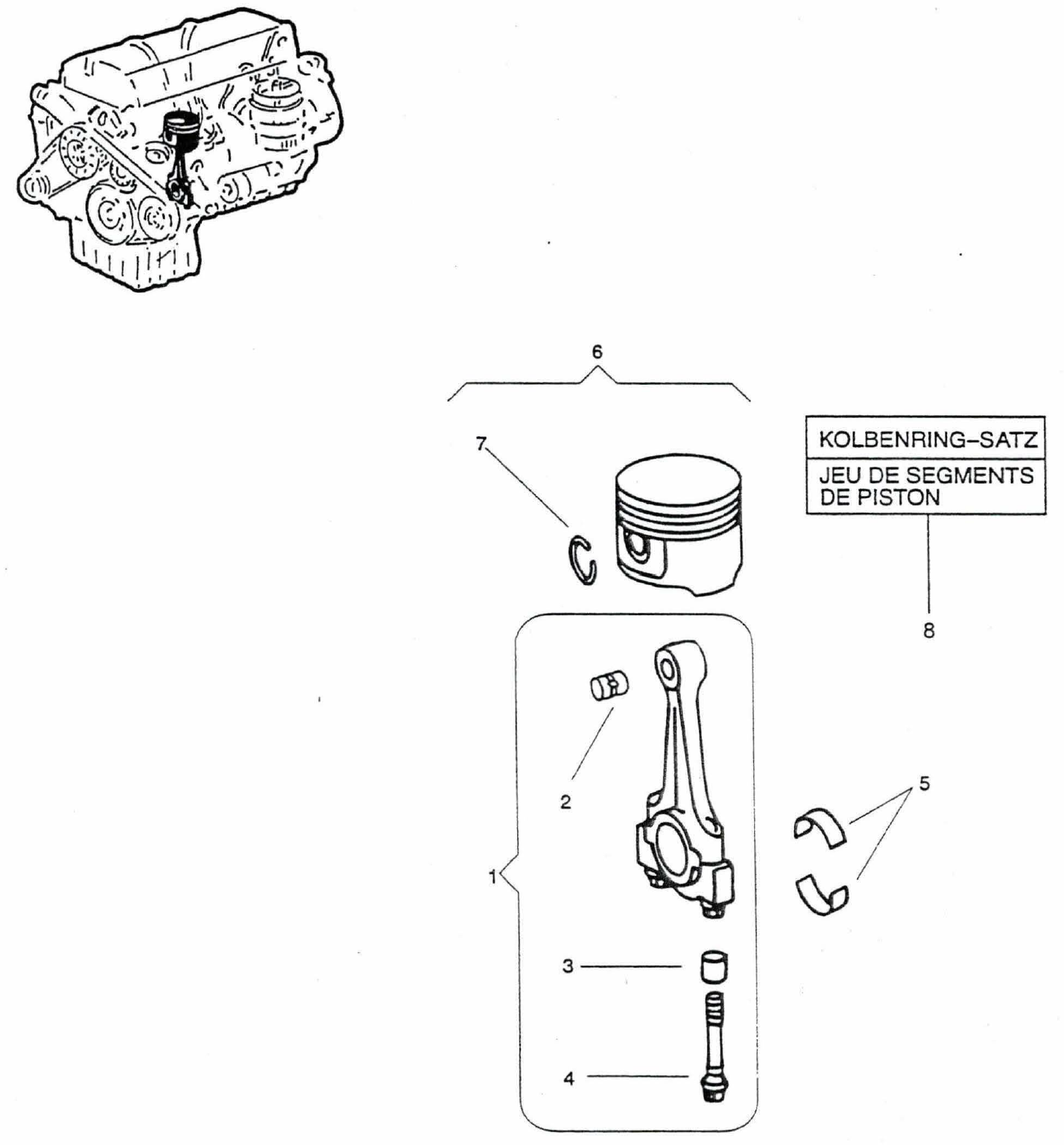

Product overview by image number (exploded view)

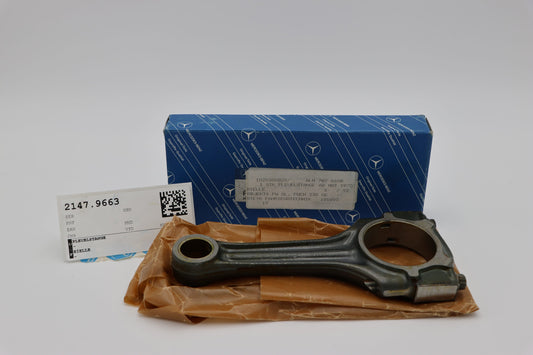

1. CONNECTING ROD
1. CONNECTING ROD
1. CONNECTING ROD

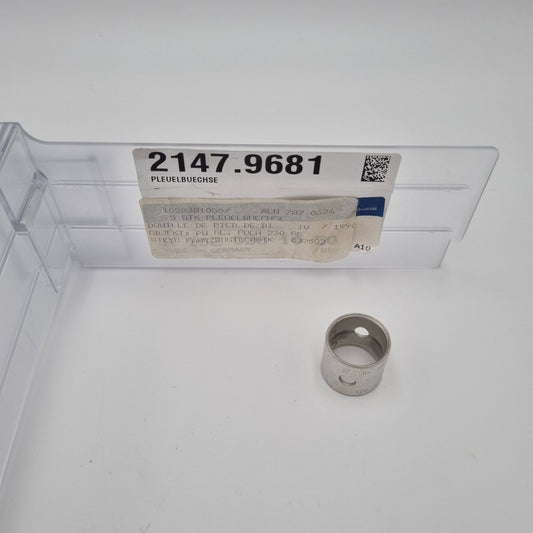

2. CONNECTING ROD BUSHE
2. CONNECTING ROD BUSHE
3. PASS SLEEVE

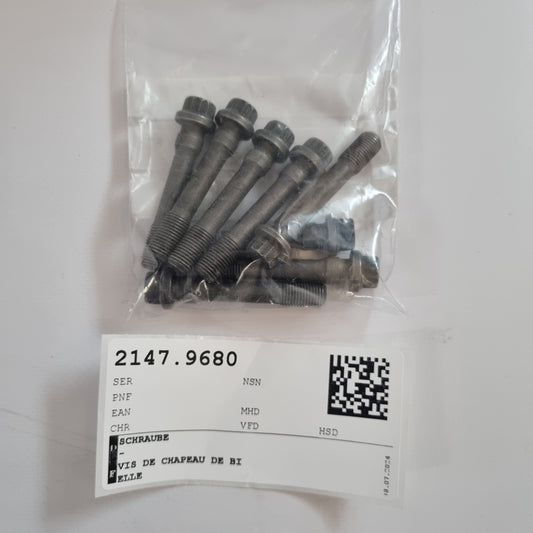

4. SCREW
4. CONNECTING ROD SCREW
4. CONNECTING ROD SCREW

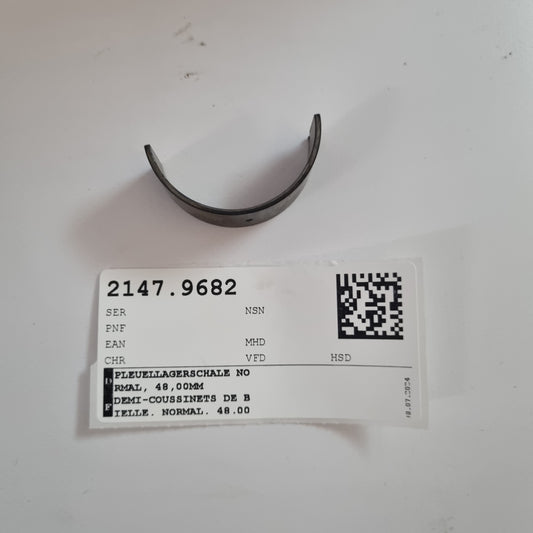

5. CONNECTING ROD BEARING SHELL NORMAL / 48.00MM
5. CONNECTING ROD BEARING SHELL REP STAGE 1 / 47.75MM
5. CONNECTING ROD BEARING SHELL REP STAGE 2 / 47.50MM
5. CONNECTING ROD BEARING SHELL REP STAGE 3 / 47.25MM
5. CONNECTING ROD BEARING SHELL REP STAGE 4 / 47.00MM
5. CONNECTING ROD BEARING SHELL REP STAGE 1 / 47.75MM
5. CONNECTING ROD BEARING SHELL REP STAGE 2 / 47.50MM
5. CONNECTING ROD BEARING SHELL REP STAGE 3 / 47.25MM
5. CONNECTING ROD BEARING SHELL REP STAGE 4 / 47.00MM
5. CONNECTING ROD BEARING SHELL NORMAL / 48.00MM
6. PISTON NORMAL / 95.50MM

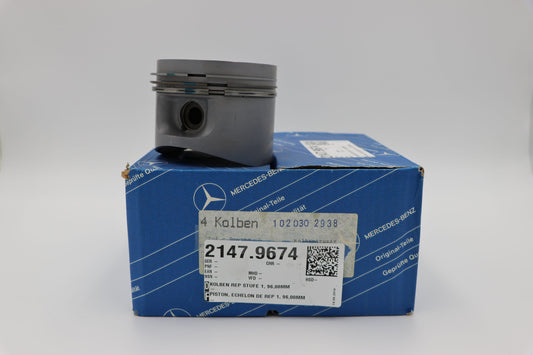

6. PISTON REP STAGE 1 / 96.00MM
6. PISTON REP STAGE 2 / 96.50MM

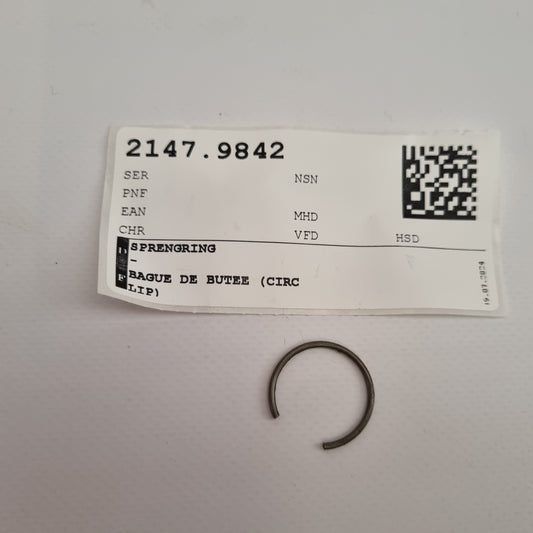

7. Snap ring
8. PISTON RING PARTS SET NORMAL
8. PISTON RING PARTS KIT REP STAGE 1
8. PISTON RING PARTS KIT REP STAGE 2

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
