Front fender

Product overview by image number (exploded view)

1. Grommet

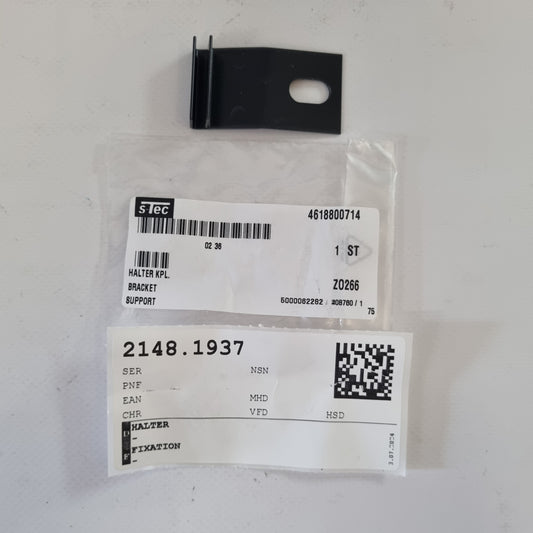

2. SUPPORT
3. Phillips head self-tapping screw

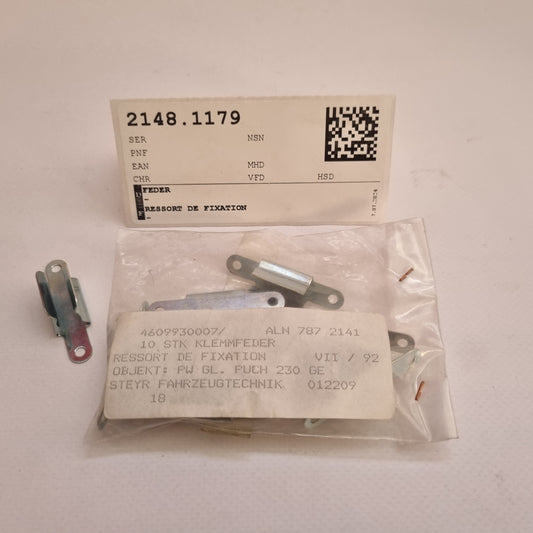

4. SPRING
5. PIPE
6. HEXAGON SCREW M6X12 ISO 4017
7. WASHER A d6.4/12X1.6MM DIN 125
8. Piping
9. DISC
10. SPRING WASHER B d6MM DIN 137 FD-ST A2P
11. HEXAGON NUT M6 ISO 4032

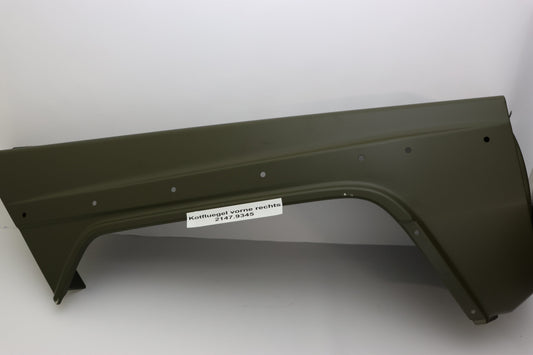

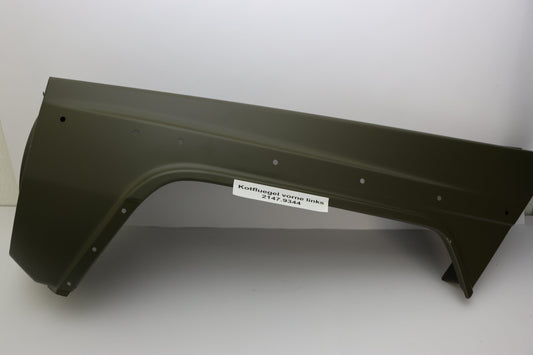

12. FRONT LEFT FENDER
12. FRONT RIGHT FENDER
13. FRONT LEFT FENDER
13. FRONT RIGHT FENDER

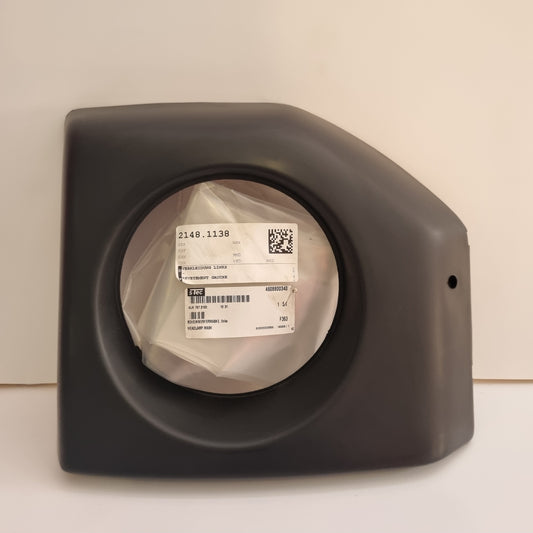

14. HOUSING LEFT AND RIGHT

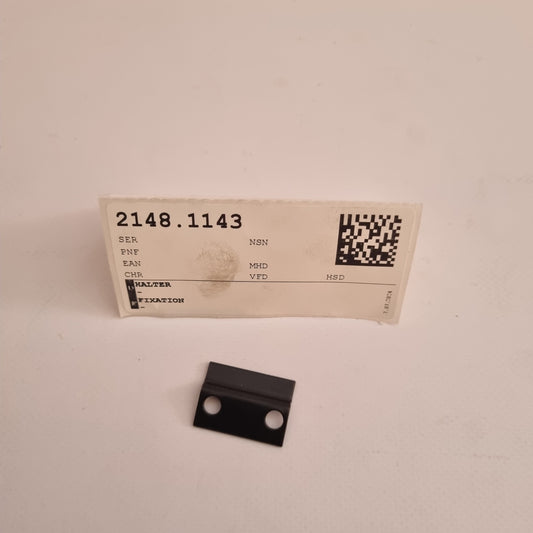

15. HOLDER

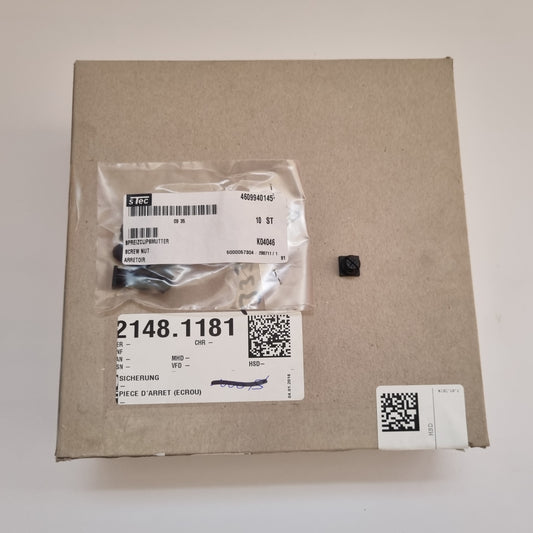

16. SECURITY
17. COVER
18. TRIM LEFT
18. TRIM RIGHT
18. TRIM / LEFT
18. TRIM / RIGHT
19. Phillips head self-tapping screw
19. LENS HEAD SHEET SCREW
19. Phillips head self-tapping screw
20. HEXAGON TAP SCREW F4.8X16 DIN 7976
21. WASHER A d6.4/12X1.6MM DIN 125

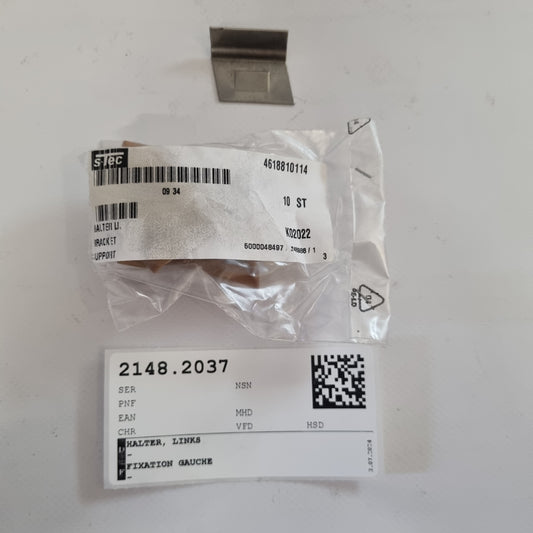

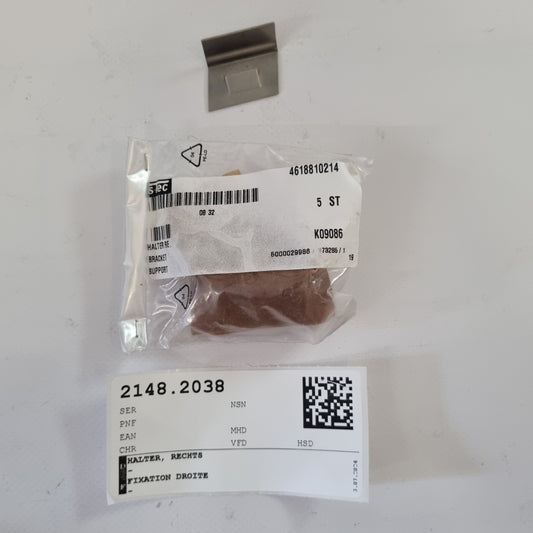

22. HOLDER
23. SECURITY
24. Edge protection
25. TRIM / LEFT
25. TRIM / RIGHT
26. HOLDER / LEFT
26. HOLDER / RIGHT

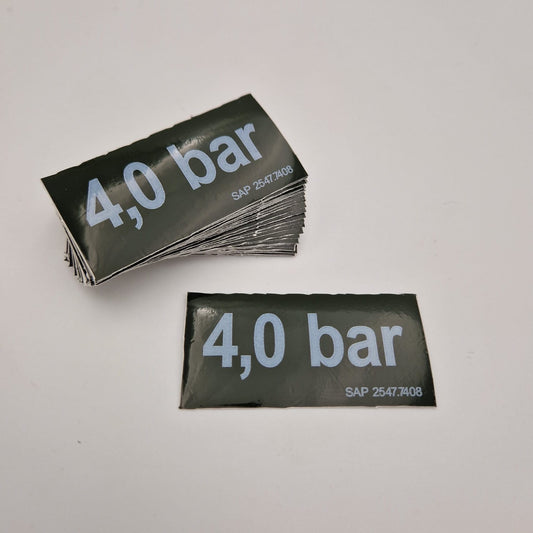

12. SELF-ADHESIVE LABEL 60X30MM
12. SELF-ADHESIVE LABEL 60X30MM

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
