Radiator lines and hoses

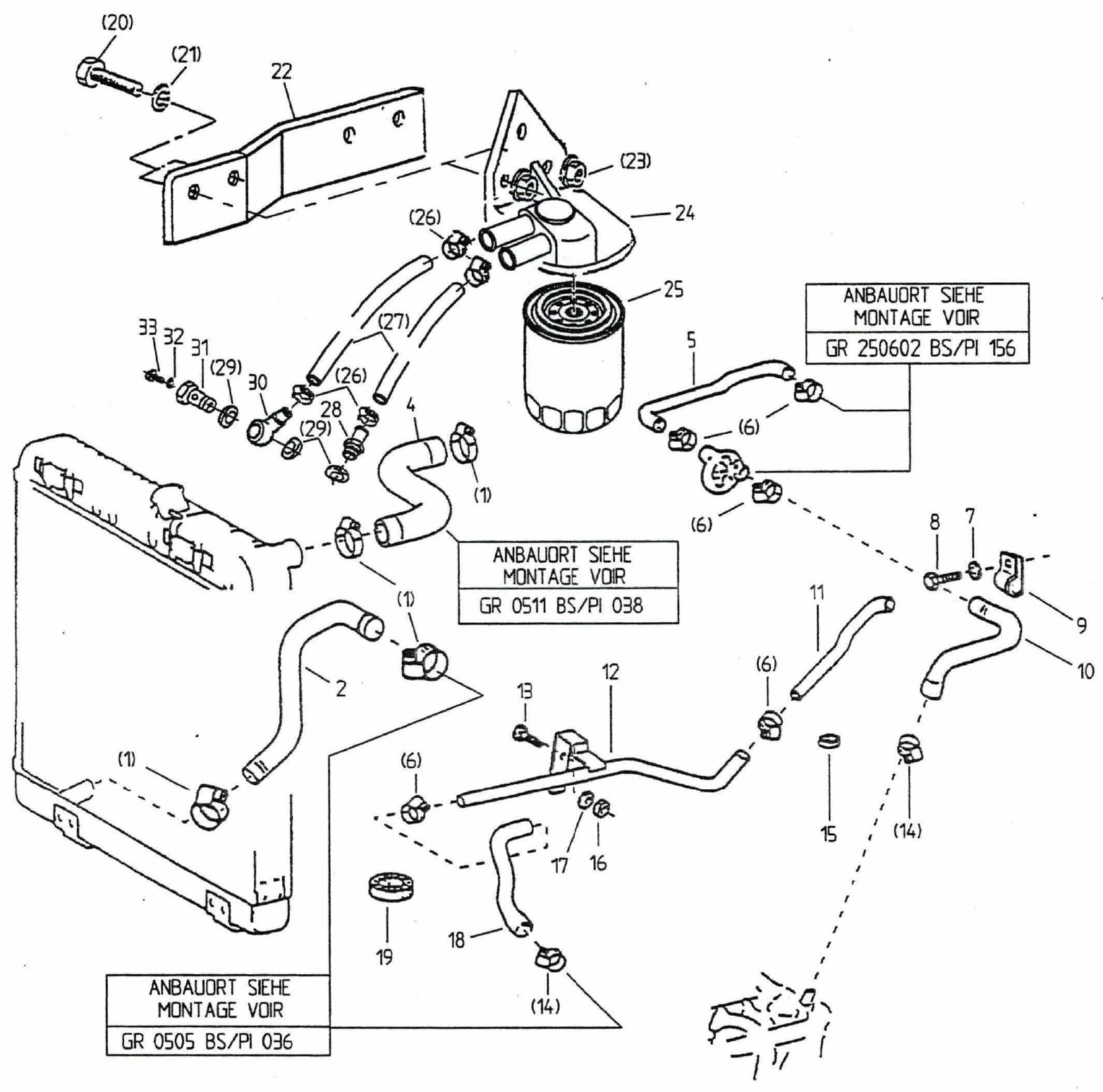

Product overview by image number (exploded view)

1. HOSE CLAMP PEBRA HKV
2. COOLANT HOSE BOTTOM

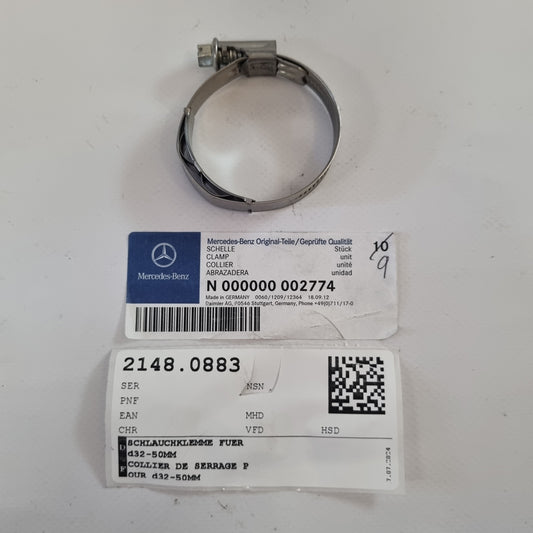

3. HOSE CLAMP FOR d32-50MM

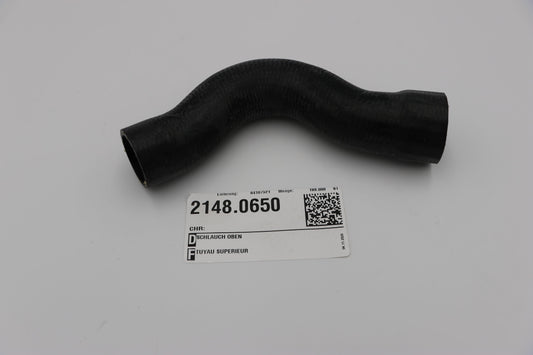

4. HOSE TOP
5. HOSE
6. HOSE CLAMP ABA / FOR d19-28MM
6. HOSE CLAMP ABA / FOR d19-28MM
7. SPRING RING
7. SPRING RING
8. HEXAGON SCREW M5X12 ISO 4017

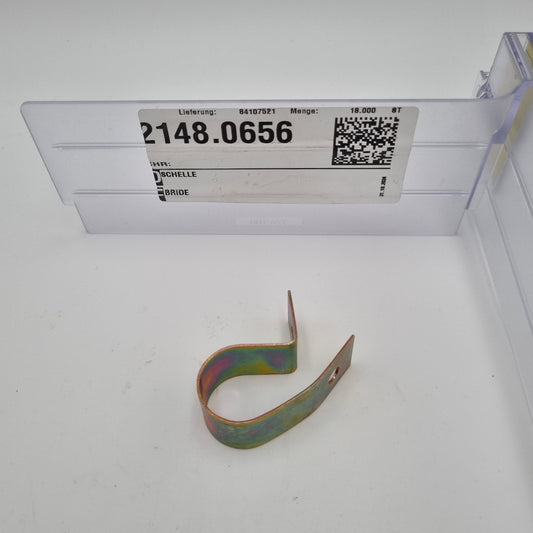

9. CLAMP
10. HOSE
11. HOSE

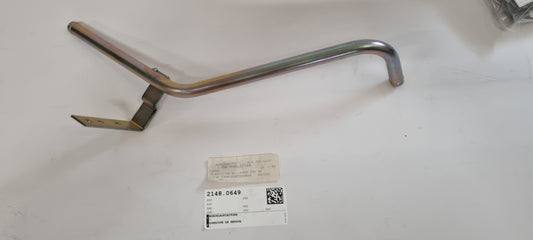

12. RETURN LINE
13. Cylinder head screw with hexagon socket

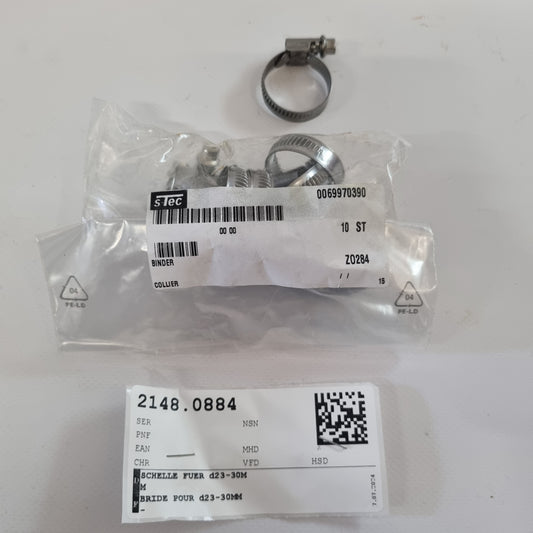

14. CLAMP FOR d23-30MM

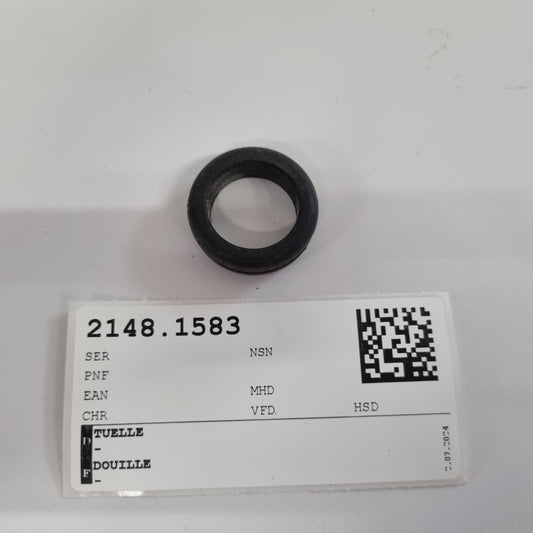

15. Grommet
16. HEXAGON NUT M6 ISO 4032
17. SPRING RING
17. SPRING RING
18. HOSE
19. RUBBER RING
20. HEXAGON SCREW M8X25 ISO 4017
21. WASHER B d8.4/16X1.6MM DIN 125

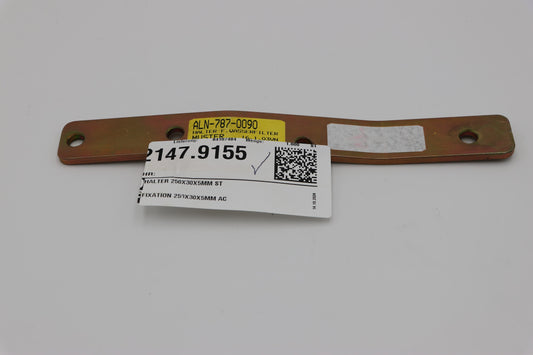

22. HOLDER 250X30X5MM ST
23. SAFETY NUT M8 DIN 985 6 GALVANIZED
24. WATER FILTER MOUNTING HEAD WITH VALVES,
25. FILTER CARTRIDGE BS20
26. HOSE CLAMP PEBRA HKV
27. COOLANT HOSE d15X4.5MM DBL6254.11
28. STRAIGHT HOSE CONNECTION 5/8"X38MM
29. SEALING RING d14.2/20X2MM COPPER

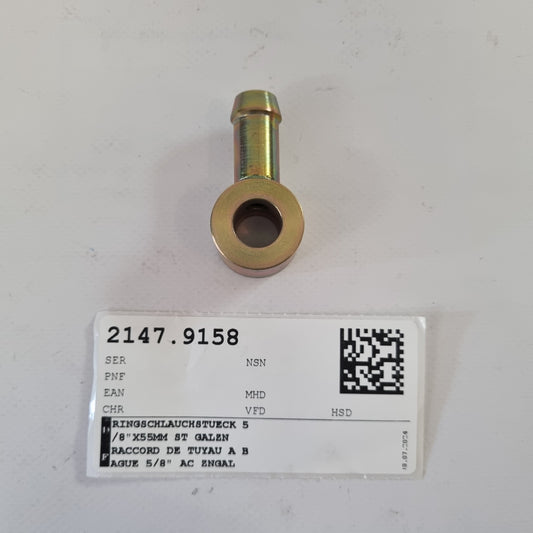

30. RING HOSE PIECE 5/8"X55MM ST GALVAN

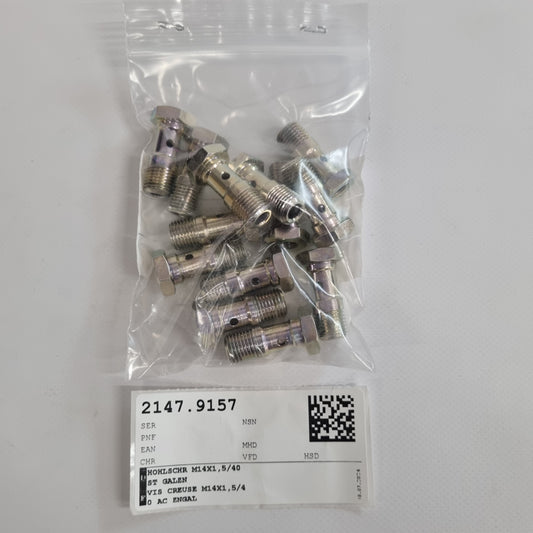

31. HOHLSCHR M14X1.5/40 ST GALS
32. SEALING RING A d10/13.5X1MM
33. PLUG SCREW I M10X1 DIN 908
22. HOLDER 250X30X5MM ST

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
