Radiator cover

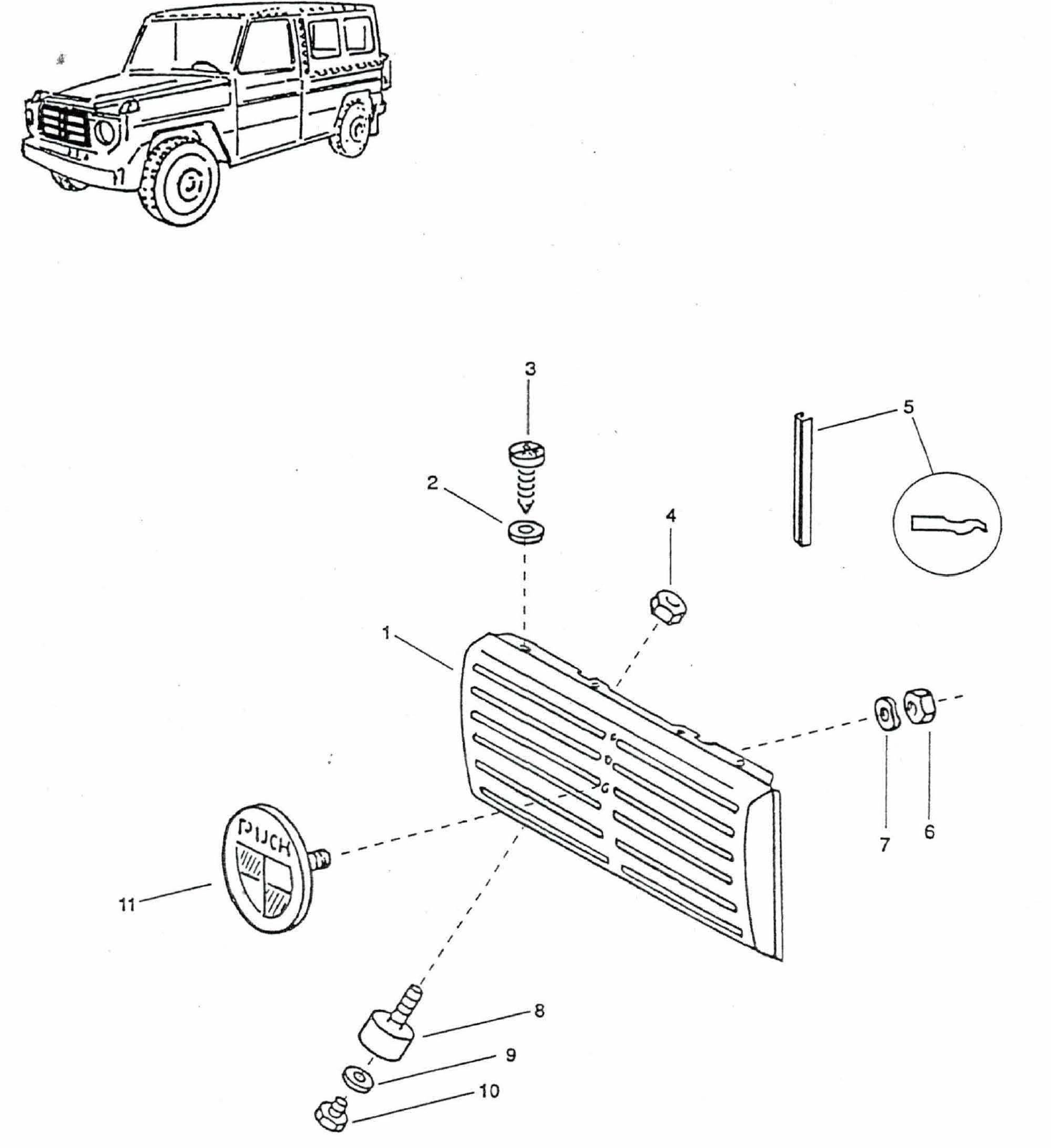

Product overview by image number (exploded view)

1. RADIATOR GRILLE
2. WASHER A d4.3/9X0.8MM DIN 125
3. Phillips head self-tapping screw
4. HEXAGON NUT M6 ISO 4032
5. SEALING RUBBER
6. HEXAGON NUT M5 ISO 4032
7. SPRING WASHER B d5MM DIN 137
8. RUBBER BUFFER
9. WASHER A d6.4/12X1.6MM DIN 125
10. SCREW
11. PUCH COMPANY SIGN

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
