Steering wheel / steering spindle

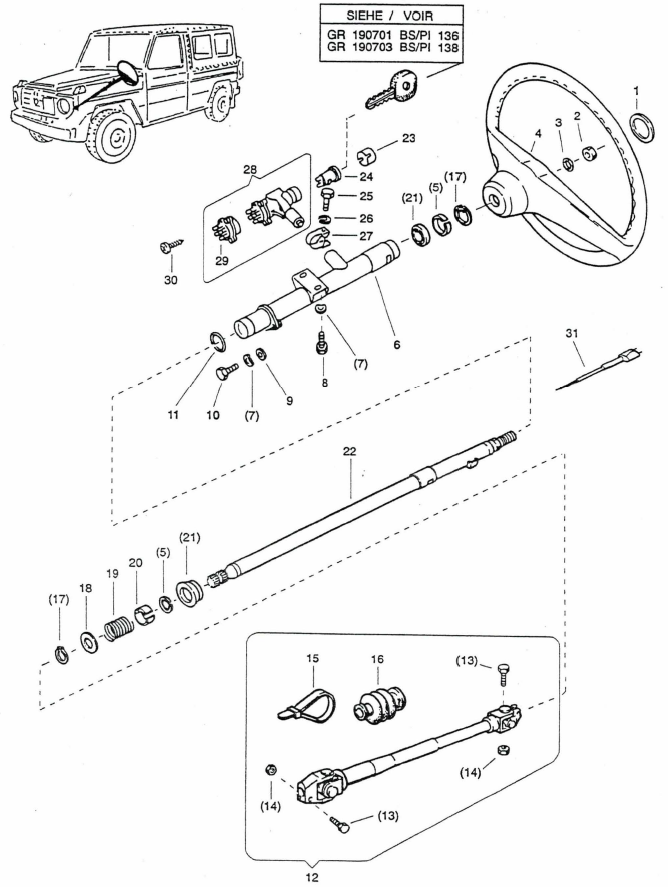

Product overview by image number (exploded view)

1. COMPANY LOGOS
2. HEXAGON NUT B M18X1.5 DIN 439
3. SPRING WASHER B d18MM DIN 137 FD ST A3P
4. STEERING WHEEL
5. CONE SLEEVE
6. Casing pipe
7. SPRING WASHER B d8MM DIN 137
8. HEXAGON SCREW M8X18 DIN 933 8.8 A2P
9. WASHER FOR BOLT d8/15X2MM
10. HEXAGON SCREW M8X25 ISO 4017
10. HEXAGON SCREW M8X25 ISO 4017
11. O-RING HECKER HN 340 WZ 2-738
12. STEERING AXLE
12. STEERING AXLE
13. HEXAGON SCREW
14. HEXAGON NUT M8
15. CABLE TIES 4.6X146MM SST3S
16. CUFF
17. RETAINING RING FOR SHAFT d25X1.2MM
18. DISC
19. FEATHER
20. Tapered sleeve
20. SPACER TUBE
21. BALL BEARINGS
22. STEERING AXLE
23. LID
24. LOCKING CYLINDER
24. LOCKING CYLINDER
25. HEXAGON SCREW M6X40/18 ISO 4014
26. SPRING RING
27. CLAMPING PIECE
28. STEERING LOCK
29. IGNITION SWITCH
30. Phillips head cylinder head screw
31. HORN CONTACT
32. Rosette
33. UNDERWRITING

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
