Handlebar / steering lever

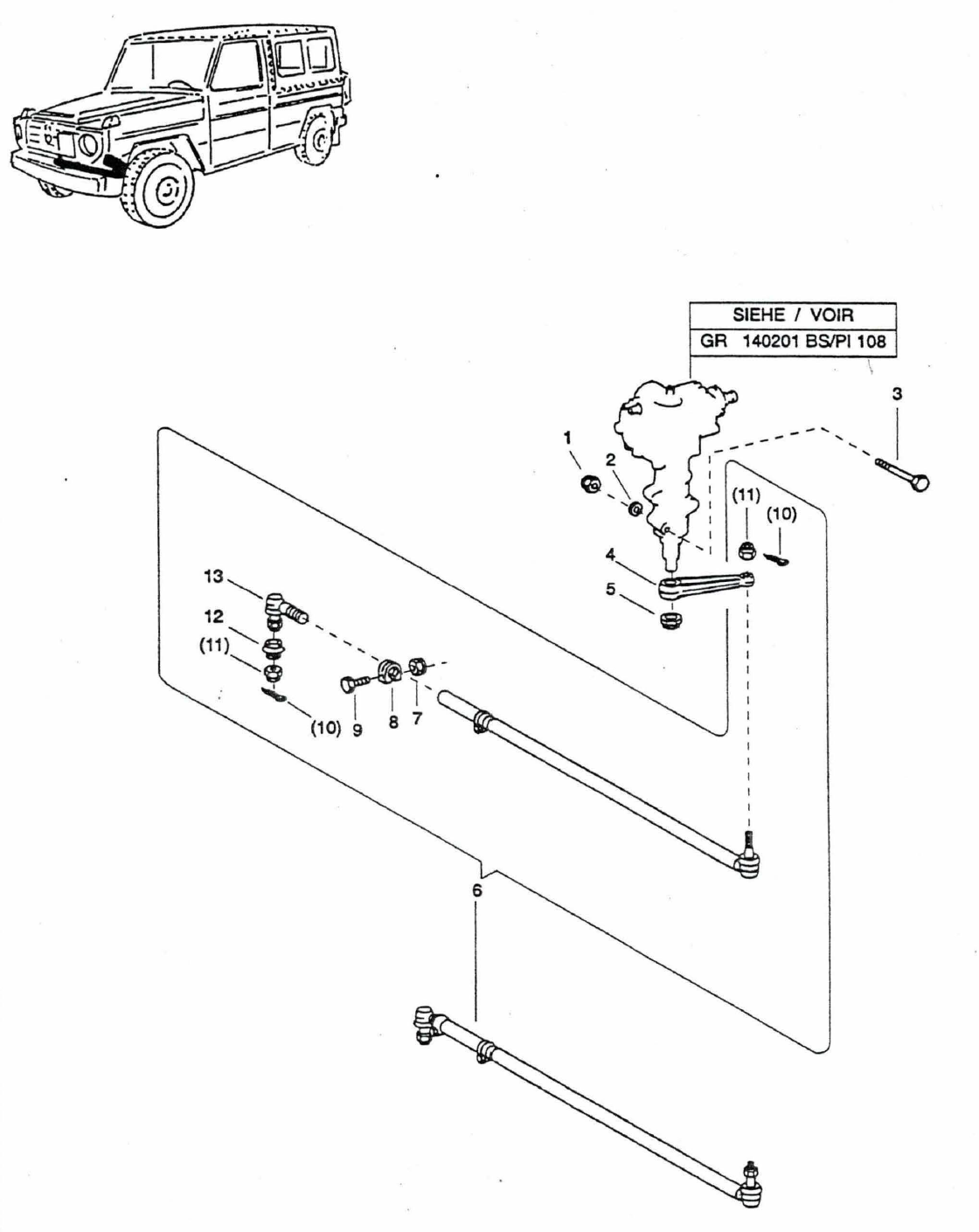

Product overview by image number (exploded view)

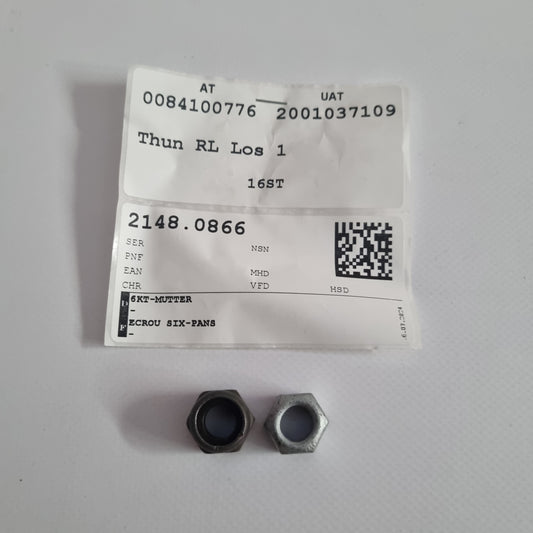

1. HEXAGON NUT
2. WASHER A d13/24X2.5MM DIN 125
3. HEXAGON SCREW

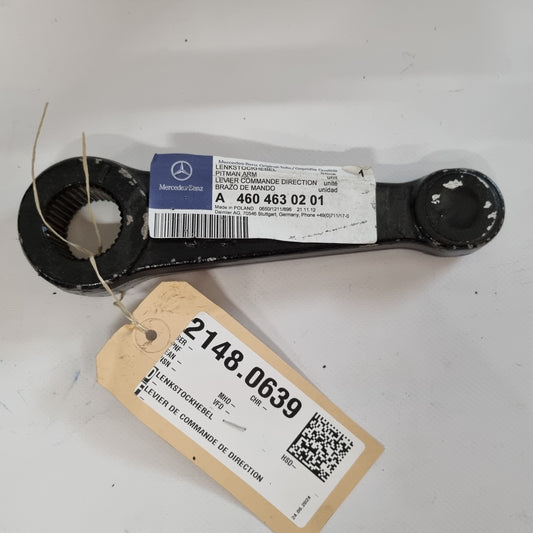

4. STEERING PILLAR LEVER
5. HEXAGON NUT

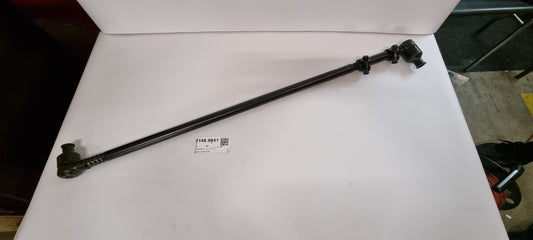

6. Handlebar

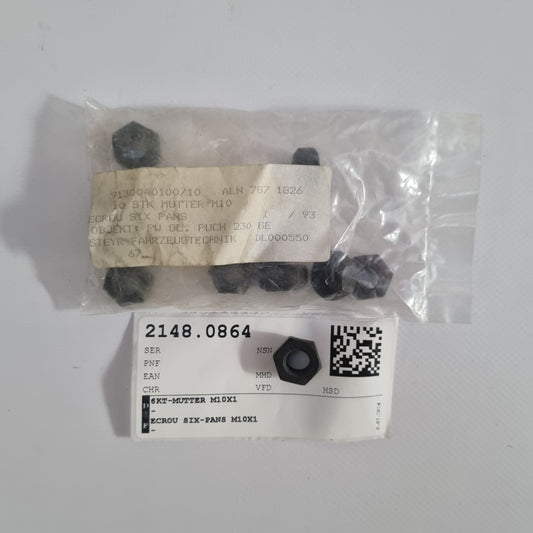

7. HEXAGON NUT M10X1

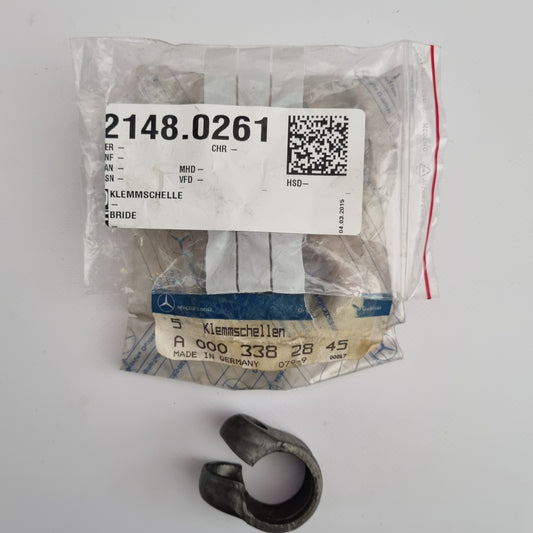

8. CLAMP

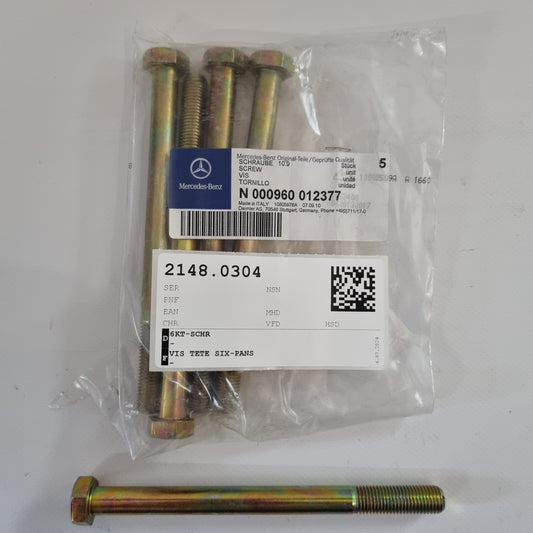

9. HEXAGON SCREW M10X1X45/26 DIN 960
10. Cotter pin d4x36mm ISO 1234
11. CROWN NUT FLAT M16X1.5 DIN 937

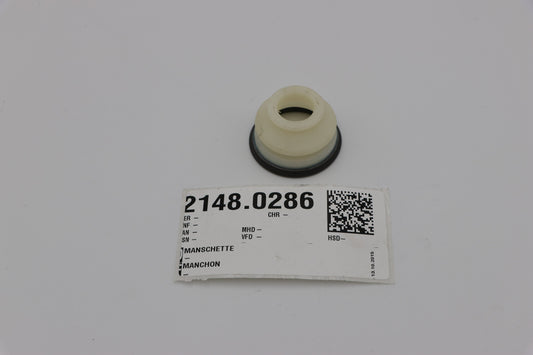

12. CUFF
12. SLEEVE d16/37MM WITH CLAMPING RING

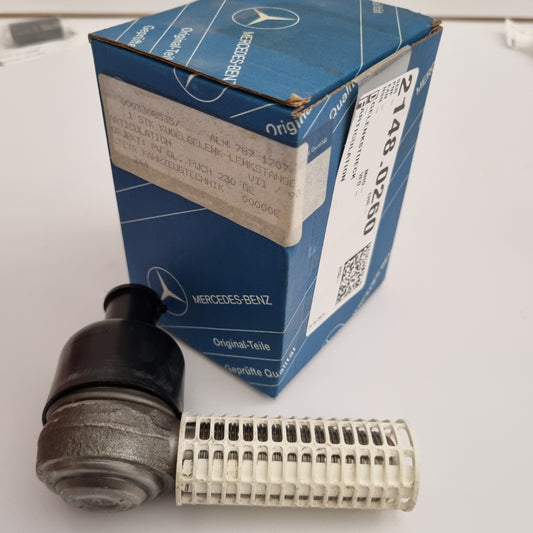

13. JOINT PIECE

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
