Air flow meter/flow divider

Product overview by image number (exploded view)

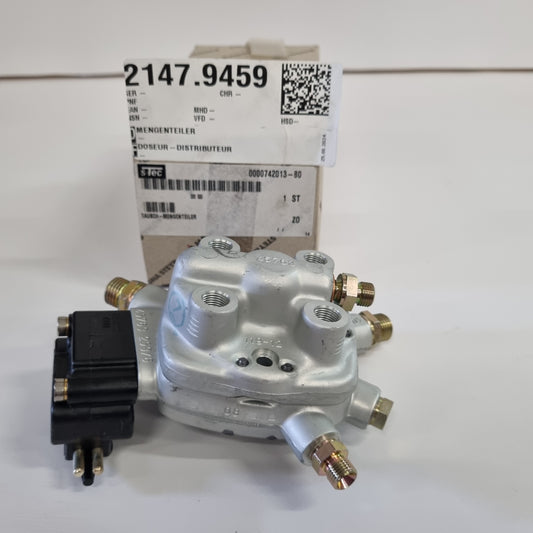

1. MULTI-DIVIDER

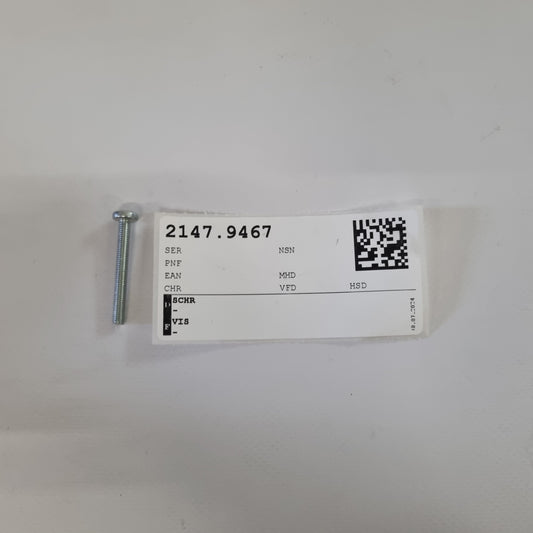

2. SCREW

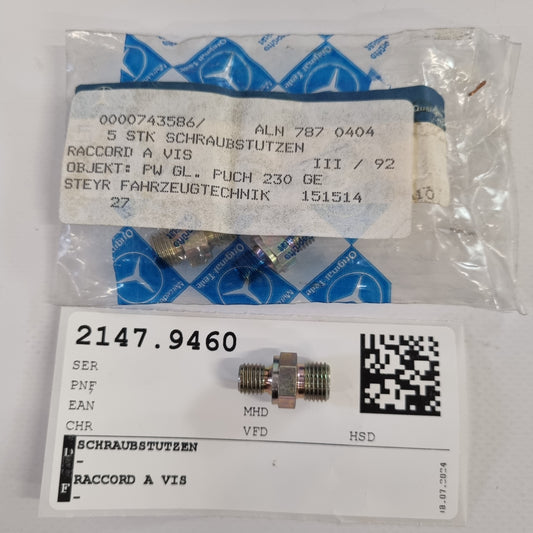

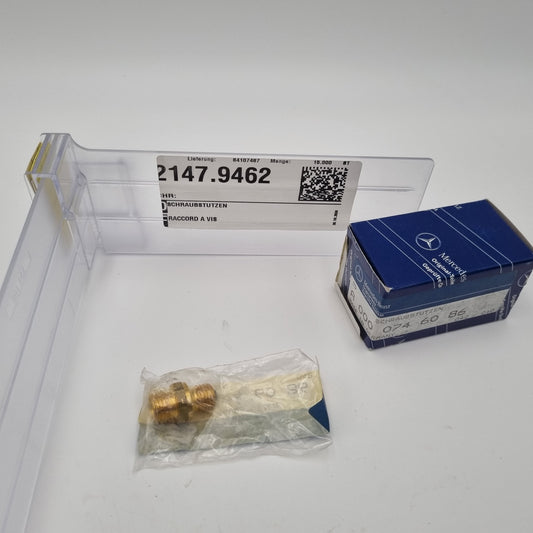

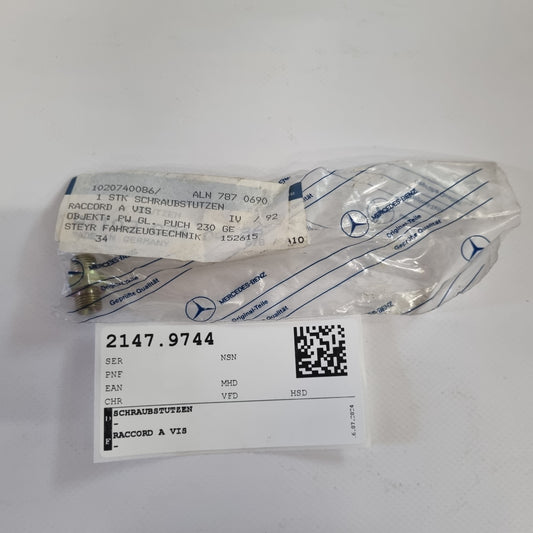

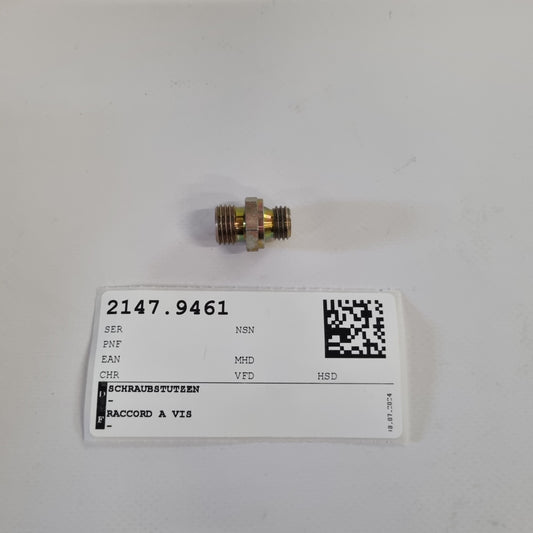

3. SCREW FITTING
3. SCREW FITTING
4. SEALING RING A d12/17X1.5MM

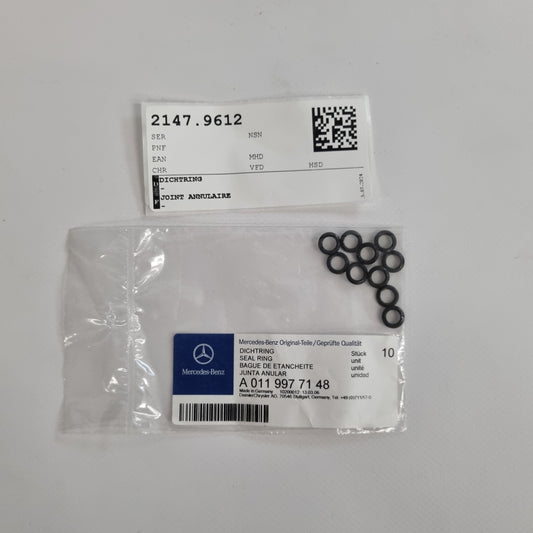

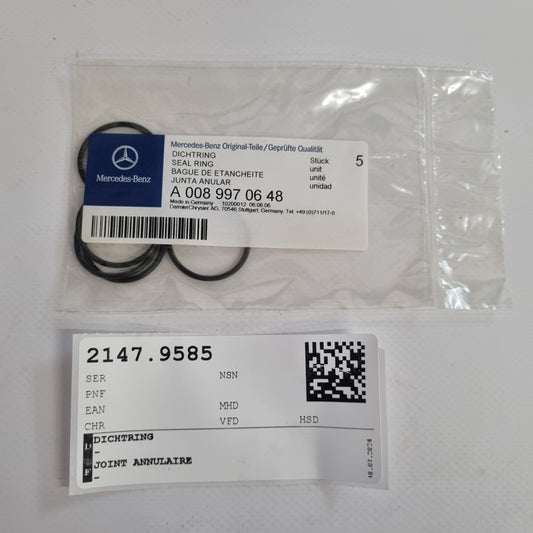

5. SEALING RING
6. SEALING RING
7. SCREW FITTINGS
8. SEALING RING A d10/14X1MM
8. SEALING RING A d12/17X1.5MM
9. SCREW FITTINGS
10. SEALING RING A d8/11.5X1MM
11. SCREW FITTINGS

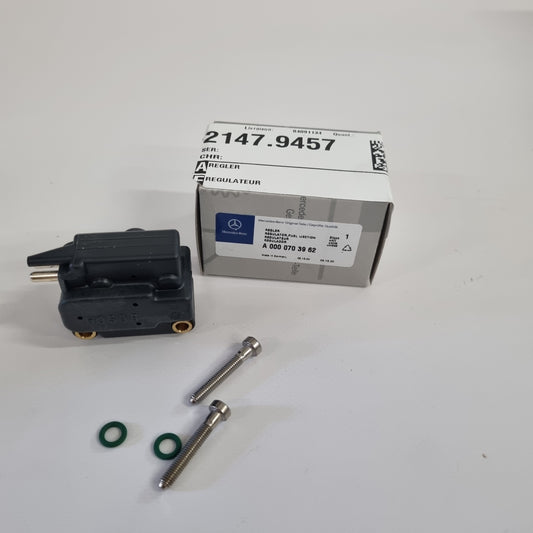

12. CONTROLLER
13. SEALING RING

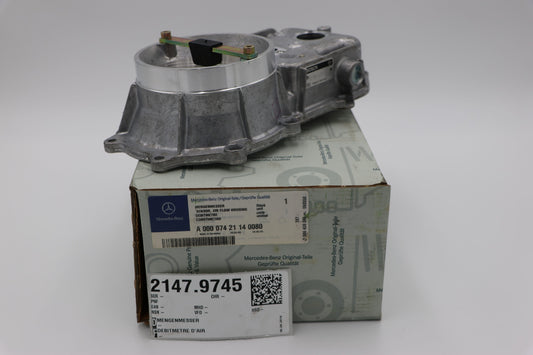

14. FLOW METER
15. DISC

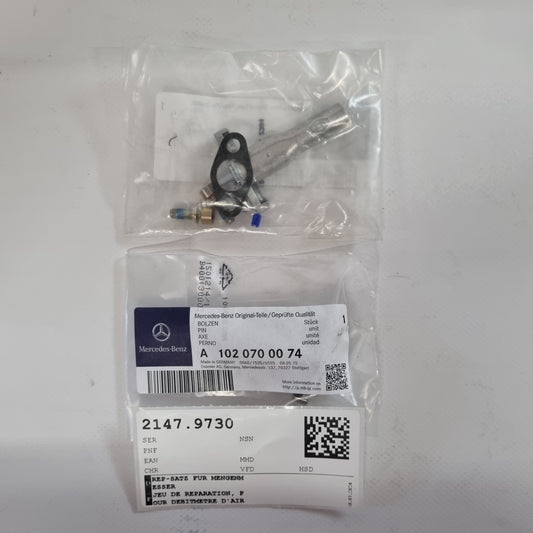

16. FLOW METER REPAIR KIT

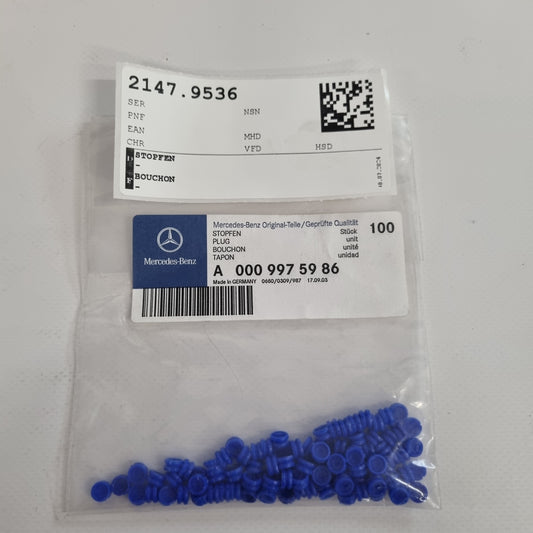

17. PLUG

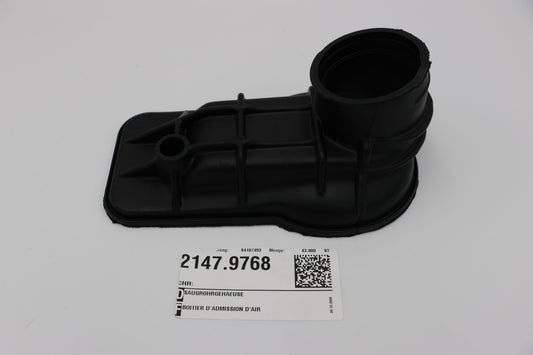

18. INTAKE MANIFOLD HOUSING

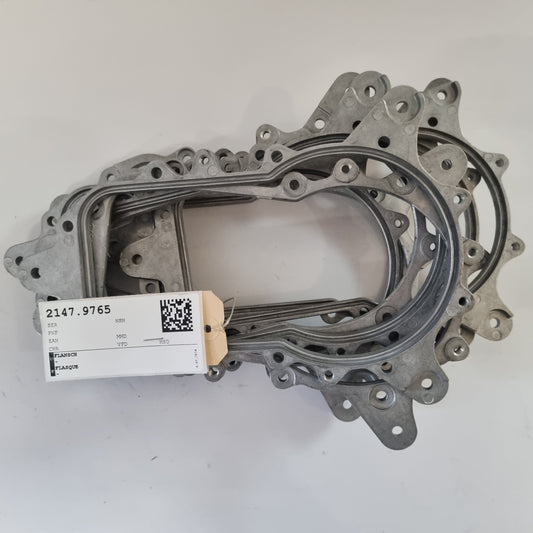

19. FLANGE
20. SPRING WASHER B d6MM DIN 137 FD-ST A2P
21. HEXAGON SCREW M6X20 ISO 4017
22. CAP
23. FLAP CONNECTOR
24. SWITCH
25. WASHER A d8.4/16X1.6MM DIN 125
26. HEXAGON NUT M8 ISO 4032

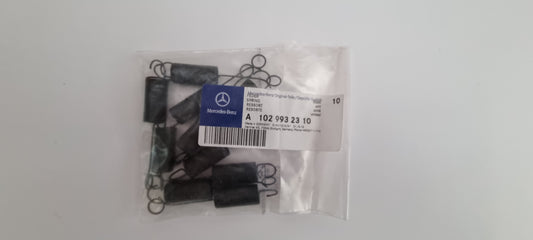

27. TENSION SPRING
28. HOSE CLAMP JUBILEE 3X

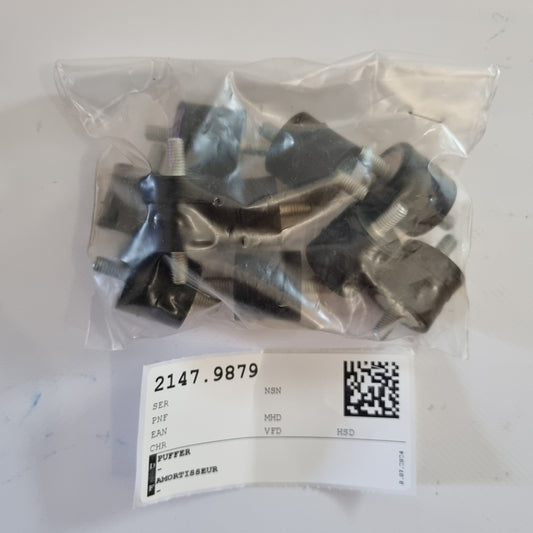

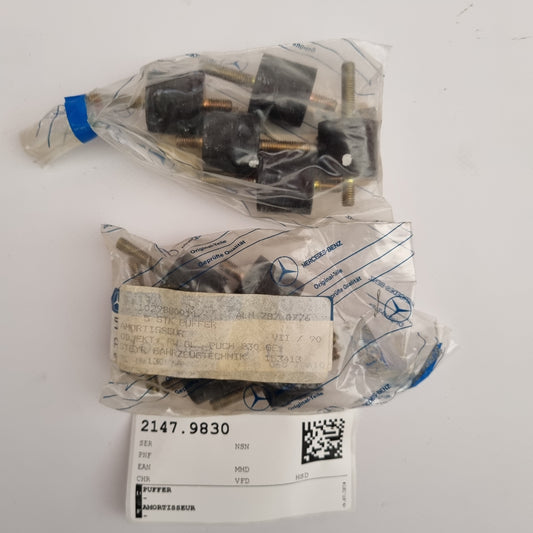

29. BUFFER
30. BUFFER
31. SPRING WASHER B d6MM DIN 137 FD-ST A2P
32. HEXAGON NUT M6 ISO 4032
33. HEXAGON SCREW M5X12 ISO 4017
34. Washer A d5.3/10x1mm DIN 125

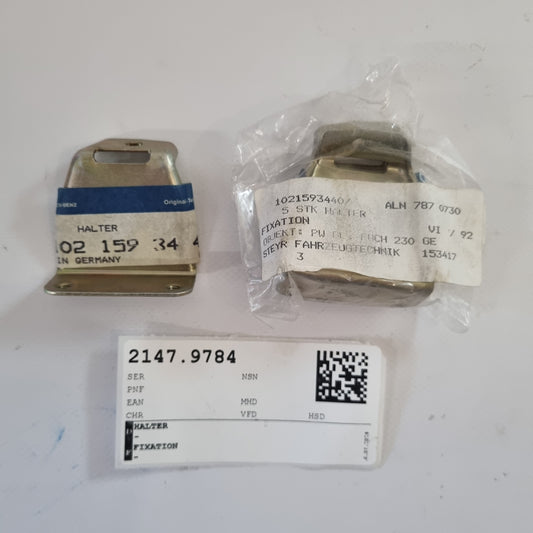

35. HOLDER
36. HEXAGON SCREW M6X22 DIN 933 8.8 A2P

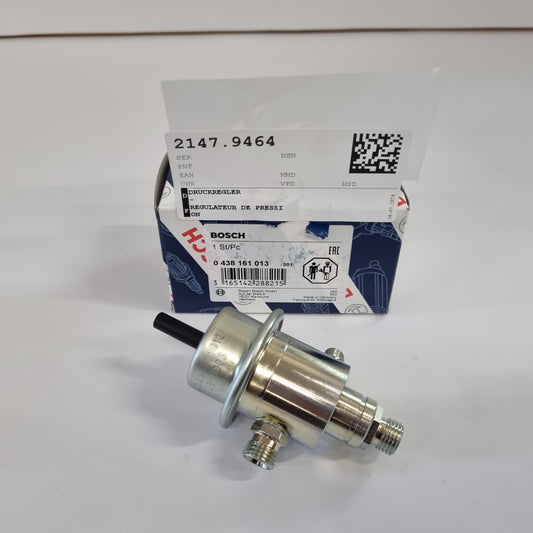

37. PRESSURE REGULATOR
38. HOSE

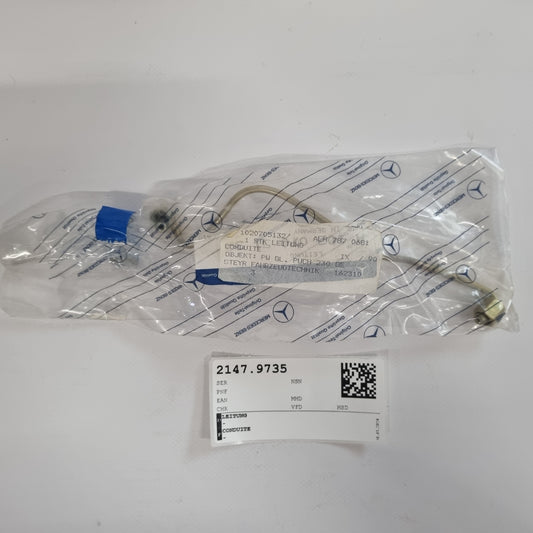

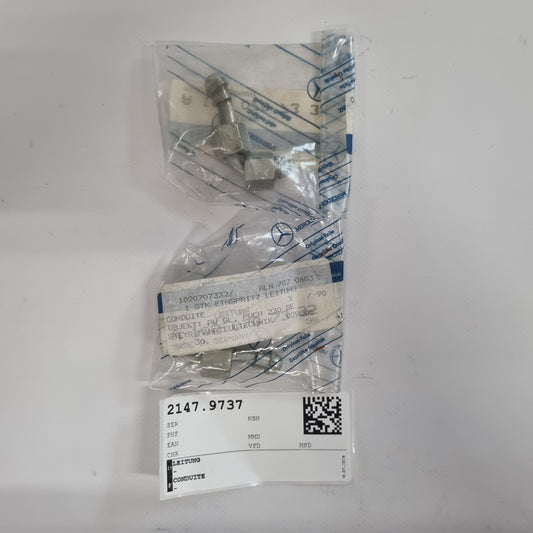

39. MANAGEMENT
40. MANAGEMENT
41. HEXAGON SCREW M6X25 ISO 4017

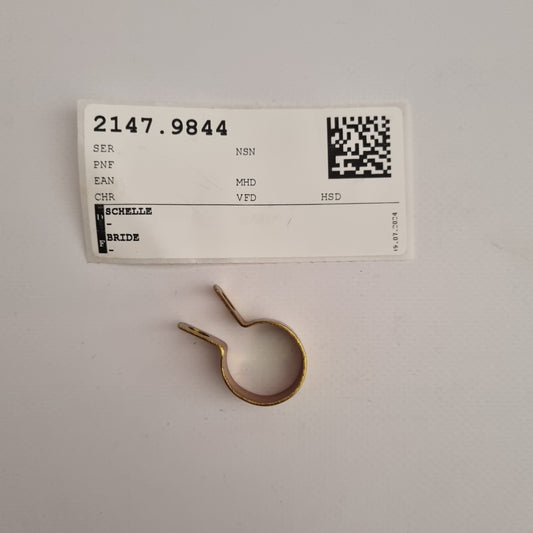

42. CLAMP

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
