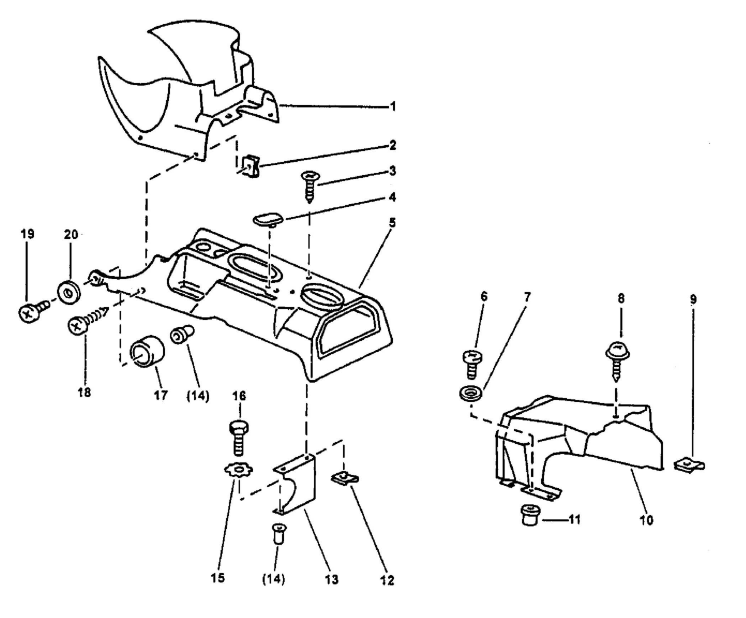

Product overview by image number (exploded view)
1. FRONT COVER
2. CLIP NUT
4. COVER
5. STORAGE TRAY
6. Phillips head cylinder head screw
7. Washer MG d5.3/10x1mm VSM 13904
8. TAPPING SCREW
9. SECURITY
10. REAR COVER
11. RIVET NUT
12. SECURITY
13. HOLDER
14. BLIND RIVET NUT WITH FLAT HEAD OPEN
15. Toothed washer A d6.4/11mm DIN 6797
16. HEXAGON SCREW M6X16 ISO 4017
17. BUSHING d20/15X12MM
18. LENS HEAD SHEET SCREW
19. Phillips head cylinder head screw
20. Washer d6.4/18x1.6mm DIN 9021
Do you need help?
Check the exploded view to see which spare part you need.
You can find the corresponding number in the product overview.
If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')
The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
