Center shift / shift rod

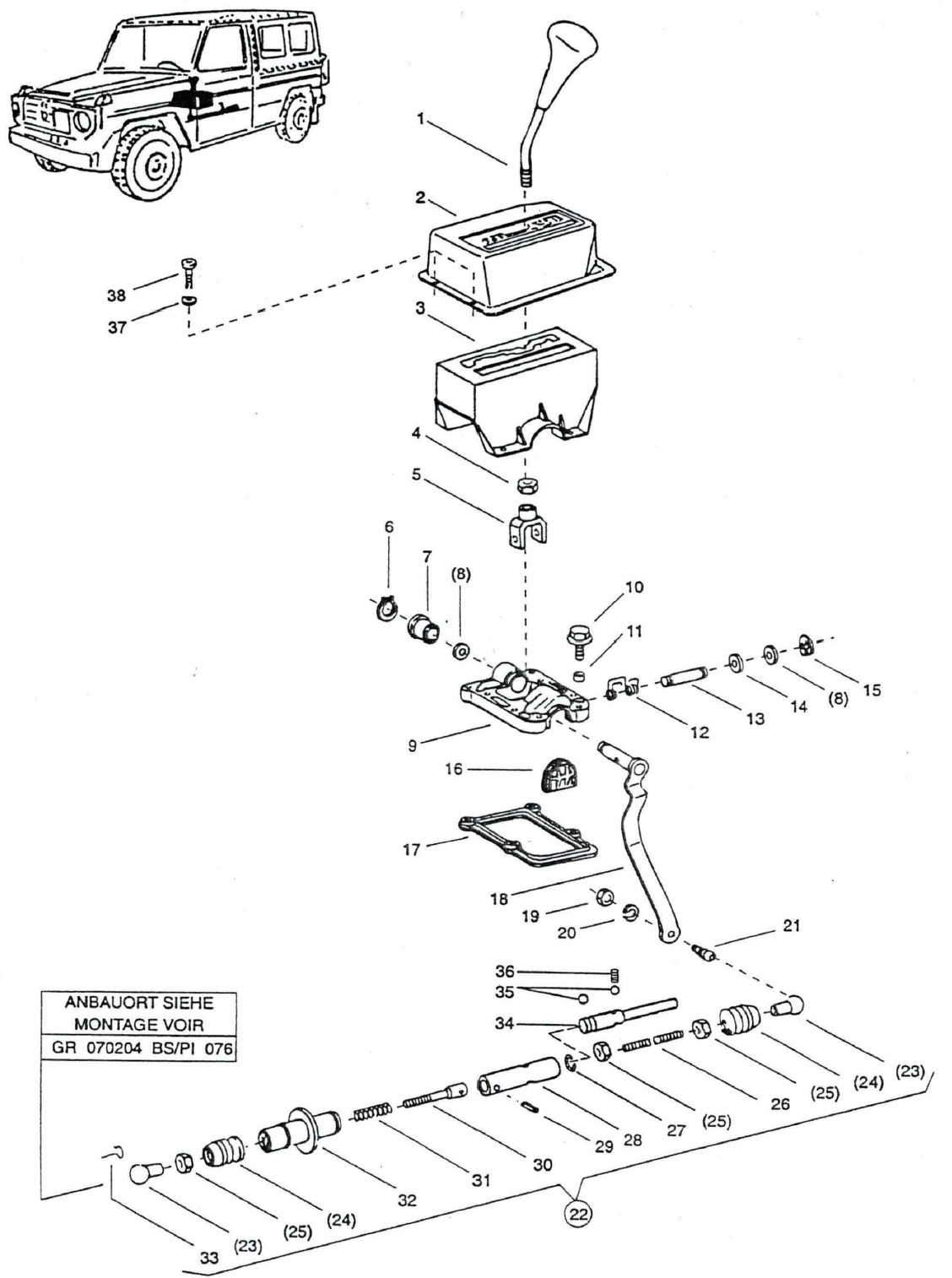

Product overview by image number (exploded view)

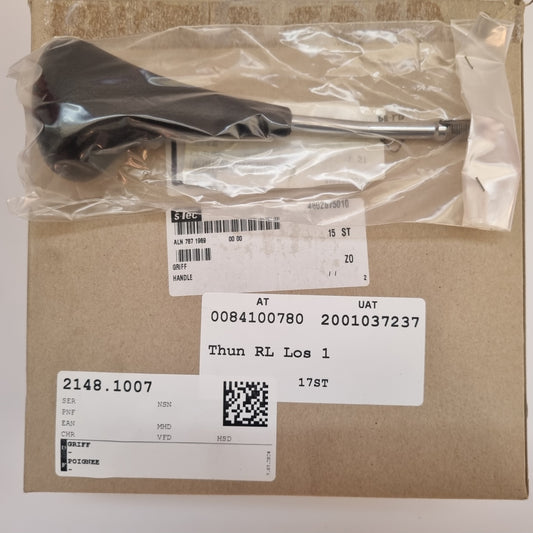

1. HANDLE

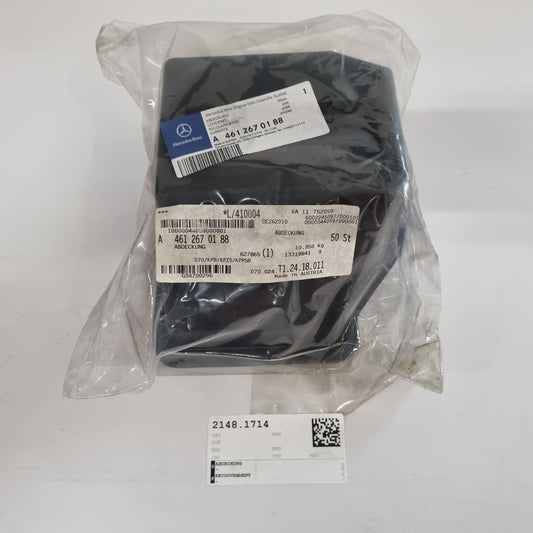

2. COVER
3. BACKDROP
4. HEXAGON NUT M10X1 DIN 70616 8 A2P

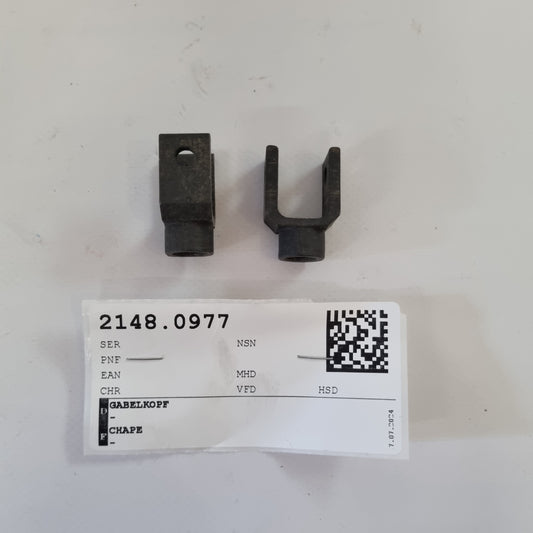

5. Clevis
6. RETAINING RING FOR SHAFT d16X1MM

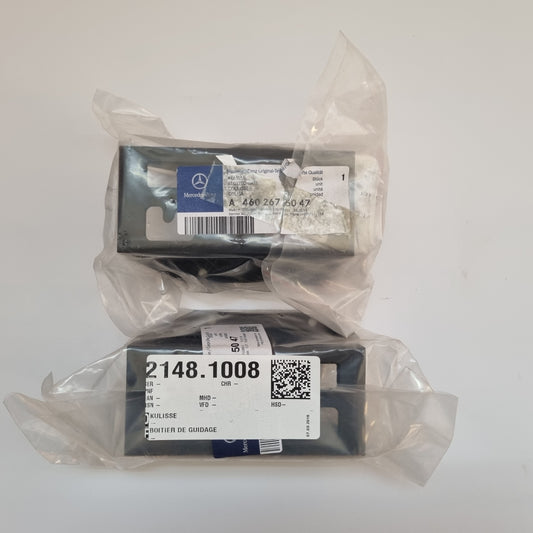

7. BOX

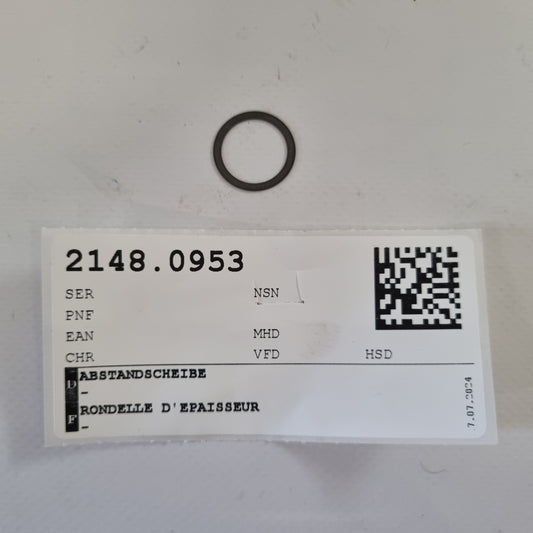

8. SPACER
9. WAREHOUSE

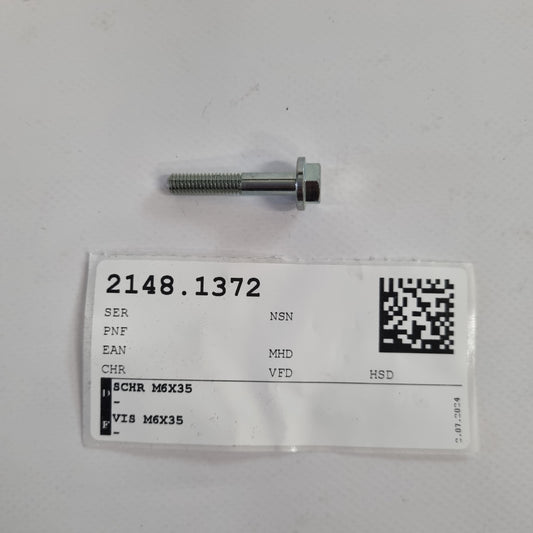

10. SCREW M6X35
11. SPACER TUBE

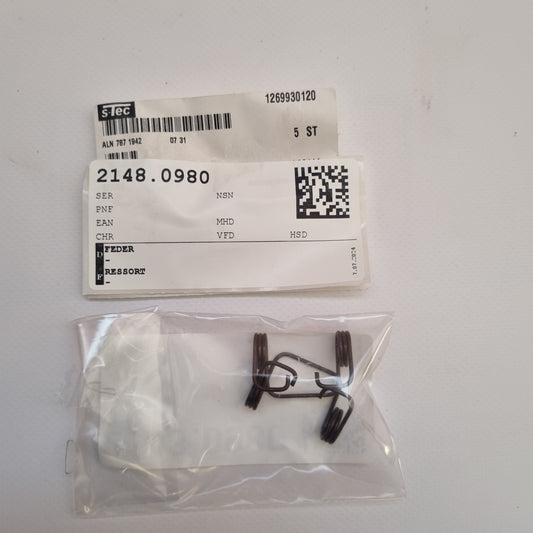

12. FEATHER

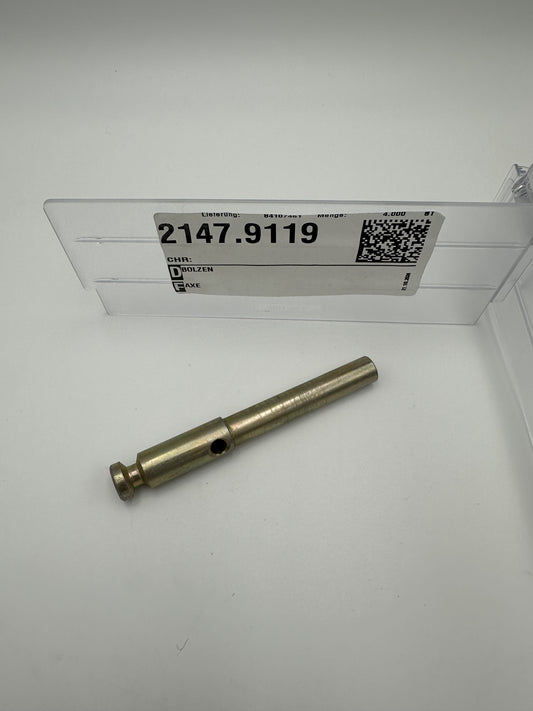

13. BOLT
14. BOX
15. SECURITY
16. DISC

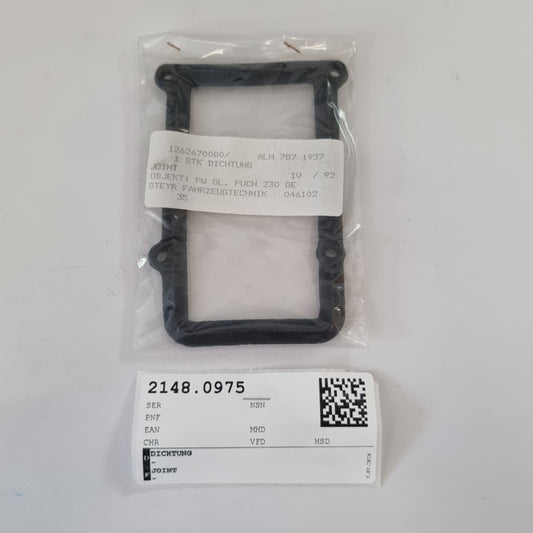

17. SEAL

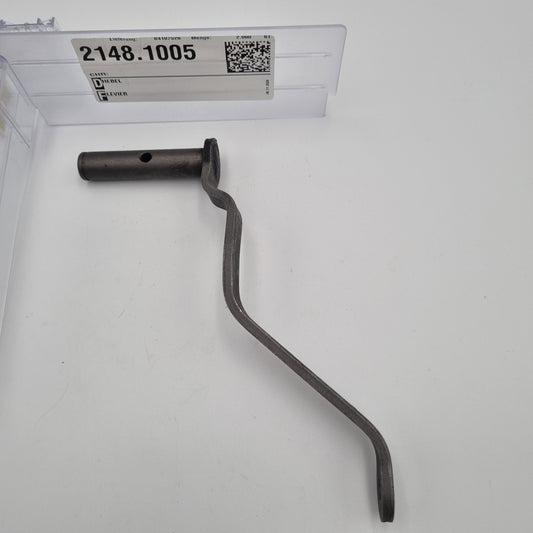

18. LEVER
19. HEXAGON NUT M8 ISO 4032
20. SPRING RING CURVED A d8MM DIN 128
21. BALL PIN A13 BALL d13MM

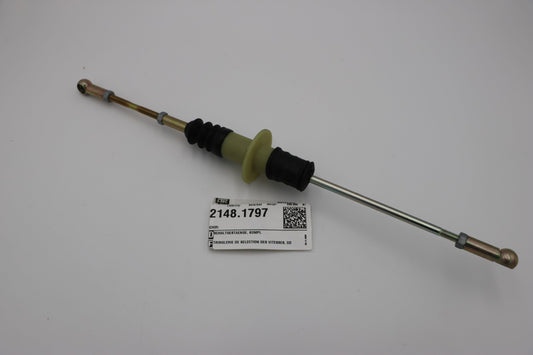

22. SHIFT LINKAGE / COMPONENT

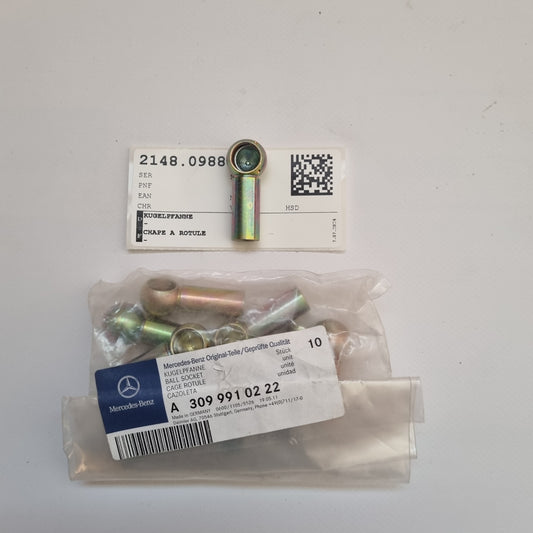

23. Ball socket

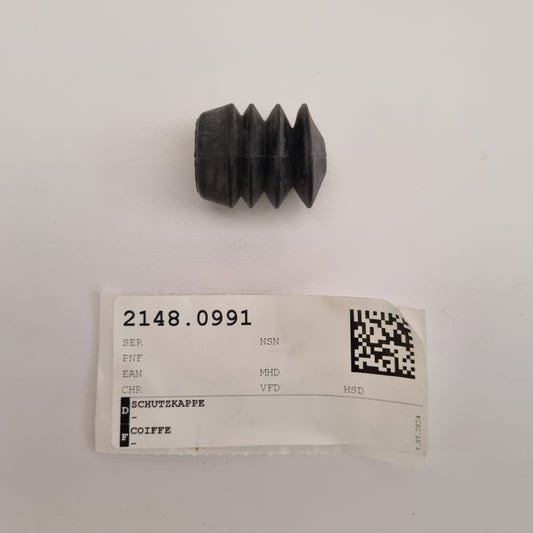

24. PROTECTIVE CAP
25. HEXAGON NUT M8 ISO 4032

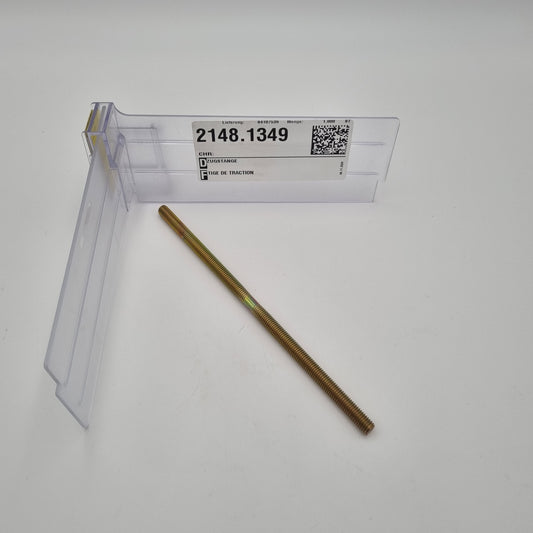

26. PULL ROD
27. SNAP RING B d14MM DIN 7993 FD ST

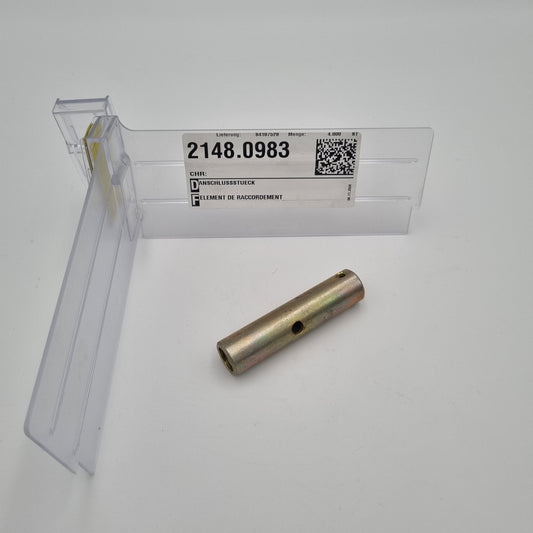

28. CONNECTION PIECE
29. CLAMPING SLEEVE d5X30MM DIN 1481 FD-ST
30. ROD
31. FEATHER
32. STOP
33. SAFETY BRACKET S13 d1.2/11MM,
34. BOLT
35. BALL d6MM DIN CLASS III
36. COMPRESSION SPRING
37. SPRING WASHER B d5MM DIN 137
38. Phillips head cylinder head screw

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
