Engine protection plates

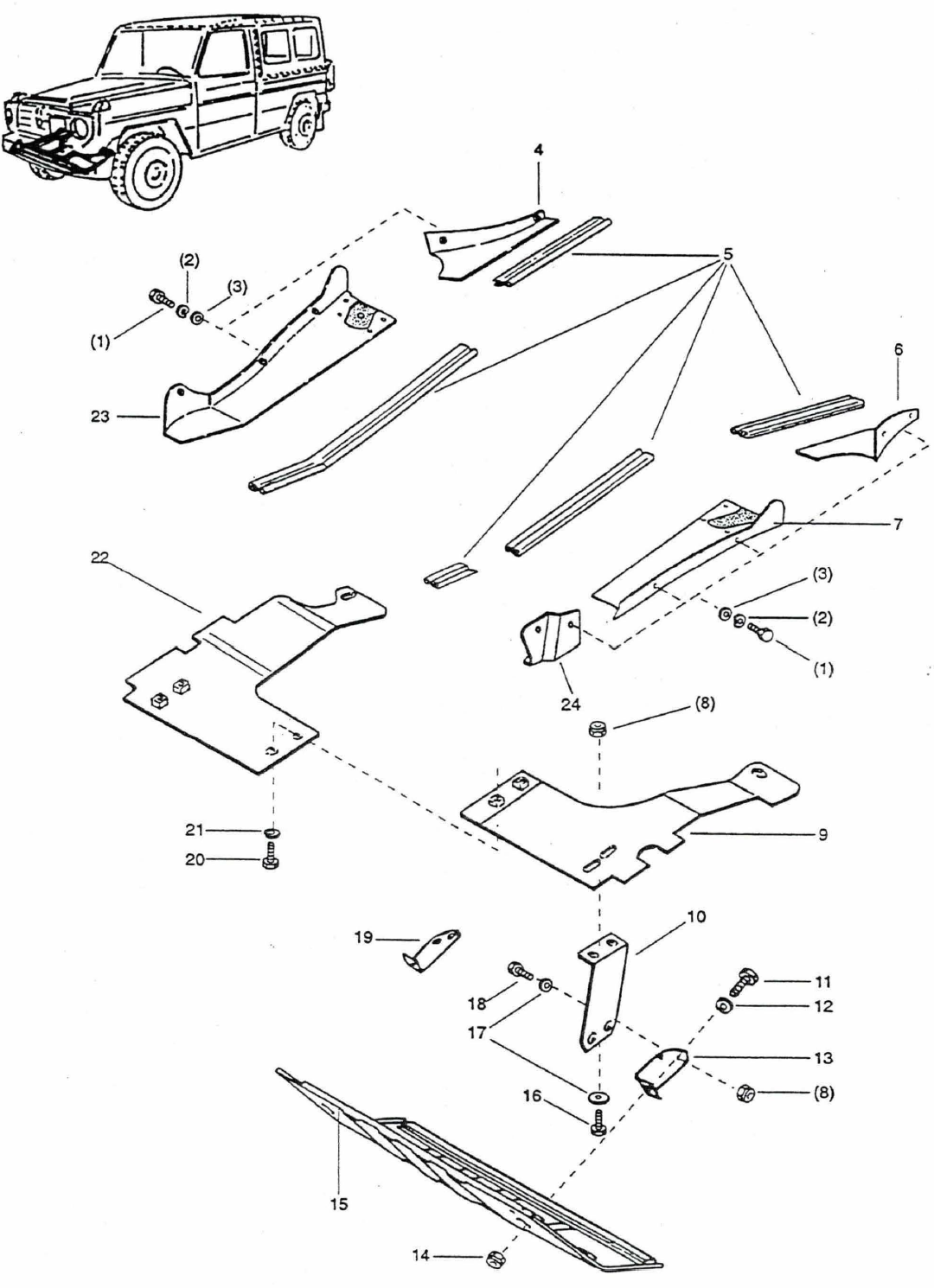

Product overview by image number (exploded view)

1. HEXAGON SCREW M6X16 ISO 4017

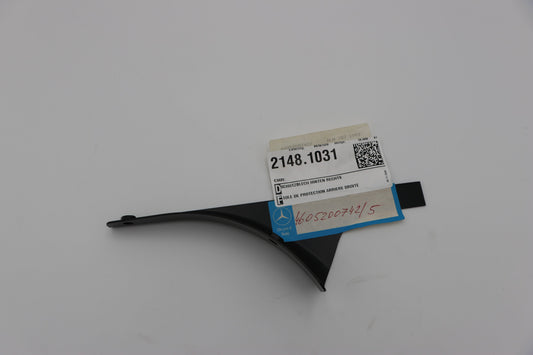

2. SPRING WASHER B d6MM DIN 137 FD-ST A2P
3. Washer d6.4/18x1.6mm DIN 9021
4. REAR RIGHT FENDER
5. SEALING RUBBER

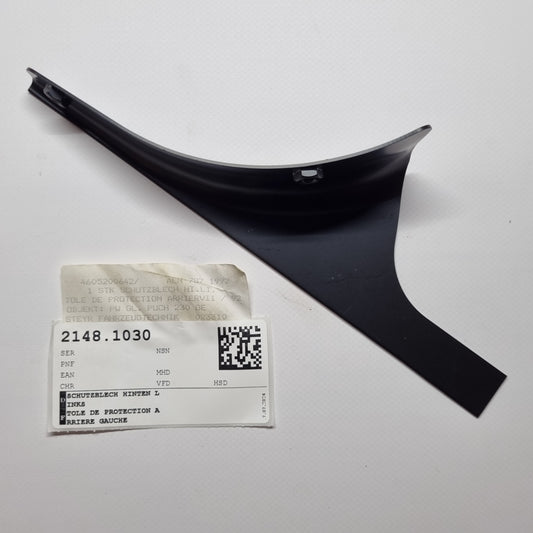

6. REAR LEFT FENDER

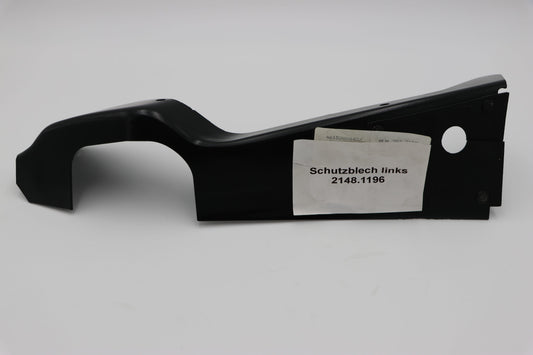

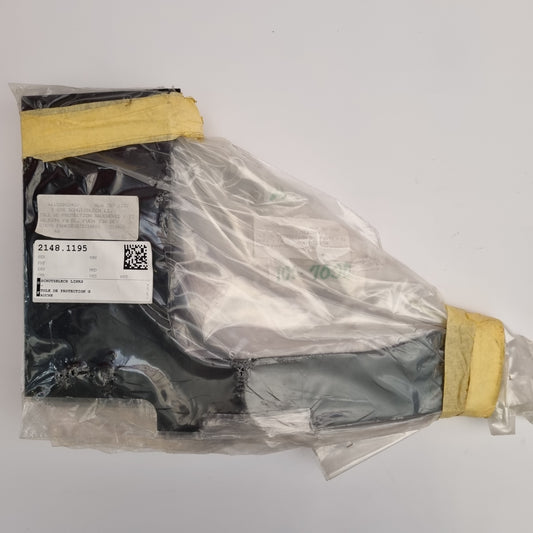

7. LEFT FENDER

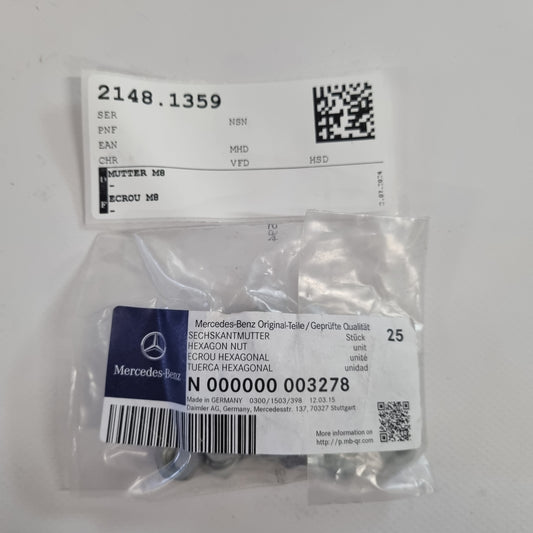

8. NUT M8
9. LEFT FENDER

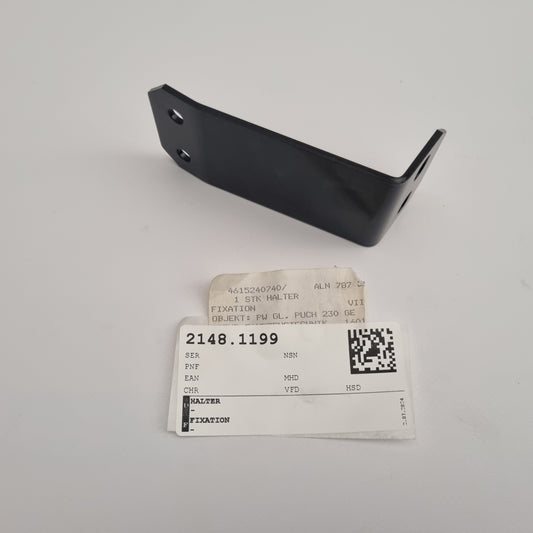

10. HOLDER
11. HEXAGON SCREW M10X20 DIN 933
12. WASHER A d10.5/20X2MM DIN 125
13. ANGLE LEFT
14. LOCK NUT M10 DIN 985 S=17
15. ENGINE PROTECTION PLATE
16. HEXAGON SCREW M8X18 DIN 933 8.8 A2P
17. WASHER A d8.4/16X1.6MM DIN 125
18. HEXAGON SCREW M8X25 ISO 4017

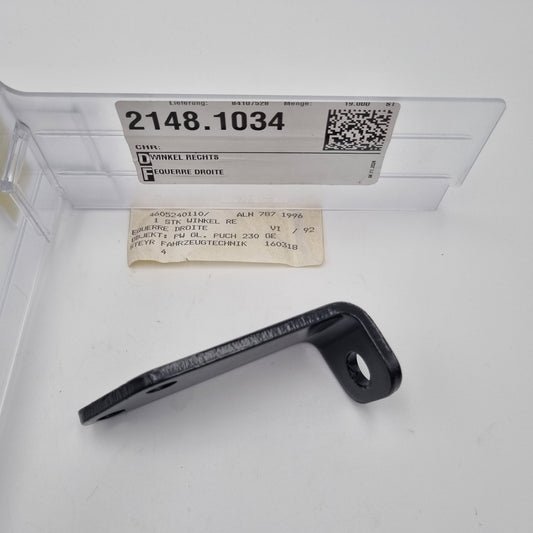

19. RIGHT ANGLE
20. HEXAGON SCREW M6X12 ISO 4017
21. SPRING RING A d6MM DIN 127 FD ST A2P

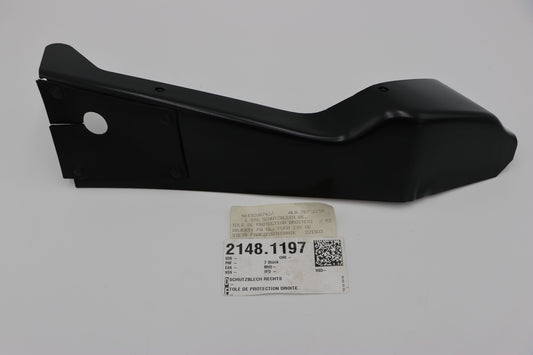

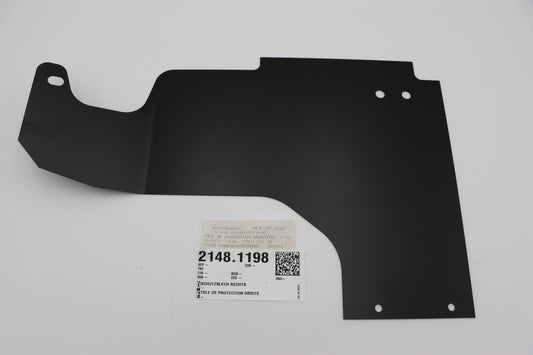

22. RIGHT FENDER
23. RIGHT FENDER

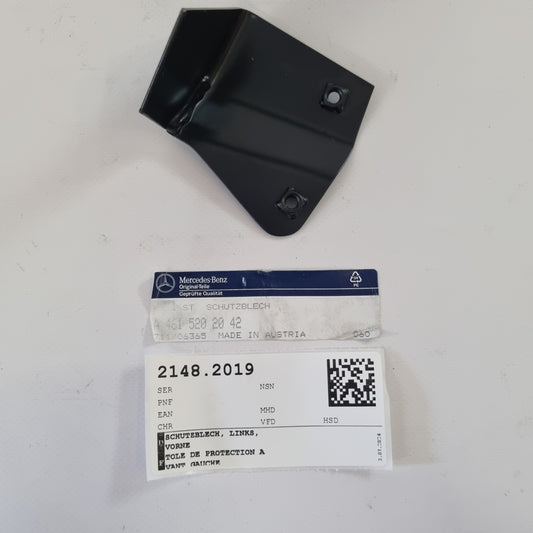

24. FENDER / LEFT / FRONT

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
