Camshaft drive

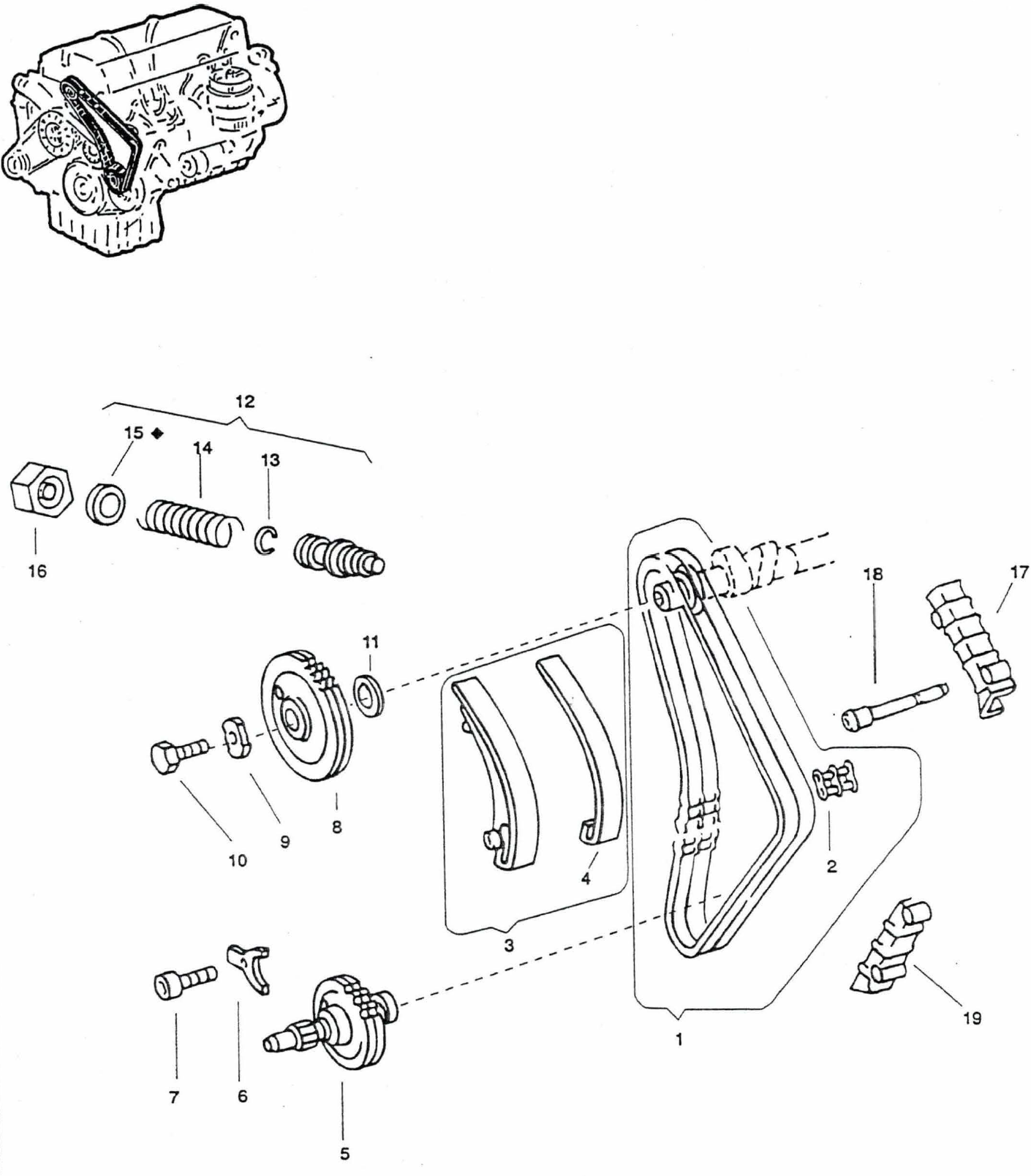

Product overview by image number (exploded view)

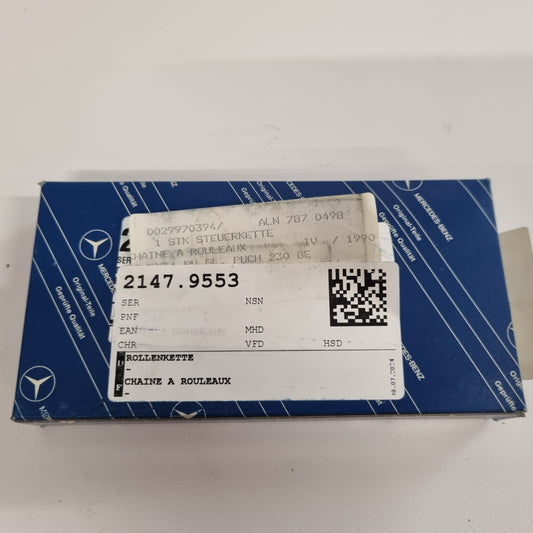

1. ROLLER CHAIN
2. CHAIN ​​LINK

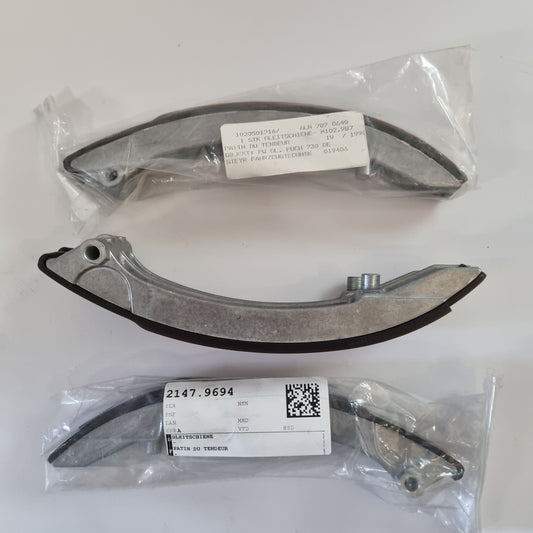

3. SLIDING RAIL

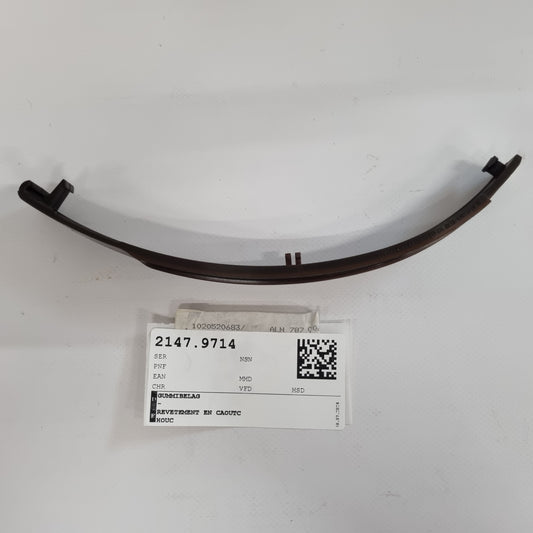

4. RUBBER SURFACE

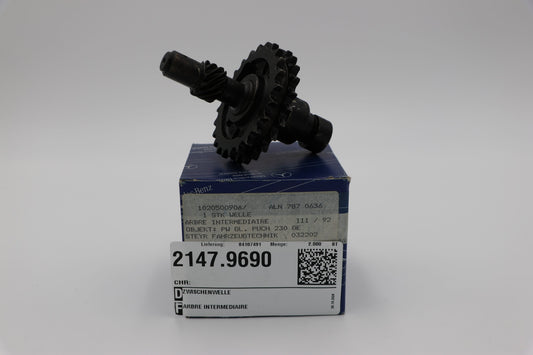

5. INTERMEDIATE SHAFT

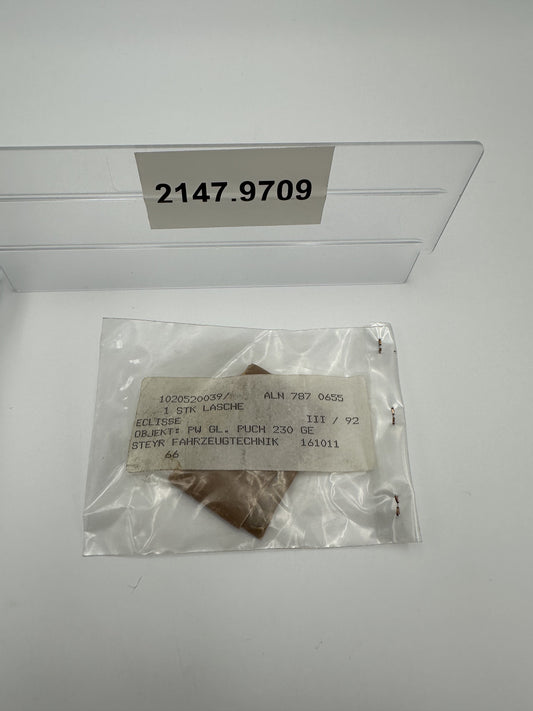

6. TAB
7. Cylinder head screw with hexagon socket

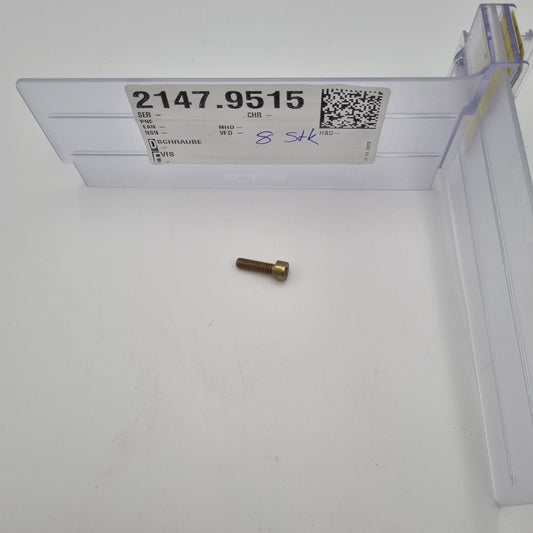

7. SCREW

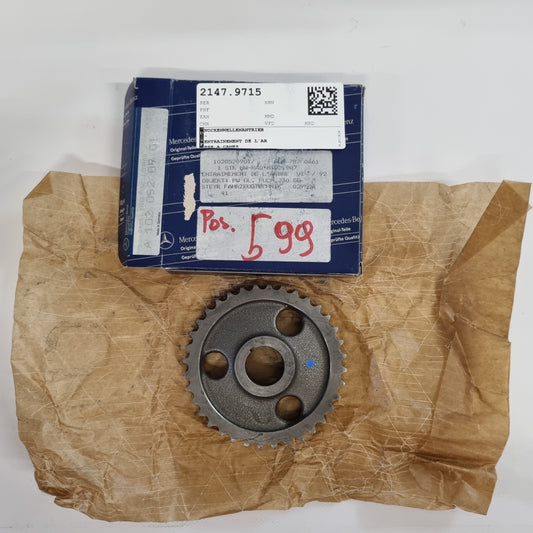

8. CAMSHAFT DRIVE

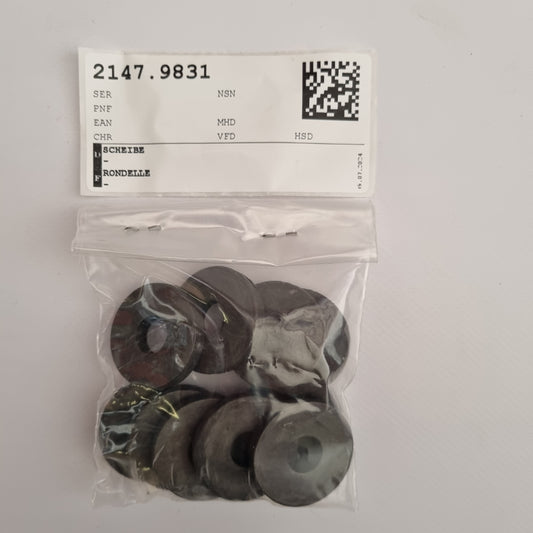

9. DISC
10. HEXAGON SCREW M12X1.5X45 DIN 961

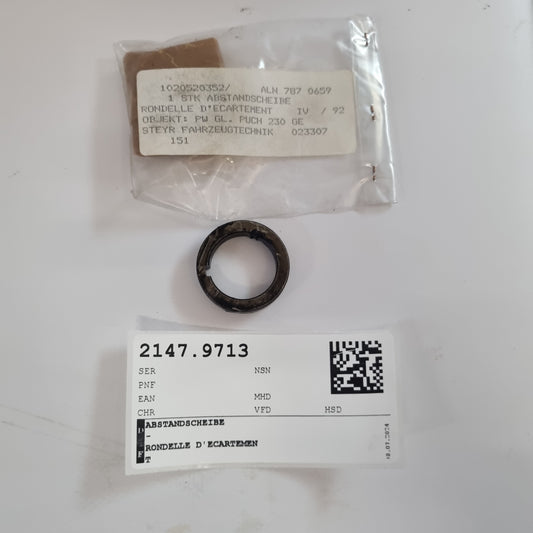

11. SPACER

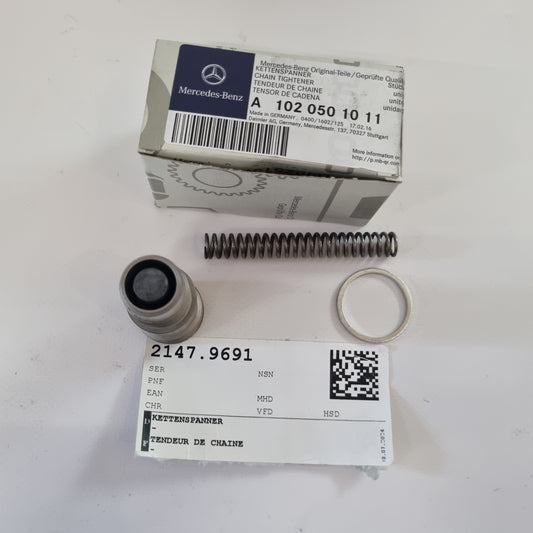

12. CHAIN ​​TENSIONER

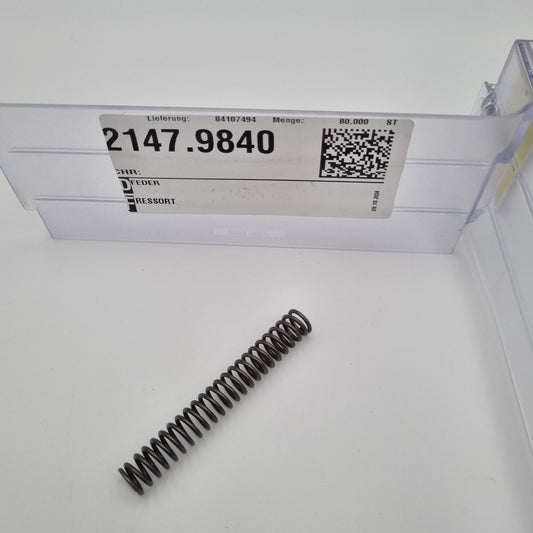

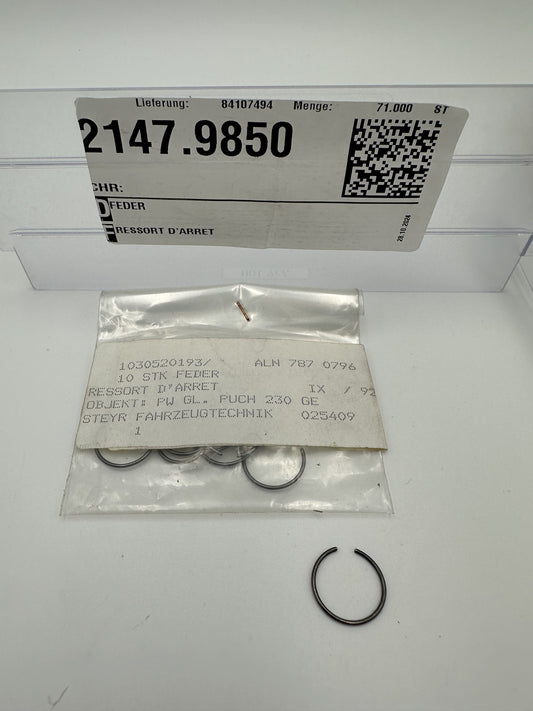

13. FEATHER
14. FEATHER
15. SEALING RING A d27/32X2MM

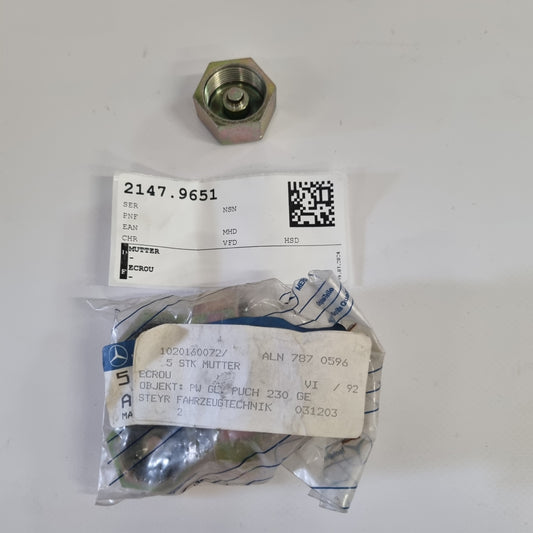

16. MOTHER

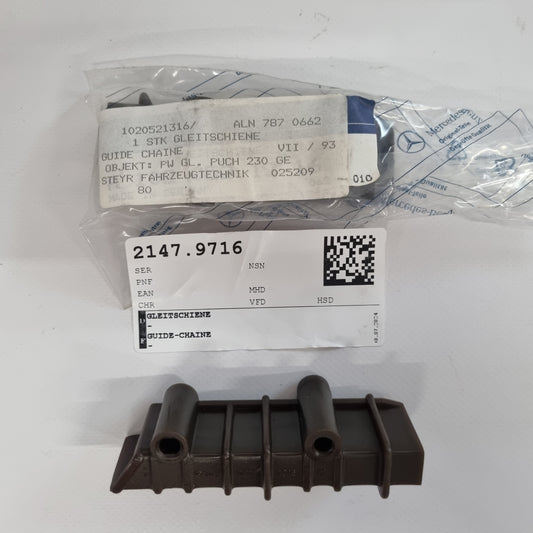

17. SLIDING RAIL

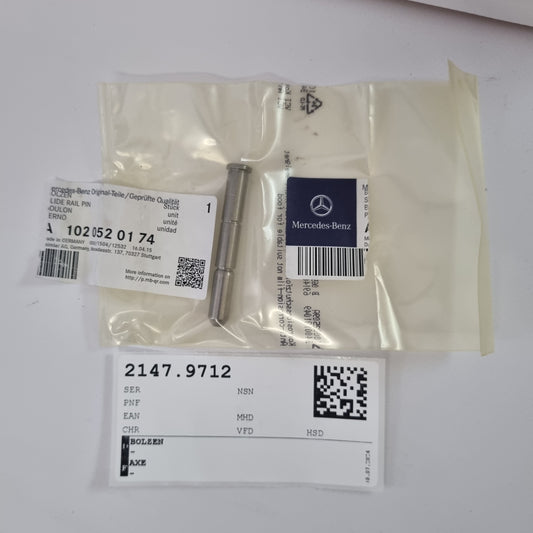

18. BOLT
19. SLIDING RAIL

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
