oil pump

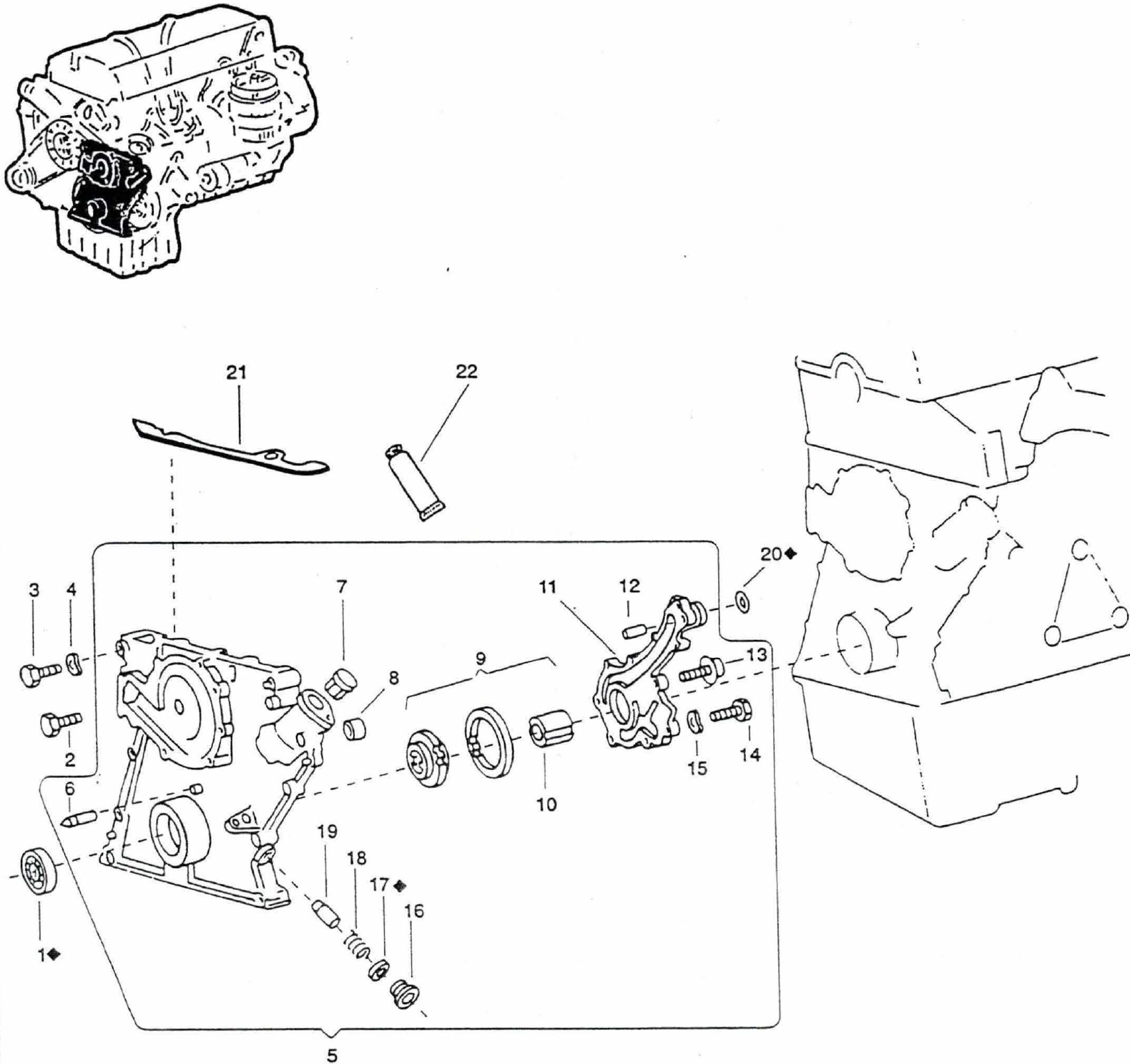

Product overview by image number (exploded view)

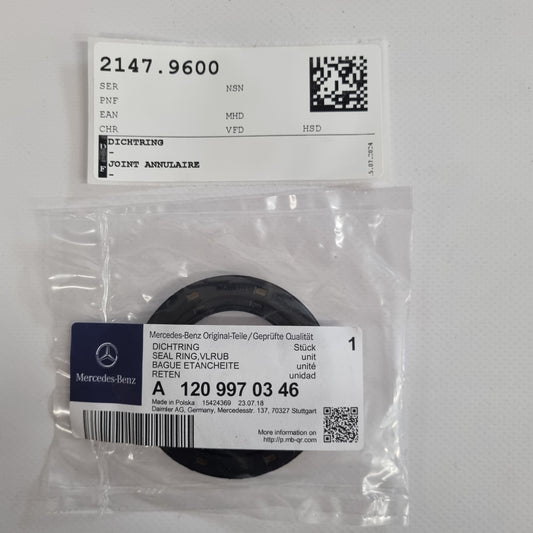

1. SEALING RING
2. HEXAGON SCREW M8X40/22 ISO 4014
3. HEXAGON SCREW M8X50/22 ISO 4014
4. SPRING WASHER B d8MM DIN 137

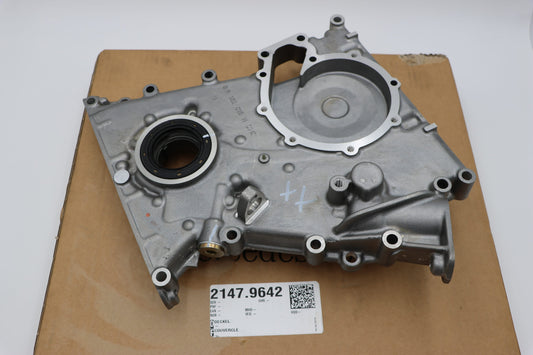

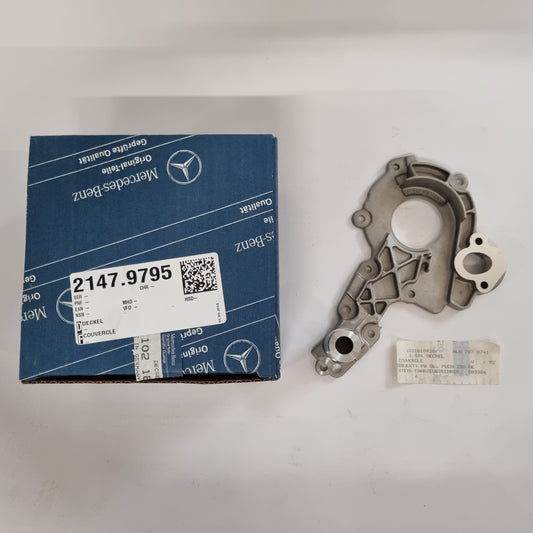

5. LID

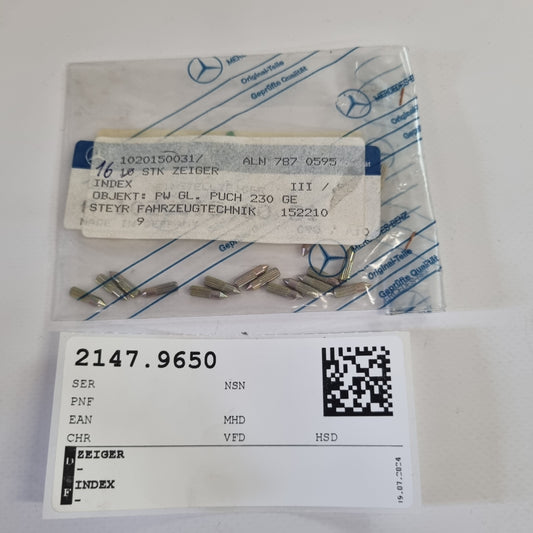

6. POINTER

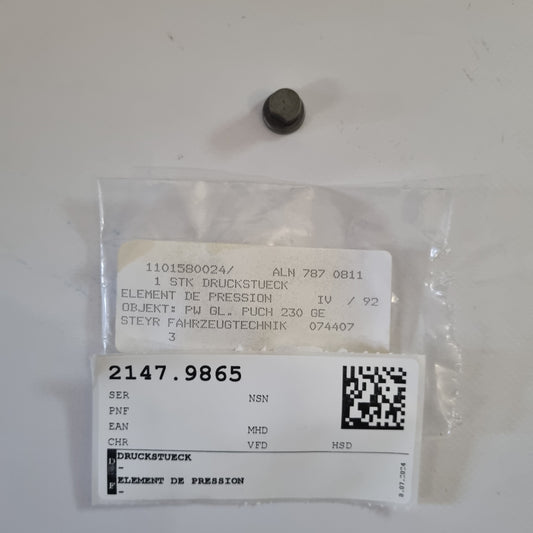

7. PRINTED PIECE

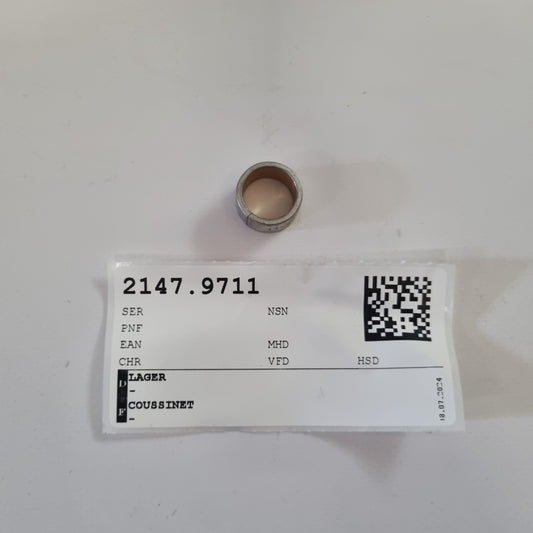

8. WAREHOUSE

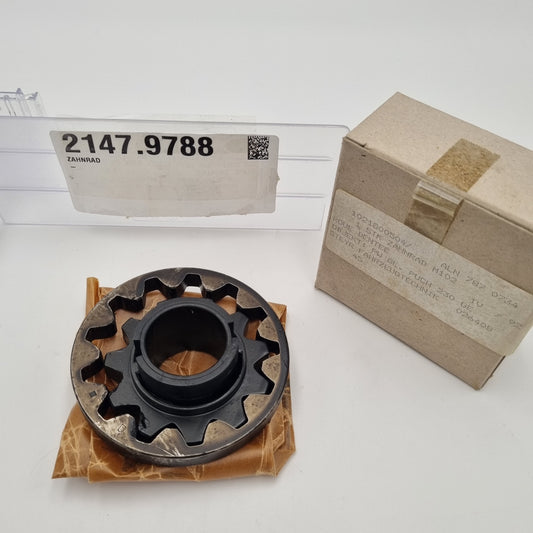

9. GEAR

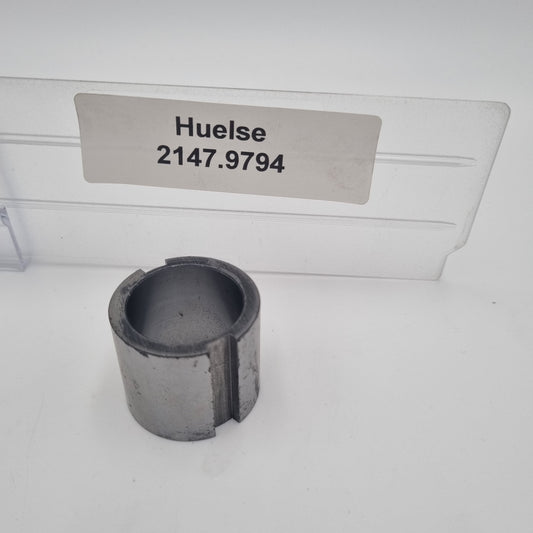

10. SLEEVE
11. LID

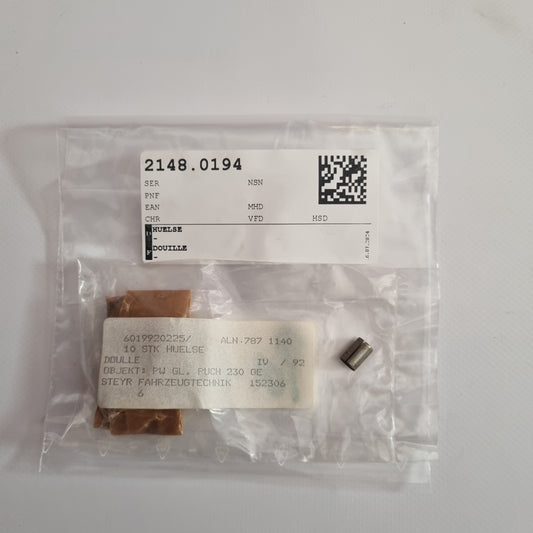

12. SLEEVE

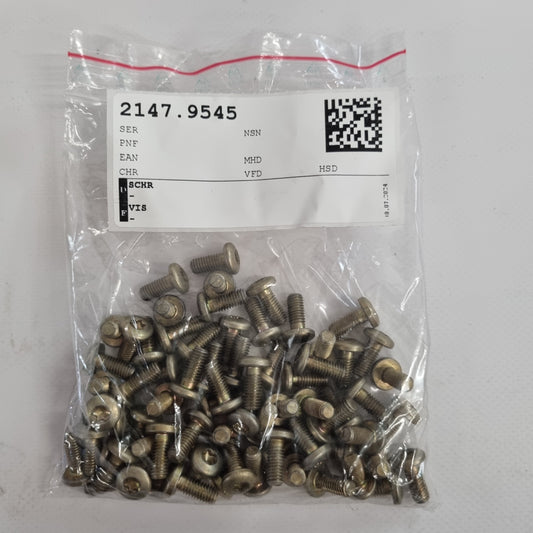

13. SCREW
14. HEXAGON SCREW M6X16 ISO 4017
15. SPRING WASHER B d6MM DIN 137 FD-ST A2P

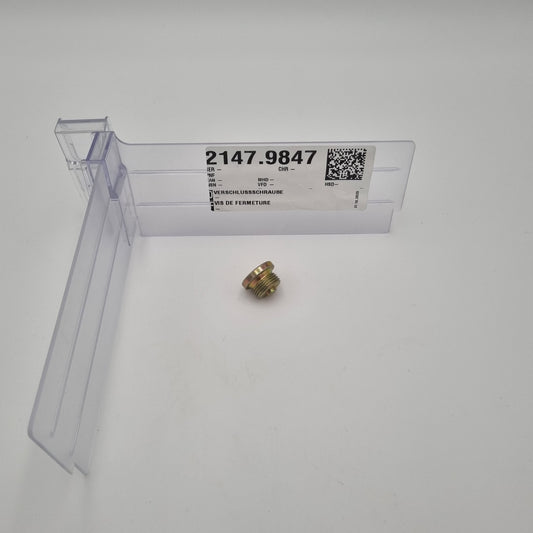

16. LOCKING SCREW

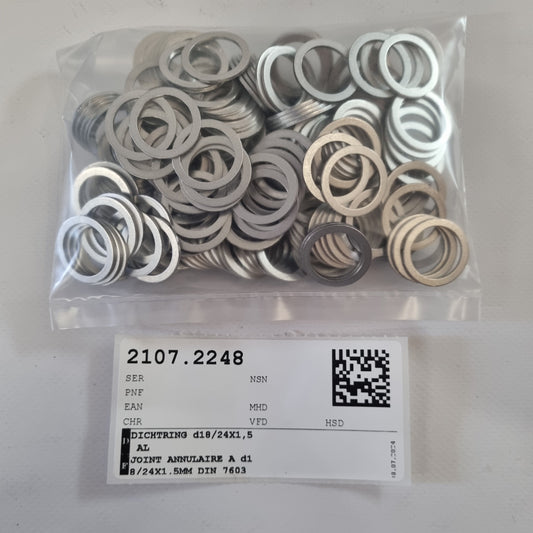

17. SEALING RING A d18/24X1.5MM

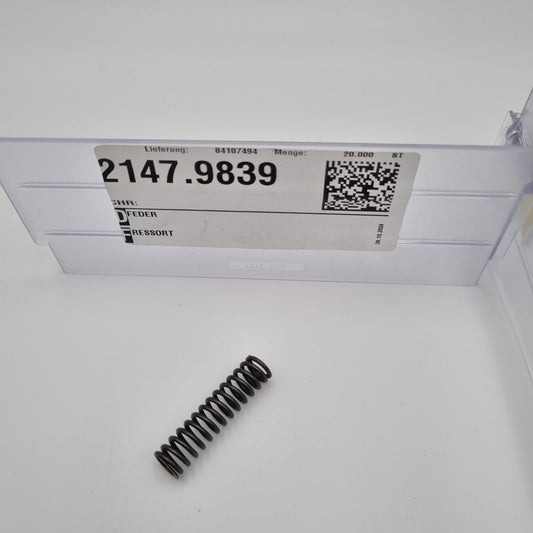

18. FEATHER
19. PISTON
20. SEALING RING
21. SEAL
22. SEALANT HYLOMAR M

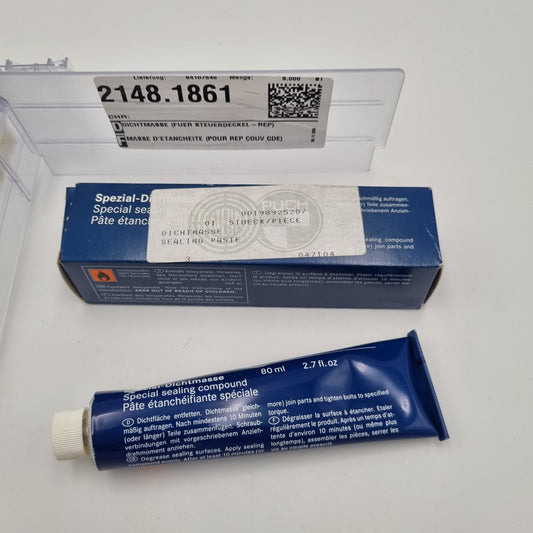

22. Sealing Compound (for timing cover repair)

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
