Oil pan / oil dipstick

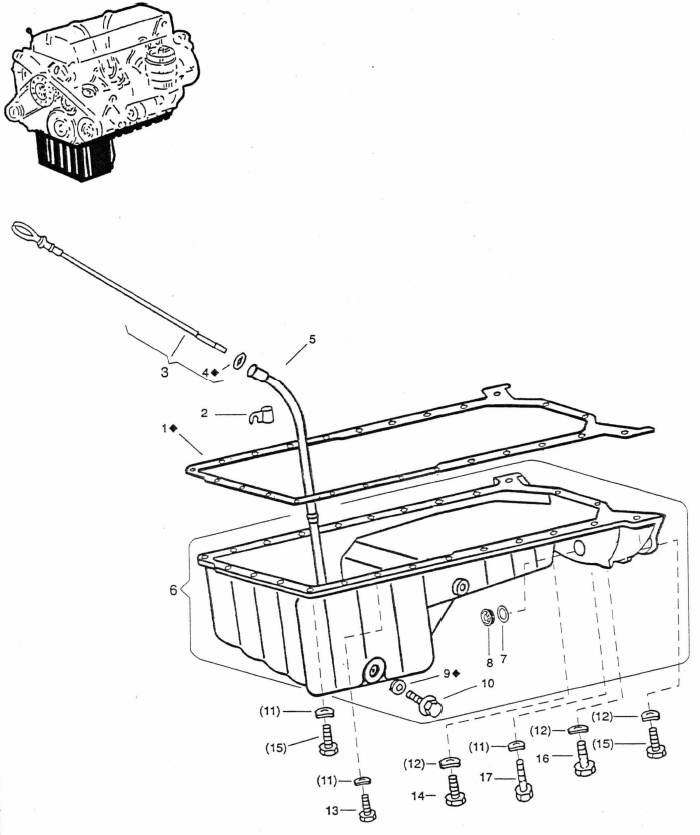

Product overview by image number (exploded view)

1. SEAL
2. CLAMP
3. OIL DIPSTICK (ENGINE) 535X5X0.8MM ST
4. SEALING RING
5. GUIDE TUBE
6. OIL PAN
6. OIL PAN
7. SEALING RING C d38/44X2.5MM
7. SEALING RING C d38/44X2.5MM
8. LOCKING SCREW
9. SEALING RING A d14/20X1.5MM
9. SEALING RING A d12/17X1.5MM
10. PLUG SCREW M12 THREAD SHORT
10. PLUG SCREW M14 THREAD LONG
11. SPRING WASHER B d6MM DIN 137 FD-ST A2P
12. SPRING WASHER B d8MM DIN 137
13. HEXAGON SCREW M6X20 ISO 4017
14. HEXAGON SCREW M8X35 ISO 4017
15. HEXAGON SCREW M6X35 ISO 4017
16. HEXAGON SCREW M8X55/22 ISO 4014
17. HEXAGON SCREW M6X85 DIN 933 8.8 A2P

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
