Rear wishbone and trailing arm

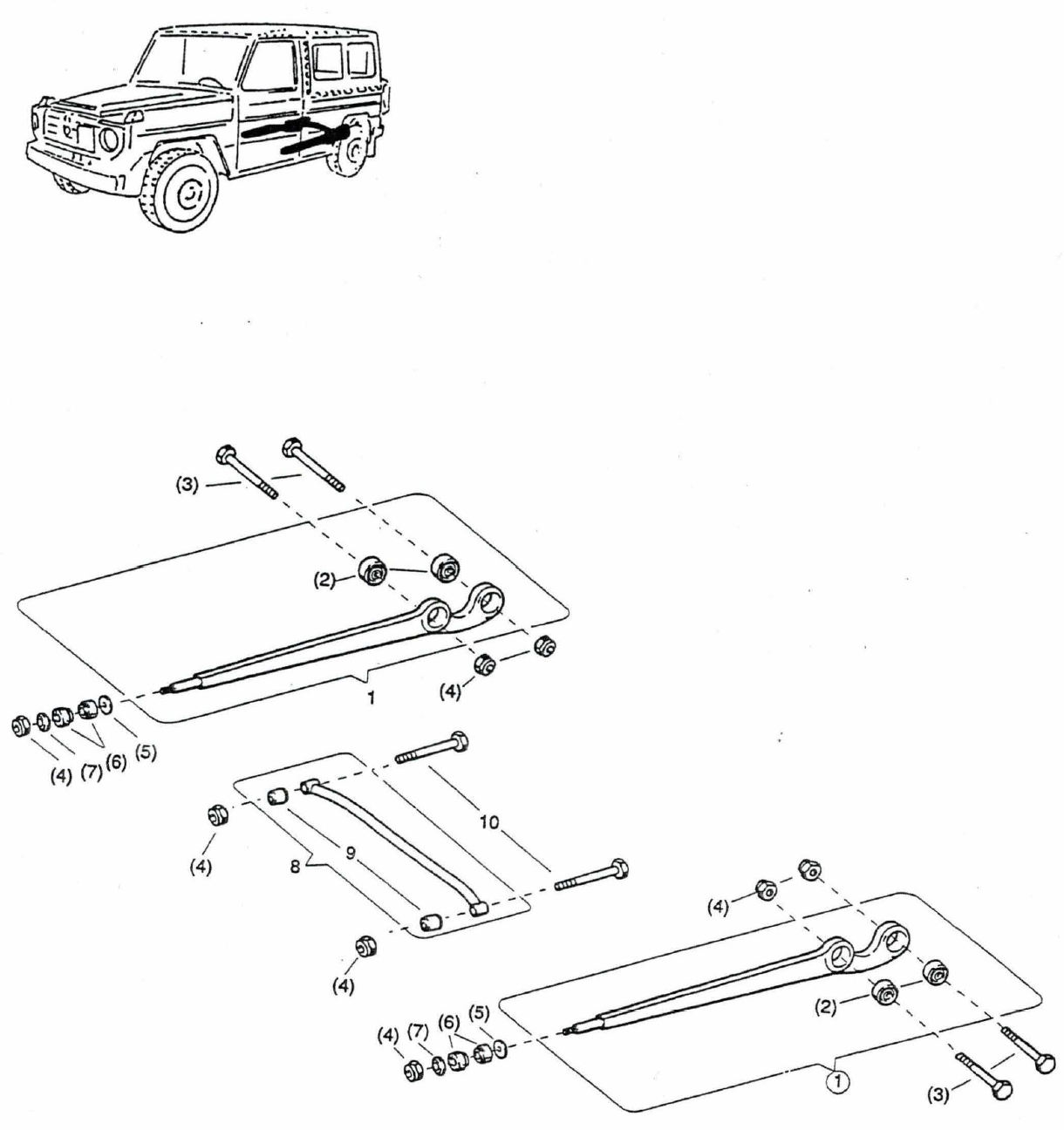

Product overview by image number (exploded view)

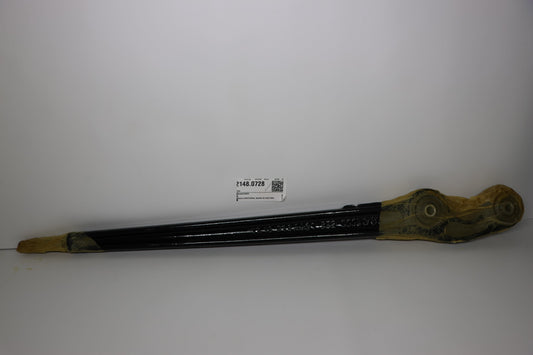

1. AXLE ARM / COMPONENT
1. AXLE STEERING
2. WAREHOUSE
3. HEXAGON SCREW M16X1.5X90/38 DIN 960
4. NUT M16X1.5 ST
4. NUT M16X1.5 (NYLON)
4. SECURITY NUT M16X1.5 DIN 985
5. WASHER / INNER-d24MM
6. RUBBER MOUNTING
7. WASHER / INNER-d16MM
8. CONTROL ARM / COMP.
9. RUBBER MOUNTING

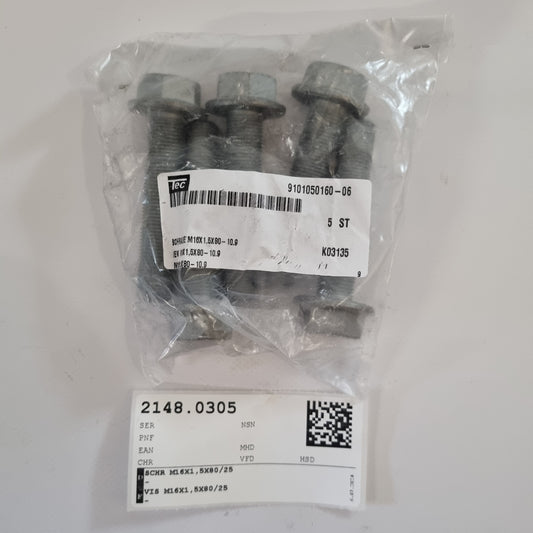

10. SCREW M16X1.5X80/25

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
