Frame complete

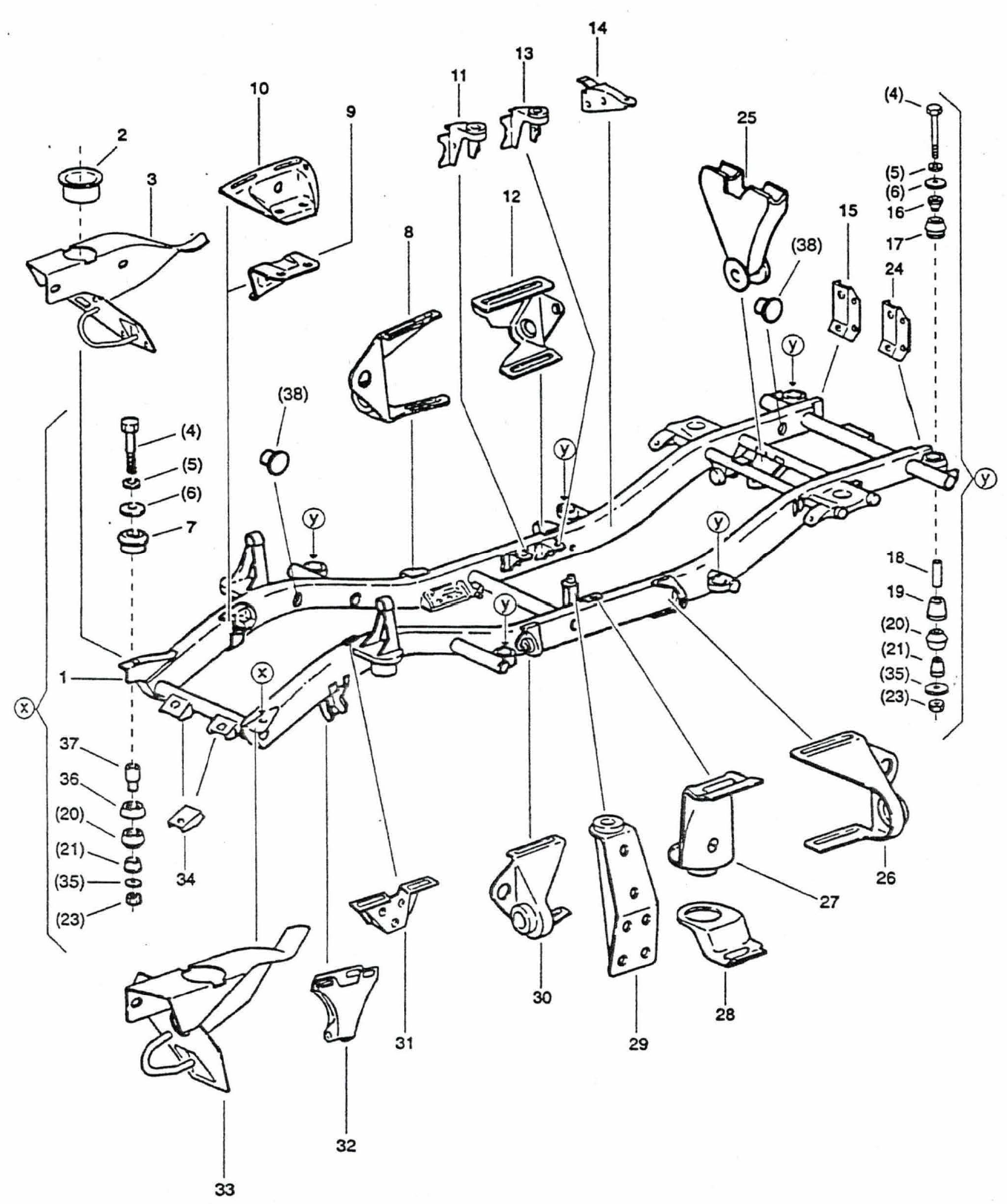

Product overview by image number (exploded view)

1. FRAMEWORK
2. STORAGE POT
3. CONSOLE FRONT RIGHT
4. HEXAGON SCREW M10X120/26 DIN 931

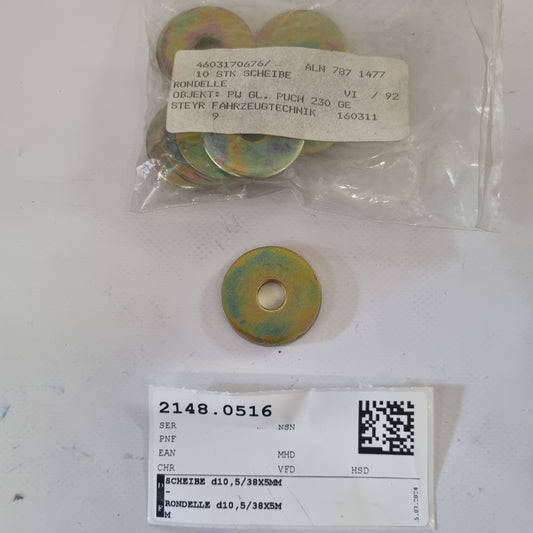

5. DISC d10.5/38X5MM

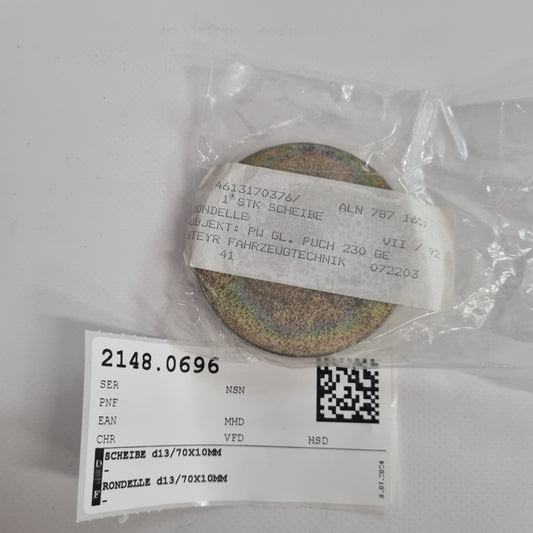

6. DISC d13/70X10MM
7. RUBBER MOUNTING

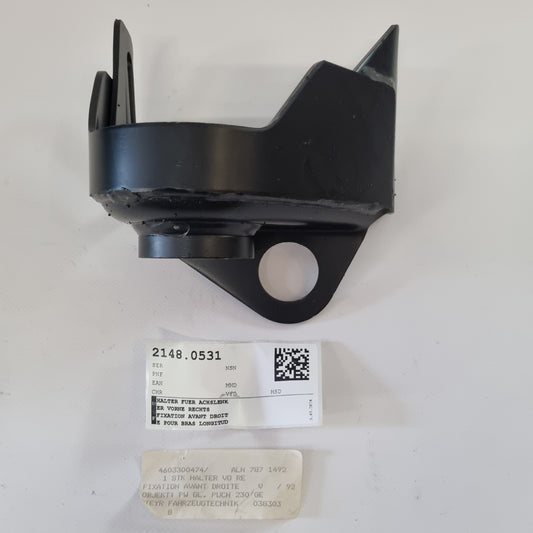

8. BRACKET FOR AXLE ARM FRONT RIGHT

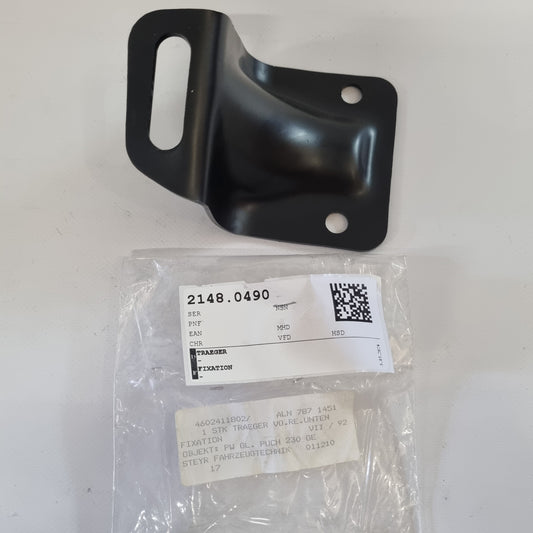

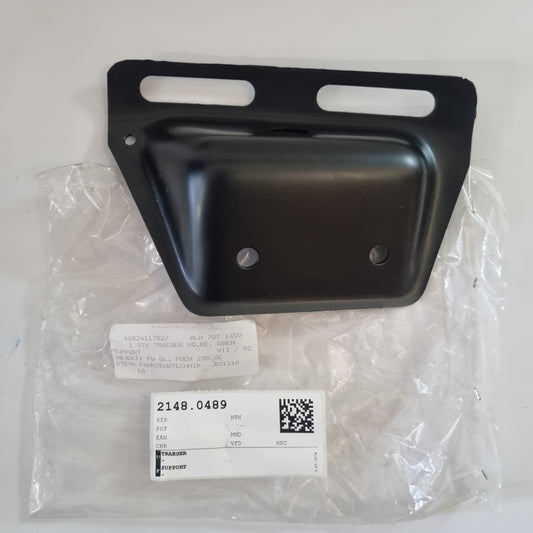

9. CARRIER
10. CARRIER
11. GEARBOX CONSOLE FRONT RIGHT

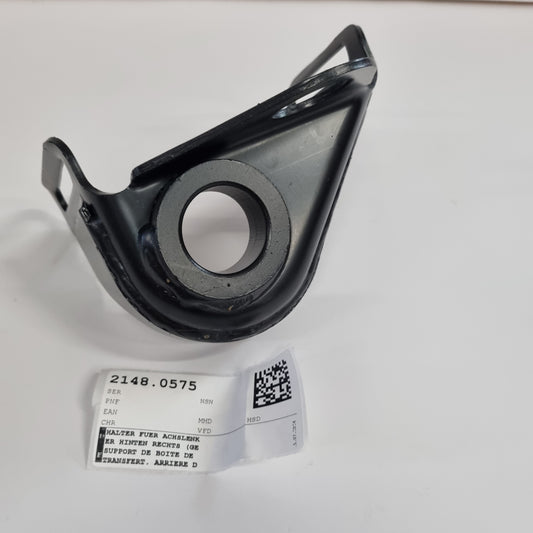

12. BRACKET FOR REAR RIGHT AXLE ARM

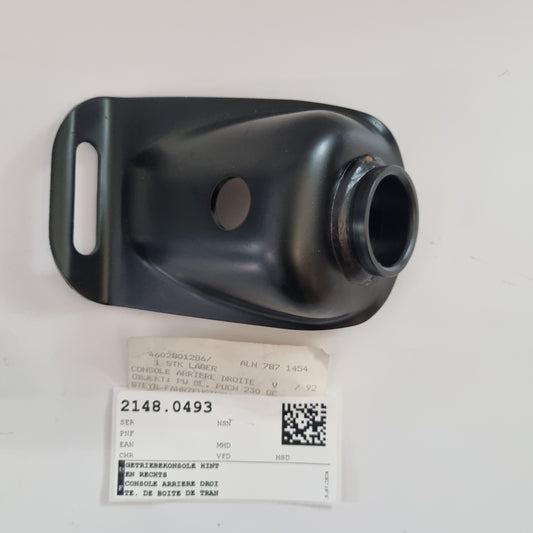

13. REAR RIGHT GEARBOX CONSOLE
14. CONSOLE

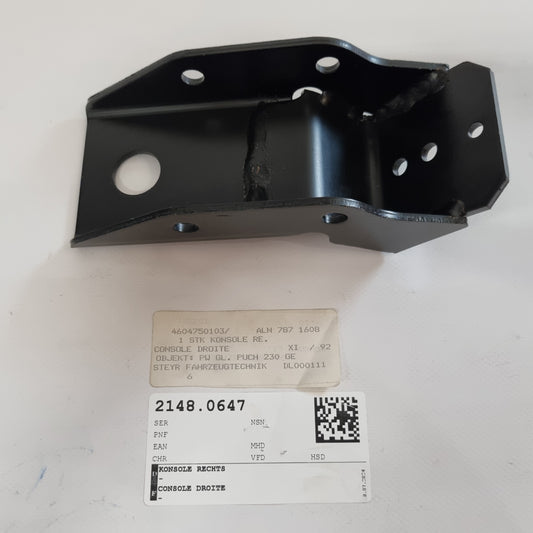

15. CONSOLE RIGHT
16. LEADERSHIP ABOVE
17. RUBBER BUFFER TOP
18. SPACER TUBE

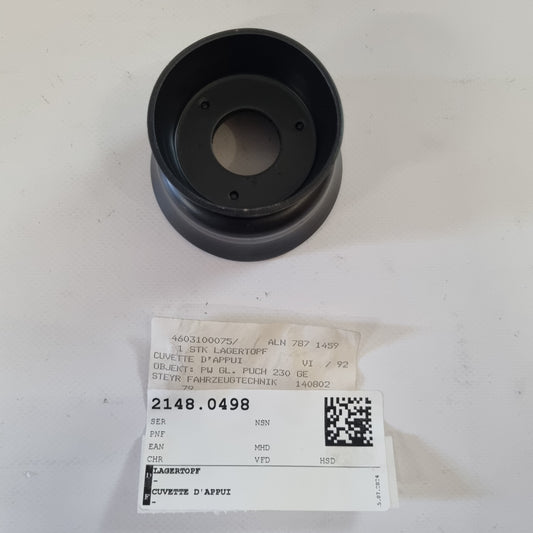

19. STORAGE POT

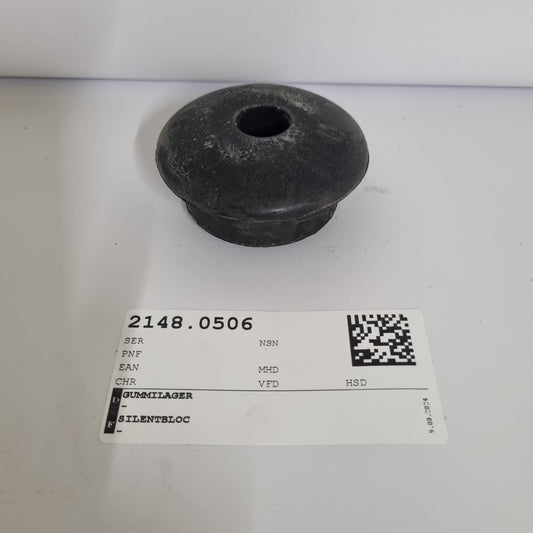

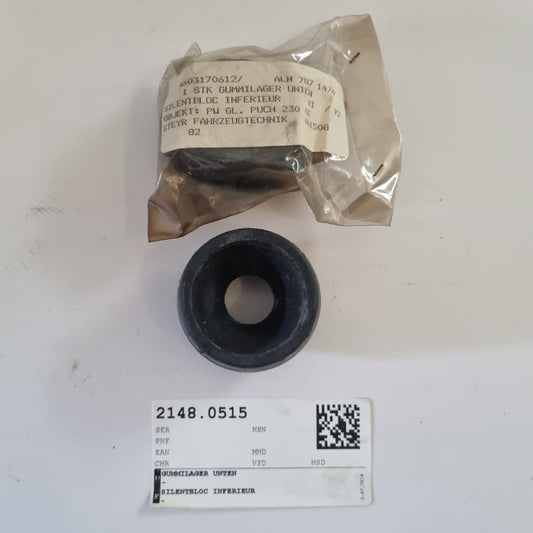

20. RUBBER BEARING LOWER
21. GUIDE DOWN
23. SECURITY NUT M10
23. LOCK NUT V M10 DIN 980 S=17
24. CONSOLE LEFT

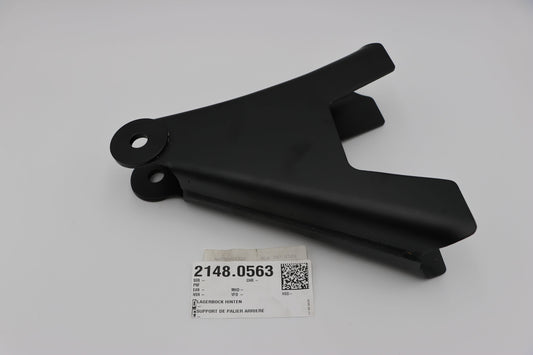

25. REAR BEARING STAND

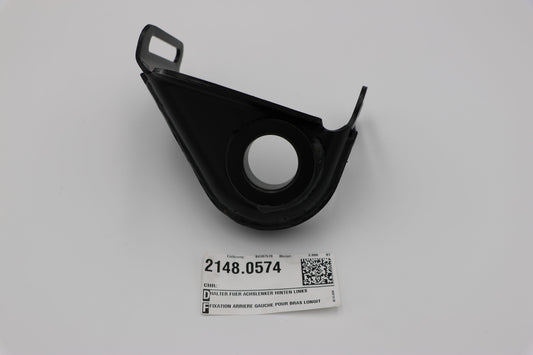

26. BRACKET FOR REAR LEFT AXLE ARM

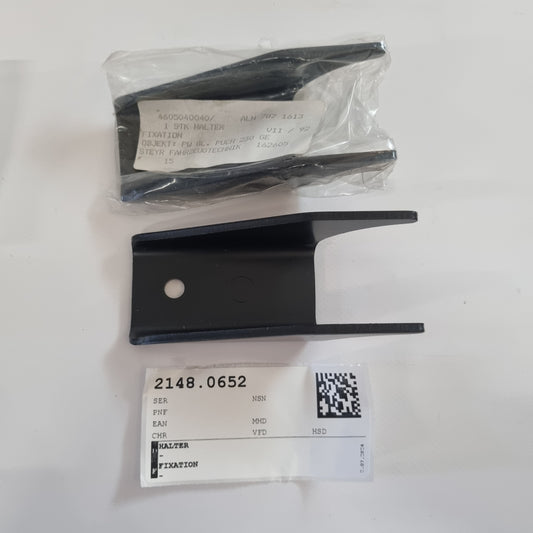

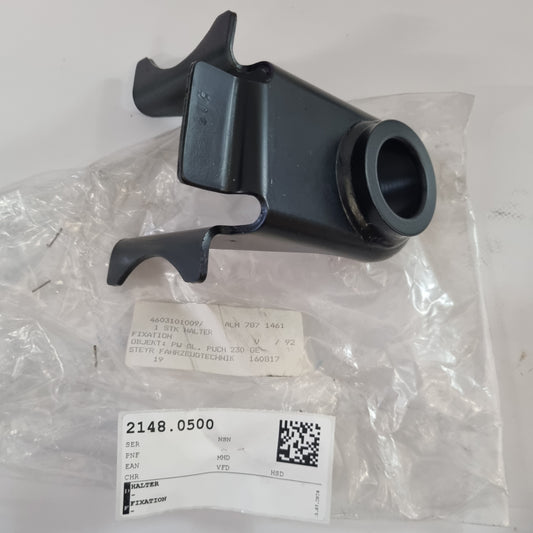

27. HOLDER
28. HOLDER
29. CONSOLE
30. BRACKET FOR AXLE ARM FRONT LEFT

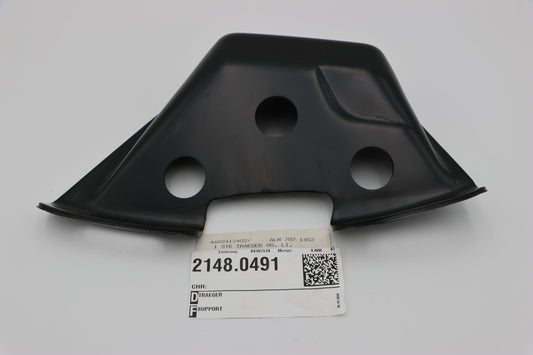

31. CARRIER
32. FRONT BEARING STAND
33. CONSOLE FRONT LEFT
33. CONSOLE FRONT / LEFT
34. HOLDER
35. DISC d10.2/52X5MM
36. STORAGE POT
37. SPACER TUBE
38. PLUG d20MM

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
