Frame and fastening strips

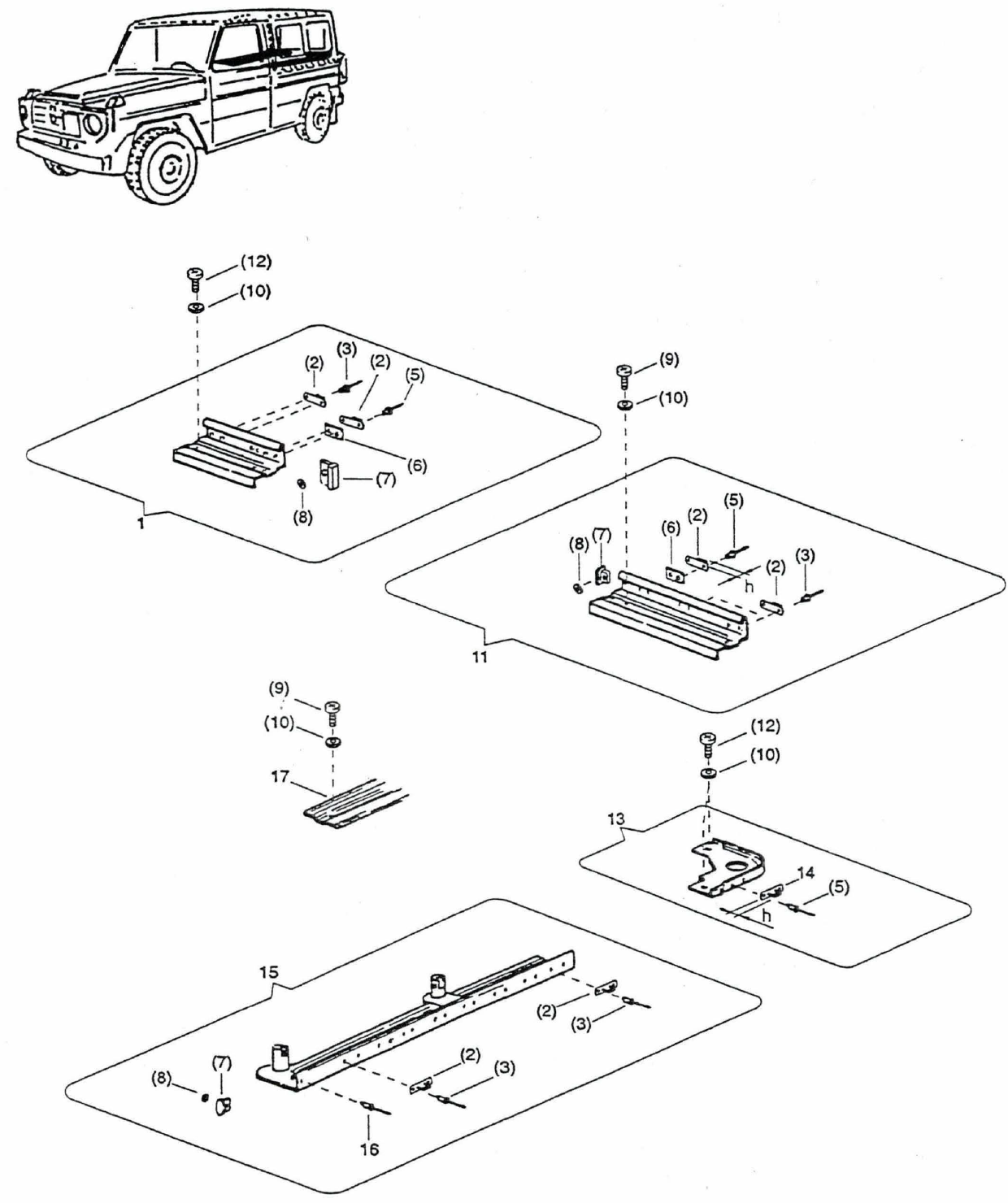

Product overview by image number (exploded view)

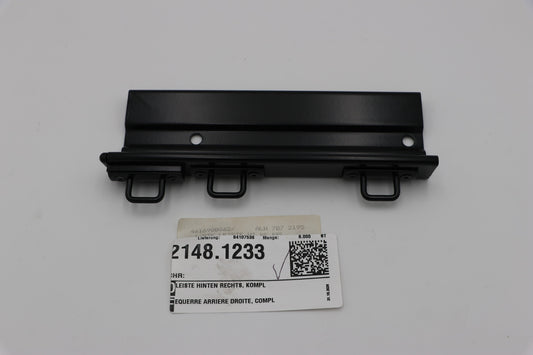

1. REAR RIGHT TRIM / COMPLETE

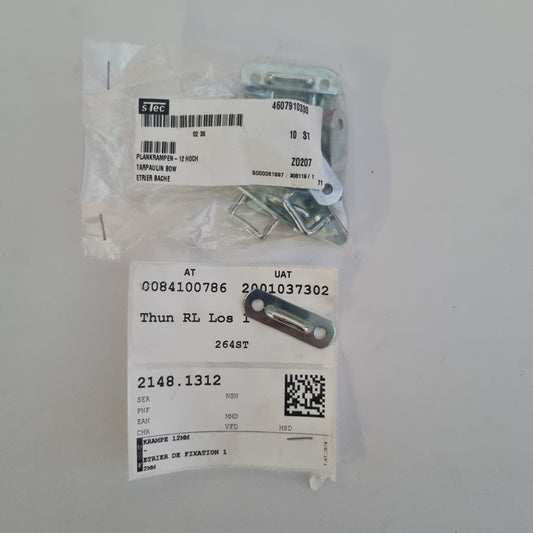

2. CLAMP 12MM
3. RIVET d4X8MM ST
4. CRAMPE 9MM
5. RIVET
5. RIVET d4X14.5MM ST

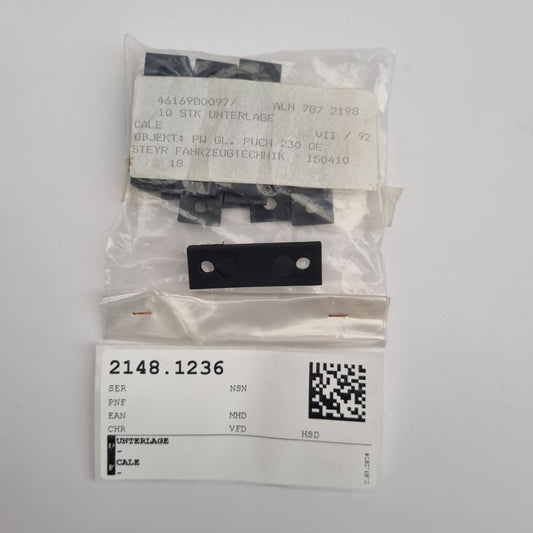

6. UNDERWRITING

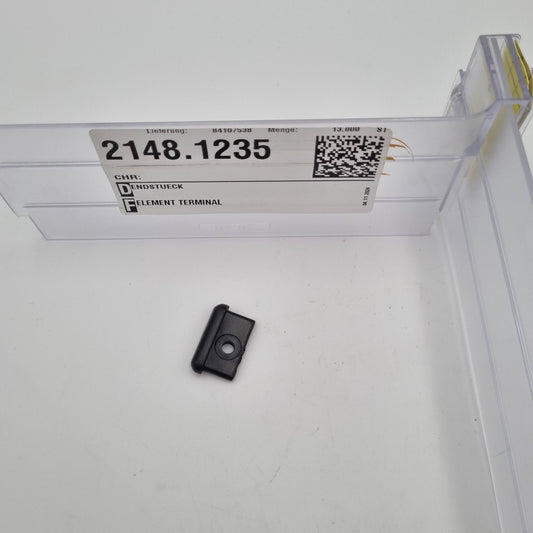

7. END PIECE
8. WASHER d4.2/12X1MM
9. Phillips head socket head cap screw
10. WASHER A d5.3/10X1MM DIN 125

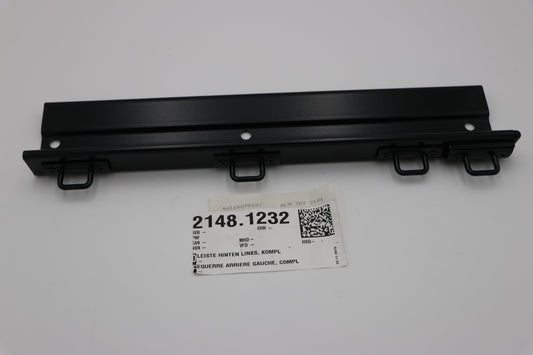

11. REAR LEFT TRIM / COMPLETE
12. Phillips head cylinder head screw

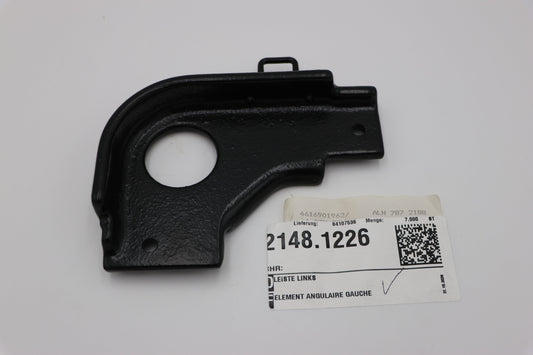

13. LEFT BAR

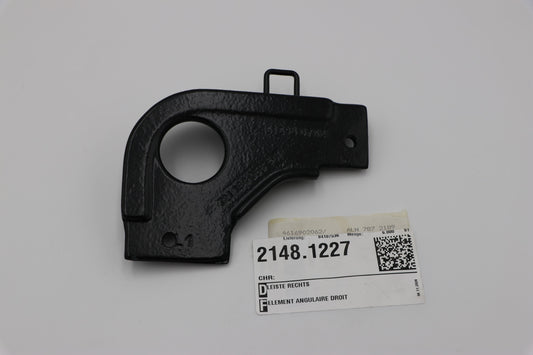

13. RIGHT BAR

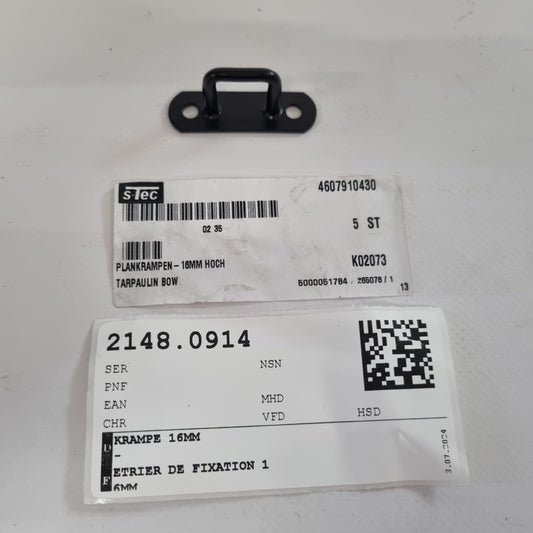

14. CRAMP 16MM
15. LEFT BAR / COMPLETE

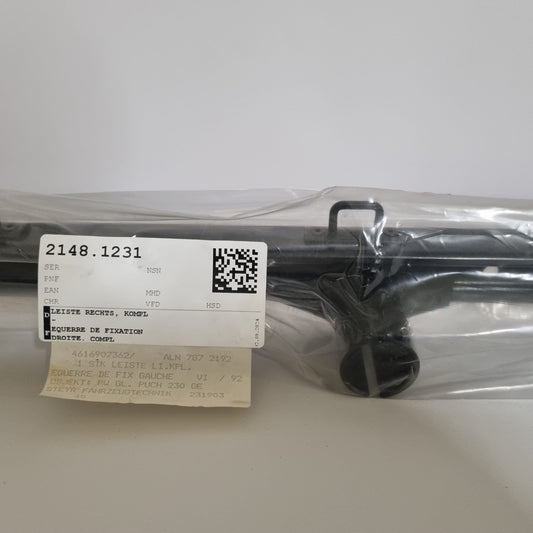

15. RIGHT BAR / COMPLETE
16. BLIND RIVET AS4X8.5-AL

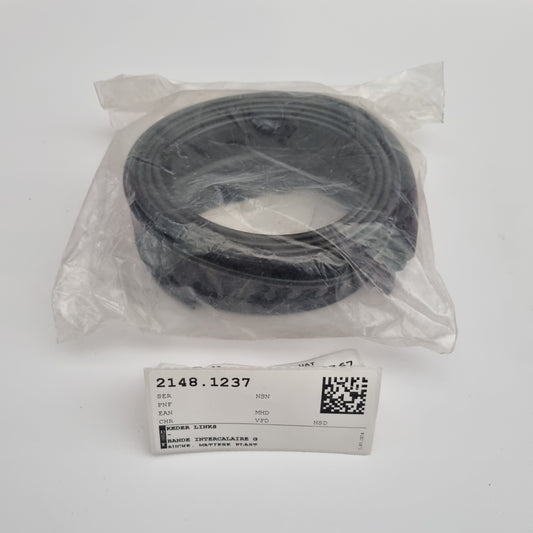

17. Piping left
17. RIGHT PIPING

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
