Rear door / spare wheel carrier RAP

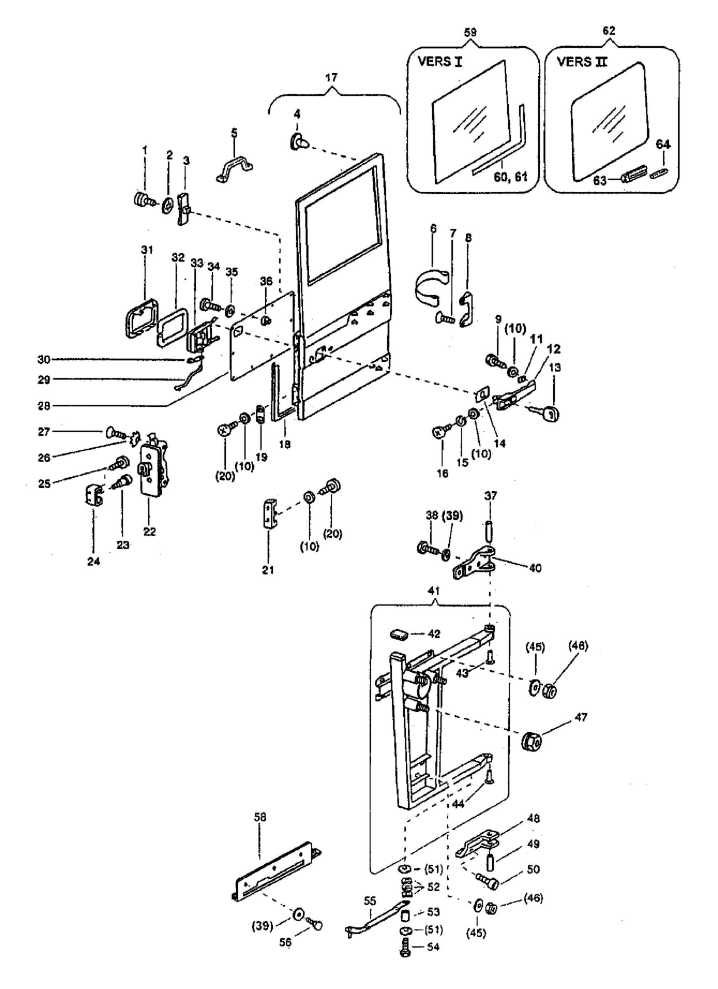

Product overview by image number (exploded view)

1. SCREW M5X25
1. LENS SCREW M5X25 (MICRO-ENCAPSULED)
2. Toothed washer J d5.1/9mm DIN 6797
2. Toothed washer J d5.3/10mm DIN 6797
3. BLACK SLIDER (DOOR SECURITY)
4. Sealing plug d5/8X12MM plastic
5. HANDLE 25/120X50MM PLASTIC/ST
6. RETAINING BAND
7. 90-degree countersunk head screw with Phillips head
8. HOLDER
9. SCREW
10. WASHER A d6.4/12X1.6MM DIN 125
11. UNDERWRITING
12. DOOR HANDLE
13. KEY (PLEASE SPECIFY KEY NO.)
14. UNDERWRITING
15. SPRING RING
16. Cylinder head screw with hexagon socket
17. REAR WALL DOOR VERSION I / COMPLETE
17. REAR WALL DOOR VERSION II / COMPL
18. RUBBER SEAL FOR DOOR
19. LOCKING PLATE
20. Phillips head cylinder head screw
21. Locking wedge
22. CASTLE
23. SCREW FOR DOOR LOCK
24. Locking wedge
25. SCREW
26. FASTENING WASHER V d6.4/11.8MM DIN 6798
27. 90-degree countersunk head screw with Phillips head
28. COVER
29. ROD
30. SECURITY
31. Rosette
32. RUBBER CORD d6MM METER
33. INNER OPERATION RIGHT
34. Phillips head self-tapping screw
35. Washer d4.3/12x1mm DIN 9021
36. SECURITY
37. HINGE PIN
38. SCREW M8X25
39. WASHER A d8.4/16X1.6MM DIN 125
40. BEARING UPPER
41. LAENGSTRAEGER (SPARE WHEEL)
42. PLUG
43. BOX
44. BOX
45. Washer d8.4/24x2mm DIN 9021
46. ​​LOCK NUT M8 ISO 7042
46. ​​SECURITY NUT M8
47. NUT M14X1.5 / WITH INTEGRATED
48. BEARINGS DOWN
49. HINGE PIN BOTTOM
50. SCREW M10X35N14125E8-8DBL8451-21
51. Washer d8.4/24x2mm DIN 9021
52. SPRING WASHER
53. SLEEVE
54. SCREW
55. LEVER
56. SCREW
58. LEADERSHIP
59. REAR WINDOW 745X505MM VERSION I / COMPLETE
60. KITT BRAKE METER
61. SEAL PROFILE 26X13MM EPDM 65 SHORE A
62. REAR WINDOW 630X430MM VERSION II / COMPLETE
63. SEAL PROFILE 23X18MM EPDM 75 SHORE A,
64. FULLER PROFILE 7.5X9.5MM EPDM 70 SHORE A

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
