Rear wall door locking system IMFS

Product overview by image number (exploded view)

1. 90-degree countersunk head screw with Phillips head
2. FASTENING WASHER V d6.4/11.8MM DIN 6798
3. CASTLE
4. UNDERLAY
5. WASHER A d6.4/12X1.6MM DIN 125
6. SPRING RING
7. Cylinder head screw with hexagon socket
8. KEY (PLEASE SPECIFY KEY NO.)
9. DOOR HANDLE WITHOUT KEY,
10. UNDERWRITING
11. SCREW
12. RETAINING SPRING
13. INSIDE OPERATION LEFT
14. ROD
15. SECURITY
16. Phillips head cylinder head screw
16. Phillips head cylinder head screw
17. SPRING WASHER B d6MM DIN 137 FD-ST A2P
18. TOP PAD
18. TOP PAD
18. TOP PAD
19. TOP LOCKING WEDGE
20. CASTLE
21. COUNTERSUNK SCREW 90 DEGREE WITH PHILLIPS H
22. DISC
23. CLAMPING SPRING RIGHT
24. TOP ROD
25. CLIP
26. ROD DOWN
27. ATTACK
28. PLATE
29. LOWER LOCKING WEDGE
30. UNDERLAY BOTTOM
30. UNDERLAY BOTTOM
31. CLAMPING SPRING LEFT

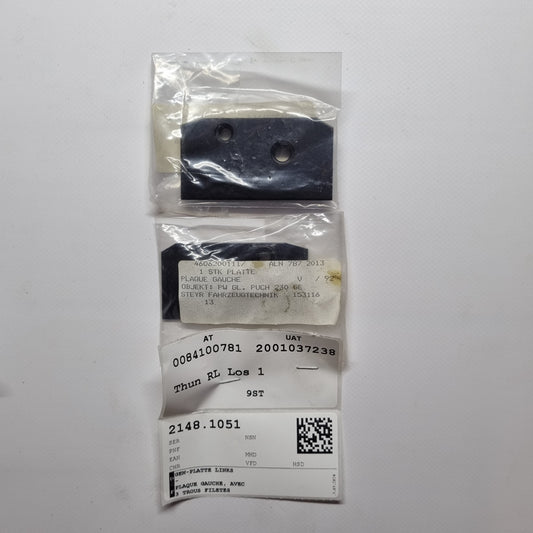

32. THREADED PLATE LEFT
33. ATTACK
34. PLATE
35. FEATHER
36. SECURITY
37. LEVER
38. HEXAGON SCREW M6X12 ISO 4017
39. SCREW FOR DOOR LOCK
40. SCREW
41. Locking wedge left
42. CAMP
43. SPRING WASHER B d5MM DIN 137
44. HEXAGON SCREW M5X10 ISO 4017
45. Grooved pin d5x28mm DIN 1475 ST 6.8
46. ​​HANDLE
47. Phillips head cylinder head screw
48. RUBBER BUFFER

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
