Rear door / spare wheel carrier

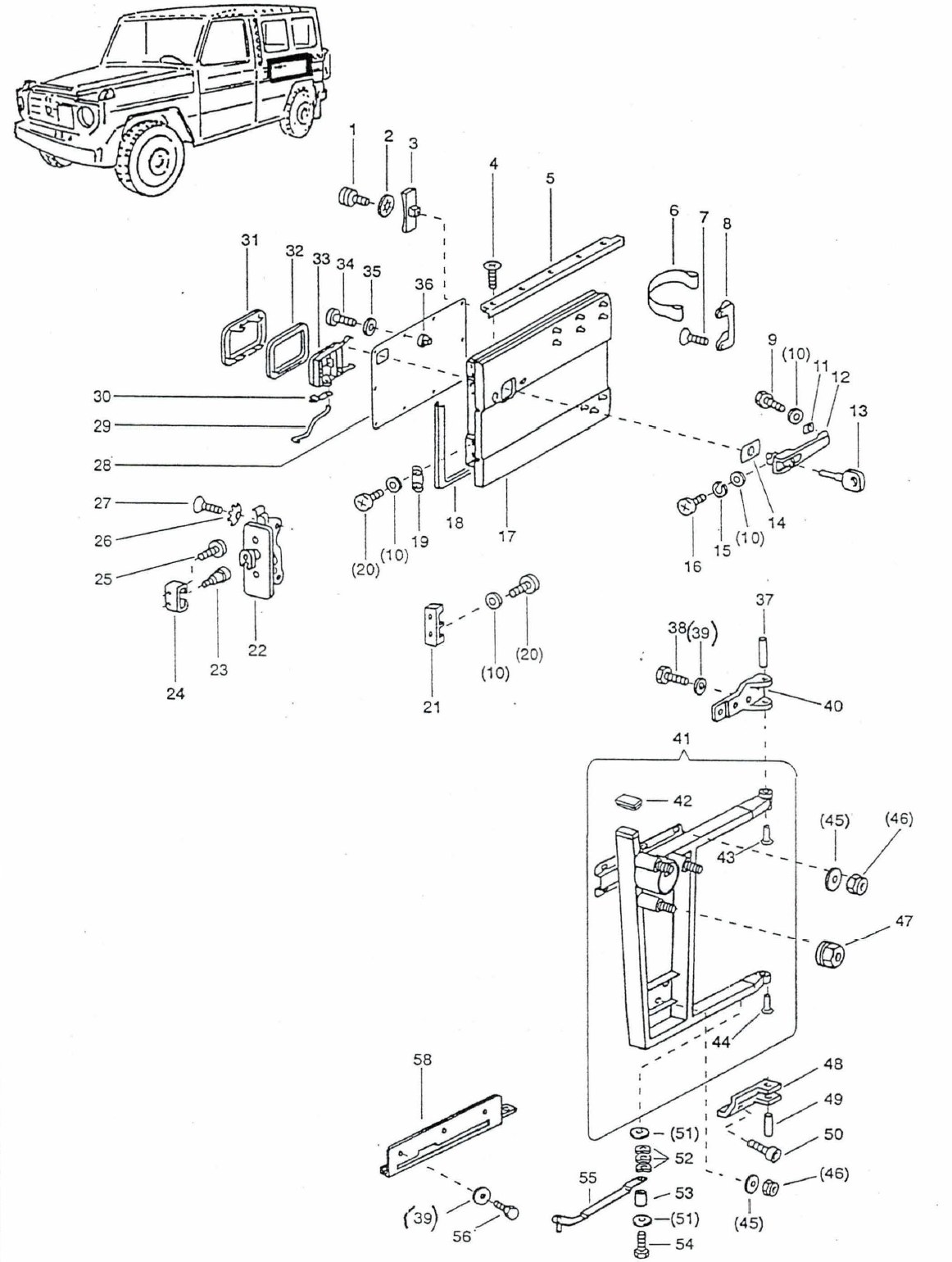

Product overview by image number (exploded view)

1. SCREW M5X25
1. LENS SCREW M5X25 (MICRO-ENCAPSULED)
2. Toothed washer J d5.1/9mm DIN 6797
2. Toothed washer J d5.3/10mm DIN 6797
3. BLACK SLIDER (DOOR SECURITY)
4. Raised countersunk head screw 90 degrees with cross
5. COVER
6. RETAINING BAND
7. 90-degree countersunk head screw with Phillips head
8. HOLDER
9. SCREW
10. WASHER A d6.4/12X1.6MM DIN 125
11. UNDERWRITING
12. DOOR HANDLE (SPECIFY LOCKING NO.)
13. DOOR HANDLE (LOCKING HZ1201)
14. UNDERWRITING
15. SPRING RING
16. Cylinder head screw with hexagon socket
16. Cylinder head screw with hexagon socket
17. REAR DOOR PLACING
17. REAR DOOR
18. SEALING
19. LOCKING PLATE
20. Phillips head cylinder head screw
21. Locking wedge
22. CASTLE
23. SCREW FOR DOOR LOCK
24. Locking wedge
25. SCREW
26. FASTENING WASHER V d6.4/11.8MM DIN 6798
27. 90-degree countersunk head screw with Phillips head
28. COVER
29. ROD
30. SECURITY
31. Rosette
32. UNDERWRITING
33. INNER OPERATION RIGHT
34. Phillips head self-tapping screw
35. Washer d4.3/12x1mm DIN 9021
36. SECURITY
37. HINGE PIN
38. SCREW M8X25
39. WASHER A d8.4/16X1.6MM DIN 125
40. BEARING UPPER
41. LAENGSTRAEGER (SPARE WHEEL)
42. PLUG
43. BOX
44. BOX
45. Washer d8.4/24x2mm DIN 9021
45. Washer d8.4/24x2mm DIN 9021
46. ​​SECURITY NUT M8
46. ​​LOCK NUT M8 ISO 7042
47. NUT M14X1.5 / WITH INTEGRATED
48. BEARINGS DOWN
49. HINGE PIN BOTTOM
50. SCREW M10X35N14125E8-8DBL8451-21
51. Washer d8.4/24x2mm DIN 9021
52. SPRING WASHER
53. SLEEVE
54. SCREW
55. LEVER
56. SCREW M8X20
58. LEADERSHIP
17. SELF-ADHESIVE LABEL 220X75MM YELLOW

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
