Gearshift lever / speedometer drive / suspension

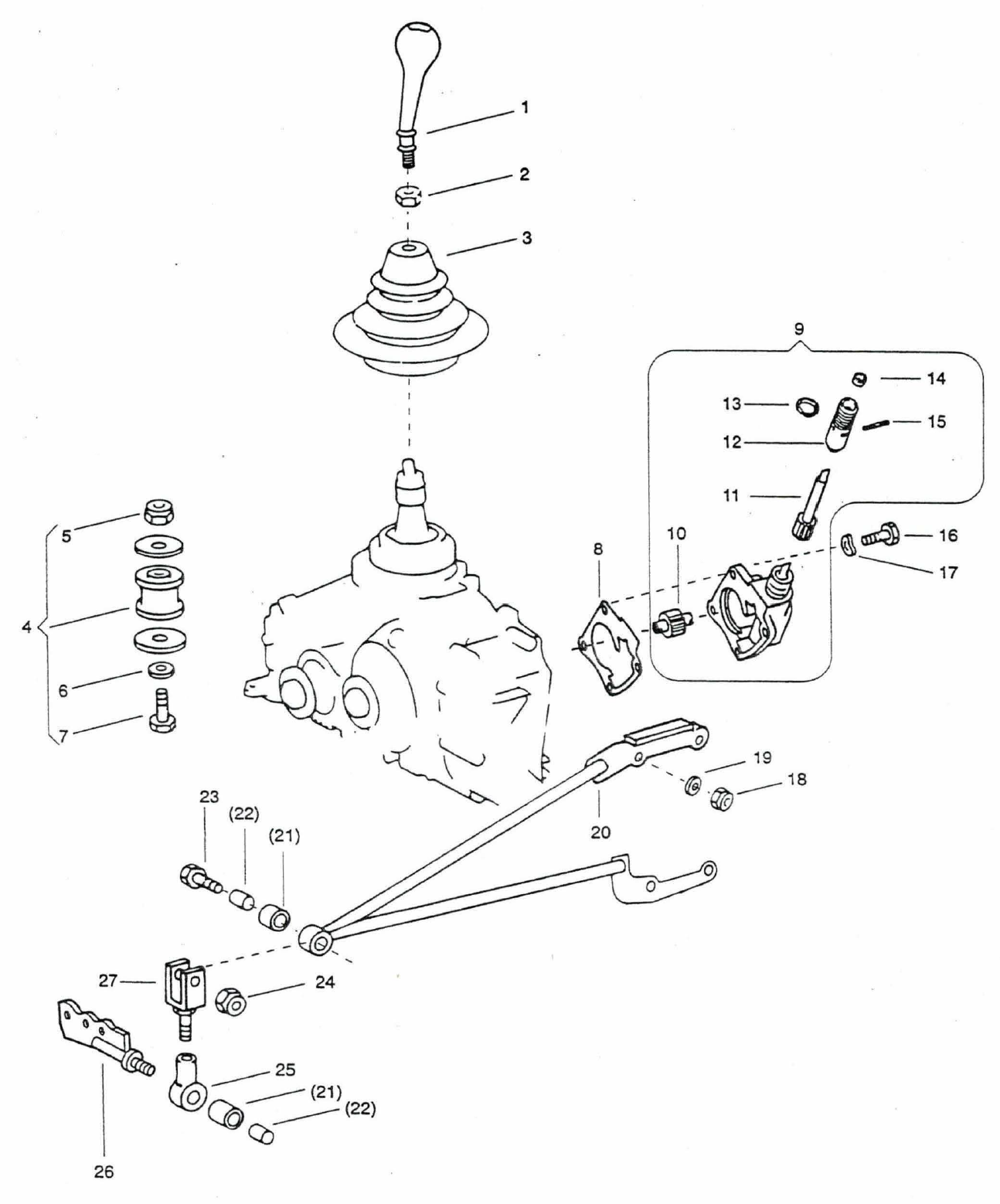

Product overview by image number (exploded view)

1. HANDLE
2. HEXAGON NUT M10X1 DIN 70616 8 A2P
3. CUFF
4. WAREHOUSE
5. SECURITY NUT M10
6. WASHER d10.5/25X4MM
7. HEXAGON SCREW M10X85/26 DIN 931
8. SEAL
9. SPEEDOMETER DRIVE
10. SPEEDOMETER DRIVE WHEEL
11. SPEEDOMETER DRIVE SHAFT
12. BOX
13. O-RING CFW SIMRIT OR 18.3-2.4
14. Sealing ring d10/15x8.4mm
15. CLAMPING SLEEVE d3X28MM DIN 1481 FD ST
16. HEXAGON SCREW M6X30/18 ISO 4014
17. SPRING WASHER B d6MM DIN 137 FD-ST A2P
18. LOCK NUT V M10 DIN 980 S=17
18. SECURITY NUT M10
19. WASHER A d10.5/20X2MM DIN 125
20. ROD
21. RUBBER RING
22. BOX
23. HEXAGON SCREW M10X45/26 DIN 931
24. LOCK NUT M8 ISO 7042
24. LOCK NUT M8 ISO 7042
25. CAMP
26. CARRIER
27. SHIFT FORK

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
