Switching mechanisms for compensating lock

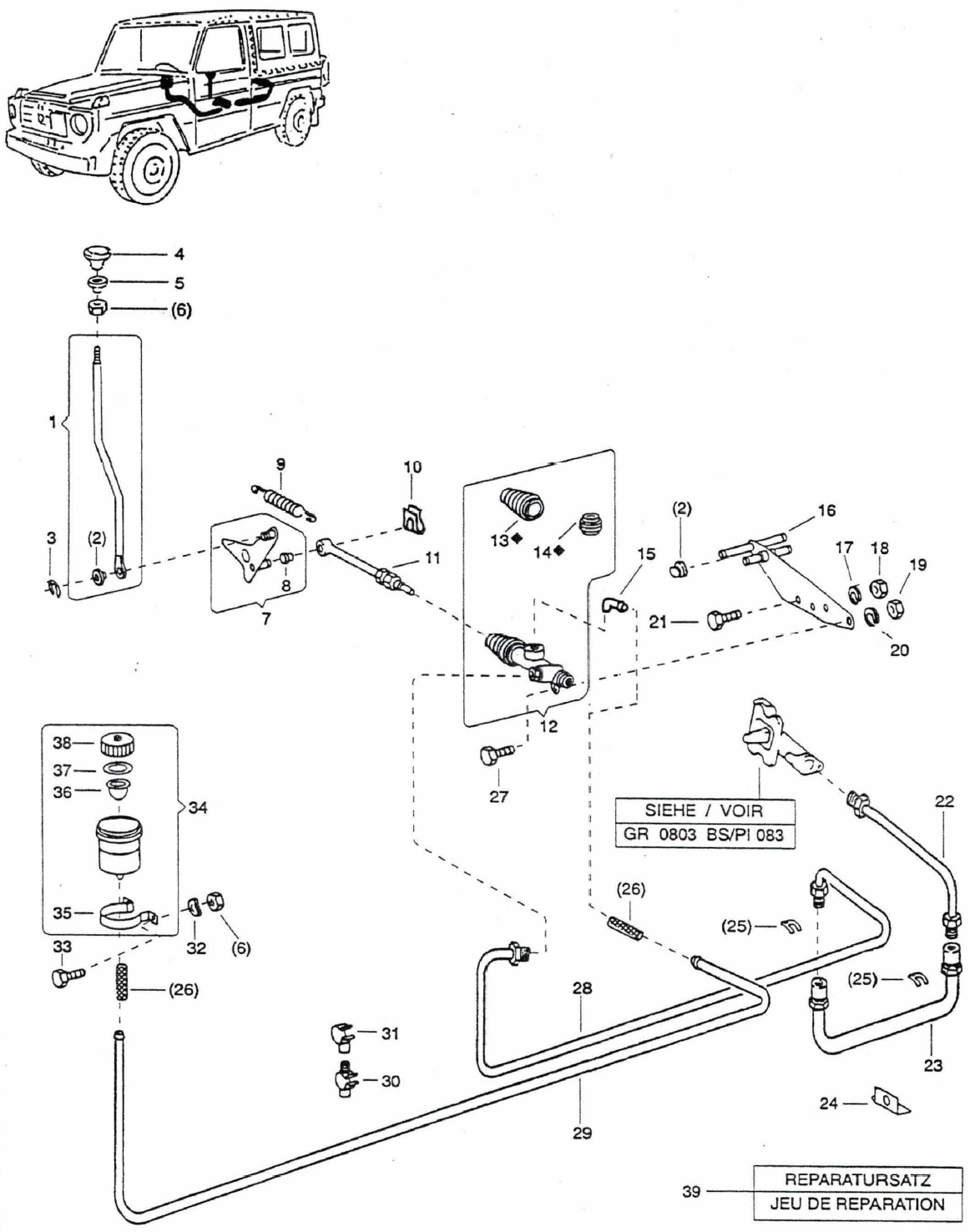

Product overview by image number (exploded view)

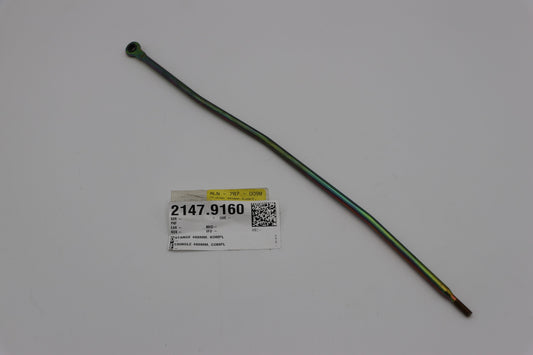

1. ROD 460MM / COMPLETE

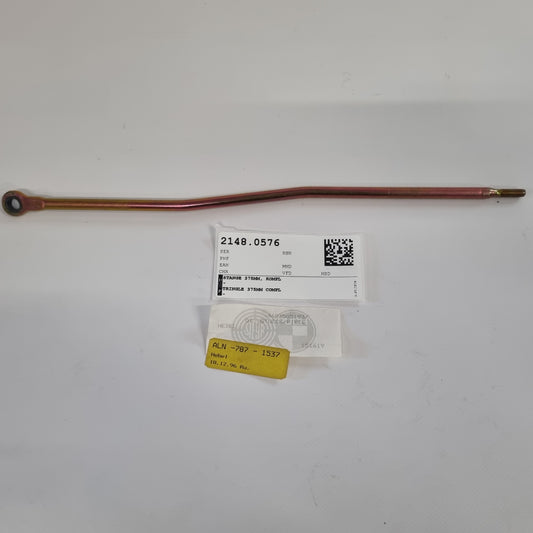

1. ROD 375MM / COMPLETE
2. BOX
3. SECURITY

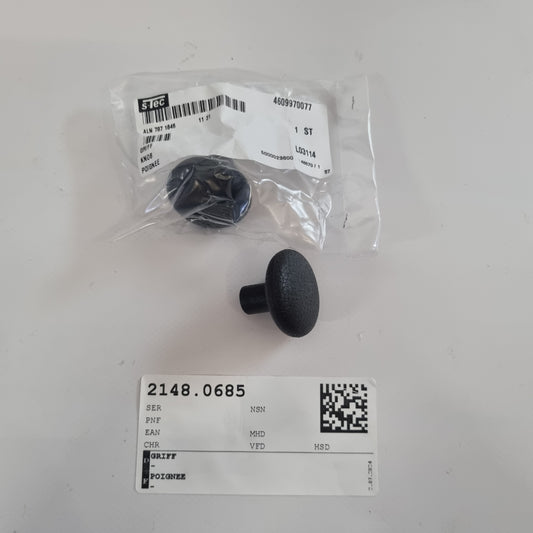

4. HANDLE
5. Grommet
6. HEXAGON NUT M6 ISO 4032

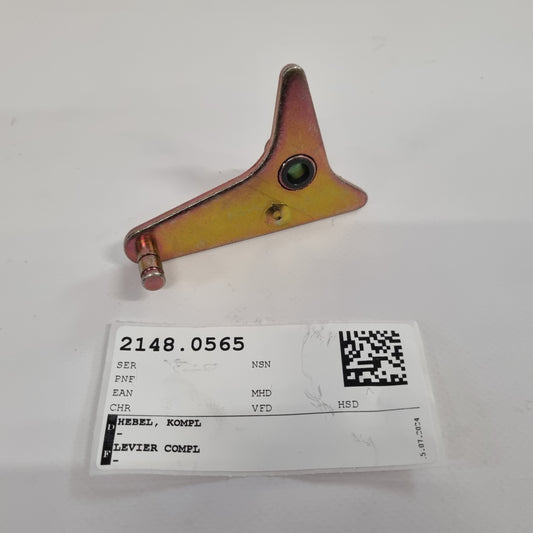

7. LEVER / COMPONENT
8. BOX

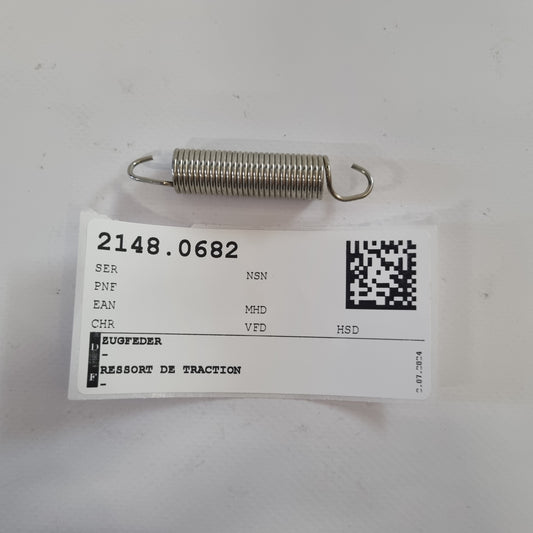

9. TENSION SPRING
10. SECURITY
11. ROD
12. CYLINDER / COMPONENT
13. PROTECTIVE CAP

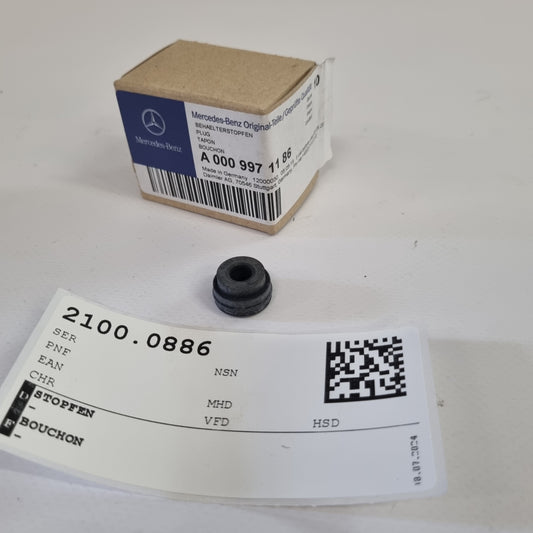

14. PLUG

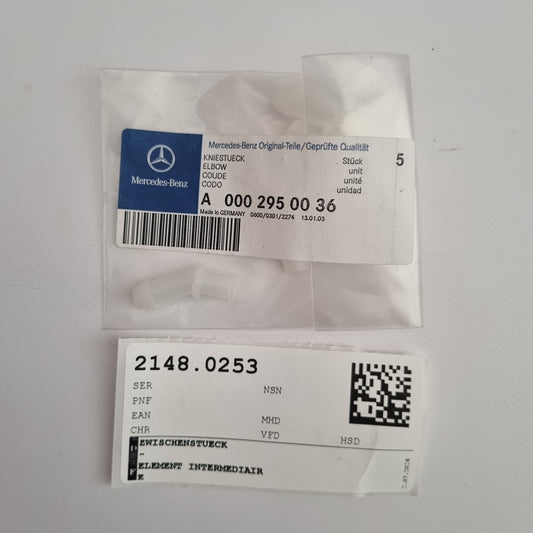

15. INTERMEDIATE PIECE

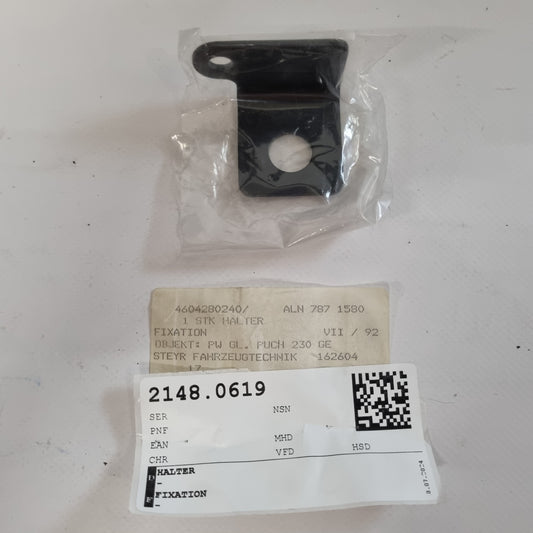

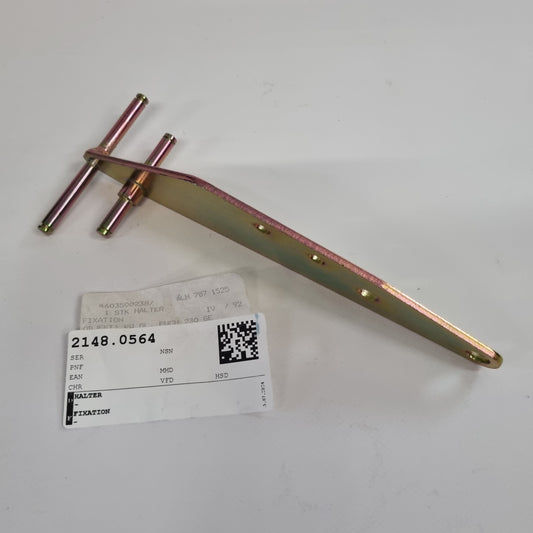

16. HOLDER
17. SPRING RING
18. HEXAGON NUT M8 ISO 4032
19. HEXAGON NUT M10 DIN 934
20. SPRING RING CURVED A d8MM DIN 128
21. HEXAGON SCREW M8X16 ISO 4017

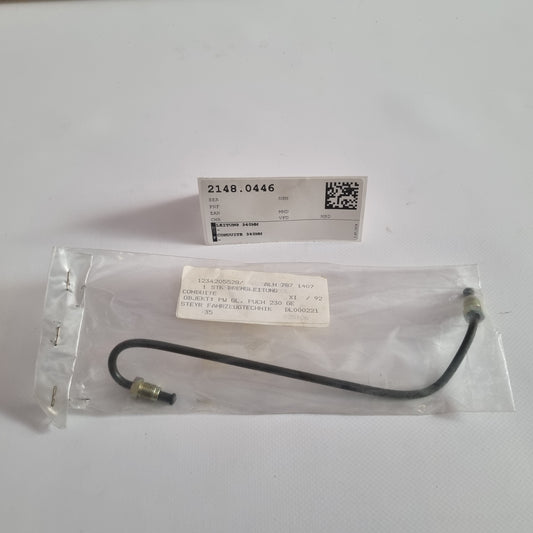

22. PIPE 340MM
23. BRAKE HOSE
24. HOLDER
25. HOLDER
26. HOSE d7.5X3MM
27. HEXAGON SCREW M10X35 DIN 933
28. CABLE 1.63M
29. PIPE 790MM
30. HOLDER
31. CLAMP
32. SPRING WASHER B d6MM DIN 137 FD-ST A2P
33. HEXAGON SCREW M6X12 ISO 4017
34. Expansion tank 200ml d65x110mm / with
35. CLAMP
36. SIEVE

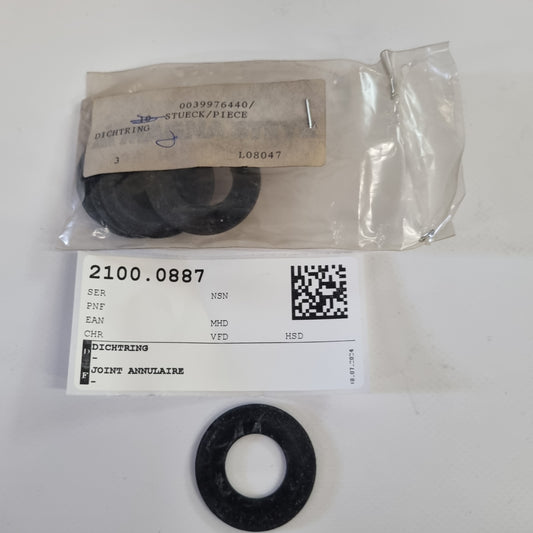

37. SEALING RING

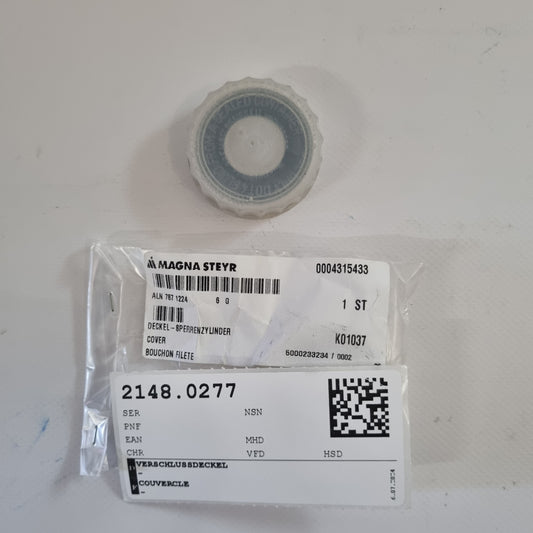

38. CLOSING CAP

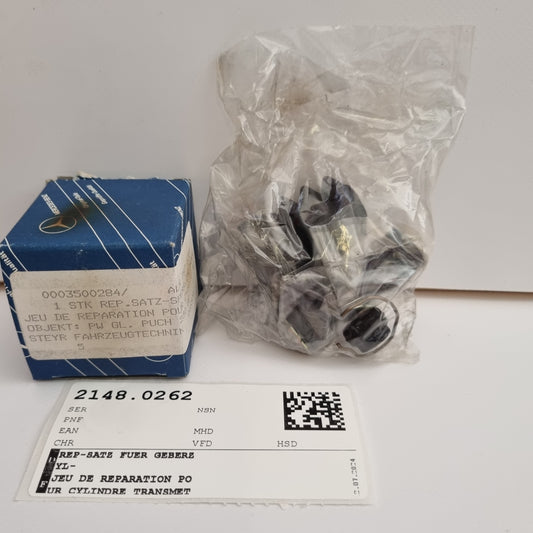

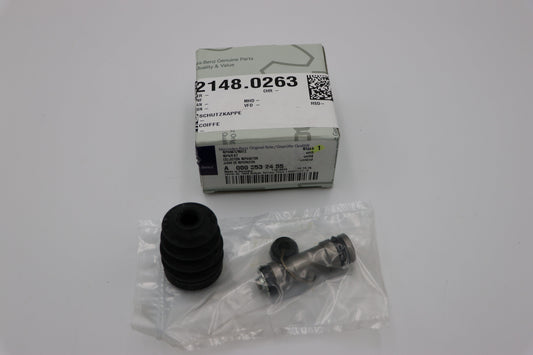

39. Master cylinder repair kit

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
