Valve housing / oil pan

Product overview by image number (exploded view)

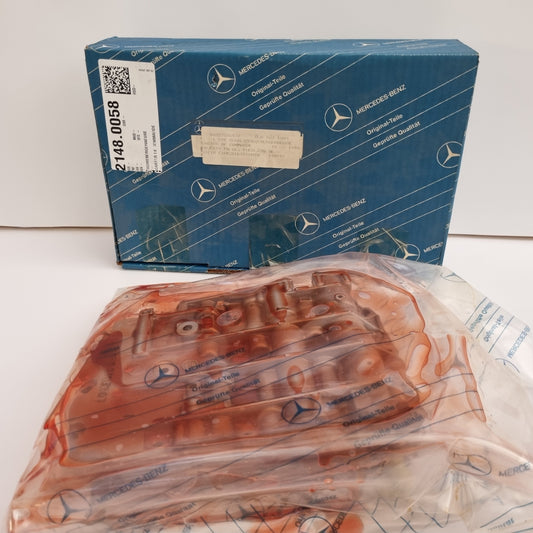

1. VALVE HOUSING
2. LID
3. SECURITY
4. VALVE
5. COMBINATION SCREW
6. COMBINATION SCREW
7. FILTER
8. PIPE

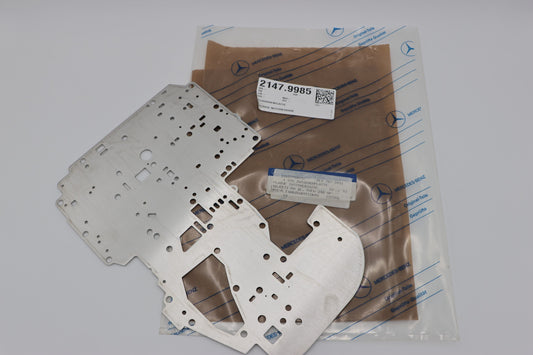

9. INTERMEDIATE PLATE
9. INTERMEDIATE PLATE
10. OIL FEEDING
11. OIL DEFLECTOR
12. Phillips head cylinder head screw
13. SPRING WASHER B d5MM DIN 137
14. REINFORCEMENT

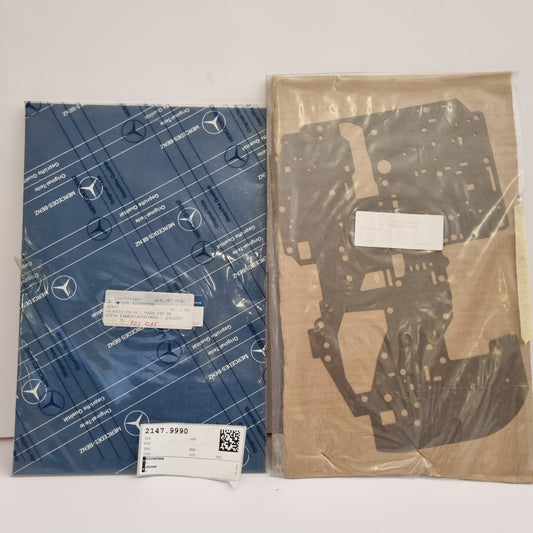

15. SEAL
15. SEAL
16. SEAL
17. SPRING WASHER B d6MM DIN 137 FD-ST A2P
18. HEXAGON SCREW M6X30 DIN 933 8.8 A2P
19. OIL FILTER
20. COMBINATION SCREW
21. SEAL
22. OIL PAN
23. SEALING RING d10.2X13.4X1.0MM AL
24. Hexagon socket plug
25. HEXAGON SCREW M8X30 ISO 4017
26. WASHER A d8.4/16X1.6MM DIN 125
27. SEAL KIT FOR SWITCH VALVE HOUSING

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
