Windshield wiper system

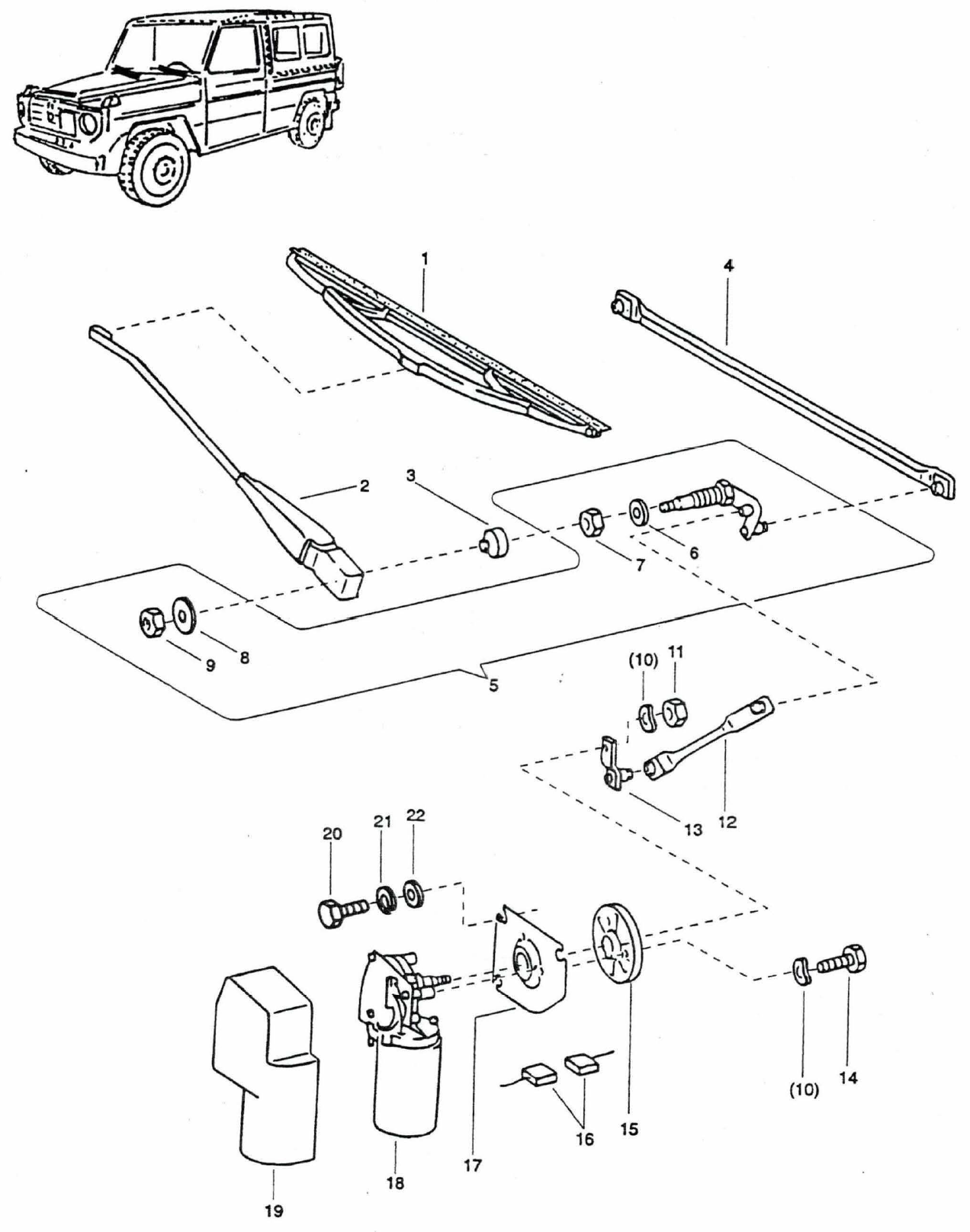

Product overview by image number (exploded view)

1. WIPER BLADE 400MM
2. WIPER ARM / COMPLETE
3. CAPSULE

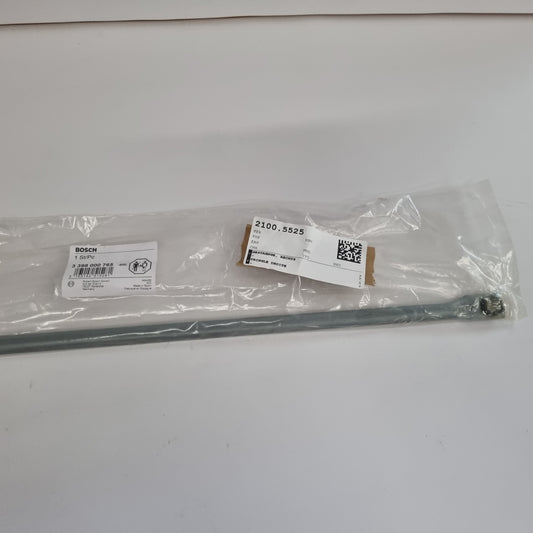

4. ROD / RIGHT

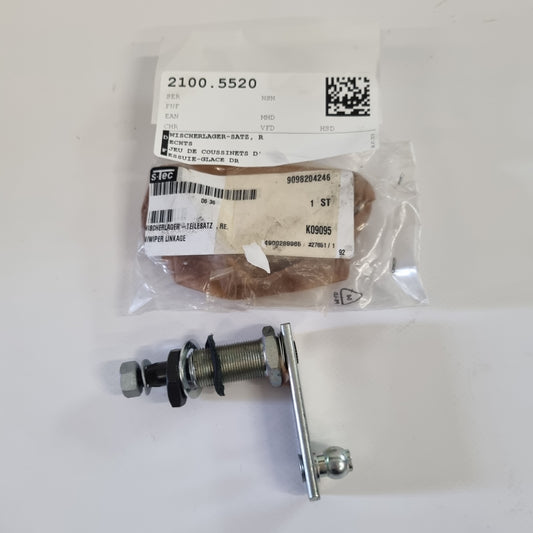

5. WIPER BEARING SET / RIGHT
5. WAREHOUSE / LEFT
6. WASHER
7. HEXAGON NUT
8. SHAFT WASHER ST PROM
9. HEXAGON NUT M8 ISO 4032
10. SPRING WASHER B d6MM DIN 137 FD-ST A2P
11. HEXAGON NUT M6 ISO 4032

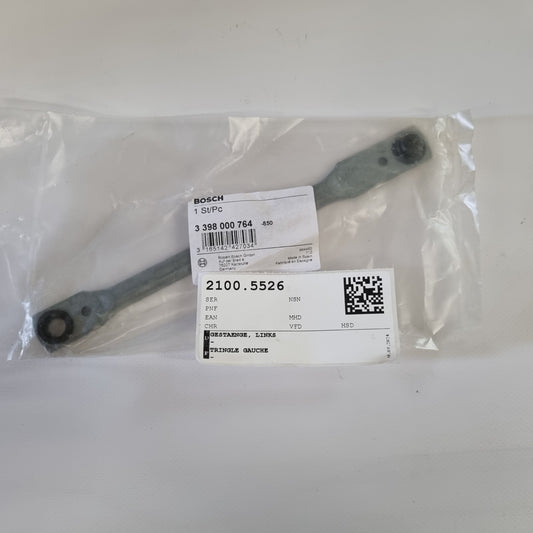

12. RODS / LEFT
13. ENGINE CRANK
14. HEXAGON SCREW M6X12 ISO 4017

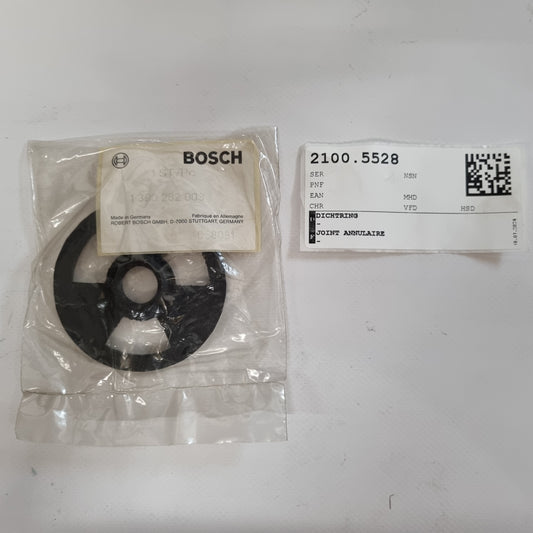

15. SEALING RING

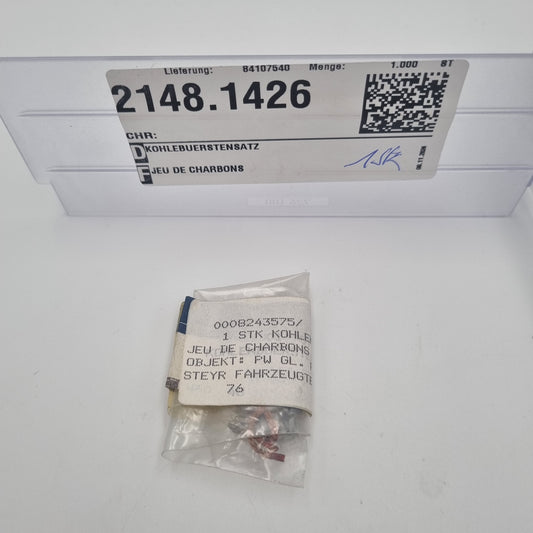

16. CARBON BRUSH SET

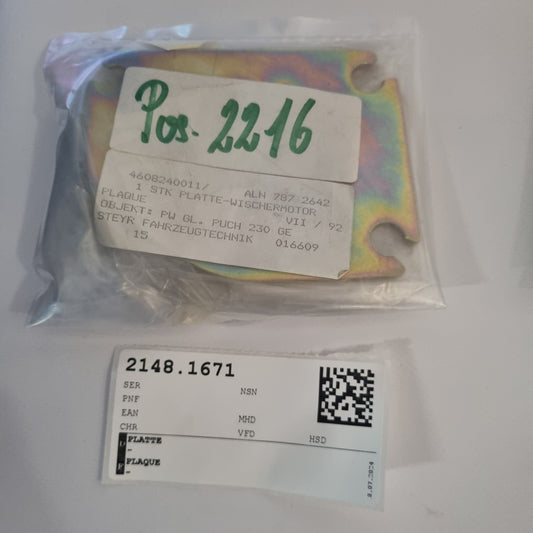

17. PLATE
18. WIPER MOTOR

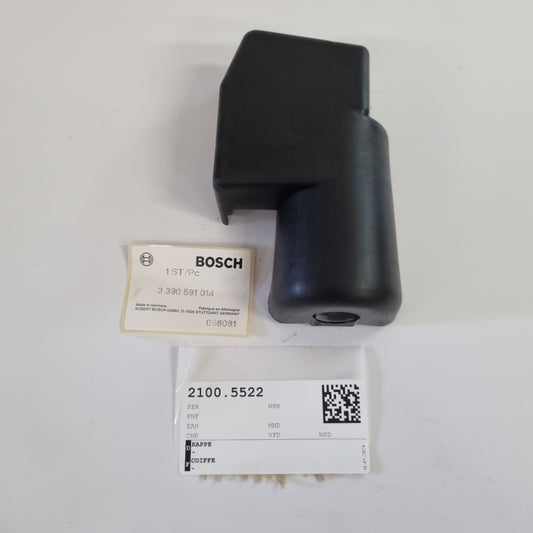

19. CAP
20. HEXAGON SCREW M6X20 ISO 4017
21. SPRING RING
22. Washer d6.4/18x1.6mm DIN 9021

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
