Coil spring / shock absorber (rear)

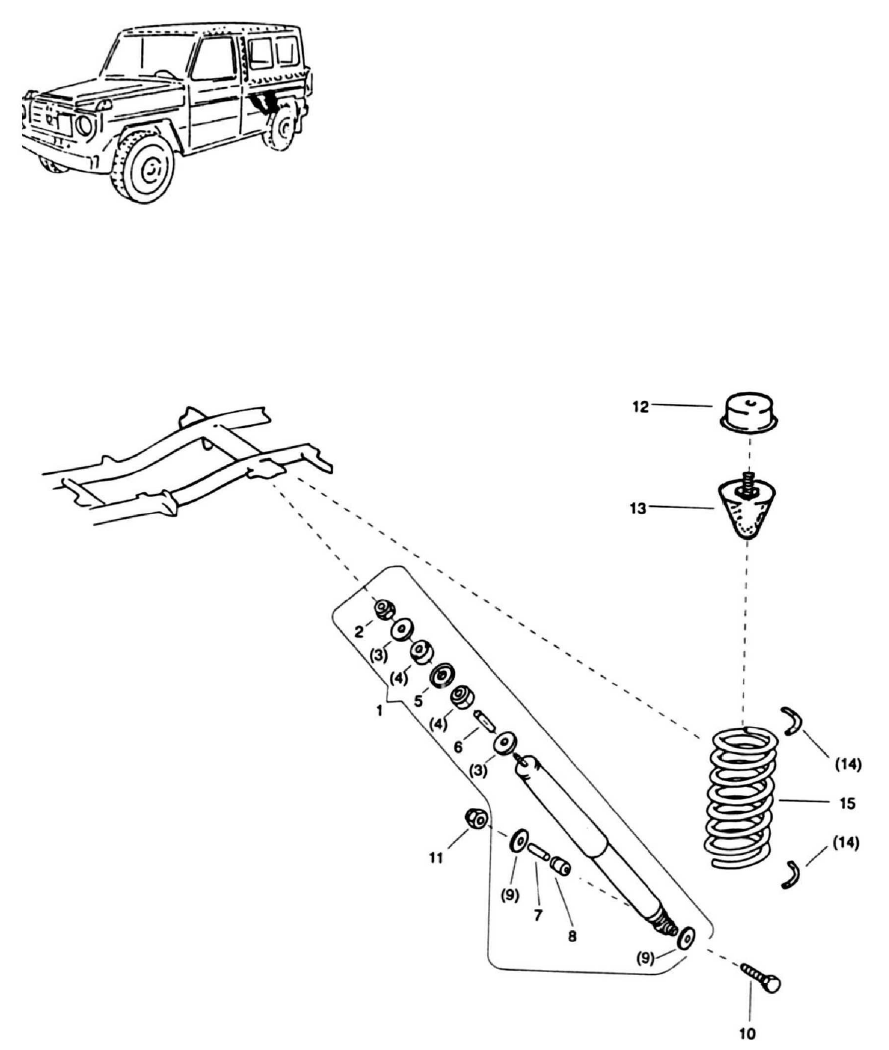

Product overview by image number (exploded view)

1. SHOCK ABSORBER COMP.
2. HEXAGON NUT M14X1.5
3. PLATE
4. RUBBER MOUNTING
5. PLATE
6. BUSHING d20/14X40MM
7. BUSHING d26/16X58MM
8. RUBBER BEARING d23/42X30MM
9. BEARING (WASHER) RUBBER 38X24X9MM
10. HEXAGON SCREW M16X1.5X85/38 DIN 960
11. NUT M16X1.5 ST
11. NUT M16X1.5 (NYLON)
11. NUT M16X1.5 ST
12. PLATE d100MM
13. STOP BUFFER

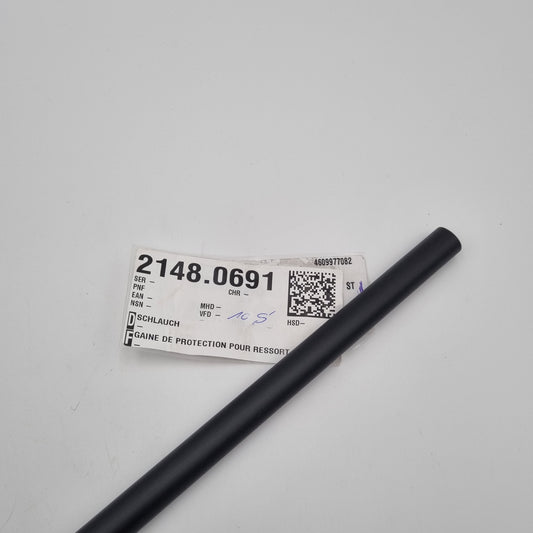

14. HOSE

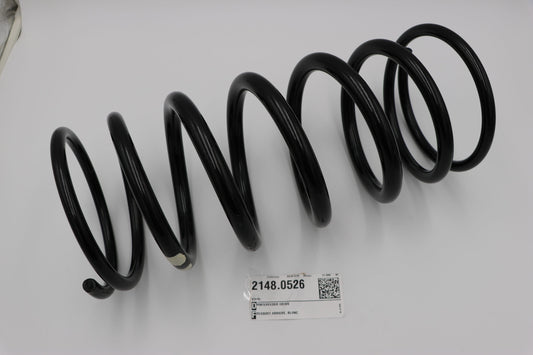

15. HIND SPRING WHITE

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
