Side seat / belts (rear IMFS)

Product overview by image number (exploded view)

1. SIDE BENCH (2-SEAT) / COMPLETE
2. BACKREST COVER
3. Upholstery foam for backrest
4. Upholstered panel for backrest
5. BACKREST COVER
6. BACKREST FRAME
7. BACK CUSHION / COMPLETE
8. SPRING RING B d6MM DIN 127 FD ST A2P
9. HEXAGON SCREW M6X20 ISO 4017
10. DISC
11. BOLT A d8-H11X45MM DIN 1444 ST A2P
12. HEXAGON NUT M6 ISO 4032
13. LENS SCREW
14. BAR
15. Phillips head cylinder head screw
16. SEAT FRAME / COMPLETE
17. SEAT COVER FOR SEAT FRAME
18. Upholstery foam for seat
19. COVER
20. PILLOW FRAME
22. RECORDING

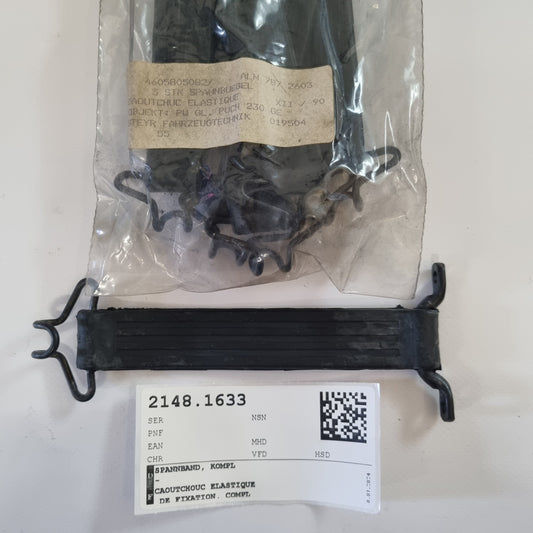

23. TENSION STRAP / COMPLET

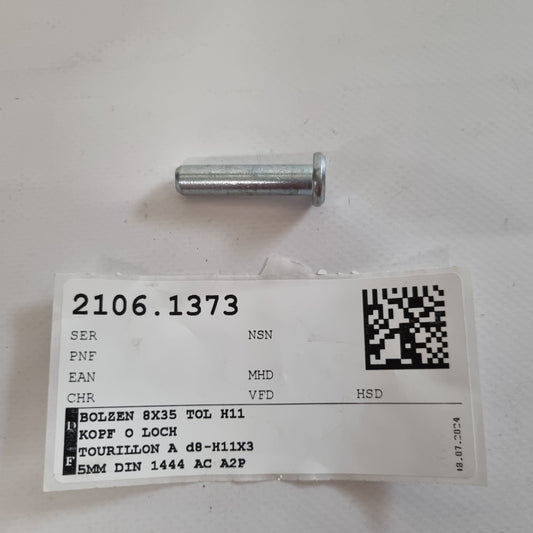

24. BOLT A d8-H11X35MM DIN 1444 ST A2P
25. LOCKING WASHER QUICKLOCK BENZING
25. LOCK WASHER
26. SUPPORT
27. PLATE 150X172MM
28. HEXAGON SCREW M6X16 ISO 4017
29. HOLDER DOWN
30. HOLDER UP

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
