fuse box

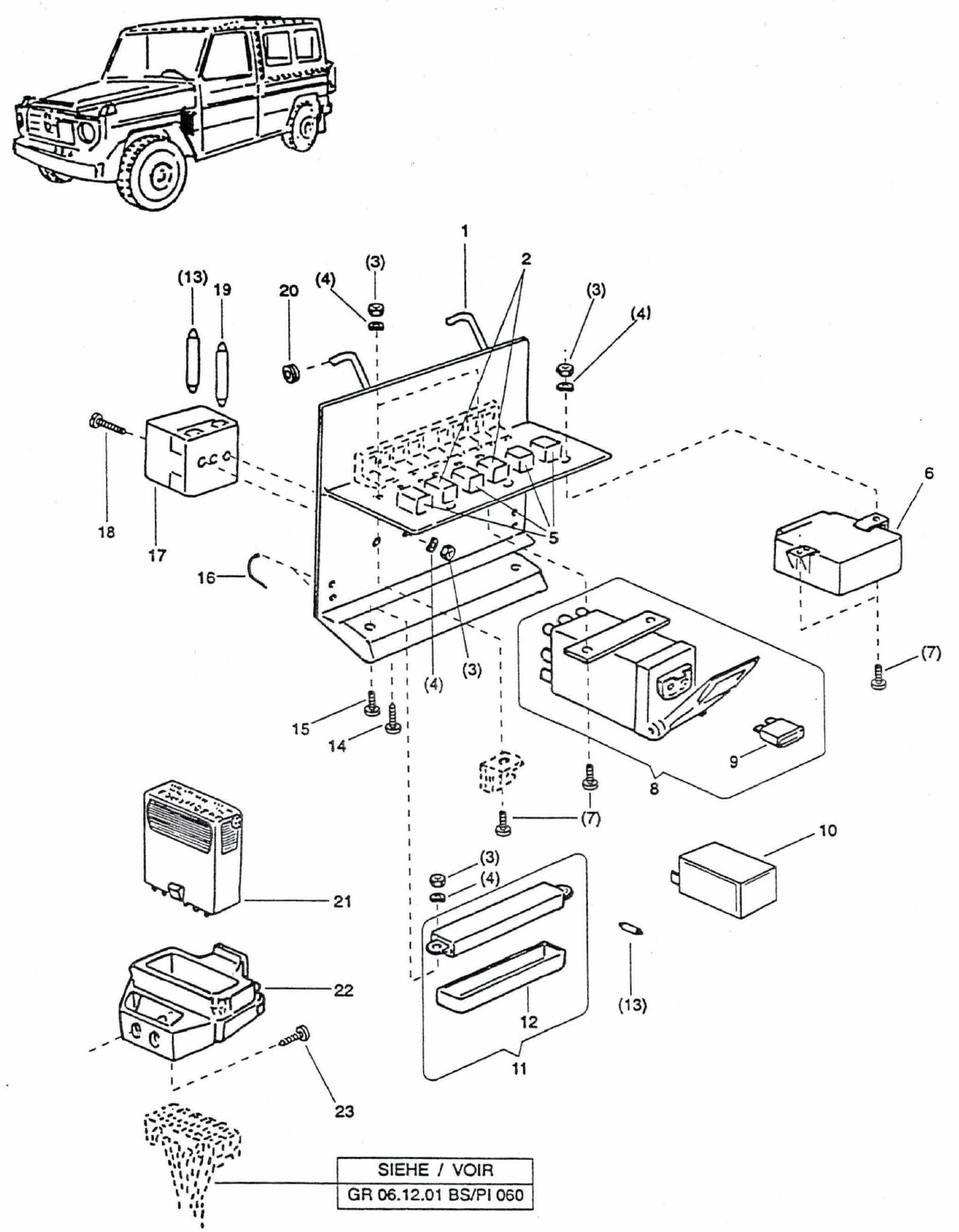

Product overview by image number (exploded view)

1. HOLDER

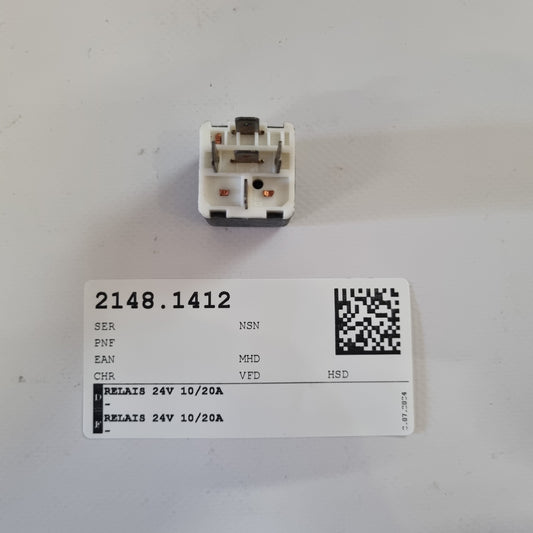

2. RELAY 24V 10/20A
2. RELAY 24V 20A/10A 5P / CHANGER
3. HEXAGON NUT M5 ISO 4032
4. SPRING WASHER B d5MM DIN 137

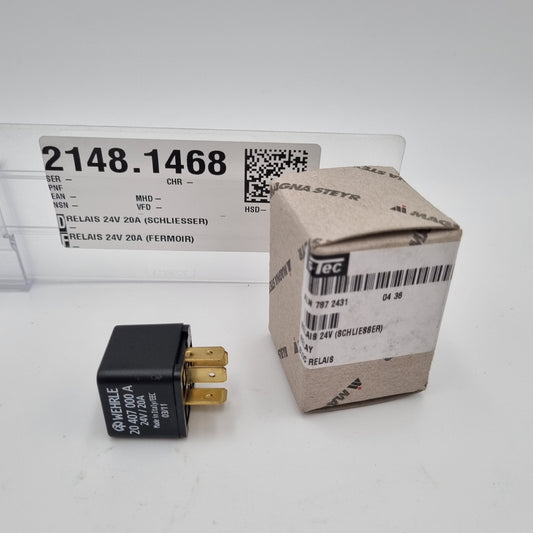

5. RELAY 24V 20A
6. WIPER INTERVAL RELAY 24V
7. Phillips head cylinder head screw
8. SURGE PROTECTION 72 UD 404
9. CAR PLUG-IN FUSE 10A 32V RED
9. FUSE 10A

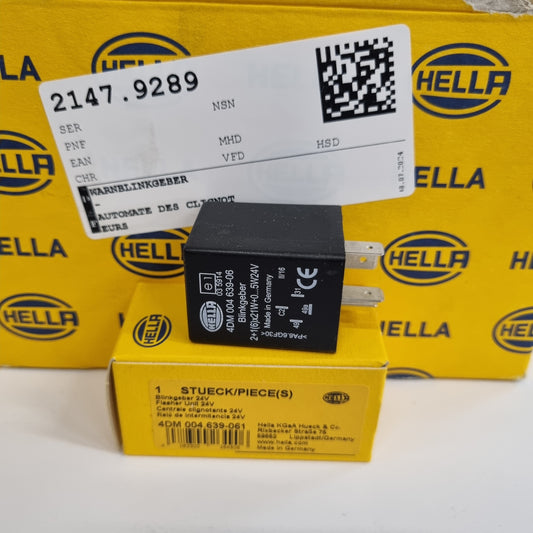

10. Hazard warning lights

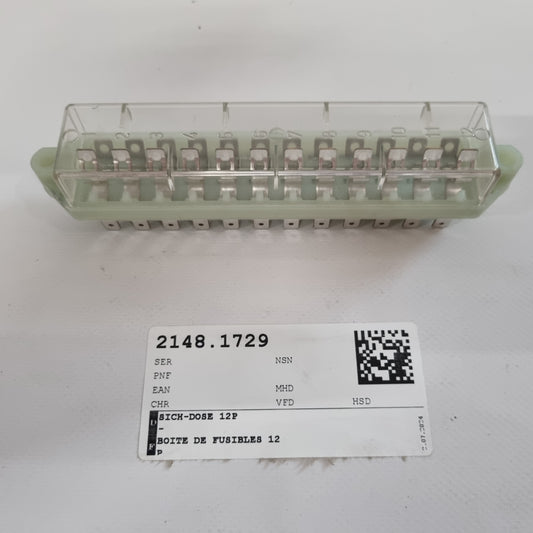

11. FUSE BOX 12P
11. FUSE BOX 12P

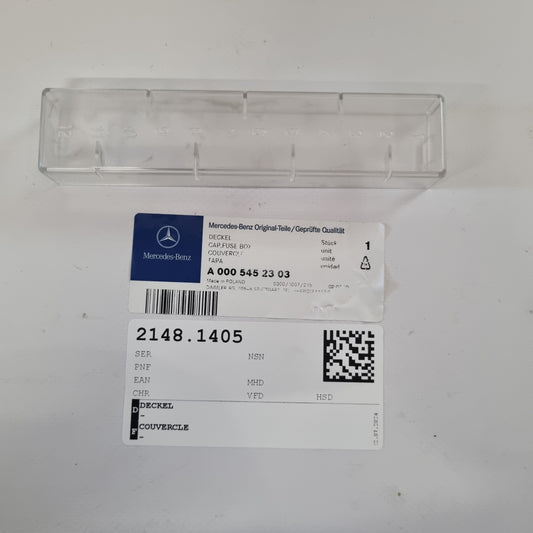

12. LID
13. CAR FUSE 8A d6X25MM
14. Phillips head self-tapping screw
15. Phillips head cylinder head screw
16. CABLE TIES 4.6X146MM SST3S

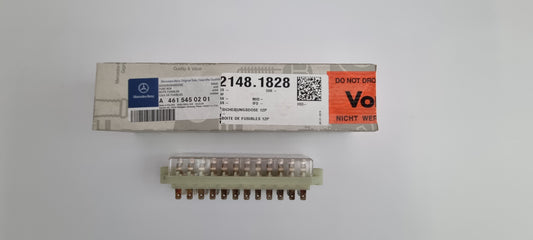

17. FUSE BOX
18. KEYBOARD SCREW M5X12 DIN 84 4.8 VZN
19. CAR FUSE 5A d6X25MM

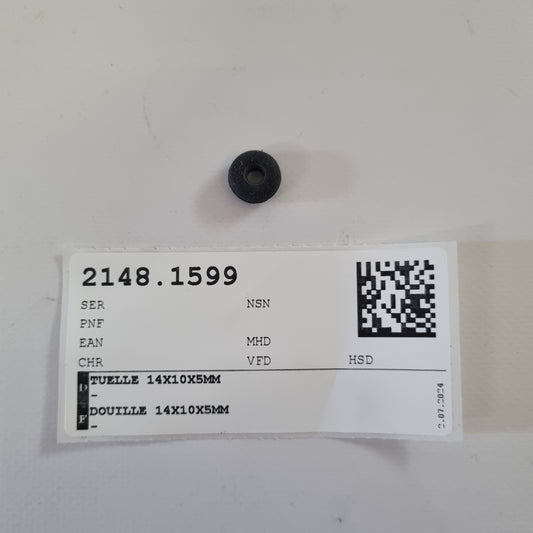

20. Grommet
21. RELAY TO FUEL PUMP
22. RELAY 24V 20A/10A 5P / CHANGER
22. HOLDER
23. Phillips head self-tapping screw

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
