Seat box for front seats

Product overview by image number (exploded view)

1. HEXAGON SCREW M10X20 DIN 933
2. SPRING WASHER B d10MM DIN 137
3. SEAT FRAME RIGHT

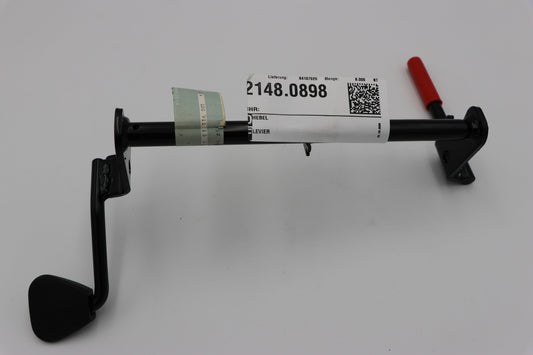

4. LEVER

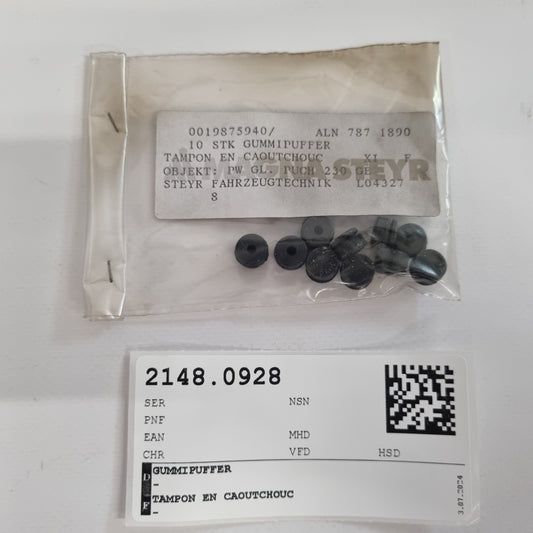

5. RUBBER BUFFER
6. COVER

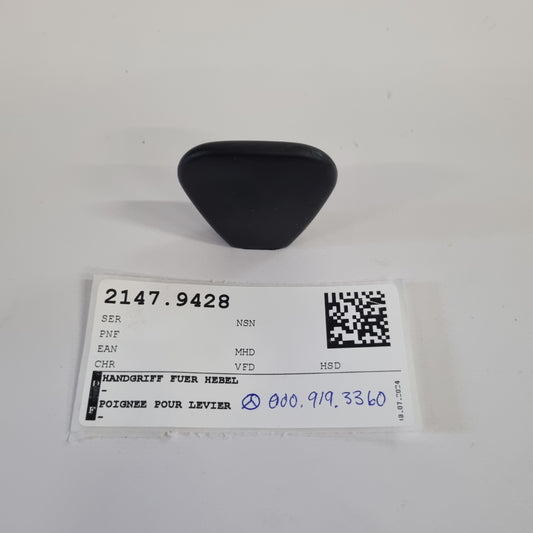

7. HANDLE FOR LEVER
8. CLAMPING SLEEVE d4X22MM DIN 1481 FD ST A2P

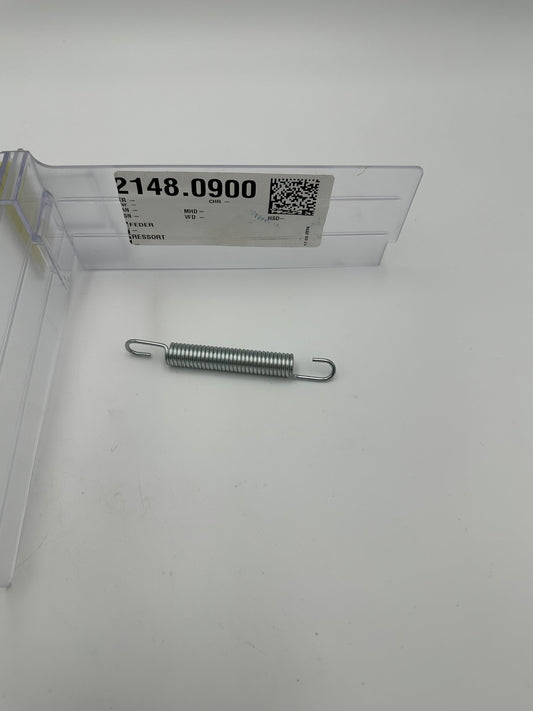

9. FEATHER
10. GUIDE RAIL

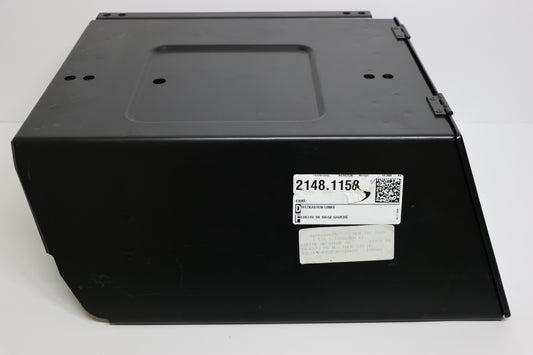

11. SEAT BOX LEFT
12. RIVET d3.2X6.1MM

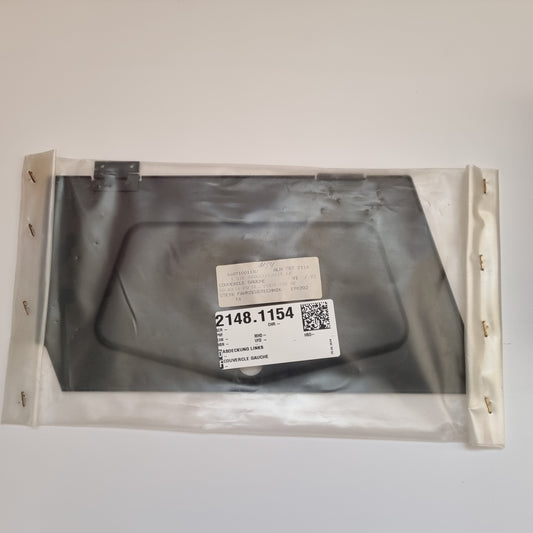

13. COVER LEFT
14. CLOSURE
15. RUBBER BUFFER
16. PLUG

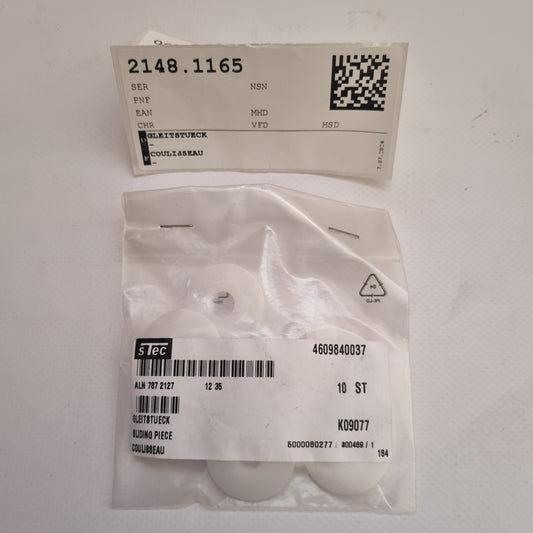

17. Sliding piece
18. SPRING RING CURVED A d8MM DIN 128
19. Cylinder head screw with hexagon socket
20. Sliding piece

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
