Bow

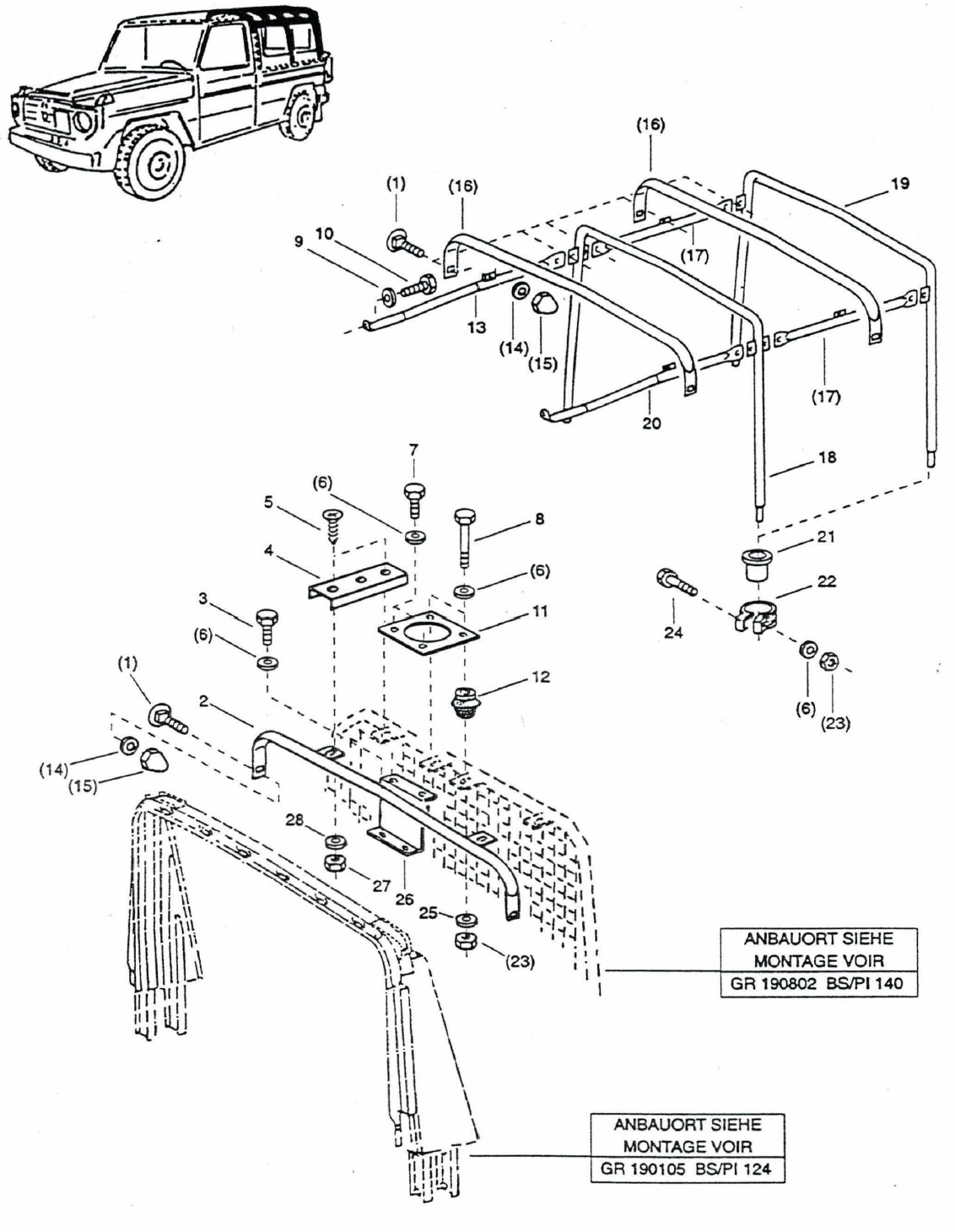

Product overview by image number (exploded view)

1. Round-head screw with square neck M8x20
2. BRIDGE
3. HEXAGON SCREW M8X16 ISO 4017
4. HOLDER
5. 90-degree countersunk head screw with Phillips head
6. WASHER A d8.4/16X1.6MM DIN 125
7. HEXAGON SCREW M8X30 ISO 4017
8. HEXAGON SCREW M8X70/22 ISO 4014
9. WASHER d10.5/18X1.6MM DIN 433
10. HEXAGON SCREW M10X40 DIN 933

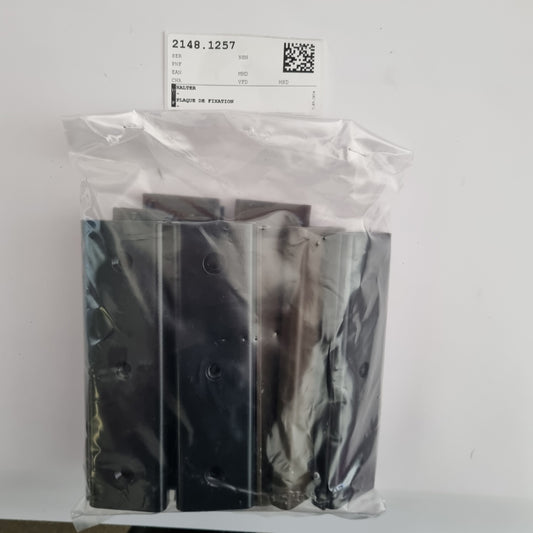

11. HOLDER
12. RUBBER MOUNTING
13. FRONT RIGHT SUPPORT

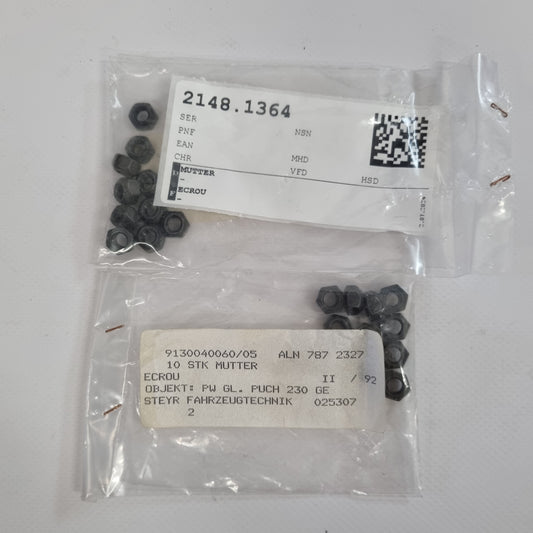

15. CAP NUT M8 HIGH FORM DIN 1587 6 A2P
16. MIDDLE BRIDGE
17. REAR SUPPORT
18. MIDDLE BRIDGE
19. REAR BROOKS
20. FRONT LEFT SUPPORT

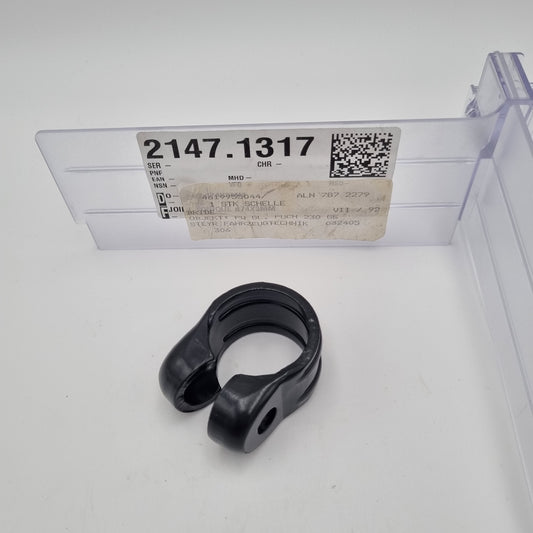

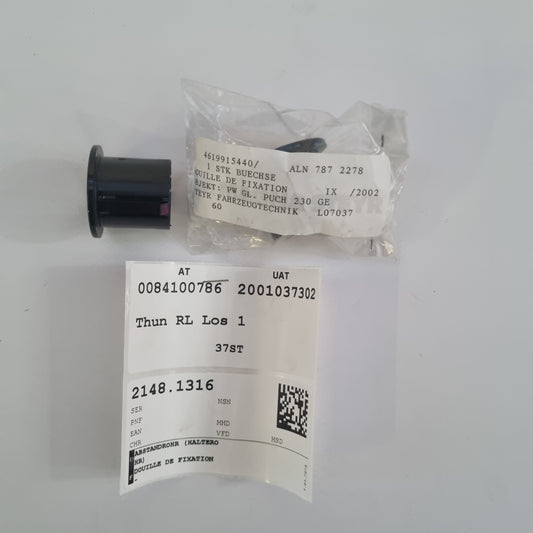

21. SPACER TUBE
22. CLAMP
23. LOCK NUT M8 ISO 7042
23. LOCK NUT M8 ISO 7042
24. HEXAGON SCREW M8X55/22 ISO 4014
25. Washer d8.4/24x2mm DIN 9021
26. HOLDER
27. MOTHER
28. Washer d6.4/18x1.6mm DIN 9021

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
