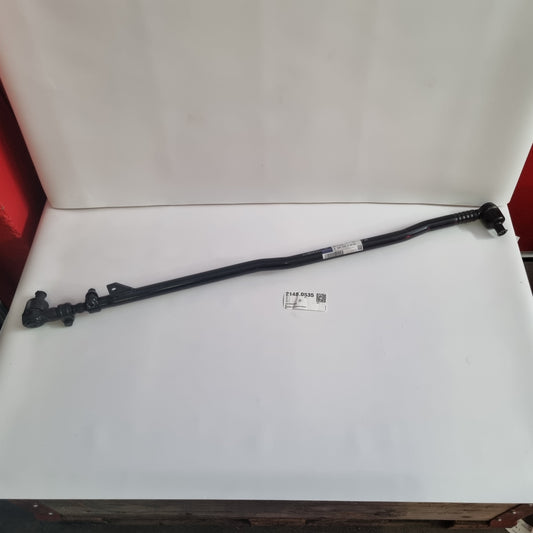

Tie rod

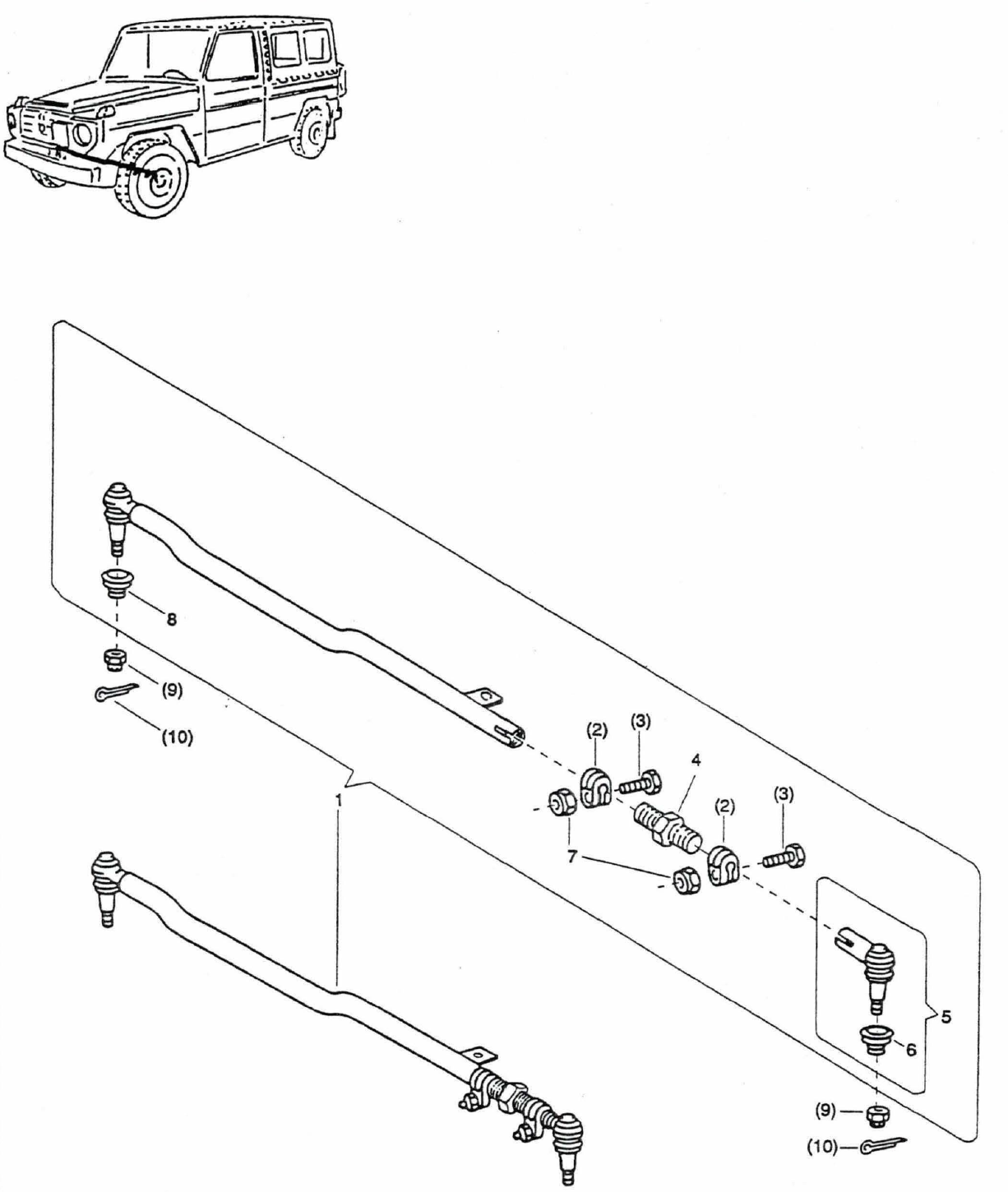

Product overview by image number (exploded view)

1. TIE ROD
2. CLAMP
3. HEXAGON SCREW WITH SECURING HOLE IN
4. ADJUSTING BOLT WITH RIGHT-HAND AND LEFT-HAND THREAD
5. JOINT PIECE
6. SLEEVE d16/37MM WITH CLAMPING RING
7. HEXAGON NUT M10X1
8. SLEEVE d16/37MM WITH CLAMPING RING
9. CROWN NUT M16X1.5 DIN 979
10. Cotter pin d4x36mm ISO 1234

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
