bumper

Product overview by image number (exploded view)

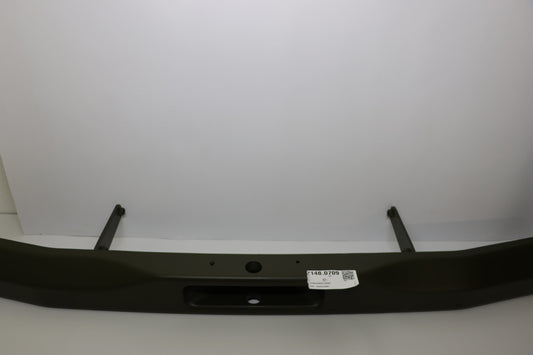

1. FRONT BUMPER
2. BOLT d32X135MM ST

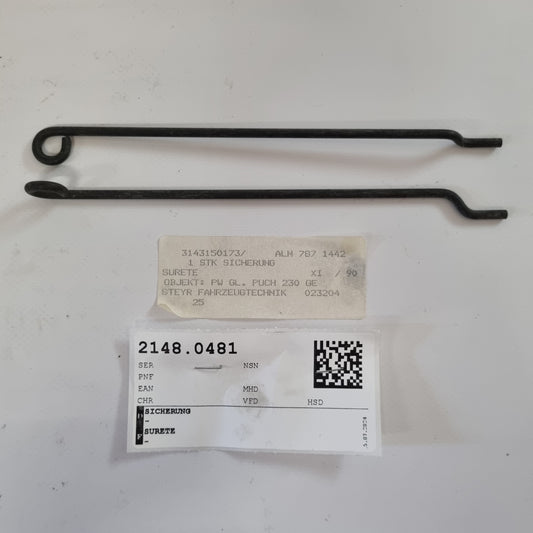

3. SECURITY

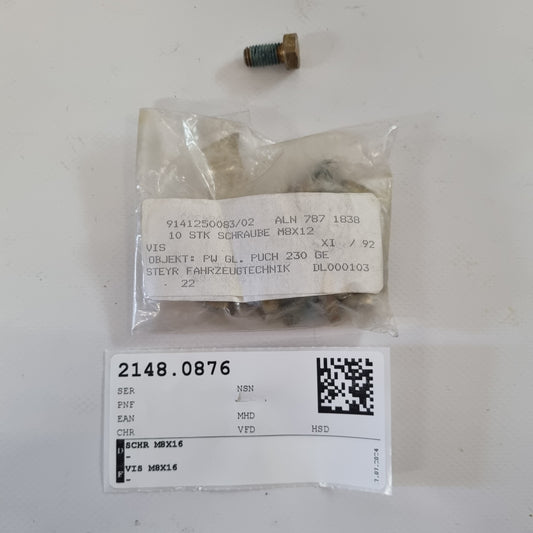

4. SCREW M8X16
5. WASHER A d13/24X2.5MM DIN 125

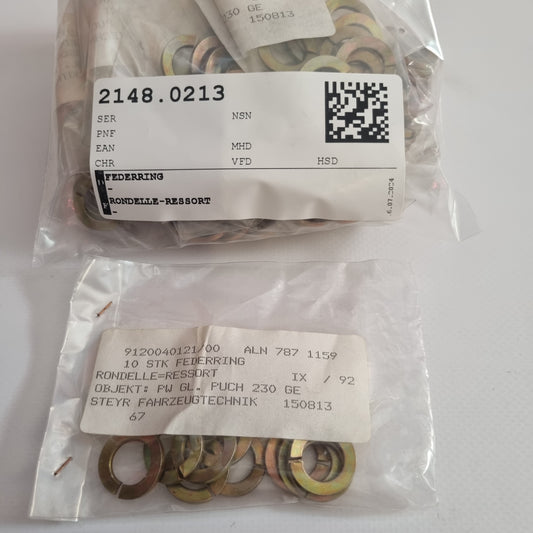

6. SPRING RING
7. HEXAGON SCREW M12X30 DIN 933
8. HEXAGON SCREW M10X30 DIN 933

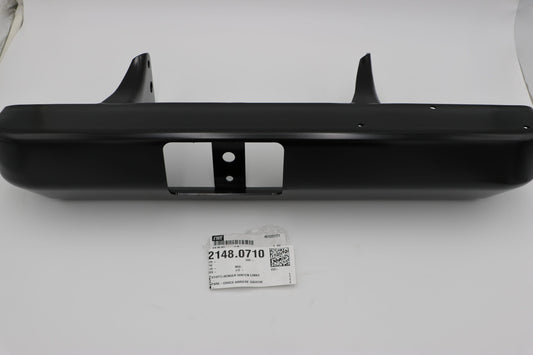

9. REAR RIGHT BUMPER
10. LOCK NUT M10 DIN 985 S=17
11. FLAT ROUND BLIND RIVET POP d6.4X12.7MM
12. Running board

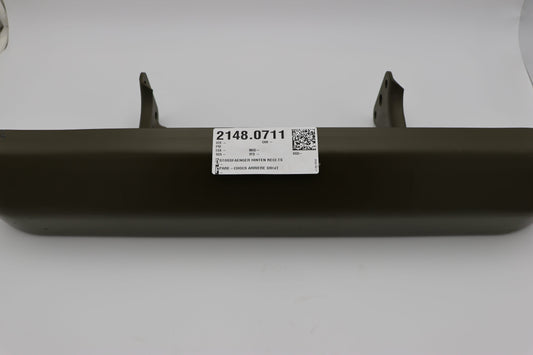

13. REAR LEFT BUMPER
14. HEXAGON SCREW M10X25 DIN 933
15. RIVET NUT

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
