Fuel lines / tank ventilation

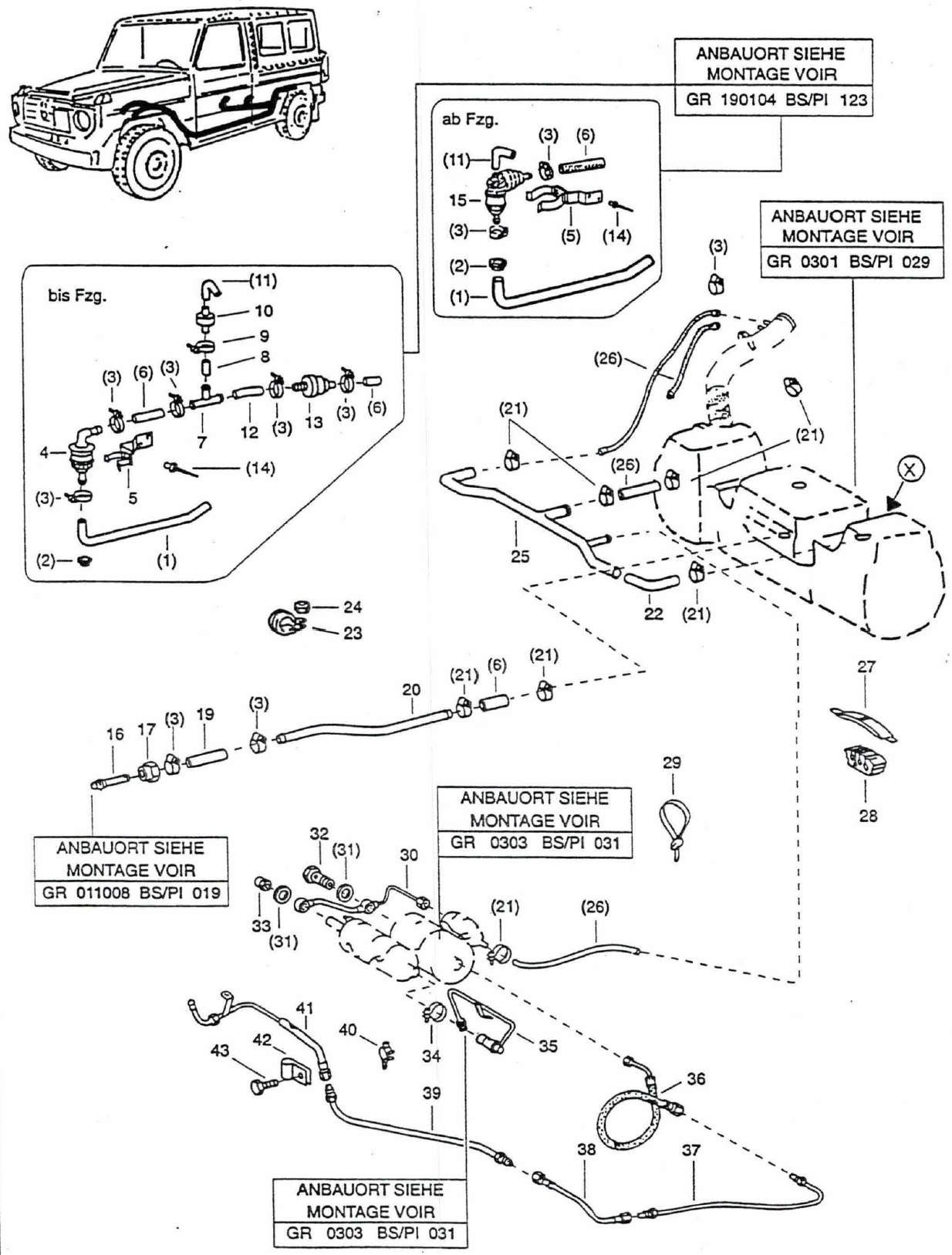

Product overview by image number (exploded view)

1. HOSE

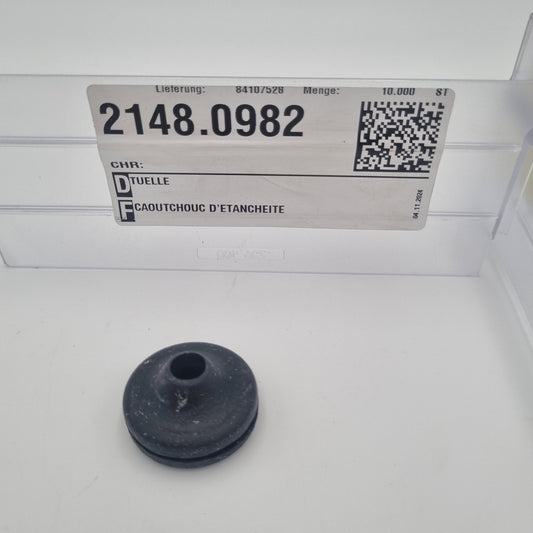

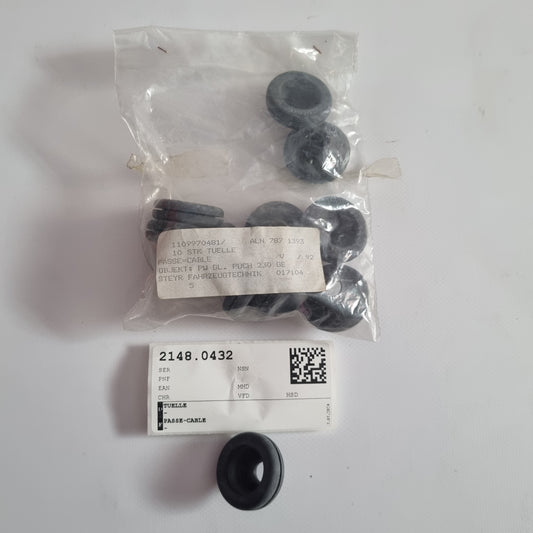

2. Grommet
2. Grommet

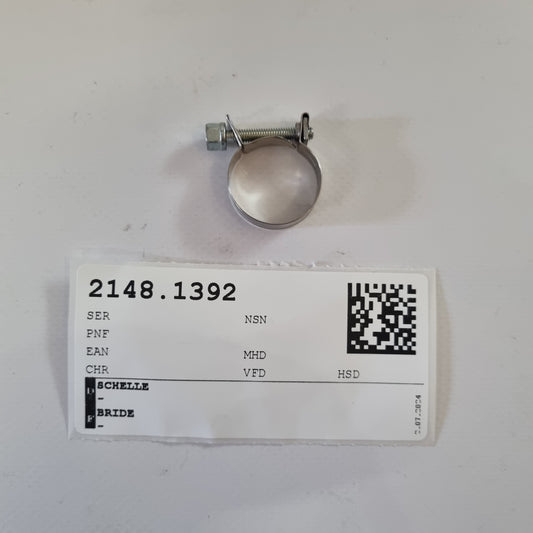

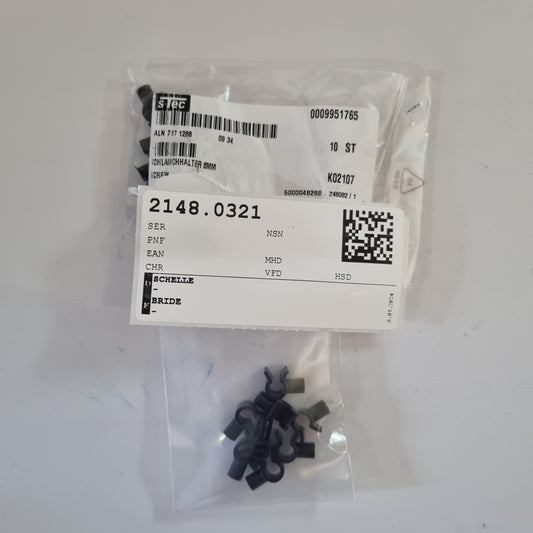

3. CLAMP
3. CLAMP A12/9 N16002-ST

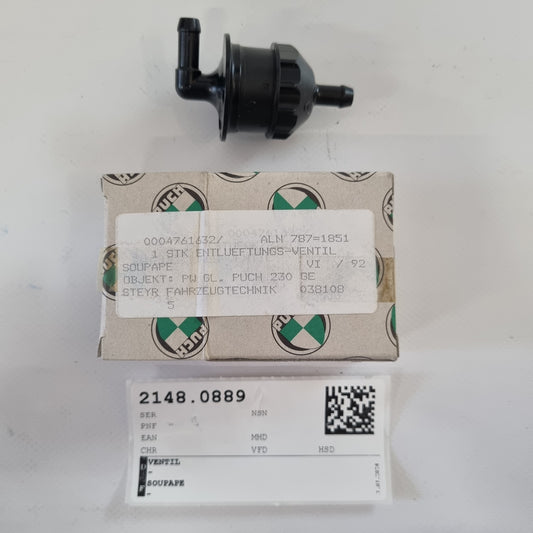

4. VALVE

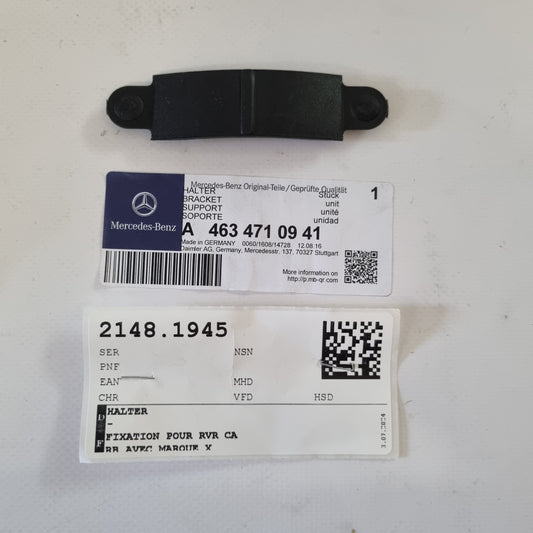

5. HOLDER
6. HOSE d7.5X3MM

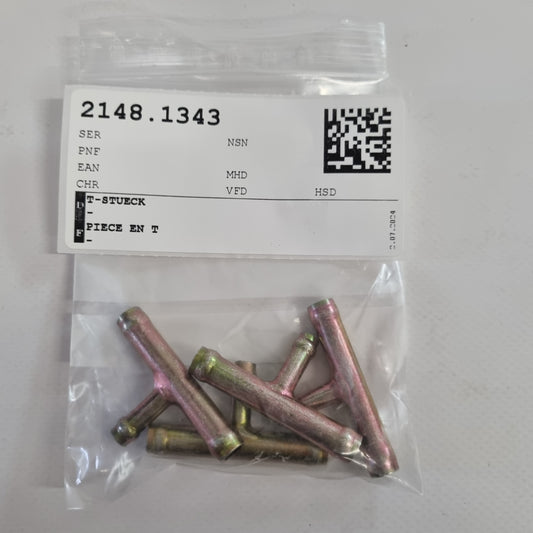

7. T-PIECE
8. HOSE 5X3X30MM

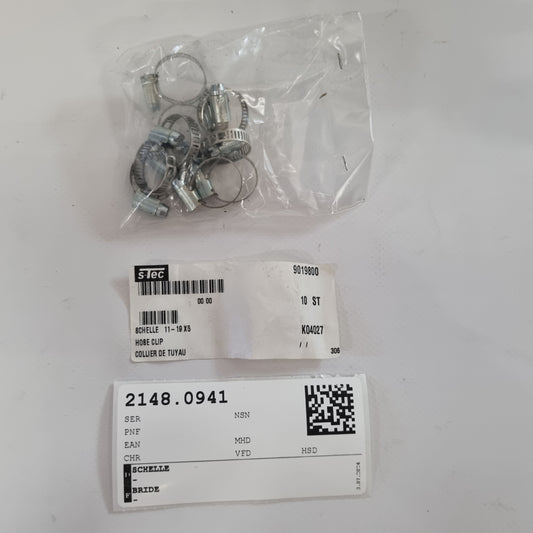

9. CLAMP A11/9-N16002-ST
10. VALVE

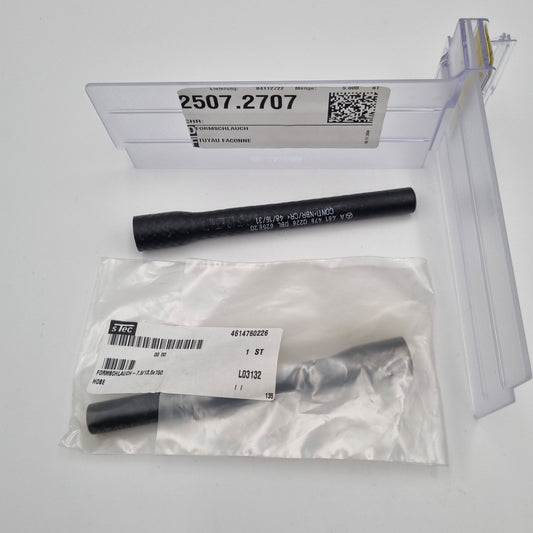

11. Molded hose
12. HOSE
13. VALVE
14. FLAT ROUND BLIND RIVETS POP d2.8X5.3MM
15. 3-WAY VALVE
16. CONNECTION PIECE
17. COLLAR NUT NW6 M14X1.5 SW 17X14MM
17. UNION NUT
19. HOSE d8X3X750MM
20. MANAGEMENT

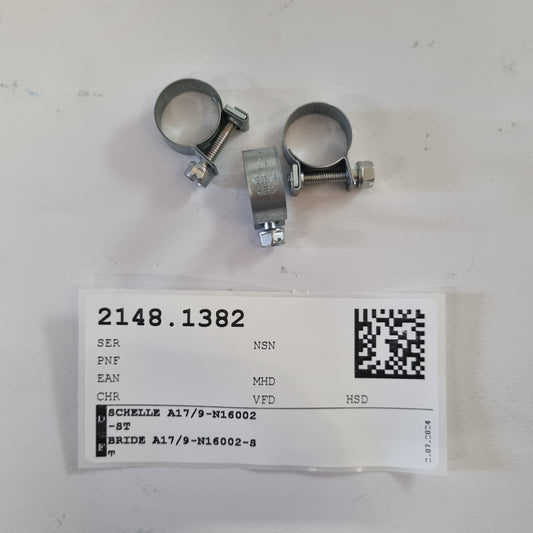

21. CLAMP A17/9-N16002-ST
22. HOSE
23. WIDE BAND HOSE CLAMP NORMA ST STAINLESS
24. HEXAGON NUT M6 ISO 4032
24. HEXAGON NUT M6 ISO 4032
25. VENTILATION
26. HOSE d12X3.5X460MM
27. FUEL TANK HOLDER
27. FUEL TANK HOLDER

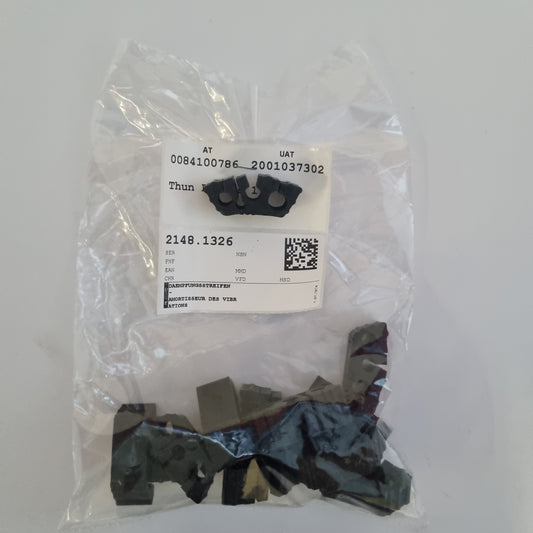

28. Damping strips
29. CABLE TIES 4.6X146MM SST3S
30. MANAGEMENT
31. SEALING RING
32. HOLLOW SCREW

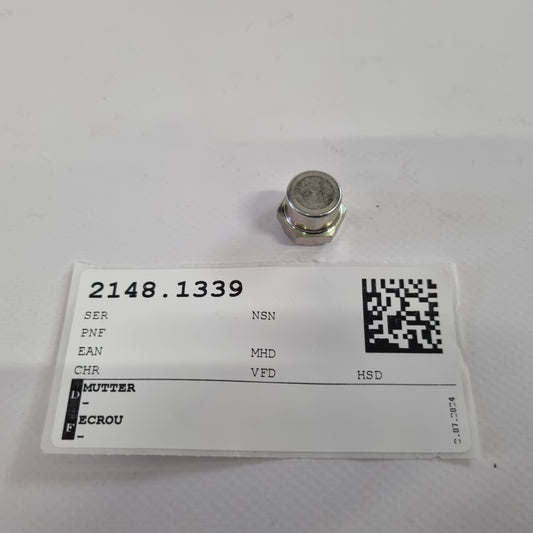

33. MOTHER

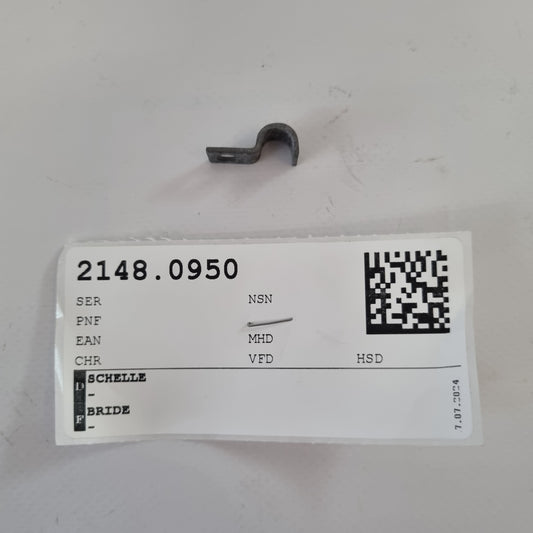

34. CLAMP
35. MANAGEMENT

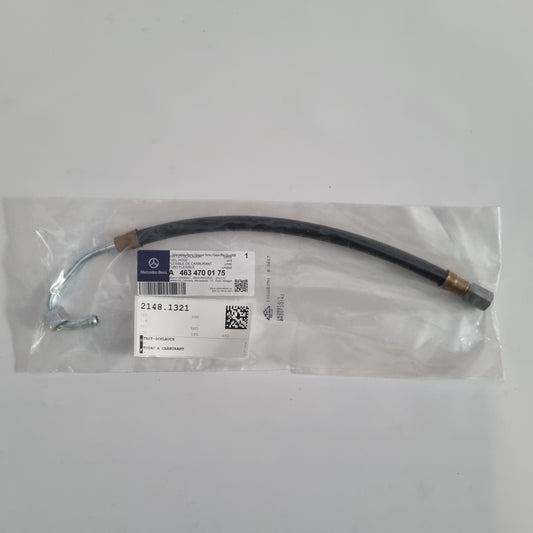

36. FUEL HOSE

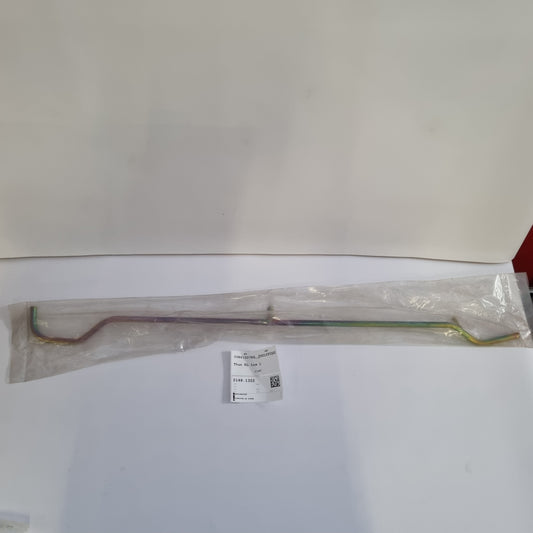

37. PIPE 580MM
38. HOSE
39. MANAGEMENT
40. CLAMP
41. FUEL HOSE
42. CLAMP
43. HEXAGON SCREW M5X12 ISO 4017
44. Molded hose

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
