Front door

Product overview by image number (exploded view)

1. DOOR PANEL LEFT
1. DOOR PLACING RIGHT

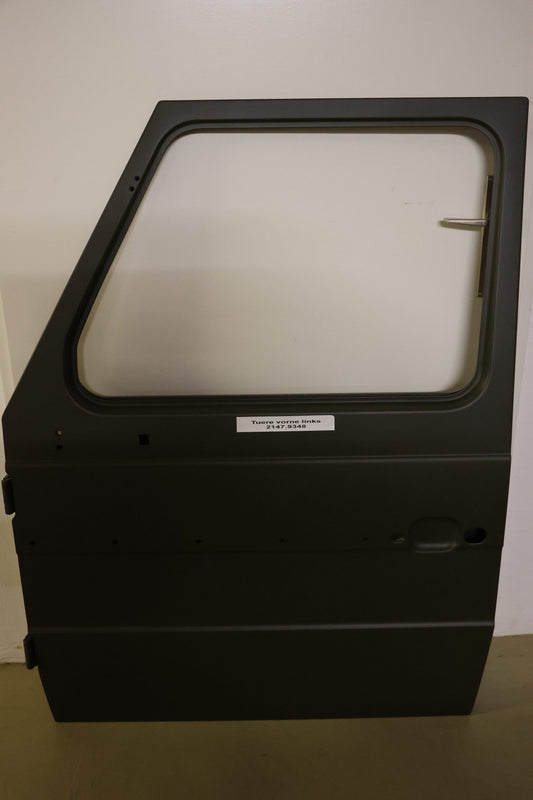

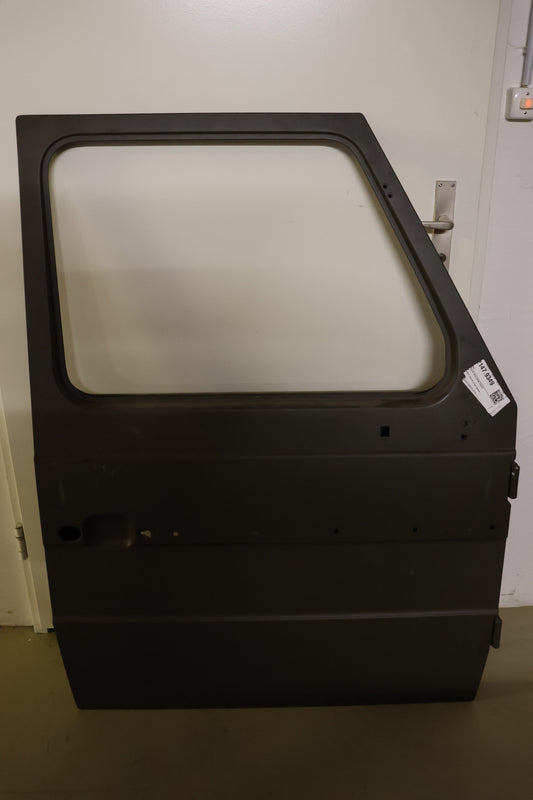

1. DOOR (RAW) FRONT LEFT
1. DOOR (RAW) FRONT RIGHT

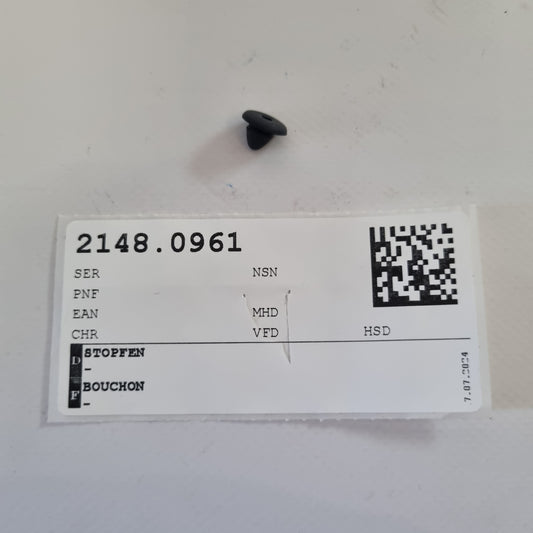

2. PLUG
3. LOCK LEFT
3. LOCK RIGHT
4. FASTENING WASHER V d6.4/11.8MM DIN 6798
5. 90-degree countersunk head screw with Phillips head
6. SCREW

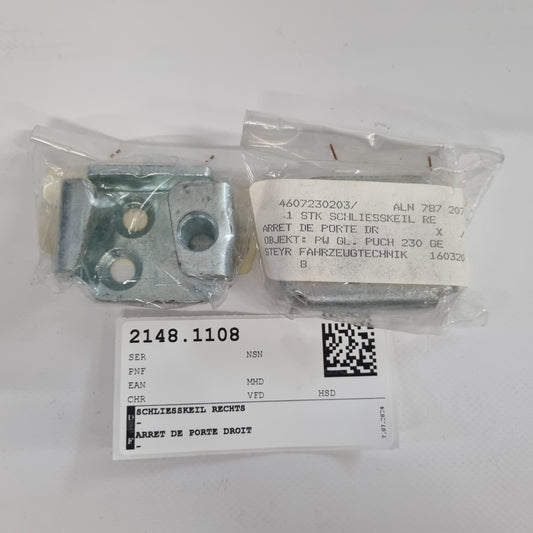

7. RIGHT LOCKING WEDGE
7. LOCKING WEDGE LEFT
8. SCREW FOR DOOR LOCK
9. SECURITY
10. FRONT LEFT PULL ROD
10. FRONT RIGHT PULL ROD
11. INTERNAL OPERATION RIGHT
11. INSIDE OPERATION LEFT
12. UNDERWRITING
13. Rosette

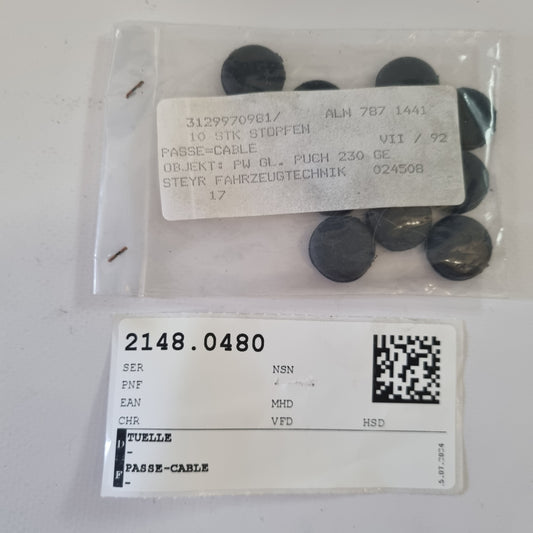

14. Grommet
15. BLACK SLIDER (DOOR SECURITY)
16. Toothed washer J d5.1/9mm DIN 6797
16. Toothed washer J d5.3/10mm DIN 6797
17. SCREW M5X25
17. LENS SCREW M5X25 (MICRO-ENCAPSULED)
18. BRACKET
18. EXPANDING RIVET

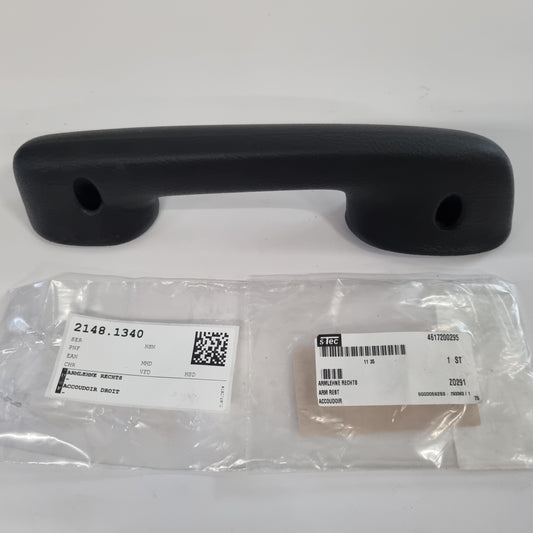

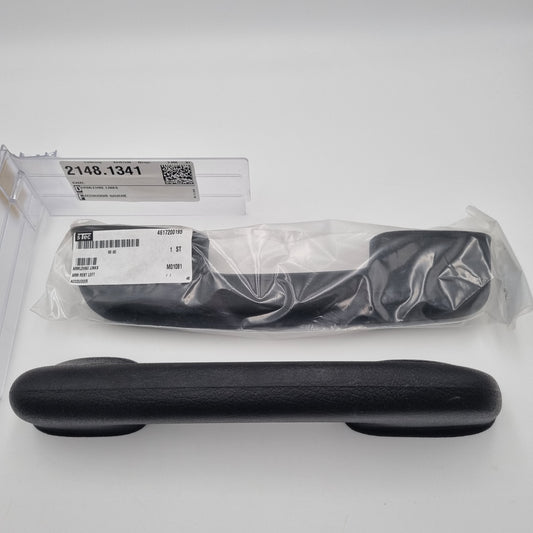

19. ARMREST RIGHT
19. ARMREST LEFT

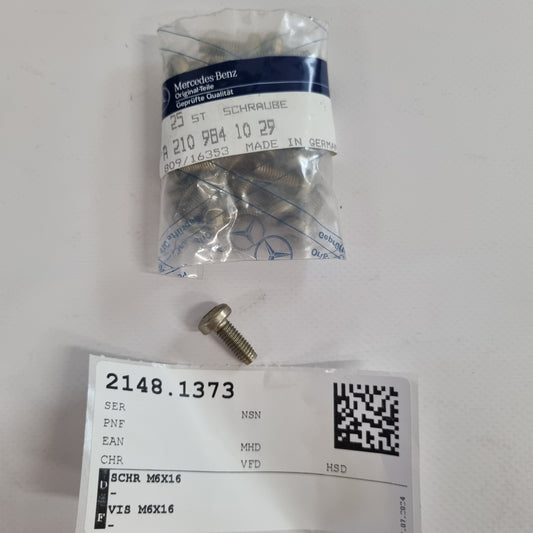

20. SCREW M6X16

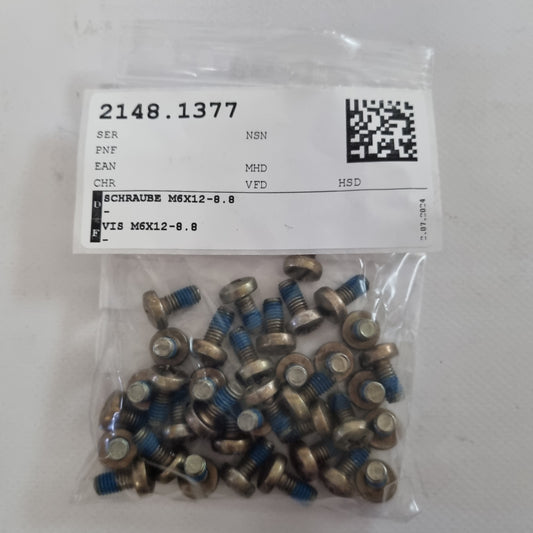

20. SCREW M6X12

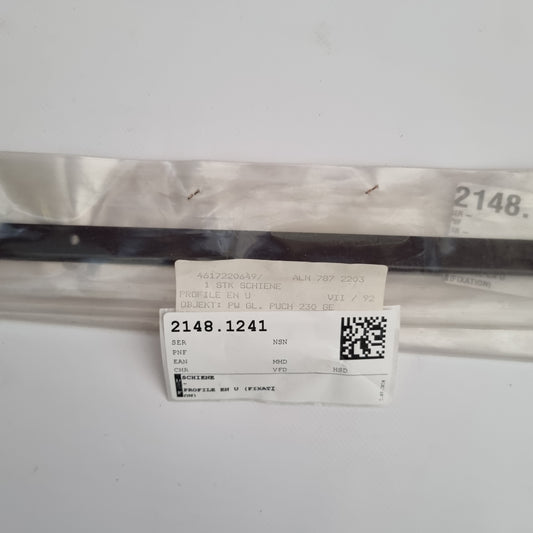

21. RAIL
22. Raised countersunk head screw 90 degrees with cross

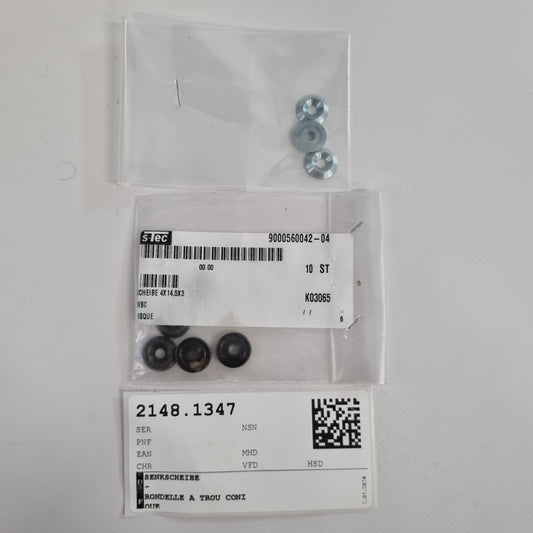

23. COUNTERSUNK WASHER
24. TRIM RIGHT
24. TRIM LEFT
25. COVER
26. SEALING
27. SEALING HOSE
28. DUEBEL
29. SEALING TAPE METER
30. UNDERWRITING
31. LOCK WASHER d6MM DIN 6799 FD ST
32. HEXAGON SCREW M8X18 DIN 933 8.8 A2P
32. HEXAGON SCREW M8X25 ISO 4017
32. HEXAGON SCREW M8X18 DIN 933 8.8 A2P

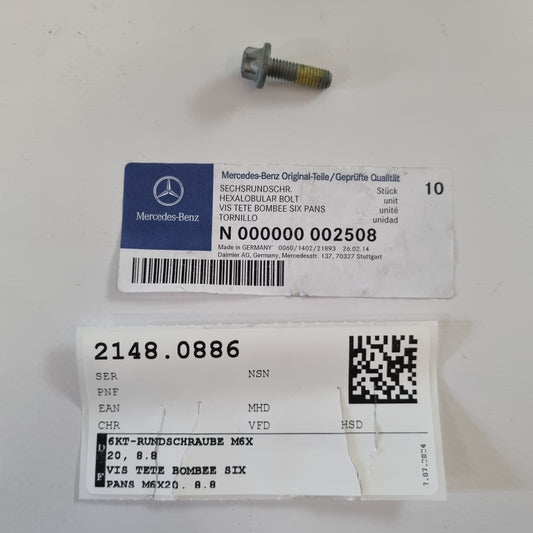

33. SCREW M6X20
34. HINGE LEFT AND RIGHT TOP
34. HINGE LEFT AND RIGHT BOTTOM

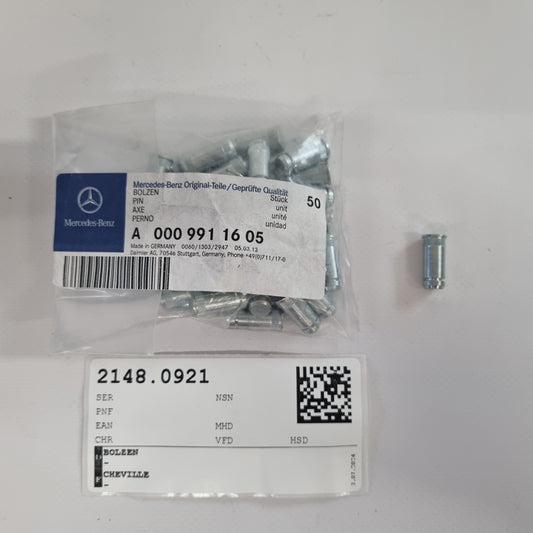

35. HINGE BOLT
36. BOLT

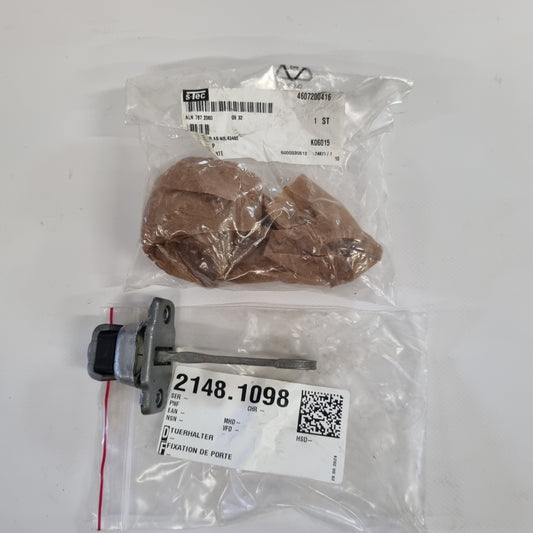

37. DOOR HOLDER
38. UNDERWRITING
39. SCREW
40. WASHER A d6.4/12X1.6MM DIN 125
41. UNDERWRITING
42. DOOR HANDLE (SPECIFY LOCKING NO.)
42. DOOR HANDLE (LOCKING HZ1201)
43. IGNITION KEY (LOCK HZ1201)
44. SEAL RIGHT
44. SEAL LEFT

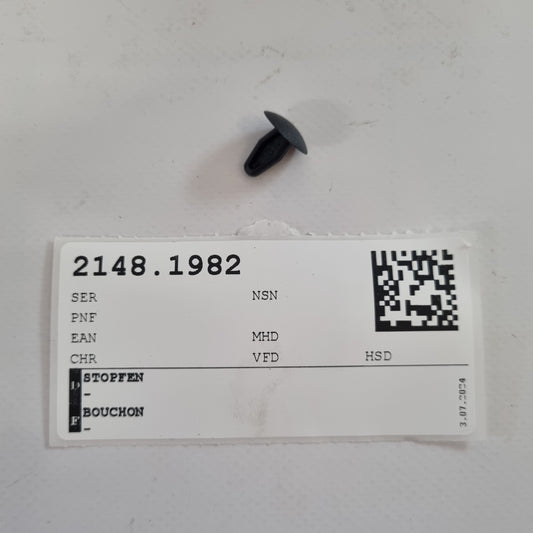

45. PLUG

Do you need help?

Check the exploded view to see which spare part you need.

You can find the corresponding number in the product overview.

If you're unsure or can't find the right spare part, don't hesitate to contact us!
('Contact' > 'Contact us')

The spare parts come from the former stocks of the Swiss Army.
Most of the parts are original Mercedes or Bosch items that were manufactured for the Puch 230 GE.
